Best quality Ceramic silver NSPV25 Fuse 25A for NSPV35 fuse holder 32A DC 1000V

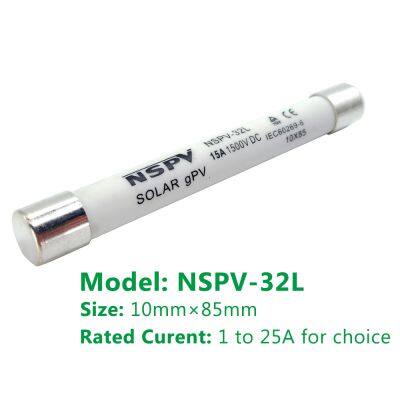

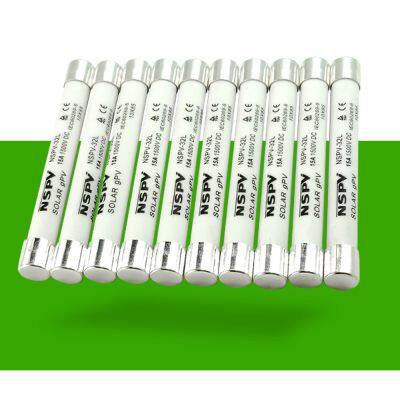

The NSPV-32L Solar DC Fuse is a high-performance protection component specifically designed for use in photovoltaic (PV) power generation systems. Manufactured by NSPV (Newsun PV Technology), this fuse is optimized to safeguard solar DC circuits against overcurrent conditions, preventing damage to critical components such as PV modules, combiner boxes, solar inverters, and DC cables.

The “32L” designation refers to its physical size and compatibility with standardized PV fuse holders and fuse connectors, allowing for easy integration into new systems or retrofits. The fuse is engineered for continuous use in harsh outdoor environments, providing long-term stability and reliable operation under demanding solar application conditions.

The NSPV-32L fuse is designed with a wide range of current ratings, making it suitable for 1 A to 50 A applications. Typical electrical parameters include:

• Rated Voltage (DC): 1000 V DC or 1500 V DC (depending on model variant)

• Current Ratings: 1 A, 2 A, 3 A, 4 A, 5 A, 6 A, 8 A, 10 A, 12 A, 15 A, 20 A, 25 A, 30 A, 32 A, 40 A, and up to 50 A

• Breaking Capacity: ≥30 kA at rated voltage

• Time-Current Characteristics: gPV (full-range protection for PV strings and arrays)

The gPV characteristic ensures the fuse will interrupt both overload currents and short-circuit currents throughout the entire range of operating conditions in PV installations.

The NSPV-32L fuse is constructed from high-quality, imported materials to ensure maximum safety, durability, and conductivity.

• Fuse Element: Precision-engineered silver or silver-alloy strip, calibrated for accurate melting points to provide precise protection without nuisance tripping.

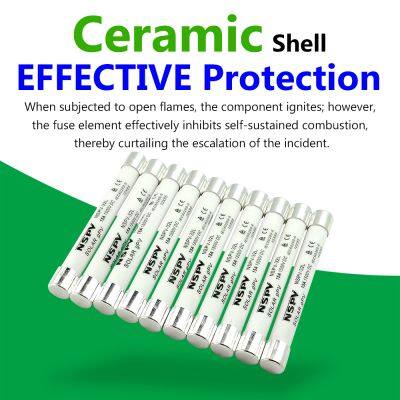

• Fuse Body: Cylindrical ceramic tube, high-strength and flame-retardant, offering superior arc-quenching capability.

• End Caps: Nickel-plated copper for optimal conductivity and corrosion resistance.

• Filler Material: High-purity quartz sand for arc suppression and controlled fuse operation during fault conditions.

This rugged construction allows the NSPV-32L to withstand extreme temperature variations, high UV exposure, and continuous electrical stress typical of solar PV applications.

The NSPV-32L fuse is specifically designed for use with PV fuse connectors and inline fuse holders, ensuring safe and quick replacement in the field.

• Fuse connectors integrate the fuse element into a waterproof, UV-resistant connector housing.

• The NSPV-32L can be inserted into MC4-compatible fuse connectors, enabling easy in-line installation directly between PV module strings.

• These connectors provide IP67 protection when mated, ensuring reliable operation in outdoor conditions without additional enclosures.

• Fuse connectors are ideal for string-level protection, especially when PV modules are connected in series and individual strings require dedicated overcurrent protection.

• Panel-mount or inline fuse holders designed for 10×38 mm PV fuses (the standard size for NSPV-32L) can be used in combiner boxes, junction boxes, or inverter input panels.

• Fuse holders allow quick, tool-free fuse replacement and secure locking to prevent accidental removal.

• Indoor and outdoor types are available, with high dielectric strength and insulation to handle 1000 V or 1500 V DC systems.

• Fuse holders can be mounted on DIN rails for organized system layout.




The primary role of the NSPV-32L fuse in a solar PV system is to protect against reverse current and short circuits.

In multi-string PV arrays, if one string becomes shaded or faulty, reverse current can flow from the healthy strings into the faulted one. The NSPV-32L opens the circuit, preventing overheating and possible fire hazards.

In combiner boxes, multiple PV strings are brought together into a single output. Installing NSPV-32L fuses on each string input ensures localized fault isolation, allowing the rest of the system to operate normally while the affected string remains safely disconnected.

The fuse also protects the DC side of the inverter from excessive currents caused by wiring faults or component failures upstream.

1. Wide Current Range (1 A–50 A): One fuse family covers low-current protection for sensitive circuits and higher-current protection for large PV arrays.

2. High Voltage Rating: Designed for modern high-voltage PV systems (up to 1500 V DC).

3. gPV Curve Compliance: Full-range PV protection meeting IEC 60269-6 and UL 2579 standards.

4. Compact Standard Size: Compatible with widely available 10×38 mm PV fuse holders and connectors.

5. Outdoor Durability: Operates reliably in high-temperature, high-UV, and high-humidity conditions.

6. Easy Replacement: Quick field maintenance without complex tools.

The NSPV-32L meets or exceeds the following international standards:

• IEC 60269-6 – Low-voltage fuses for use in photovoltaic systems

• UL 2579 – DC fuses for photovoltaic systems

• RoHS Compliance – Environmentally safe materials free from hazardous substances

• TÜV Certification – Verified for PV application safety and performance

These certifications ensure global acceptability, allowing the NSPV-32L to be deployed in PV systems worldwide.

• Select the correct current rating based on the PV string short-circuit current (Isc) multiplied by the safety factor (typically 1.25 × Isc).

• Always match the voltage rating of the fuse to or above the system’s maximum open-circuit voltage (Voc).

• When used in fuse connectors, ensure both ends are properly mated and locked for IP67 sealing.

• Replace blown fuses only with the same NSPV-32L model and rating to maintain safety and compliance.

• De-energize the circuit before fuse replacement to avoid electric shock or arc flash.

The NSPV-32L Solar DC Fuse is a robust, versatile, and safety-certified protective device for modern photovoltaic installations. Whether installed in fuse connectors for direct string protection or fuse holders within combiner boxes and inverter inputs, it delivers precise overcurrent protection from 1 A to 50 A.

By integrating the NSPV-32L into your PV system design, you ensure enhanced reliability, compliance with global standards, and peace of mind for both installers and system owners. Its durable construction, broad compatibility, and field-replaceable design make it a preferred choice for professional solar installers seeking dependable and long-lasting DC circuit protection.
