| Product Specifications | |||||||||

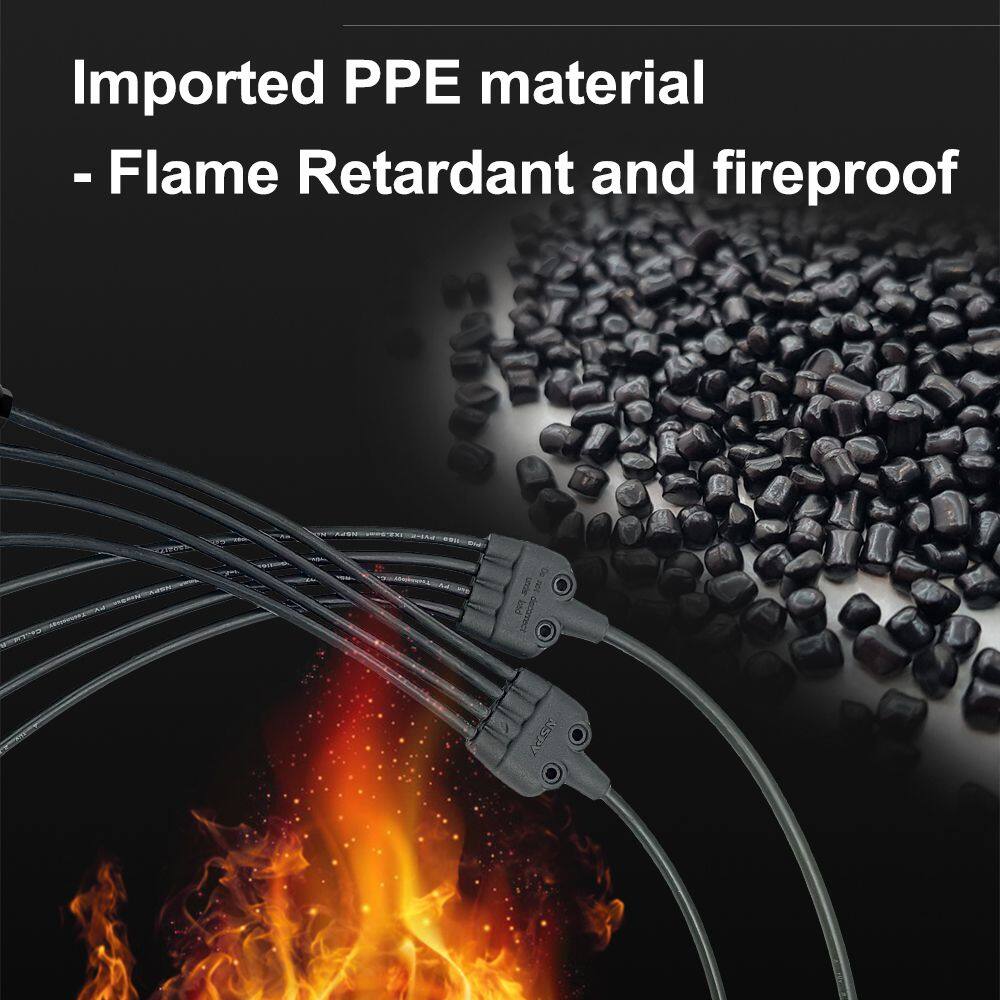

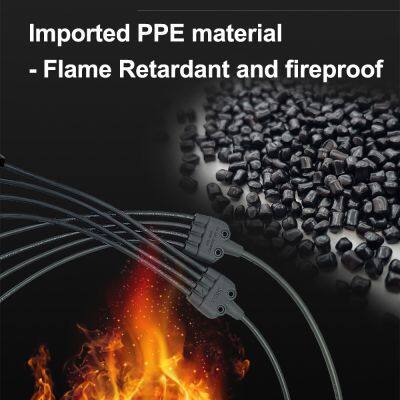

| Insulation material | PPE/TPE/PA | Safety degree | II | ||||||
| Rated current | Max.100A | Flame class | UL94-V0 | ||||||
| Rated voltage | 1500VDC | Ambient temperature range | -40ºC…+85ºC(IEC) | ||||||
| Test voltage | 8kV(50Hz,Imin) | Suitable cable cross sections | 1.5~16mm2 /16~6AWG | ||||||
| Contact resistance | ≤0.25mΩ | Connecting system | Crimp connection | ||||||
| Contact material | Copper,Tin plated | Nut cap locking force | 0.8-1.0Nm | ||||||
| Degree of protection | IP68(1m,1H) | Upper limiting temperature | 110ºC(IEC) | ||||||
| Overvoltage category/Pollution degree | CATIII/2 | Regulatory approval | TUV/CE(IEC62852:2014) | ||||||

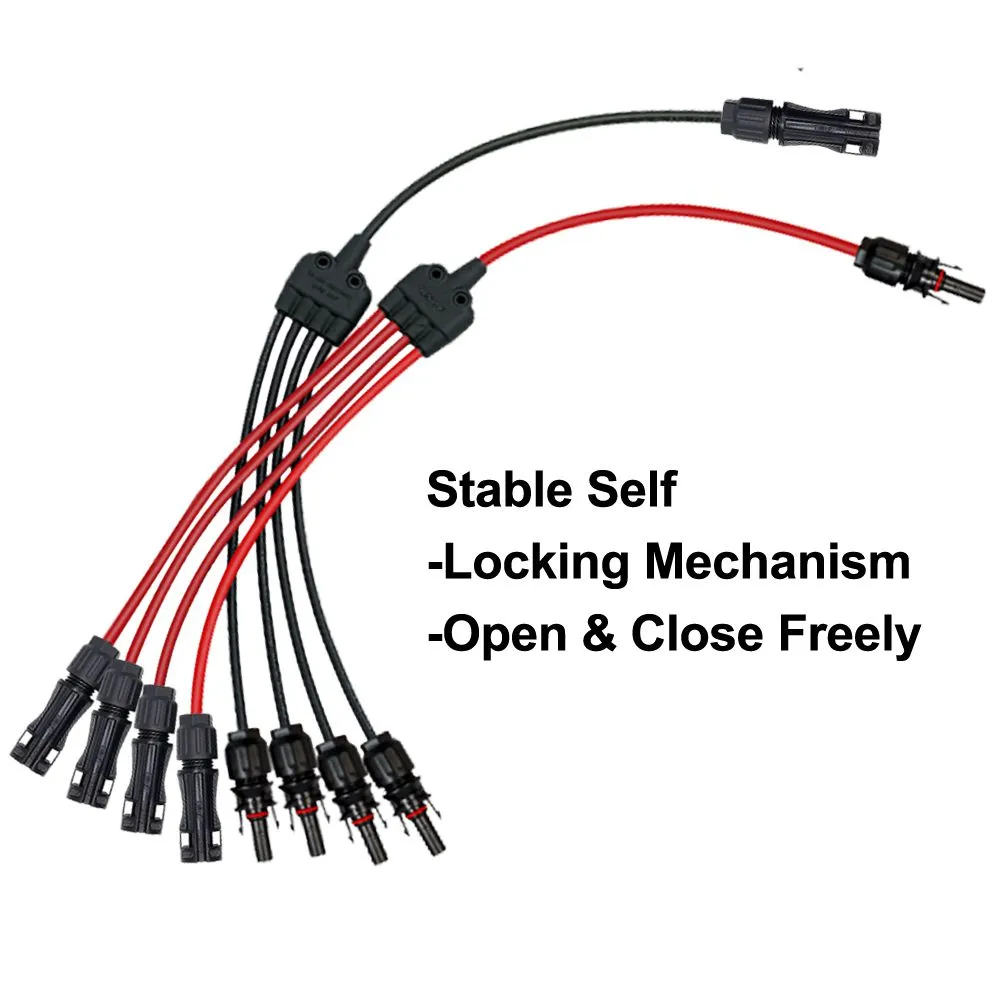

NSPV Solar Y Cable Harness 4-in-1 DC 1500V: Features, Specifications, Advantages, Applications, and FAQ
Features

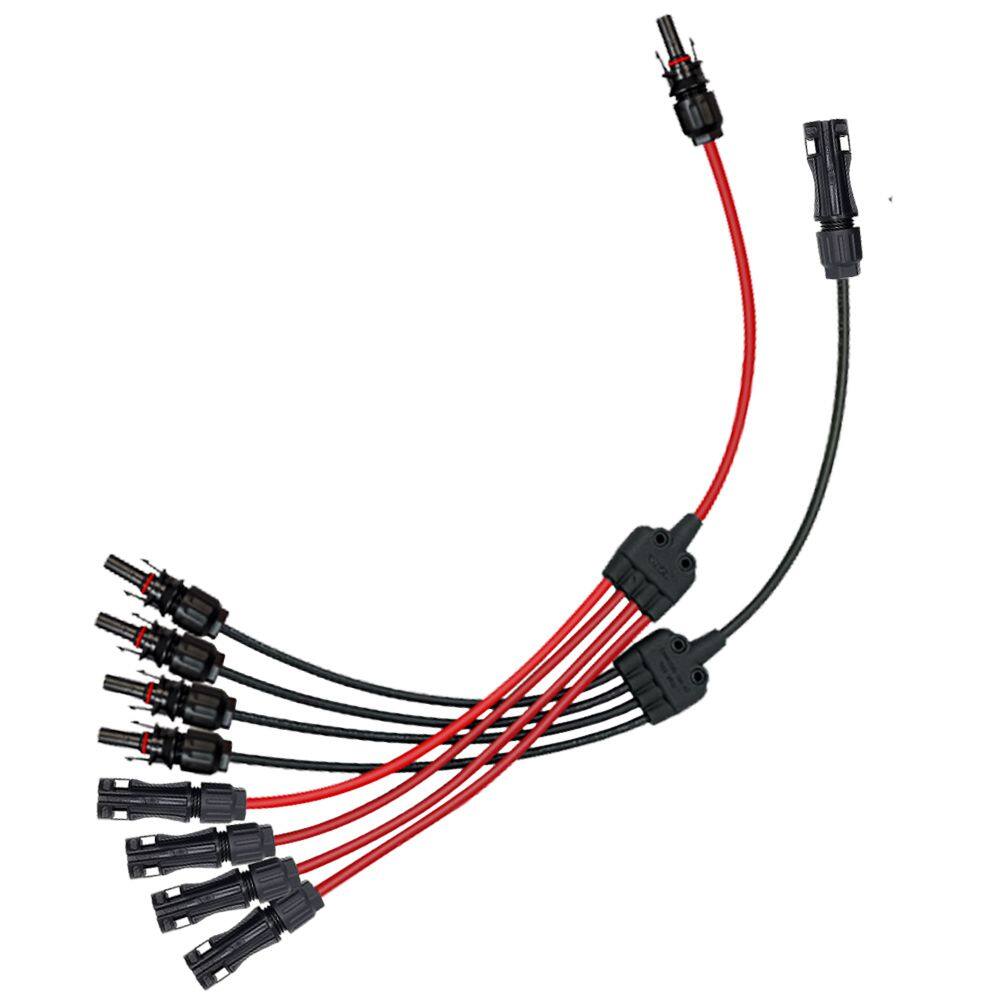

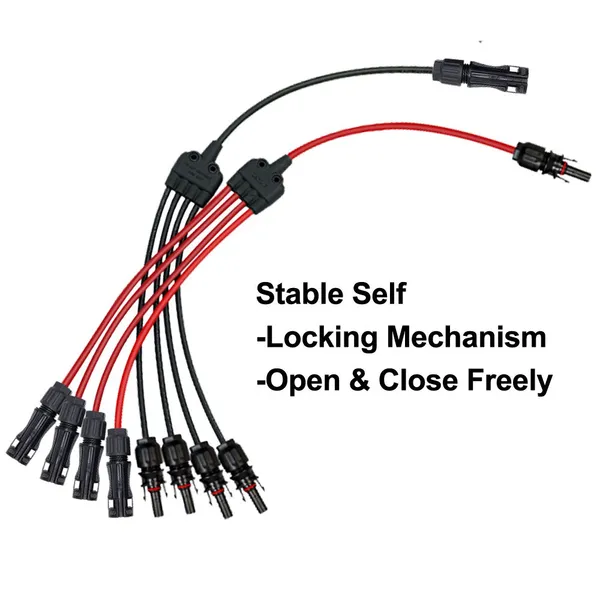

The NSPV Solar Y Cable Harness 4-in-1 DC 1500V is a premium-quality electrical component designed for efficient and reliable solar power transmission. This harness is engineered to combine four individual DC cables into a single, streamlined unit, simplifying installation and reducing clutter in solar photovoltaic (PV) systems. It supports a maximum rated current of 65A (6AWG), ensuring robust power handling capabilities for various solar setups. The harness is rated IP68, providing excellent protection against dust and water ingress, making it suitable for both indoor and outdoor installations. Constructed with tinned copper conductors, it offers superior conductivity and corrosion resistance, enhancing longevity and performance.
Specifications
Voltage Rating: DC 1500V
Rated Current: Max 65A (6AWG)
Protection Level: IP68
Conductor Material: Tinned Copper
Main Cable Cross Section: 4~16mm² / 12~6AWG
Branch Tap Cable Cross Section: 2.5~6mm² / 14~10AWG
Insulation Material: XLPE (Cross-Linked Polyethylene)
Advantages
The NSPV Solar Y Cable Harness offers several advantages over traditional cabling solutions. Its 4-in-1 design reduces the number of connections required, minimizing potential points of failure and simplifying maintenance. The IP68 rating ensures reliable performance in harsh environmental conditions, protecting against moisture and dust. The use of tinned copper conductors enhances conductivity and prevents corrosion, extending the lifespan of the harness. Additionally, the XLPE insulation material provides excellent thermal stability and resistance to abrasion, ensuring safe and efficient power transmission.
Application
This cable harness is ideal for a wide range of solar PV applications, including residential, commercial, and industrial solar installations. It is particularly suited for large-scale solar farms where efficient power transmission and reliable performance are critical. The harness can be used to connect solar panels to inverters, combiner boxes, or other electrical components within the solar system, facilitating seamless integration and optimizing energy production.
NewSun PV Technology Co., Ltd(NSPV) is a company with modernization management, which provide key one-step solution with design, research and development, mass production and sales. The project of our company is divided into two major parts: Firstly, the design, integration, installation and maintenance of PV solar power station, as well as photovoltaic engineering procurement and construction(EPC). Secondly, the development, production and sales of components and parts for PV solar system.
Our products include photovoltaic system connection, system control, system protection, system optimi-zation, etc., which are in line with TUV, CE and other relevant standards. The field involves photovoltaic system application, wind and solar energy complementary, micro-grid integration and others. " Exploration and innovation,quality,honesty and pragmatism , win-win cooperation, social responsibility " is the consistent spirit for NSPV people .
Offer high quality, economical cost, safe solution and reliable technology with optimization in energy conservation and environmental protection is the solid goal for photovoltaic component manufacturers and system installers include NSPV .
We will continuously make contribution to " Green energy" and " Environmental protection" for establishing humans better tomorrow.
Q: Can this cable harness be customized according to specific requirements?
A: Yes, NSPV offers OEM and ODM services, allowing customers to customize the cable harness according to their specific needs, including cable length, connector type, and branding.
Q: What is the maximum operating temperature of this cable harness?
A: The XLPE insulation material used in this harness can withstand high temperatures, typically up to 90°C, ensuring reliable performance even in hot climates.
Q: Is this cable harness compatible with all types of solar panels?
A: The NSPV Solar Y Cable Harness is designed to be compatible with most standard solar panels, but it is always recommended to verify compatibility with your specific panel model before installation.
Q: How does the IP68 rating benefit the cable harness?
A: The IP68 rating ensures that the cable harness is completely dust-tight and can withstand immersion in water up to a certain depth, making it suitable for outdoor installations in various weather conditions.
Q: What is the warranty period for this cable harness?
A: NSPV offers a standard warranty period for its products, which may vary depending on the region and specific product model. Please refer to the product documentation or contact NSPV directly for detailed warranty information.
