Solar DC 1500V 4mm2 Copper Tinned Cable 12AWG Wiring

The NSPV Solar 4mm² DC Cable Copper Tinned 12AWG is a premium-grade photovoltaic (PV) cable engineered for long-term use in modern solar power systems. Designed to withstand harsh outdoor conditions, this cable ensures reliable power transmission between solar panels, inverters, combiner boxes, and balance-of-system (BOS) components. With TÜV Rheinland certification for DC 1500V systems, it fully complies with the latest European and international standards, offering installers, EPC contractors, and solar plant operators the assurance of durability, safety, and superior performance.

In today’s solar industry, as photovoltaic systems migrate from 1000V DC to 1500V DC architectures to improve efficiency and reduce balance-of-system costs, the quality of cabling becomes increasingly critical. The NSPV 4mm² solar cable is optimized for this requirement, providing low resistance, flame retardancy, UV stability, and extreme temperature tolerance, all while maintaining excellent flexibility for ease of installation.

1. Conductor Material:

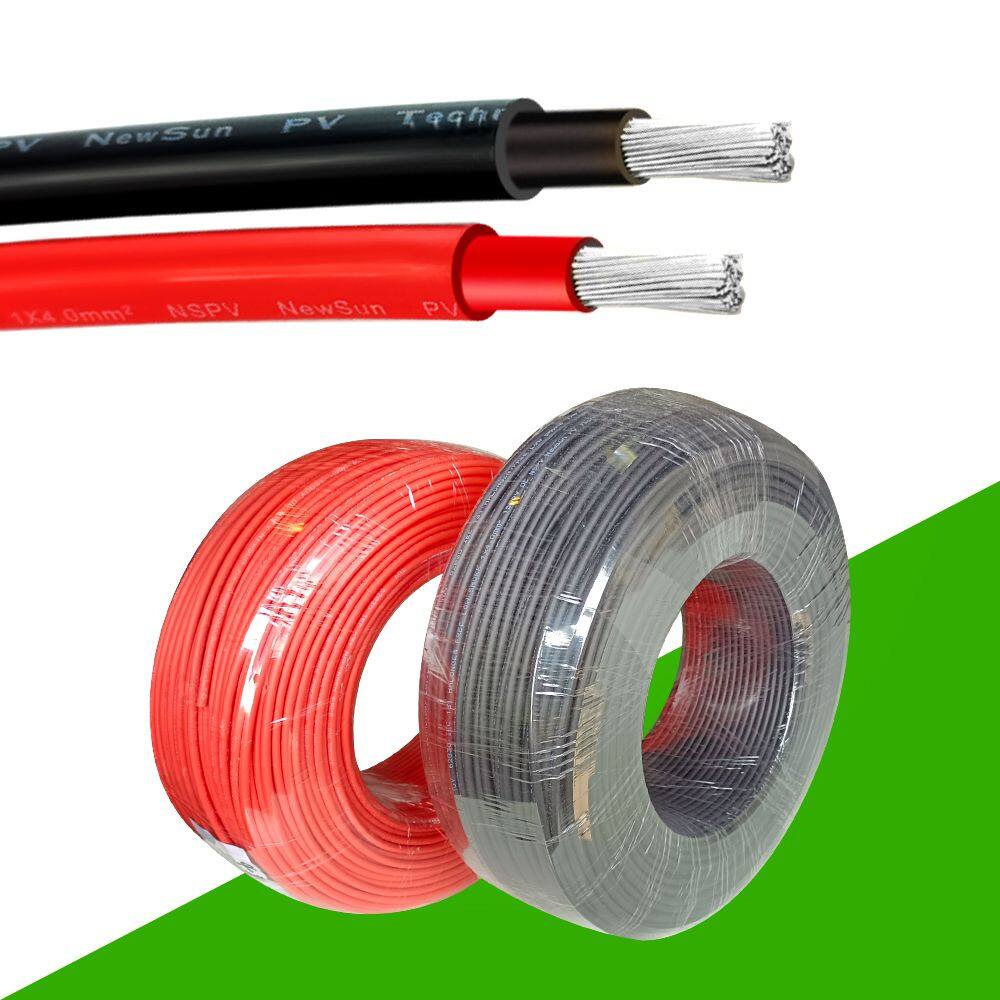

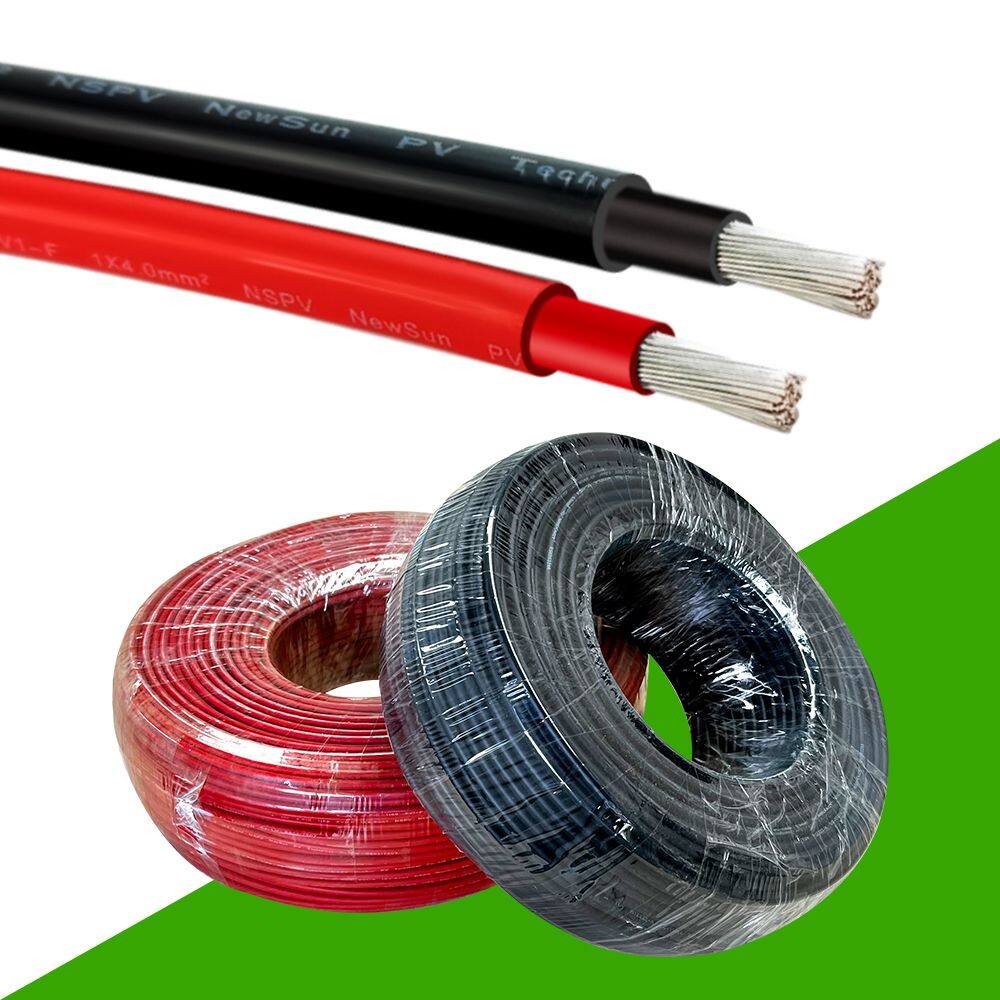

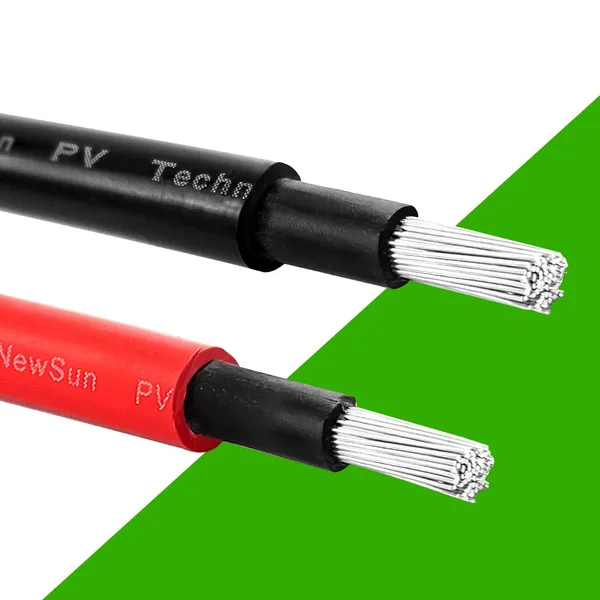

• Tinned copper conductor for superior conductivity and enhanced corrosion resistance.

• The tin coating prevents oxidation of copper in humid or saline environments, extending the service life.

• Flexible Class 5 stranded design according to IEC standards for easy handling and routing.

2. Cross-Section:

• 4mm² nominal cross-sectional area, equivalent to 12 AWG according to American Wire Gauge standards.

• Balanced between optimal current carrying capacity and manageable installation size.

3. Voltage Rating:

• 1500V DC (UL and TUV certified) for use in modern large-scale PV arrays.

• Backward compatible with 1000V DC installations.

4. Insulation & Sheath:

• Made from electron-beam cross-linked (XLPE or XLPO) compound.

• Outstanding resistance to ozone, UV radiation, mechanical abrasion, and thermal stress.

• Double insulation system for maximum electrical safety.

5. Temperature Resistance:

• Operating temperature range: -40°C to +90°C continuous.

• Short-circuit rating: up to +250°C for 5 seconds.

• Suitable for desert climates, high-altitude projects, and cold northern installations.

6. Standards & Certification:

• TÜV Rheinland 2PfG 1169/08.2007

• IEC 62930:2017 for photovoltaic cables

• EN 50618 standard compliance

• CE marked for European markets

• RoHS and REACH compliant (environmentally safe, free from hazardous substances).

The NSPV Solar 4mm² DC Cable is engineered for a wide range of solar applications:

1. Utility-Scale PV Power Plants

• High-voltage DC strings up to 1500V

• Long-distance runs from solar arrays to inverters

• Optimized for low losses and high efficiency

2. Commercial Rooftop Installations

• Safe, flexible cabling for rooftop solar panels

• Flame-retardant and halogen-free design for building safety compliance

• Resistant to mechanical wear and rooftop heat exposure

3. Residential Solar Systems

• Reliable cabling for small-scale rooftop arrays

• Easy stripping and termination with standard MC4 and other PV connectors

• Long service life with minimal maintenance requirements

4. Off-Grid and Hybrid Systems

• Suited for cabins, RV solar systems, marine PV setups, and microgrids

• Salt-mist resistant for coastal and marine environments

• Compatible with battery storage systems and charge controllers

5. Harsh Climate Projects

• Performs reliably in desert environments (UV, heat, sand)

• Cold-resistant in northern and alpine regions

• Proven durability in tropical climates with high humidity and rain exposure

• Long Service Life: Designed for more than 25 years of continuous outdoor use, matching the expected lifespan of PV modules.

• Corrosion Resistance: Tinned copper prevents degradation from moisture and salt, ideal for coastal solar farms.

• High Safety Standards: Flame-retardant, halogen-free sheath reduces toxic smoke emissions in case of fire.

• Improved Efficiency: Low conductor resistance minimizes line losses, increasing system yield.

• Flexibility: Easy to strip, bend, and crimp during installation, reducing labor costs.

• Compatibility: Works seamlessly with all major MC4, H4, and other DC PV connectors.

• Certified Reliability: TÜV and IEC certification ensure international compliance for global projects.

As solar PV projects continue to expand globally, the demand for 1500V DC cables has risen sharply. Compared with traditional 1000V systems, 1500V architecture reduces cabling cost, number of combiner boxes, and inverter units, resulting in significant CAPEX savings. However, this higher voltage requires premium insulation materials, precise conductor design, and strict quality control.

The NSPV Solar 4mm² Tinned Copper DC Cable meets these stringent requirements, making it a trusted choice for EPC companies, solar developers, and system integrators. Whether deployed in solar parks in Europe, deserts in the Middle East, rooftops in Asia, or coastal wind-solar hybrid projects, NSPV cables deliver consistent reliability.

NSPV maintains a rigorous quality control system throughout cable production:

• Raw Material Inspection: Only high-purity tinned copper and certified halogen-free polymers are used.

• In-Process Monitoring: Automated extrusion, electron-beam crosslinking, and online dimensional checks guarantee uniform insulation thickness.

• Electrical Testing: Each batch is tested for dielectric strength, insulation resistance, and partial discharge performance.

• Mechanical Testing: Tensile strength, elongation, abrasion, and bending tests simulate decades of outdoor exposure.

• Environmental Testing: UV aging, salt-spray, ozone, and thermal cycling confirm long-term outdoor reliability.

This ensures that every meter of NSPV 4mm² Solar Cable leaving the factory meets international standards and delivers peace of mind for installers and system owners.

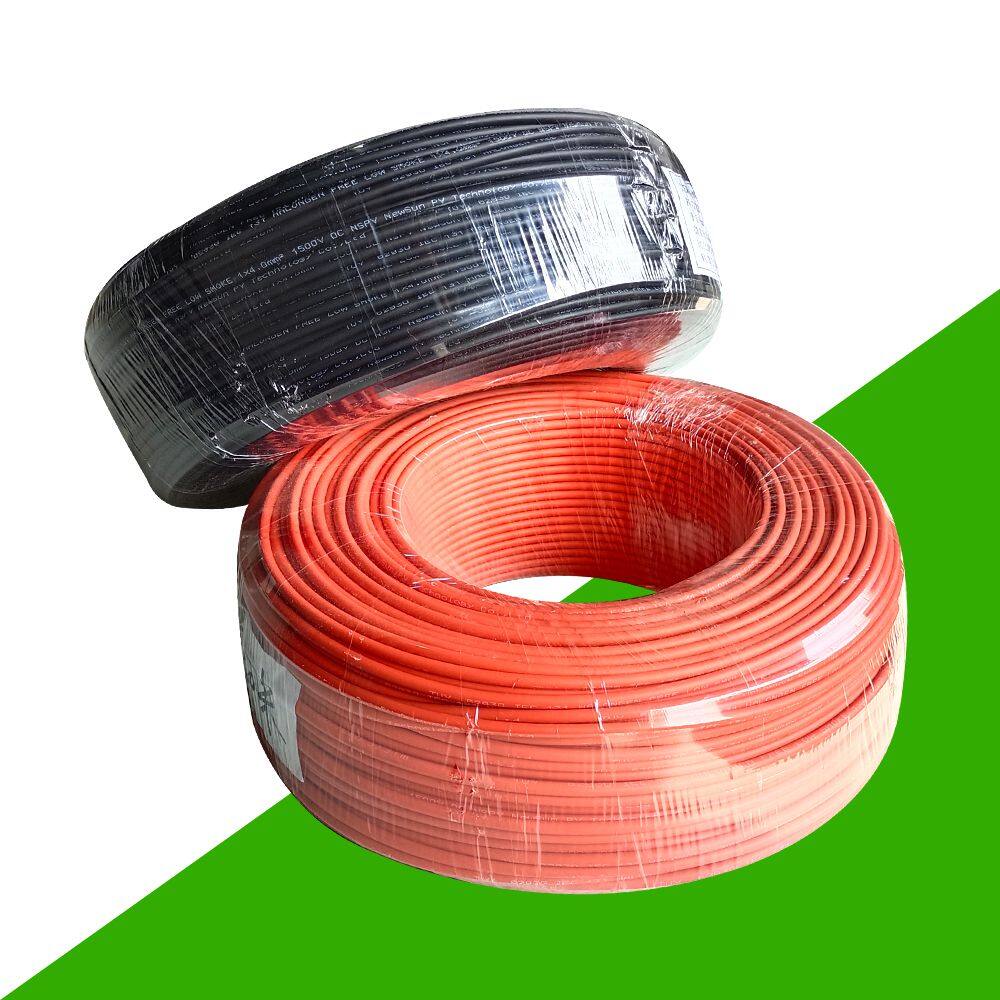

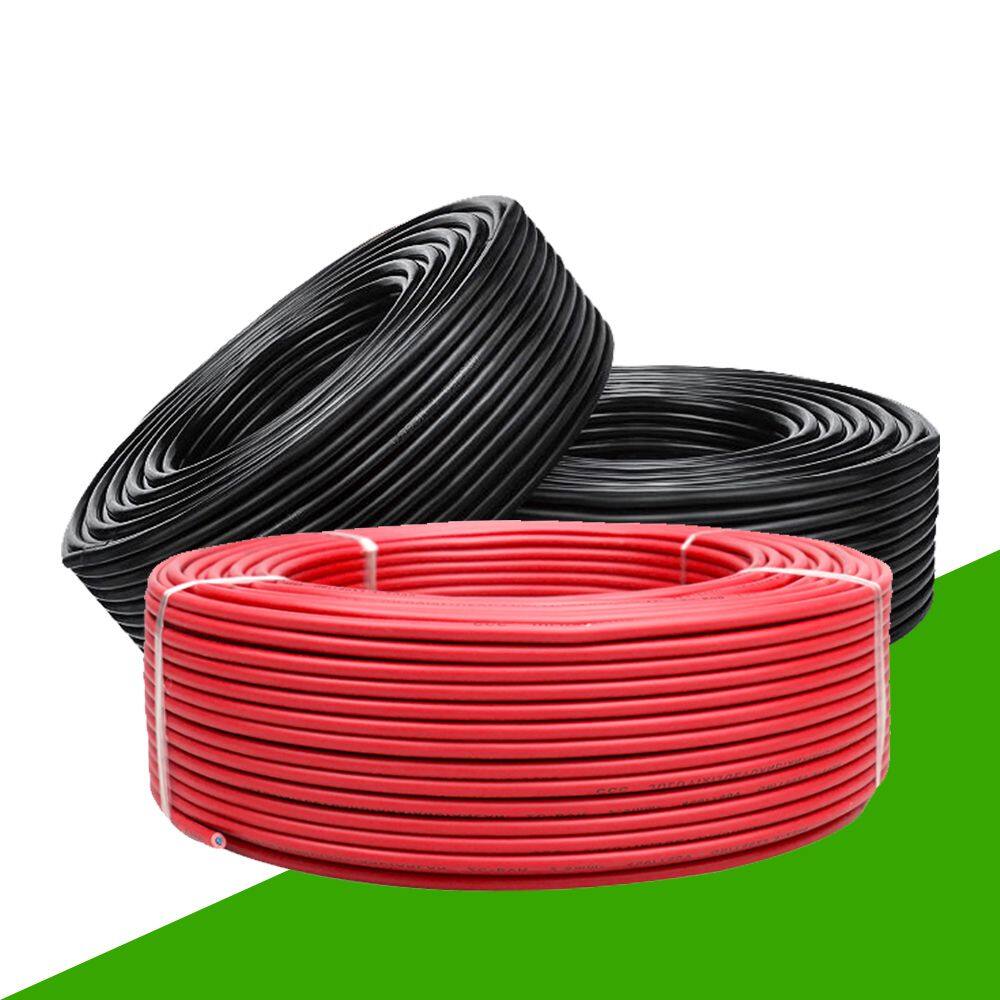

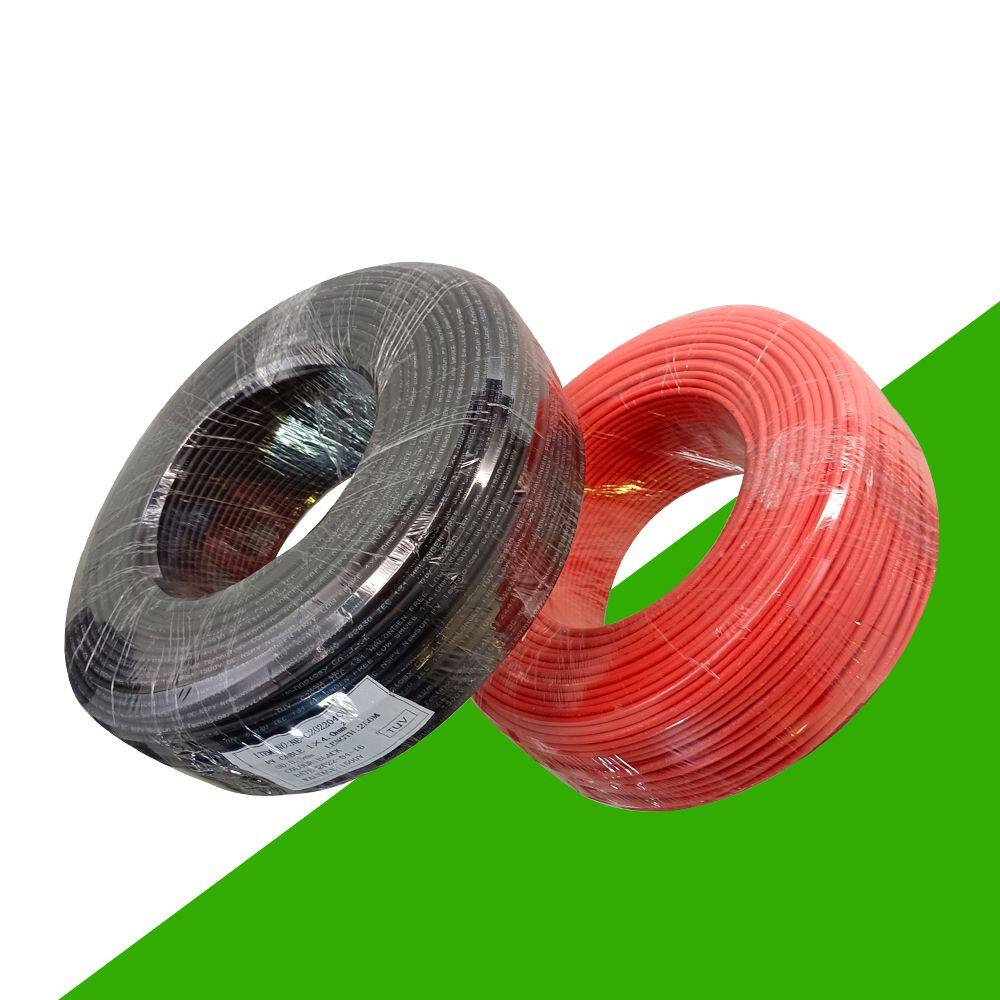

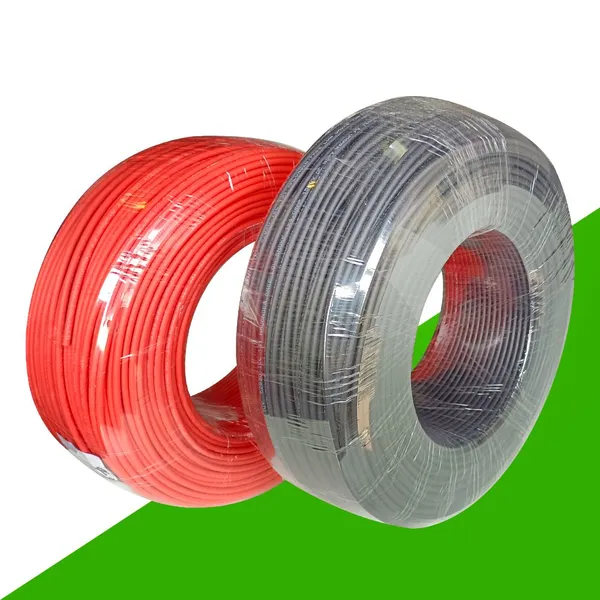

• Supplied in 500m and 1000m wooden drums or 100m rolls depending on project needs.

• Custom cut lengths available for distributors and EPC contractors.

• Cable ends sealed with caps to prevent moisture ingress during transport.

• Clear outer labeling with batch number, manufacturing date, and certification marks for full traceability.

The NSPV Solar 4mm² DC Cable Copper Tinned 12AWG DC 1500V TÜV Certified represents the highest standard of solar cabling technology. By combining tinned copper conductors, advanced cross-linked insulation, flame retardant properties, and international certifications, it ensures reliable power transmission and long-term system safety.

Engineered for the next generation of 1500V DC solar power systems, this cable is not only a technical solution but also an investment in efficiency, safety, and sustainability. With over 25 years of service life expectancy, it guarantees stability for residential, commercial, and utility-scale photovoltaic projects worldwide.
