NSPV EC1A Solar PV Junction Box: A Miniature Powerhouse for Modern Photovoltaic Systems
The global transition to renewable energy has accelerated the demand for efficient, reliable, and space-optimized solar photovoltaic (PV) components. Among these, junction boxes play a pivotal role in ensuring safe electrical connectivity, protection, and performance optimization. The NSPV EC1A Solar PV Junction Box, a compact, high-performance solution designed for bifacial and monofacial solar panels, exemplifies innovation in miniaturized PV accessories. This article explores its design, technical specifications, applications, and competitive advantages in the renewable energy market.
1. Introduction to NSPV and the EC1A Series
Dongguan NewSun PV Technology Co., Ltd (NSPV), founded in 2010, is a leading manufacturer of solar PV connectors, junction boxes, and system protection devices. The company’s products adhere to international standards such as IEC 61215, UL 1703, TUV, and CE, ensuring compatibility and safety across global markets. The EC1A series represents NSPV’s commitment to miniaturization without compromising functionality, targeting residential, commercial, and industrial solar installations where space efficiency and durability are critical.

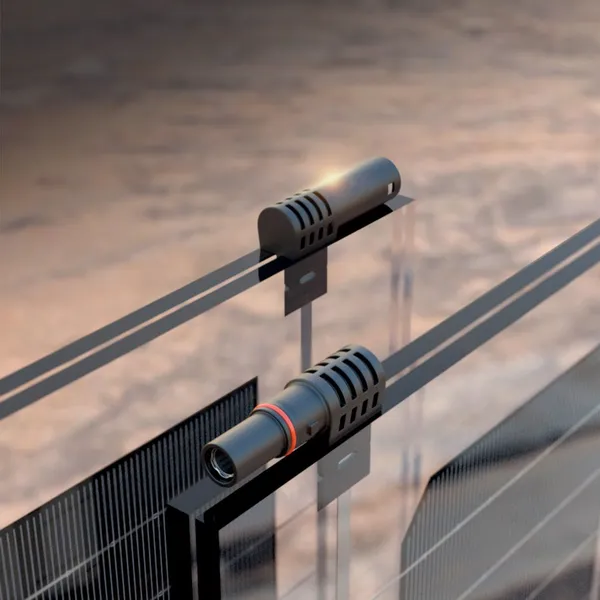

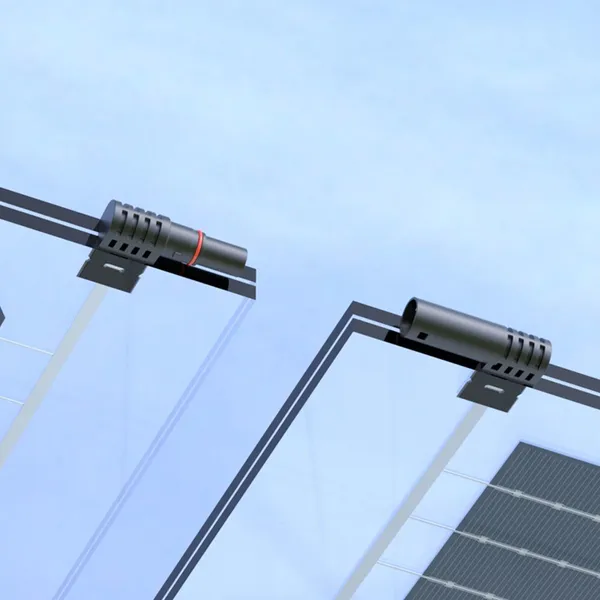

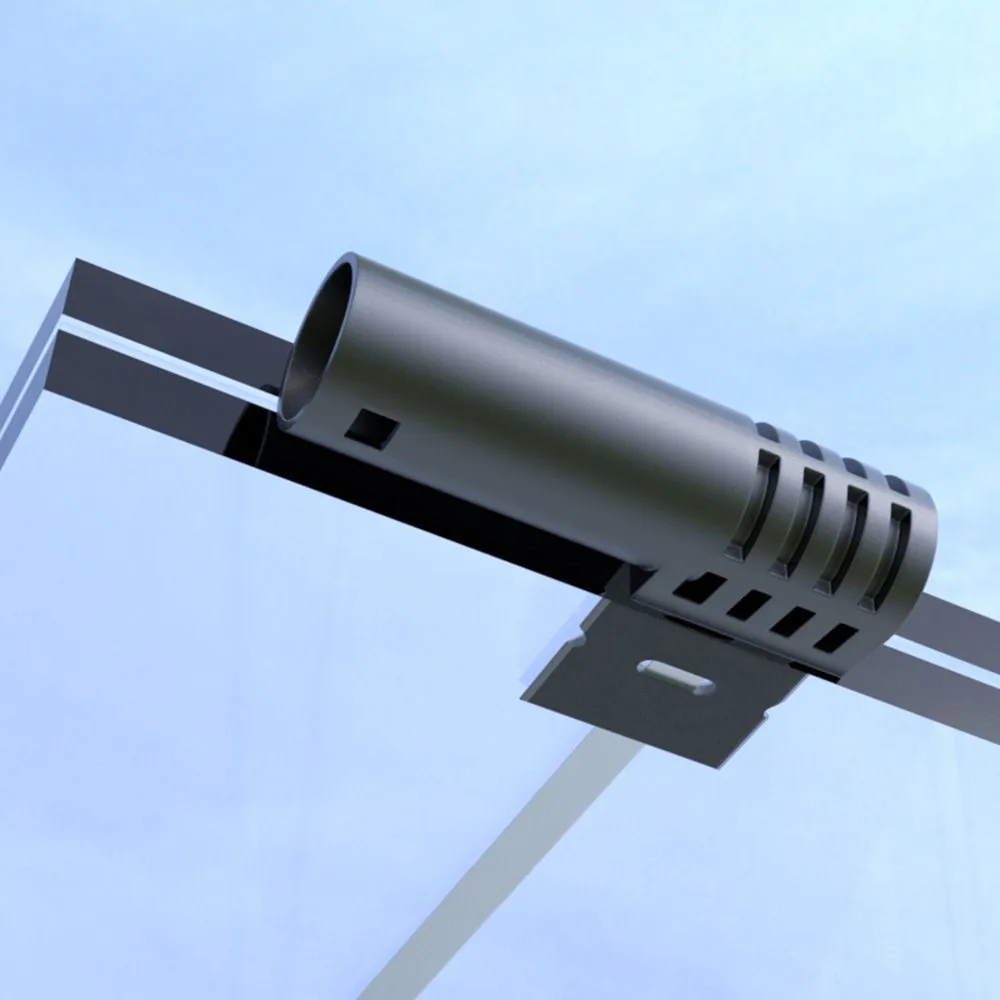

The EC1A Solar PV Junction Box is engineered for bifacial solar panels, a technology that captures sunlight from both sides to boost energy yield. Its edge-mounted design eliminates the need for traditional rear-side mounting, preserving the panel’s aesthetic appeal and reducing installation complexity.
2. Key Features of the NSPV EC1A Mini Junction Box2.1 Compact and Lightweight Design
The EC1A’s miniature form factor (dimensions vary by model but typically under 100mm in length) makes it ideal for high-density solar arrays or applications with limited space. Despite its size, it integrates all essential components:
Diodes: Prevent reverse current flow, protecting panels from hot-spot damage.

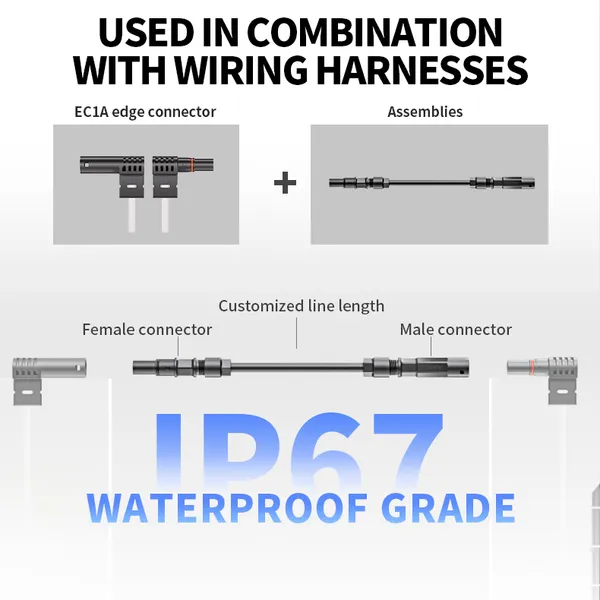

Connectors: Pre-installed MC4-compatible plugs (male/female) for seamless inter-panel wiring.
Cable Management: Built-in strain relief and cable clamps ensure long-term reliability.
2.2 High Voltage and Current Ratings
The EC1A supports 1500V DC systems, aligning with modern high-voltage solar architectures that reduce cable losses and installation costs. Its rated current capacity (up to 15A per diode) accommodates high-power panels, including those exceeding 600W.
2.3 Robust Environmental Protection
IP67/IP68 Rating: Dustproof and waterproof (submersible up to 1 meter for 1 hour), enabling outdoor use in harsh climates.
Temperature Resistance: Operates from -40°C to +85°C, withstanding extreme heat and cold without degradation.
UV Resistance: The housing material (PPE/TPV or high-grade ABS) resists UV-induced brittleness, ensuring a 25+ year lifespan.
2.4 Enhanced Safety Mechanisms
Arc Fault Protection: Optional surge suppressors mitigate fire risks from electrical arcing.
Isolation Switch Integration: Some variants include a built-in DC isolator for safe maintenance.
-
TUV-Certified Components: Meets stringent European safety standards for peace of mind.
| Parameter | EC1A Series |
|---|---|
| Voltage Rating | 1500V DC (IEC) |
| Current Rating | 11A (diode rated 15A) |
| Diode Configuration | 1–3 diodes (customizable) |
| Connector Type | MC4-compatible (male/female plugs) |
| Cable Length | 300–900mm (configurable) |
| IP Rating | IP67/IP68 |
| Material | PPE/TPV or flame-retardant ABS |
| Operating Temperature | -40°C to +85°C |
| Test Voltage | 6kV (50Hz, 1 minute) |
| Certifications | TUV, CE, IEC 61215, UL 1703 |

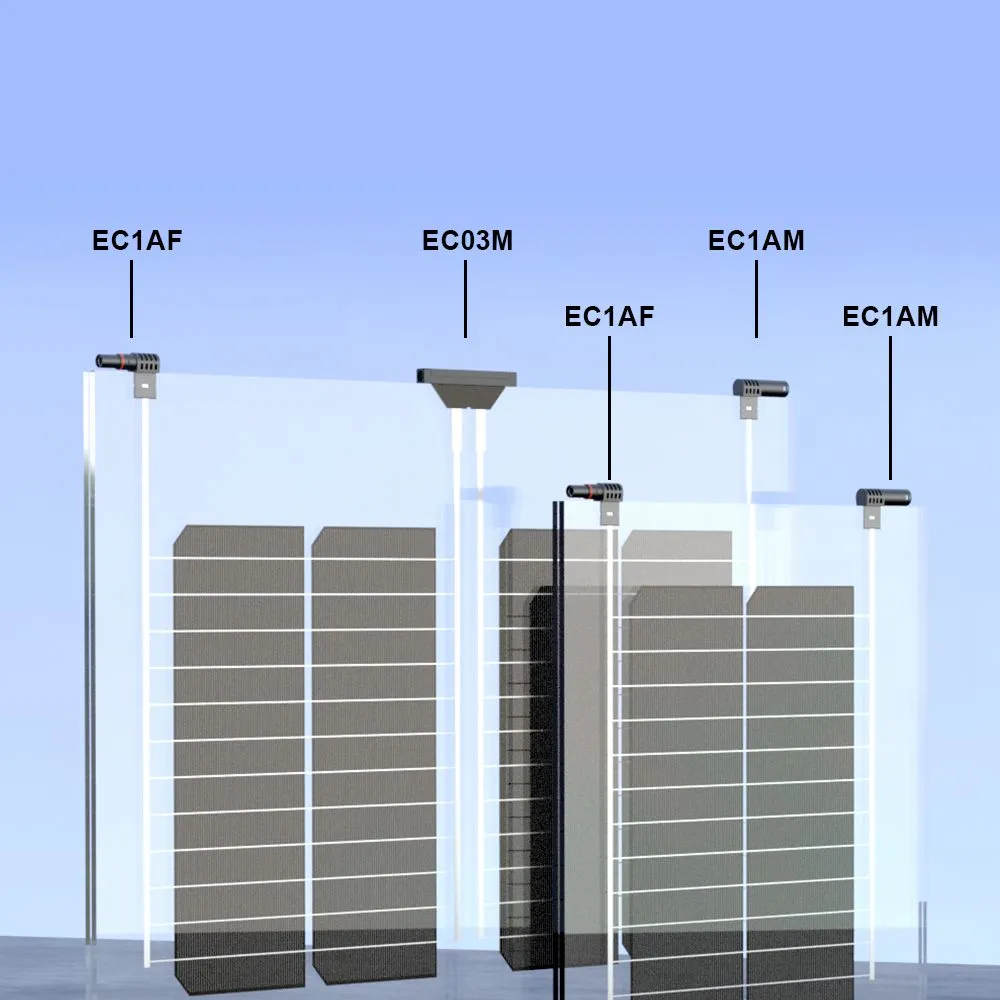

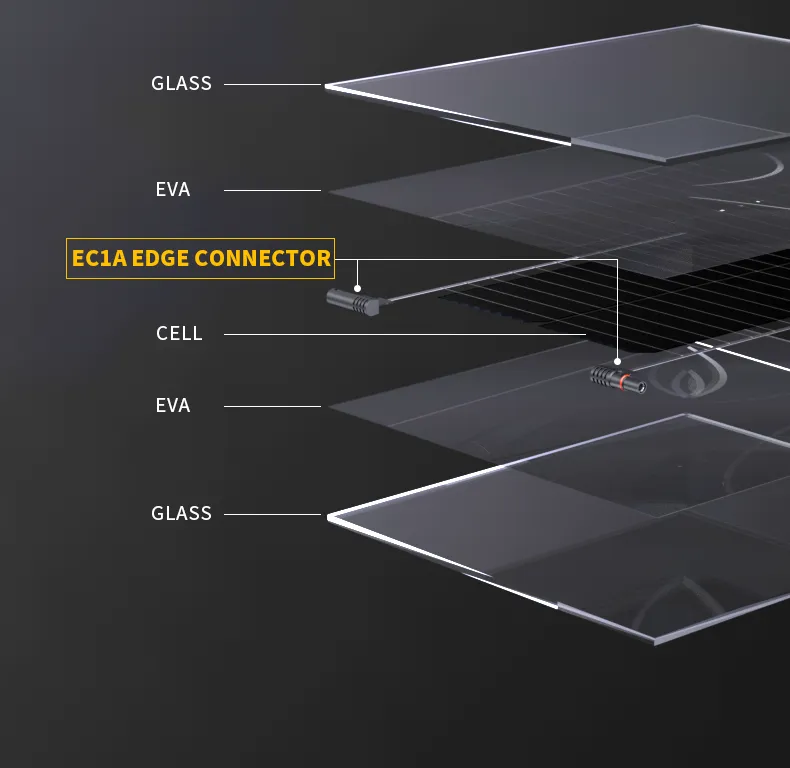

The EC1A’s edge-mounting capability is revolutionary for bifacial modules, which require unobstructed rear-side light access. Traditional junction boxes mounted on the panel’s back cast shadows, reducing efficiency by up to 5%. The EC1A eliminates this issue, enabling bifacial panels to achieve their full potential in ground-mounted systems, solar carports, and agrivoltaic projects.
4.2 Building-Integrated PV (BIPV)In BIPV installations, where solar panels double as roofing or façade materials, aesthetics and space are paramount. The EC1A’s low-profile design and cable-free rear side make it invisible from the exterior, preserving architectural integrity while providing reliable electrical connections.
4.3 Portable and Off-Grid Solar SystemsFor RVs, boats, and remote monitoring stations, the EC1A’s compact size and IP68 rating ensure durability in mobile or exposed environments. Its high voltage rating also supports efficient long-distance power transmission in off-grid setups.
By integrating diodes, connectors, and cable management into a single unit, the EC1A reduces installation time and material costs. Its miniaturization also lowers shipping expenses and storage requirements.
5.2 Customization OptionsNSPV offers tailored solutions, including:
Diode quantity: 1–3 diodes based on panel power.
Cable lengths: Customized to project specifications.
Connector types: MC4, PV3.0, or proprietary designs.
The EC1A’s high voltage rating (1500V DC) aligns with utility-scale solar farms, reducing the number of combiner boxes and cable runs. This streamlines system design and lowers balance-of-system (BOS) costs.
| Feature | NSPV EC1A | Competitor A (Generic) | Competitor B (Premium) |
|---|---|---|---|
| Voltage Rating | 1500V DC | 1000V DC | 1500V DC |
| IP Rating | IP67/IP68 | IP65 | IP68 |
| Diode Capacity | 15A | 10A | 15A |
| Edge-Mounting | Yes (Bifacial-optimized) | No | Yes (Limited models) |
| Price Range | 40 (MOQ dependent) | 50 | 80 |
The EC1A strikes a balance between affordability and high-end features, outperforming generic alternatives in durability and bifacial compatibility while undercutting premium brands on cost.
NSPV continues to refine the EC1A series with:
Smart Monitoring: Integration of IoT sensors for real-time performance tracking.
Wireless Connectivity: Bluetooth/Wi-Fi modules for remote diagnostics.
Advanced Materials: Graphene-enhanced housing for superior thermal conductivity.
The NSPV EC1A Solar PV Junction Box redefines miniaturization in solar accessories, offering a compact, robust, and cost-effective solution for bifacial panels, BIPV, and portable systems. Its adherence to global standards, customization options, and scalability make it a top choice for installers and OEMs seeking to optimize performance without compromising safety. As solar energy adoption grows, the EC1A series is poised to play a critical role in driving efficiency and sustainability across residential, commercial, and industrial sectors.
For inquiries or bulk orders, contact NSPV directly through their official website or authorized distributors. Embrace the future of solar connectivity with the EC1A—where small size meets big potential.
