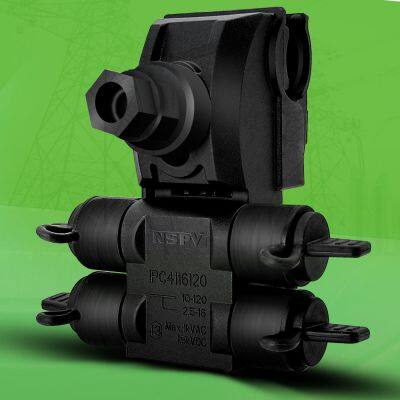

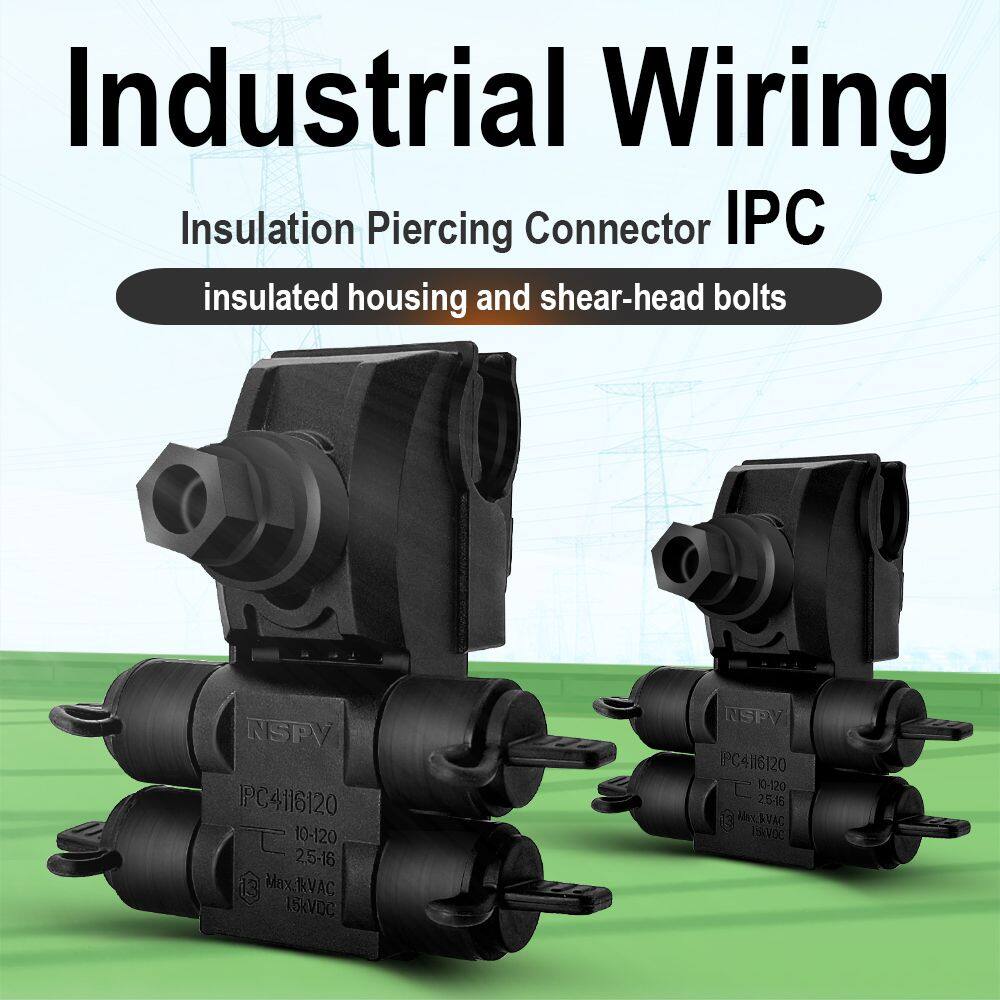

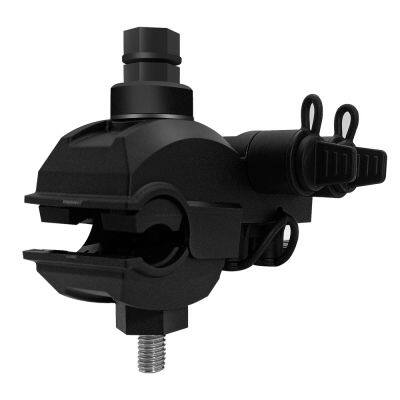

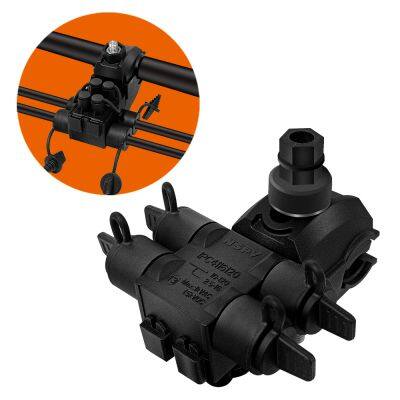

Help CenterIPC Insulation Piercing Connector NSPV IPC4116120 Main Cable 10-120mm2 Tap Cable 2.5-16mm2
Related Products
-
Solar RPF Roof Pipe Flashing (50mm to 100mm or 2in to 4in) by NSPVUS$ 4.6 - 5MOQ: 10 Pieces -
Solar Combiner Boxes IP65 Metal and Plastic Solutions by NSPVUS$ 5 - 50MOQ: 5 Boxes
-
Solar Silicon Rubber Dust Caps Male and Female for DC Cable Connector Universal MC TypeUS$ 0.11 - 0.12MOQ: 100 Pairs
-
NSPV Solar Silicone Rubber Inverter 3P AC Connectors End Cap Dust CapsUS$ 0.21 - 0.26MOQ: 100 Pairs
-
NSPV Solar Spanner Wrench No2 Universal Mc4 Connectors ToolsUS$ 0.53 - 0.6MOQ: 10 Pieces
Comprehensive Guide to NSPV Brand IPC Piercing Connectors: DC 1500V & AC 1000V Applications, Installation, and Technical Advantages

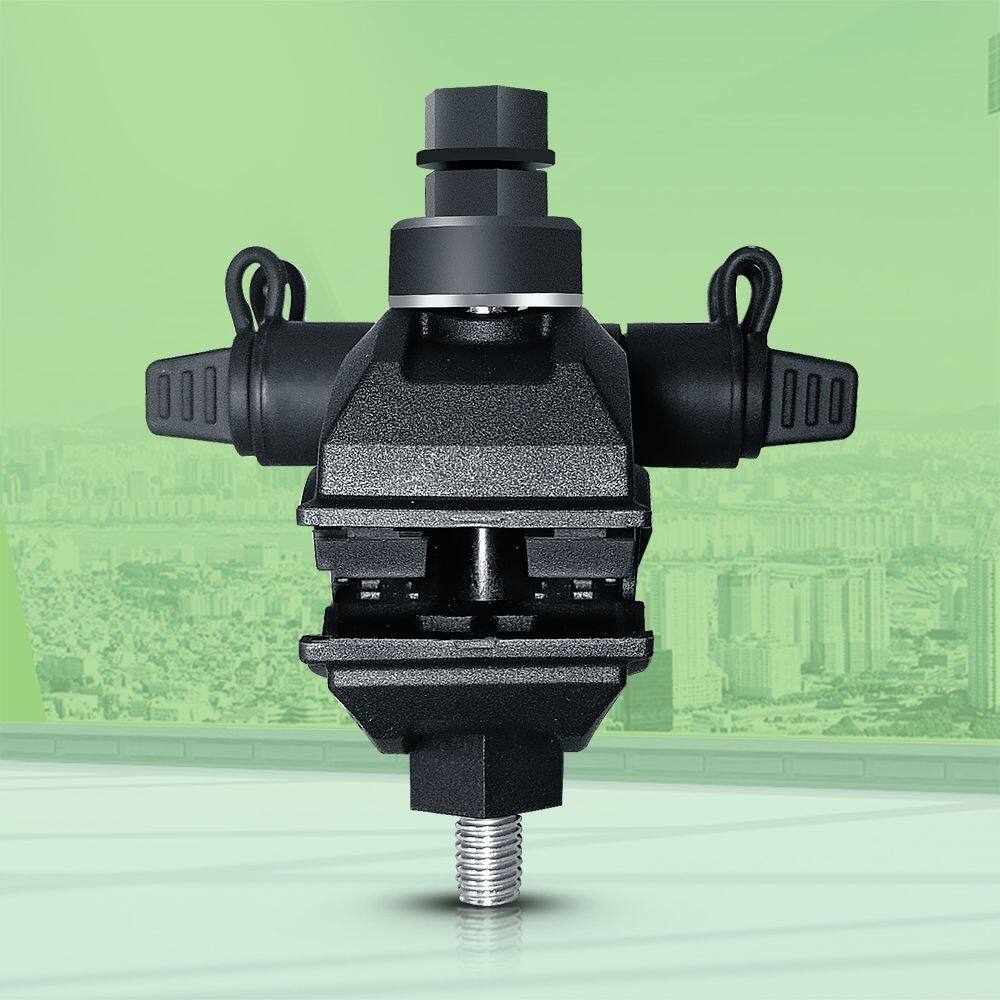

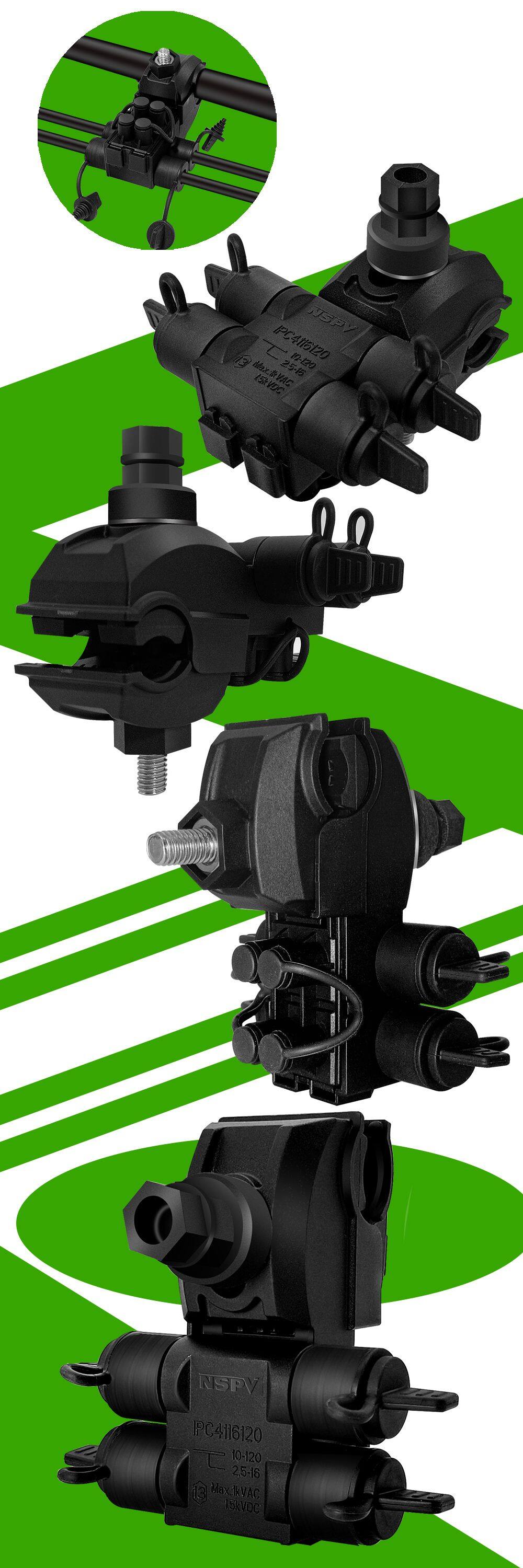

1. Introduction to NSPV IPC Piercing Connectors
NSPV’s Insulation Piercing Connectors (IPCs) are engineered to revolutionize electrical branch connections in low-voltage systems, eliminating the need for stripping insulation from conductors. Designed for both AC 1000V and DC 1500V applications, these connectors are widely adopted in solar power generation, overhead line tapping, and industrial electrical systems. Their patented piercing mechanism ensures reliable current flow while maintaining insulation integrity, reducing installation time and labor costs by up to 60% compared to traditional methods.
2. Technical Specifications and Applications2.1 Key Specifications
Voltage Ratings:
AC 1000V: Suitable for standard low-voltage distribution networks (e.g., residential, commercial).
DC 1500V: Optimized for high-voltage solar PV systems, enabling efficient energy transmission in large-scale solar farms.
Conductor Range:
Main Cable: 16–120 mm² (copper/aluminum).
Tap Cable: 16–35 mm² (copper/aluminum).

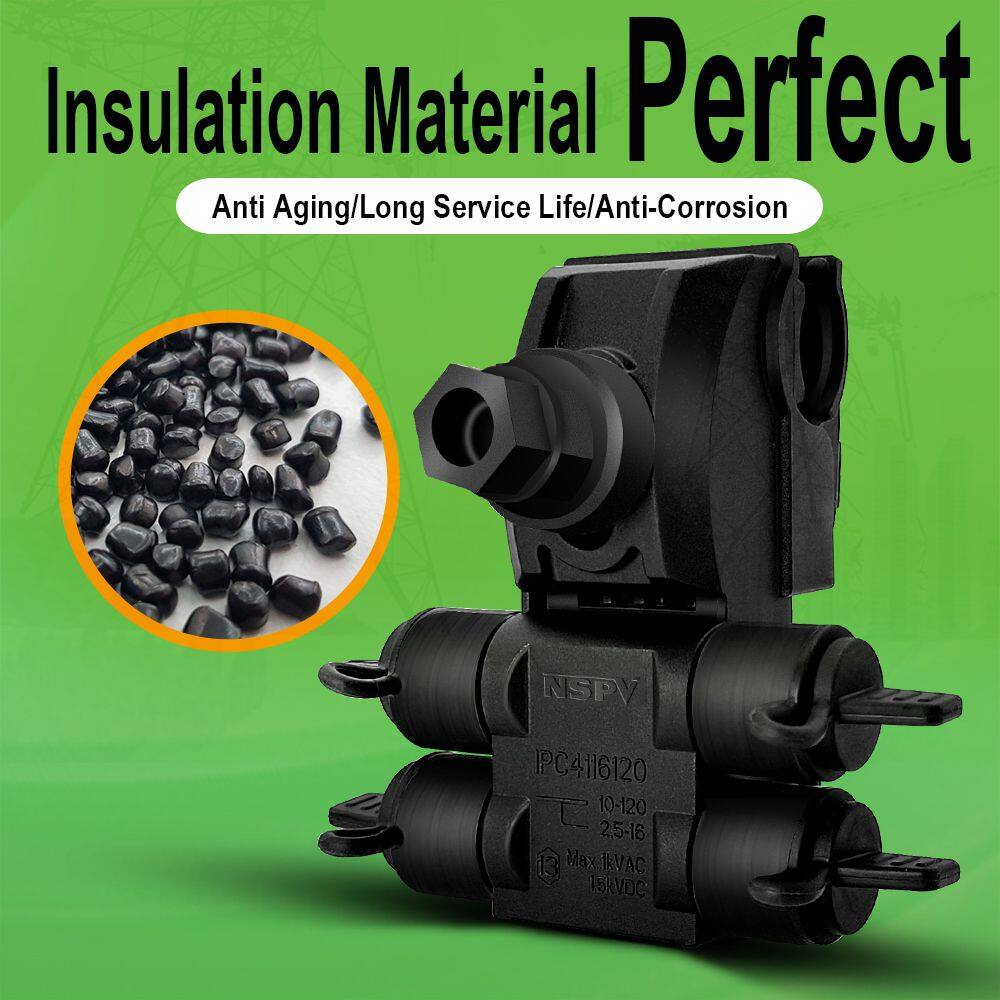

Material Composition:
Insulation: PA+CU (flame-retardant UL94-V0 rated).

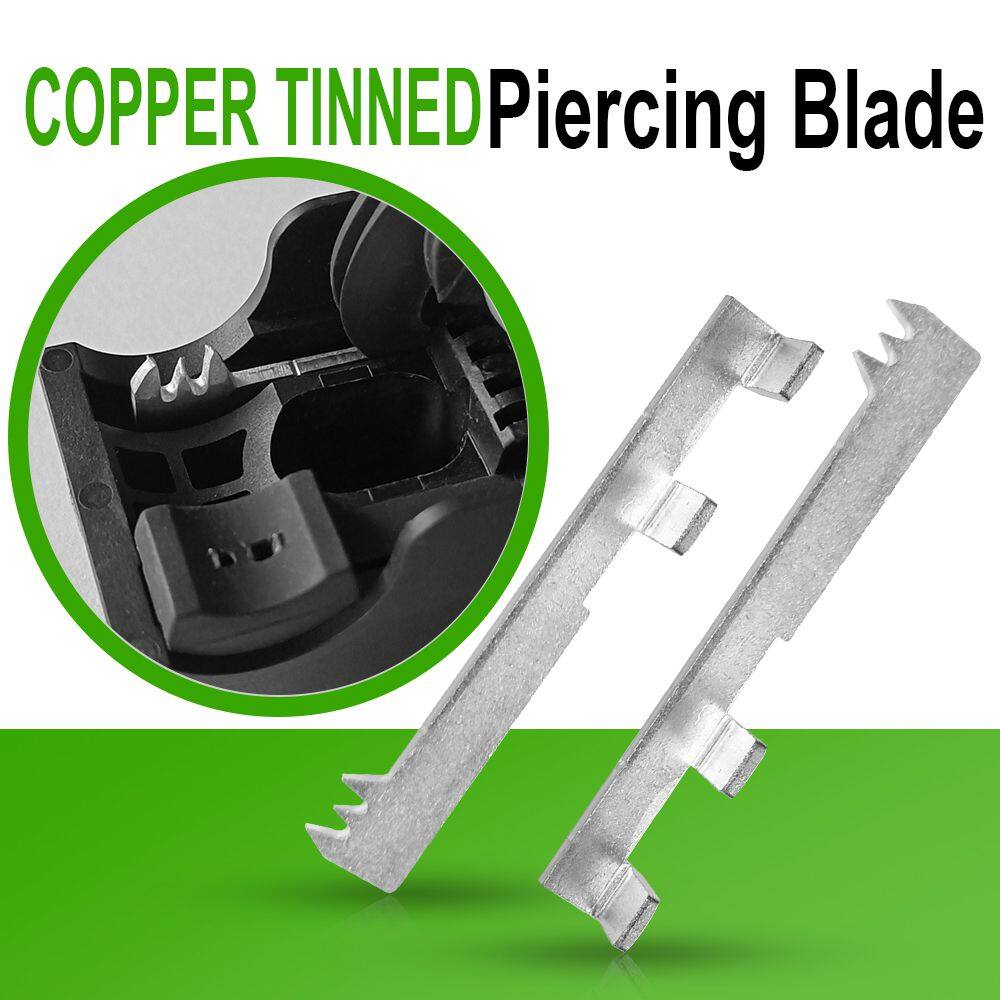

Piercing Blades: High-conductivity copper alloy with self-cleaning edges.
Environmental Protection: IP67 waterproof rating, resistant to UV, salt spray, and temperature extremes (-40°C to +90°C).
2.2 Core Applications

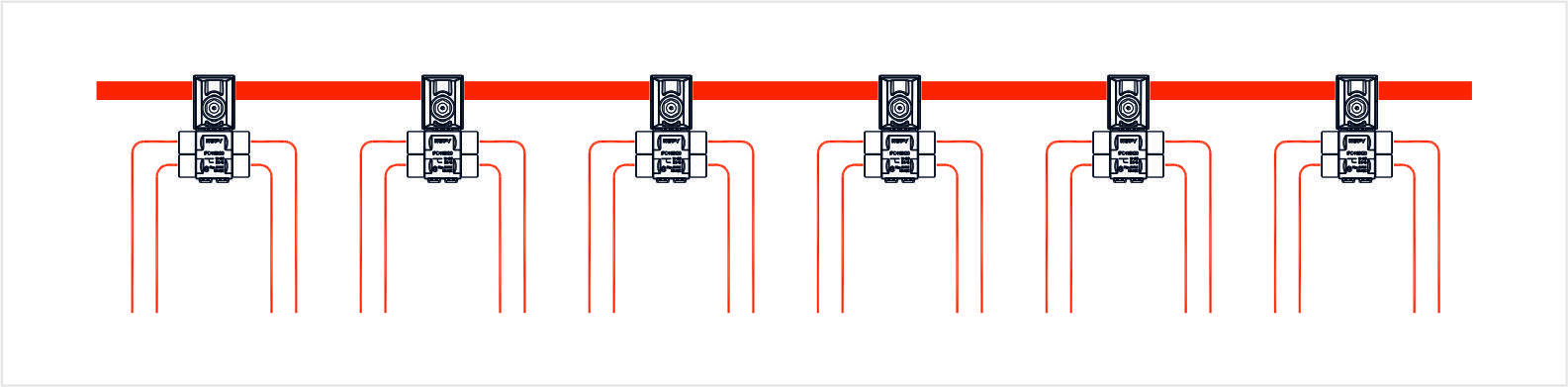

Solar Power Systems:
DC 1500V IPCs are critical for connecting solar panel strings to inverters, minimizing voltage drop and power loss in long-distance transmission.
Example: A 10MW solar farm using NSPV IPCs reduced interconnection costs by 35% while improving system efficiency by 2.1%.

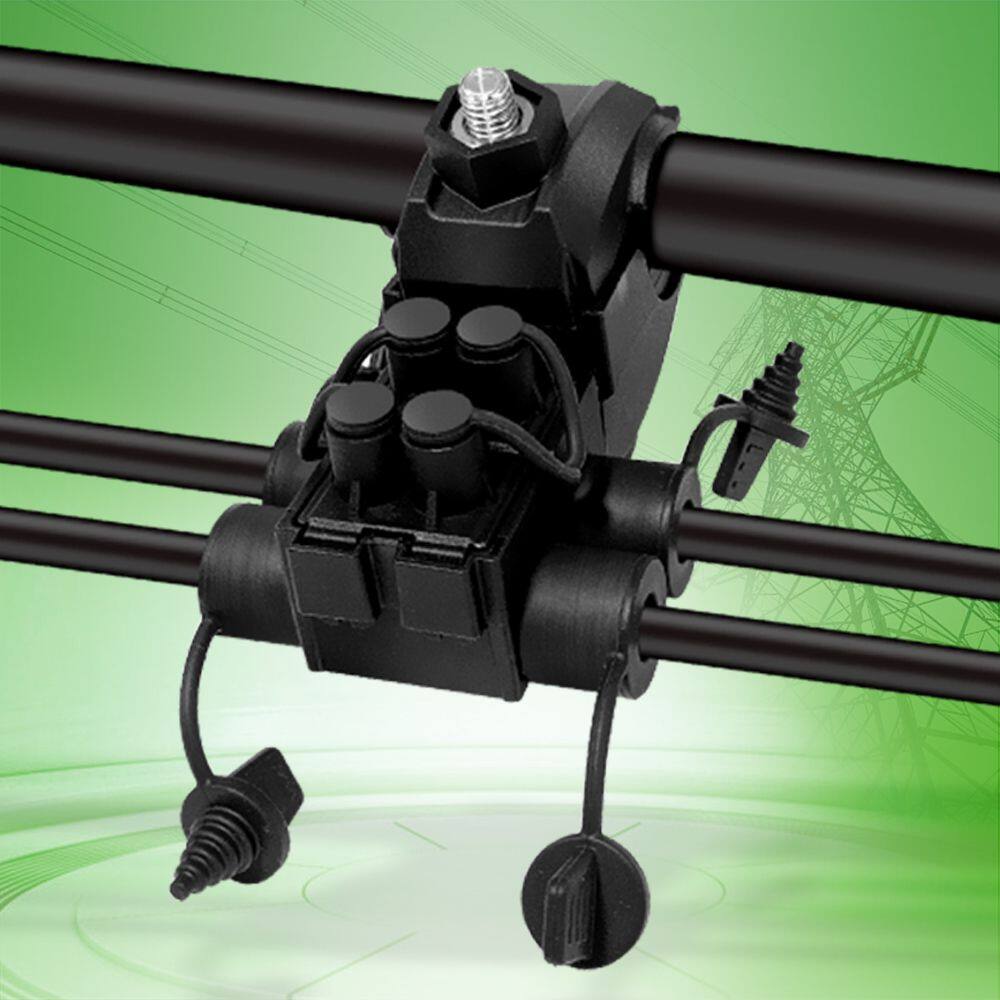

Overhead Line Tapping:
AC 1000V IPCs enable safe branch connections without interrupting power supply, ideal for urban grid upgrades.
Industrial Automation:
Used in motor control circuits and machinery wiring, where rapid installation and reliability are paramount.
3. Installation Guide: Step-by-Step Process3.1 Pre-Installation Checks
Verify Compatibility:
Confirm the IPC model matches the cable cross-sectional area (e.g., IPC4116120 for 16–120 mm² main cables).
Ensure system voltage does not exceed the connector’s rating (e.g., DC 1500V for solar applications).
Inspect Cables:
Clean the installation site to remove dirt, oxidation, or debris.
Check for cable damage (e.g., cracks, corrosion) that may compromise contact quality.
3.2 Installation StepsFor DC 1500V Solar Applications:
Open the Connector:
Loosen the bolts using a torque wrench (recommended torque: 12–15 N·m) until the jaws separate.
Position the Main Cable:
Place the DC solar cable (e.g., PV1-F 4mm²) into the larger groove, ensuring it aligns with the end stop.
Insert the Tap Cable:
Insert the tap cable (e.g., 6mm²) into the smaller groove until it contacts the piercing blades.
Secure the Connection:
Tighten the bolts sequentially (cross-tightening) to ensure uniform pressure distribution.
Use a torque-limiting tool to avoid over-tightening, which may damage the insulation.
For AC 1000V Overhead Line Applications:
Use a Hot-Line Tool:
For live-line work, employ insulated gloves and tools rated for 1000V AC.
Clamp the Connector:
Position the IPC on the energized conductor using a hydraulic press or manual clamp tool.
Test the Connection:
Use a megohmmeter to verify insulation resistance (>1000 MΩ) before energizing.
4. Product Advantages and Unique Features4.1 Technical Superiority
Voltage Versatility:
Single-connector design supports both AC and DC systems, reducing inventory costs for multi-project contractors.
High Current Capacity:
Rated for continuous currents up to 240A (DC 1500V), enabling use in high-power solar inverters.
Self-Sealing Mechanism:
Piercing blades create a gas-tight connection, preventing moisture ingress and corrosion.
4.2 Safety Enhancements
Double-Layer Insulation:
Primary insulation (PA+CU) + secondary silicone sealant ensure compliance with IEC 60947-7-1 standards.
Arc-Fault Protection:
Built-in arc quenching chambers minimize sparking during connection/disconnection.
4.3 Cost and Time Efficiency
Reduced Labor Costs:
Installation time per connection drops from 20 minutes (traditional methods) to under 5 minutes with NSPV IPCs.
Zero Downtime:
Live-line installation capability avoids power outages during grid upgrades.
5. Case Studies: Real-World Performance5.1 Solar Farm Optimization (DC 1500V)
Project: 50MW solar plant in Qinghai Province, China.
Challenge: High voltage drop in long DC cable runs reduced system efficiency by 4%.
Solution: NSPV IPCs replaced traditional connectors, cutting voltage loss to 1.2% and saving $120,000 annually in energy losses.
5.2 Urban Grid Upgrade (AC 1000V)
Project: Downtown Sydney distribution network modernization.
Challenge: Traditional connectors required de-energizing lines, causing 8-hour outages per block.
Solution: NSPV IPCs enabled live-line tapping, reducing outages to 2 hours per block and cutting project costs by 22%.
6. Maintenance and Troubleshooting6.1 Routine Inspections
Visual Check:
Look for cracks, discoloration, or loose bolts every 6 months.
Electrical Test:
Measure insulation resistance annually using a 1000V megohmmeter.
6.2 Common Issues and Fixes
| Issue | Cause | Solution |
|---|---|---|
| High contact resistance | Oxidation or loose bolts | Clean contacts, re-tighten bolts |
| Insulation failure | UV degradation or moisture | Replace connector, improve sealing |
| Arcing during operation | Incorrect torque or debris | Re-install with proper tools, clean cables |
7. Conclusion: Why Choose NSPV IPCs?
NSPV’s IPC Piercing Connectors set the industry benchmark for safety, efficiency, and versatility. With dual AC/DC voltage ratings, IP67 waterproofing, and a self-sealing design, they outperform traditional connectors in solar, overhead line, and industrial applications. By reducing installation time by 80% and cutting energy losses by up to 65%, NSPV IPCs deliver a rapid ROI while ensuring compliance with global standards like IEC 60947 and UL 94-V0.
For contractors seeking a future-proof solution, NSPV IPCs are the ultimate choice—combining cutting-edge technology with unmatched reliability in the most demanding electrical environments.
