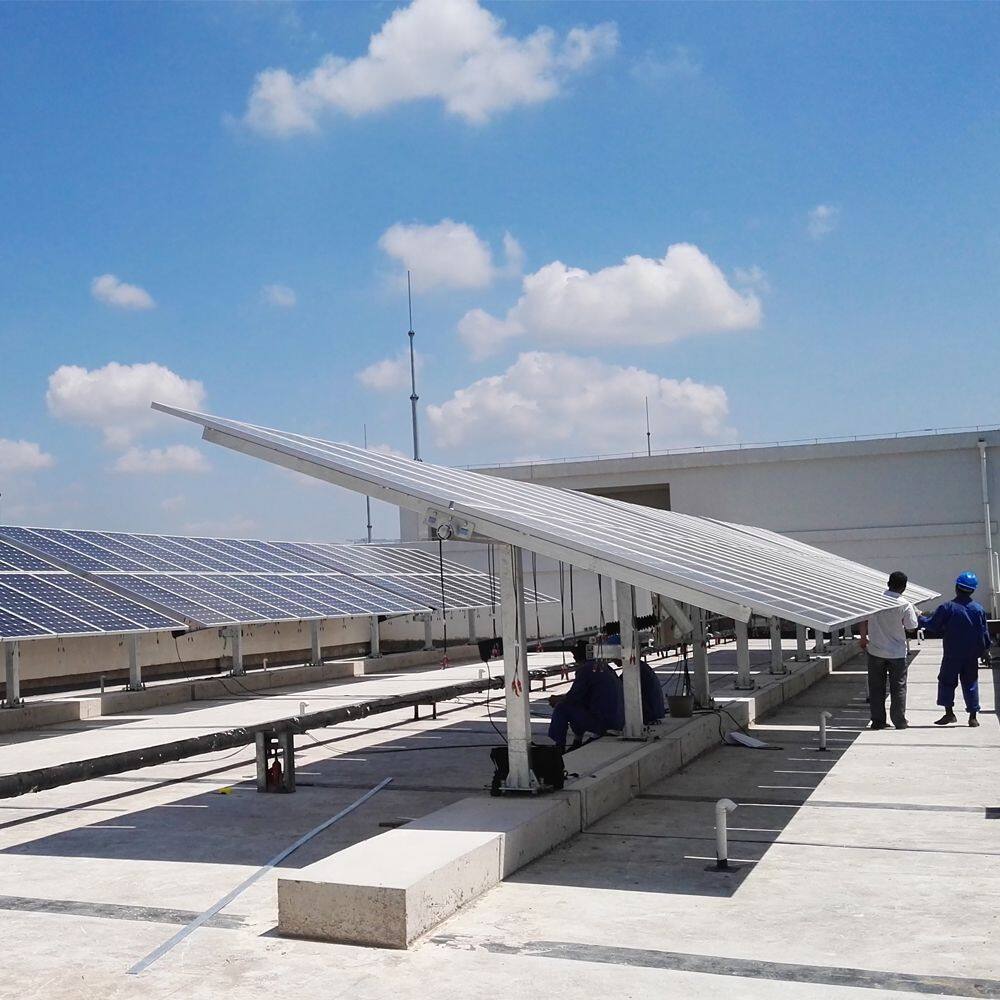

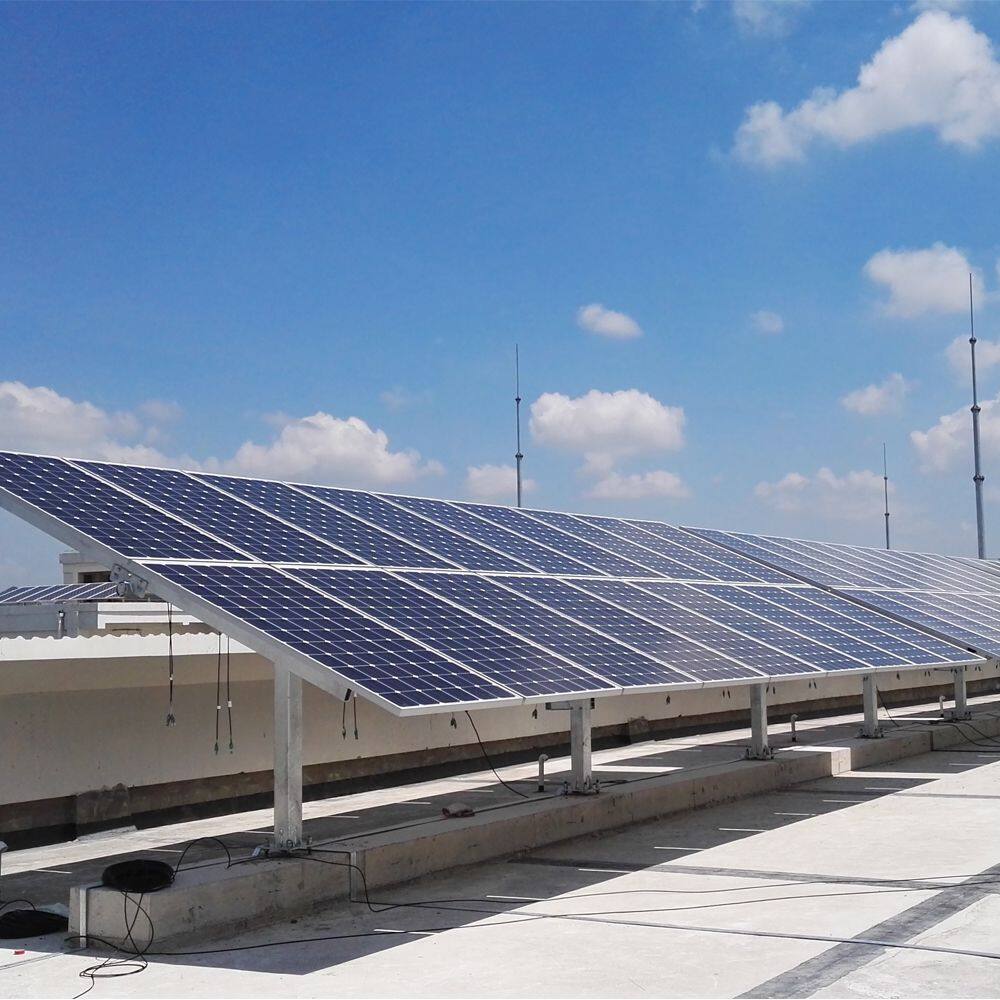

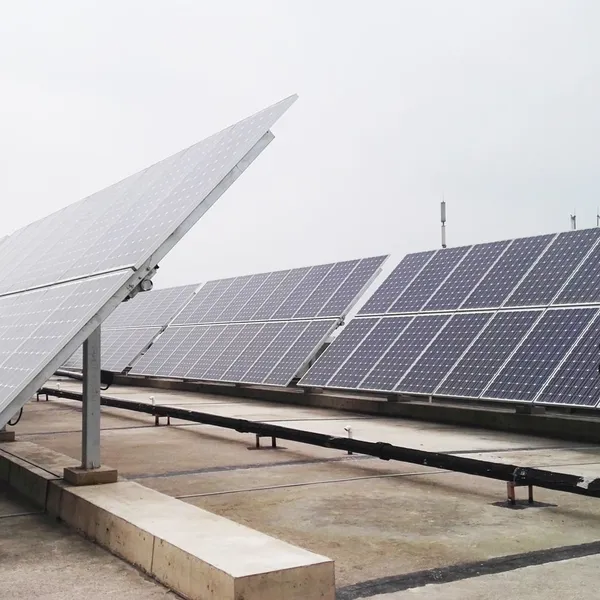

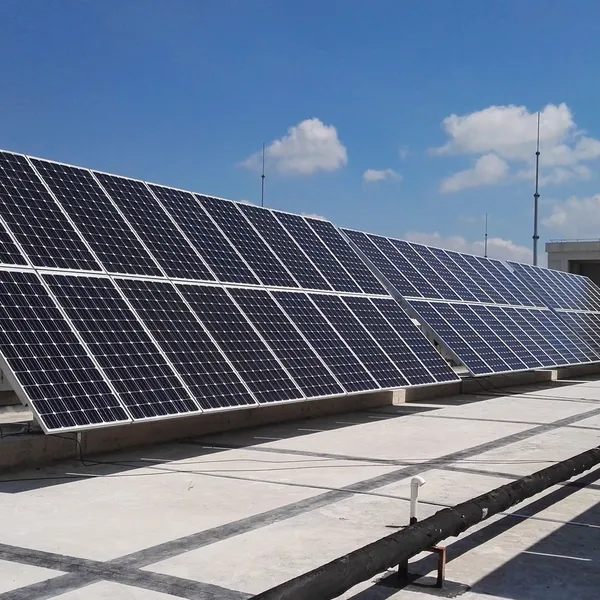

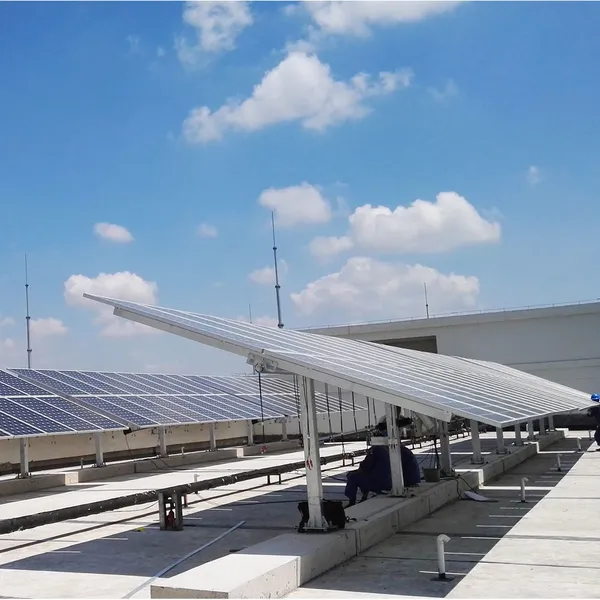

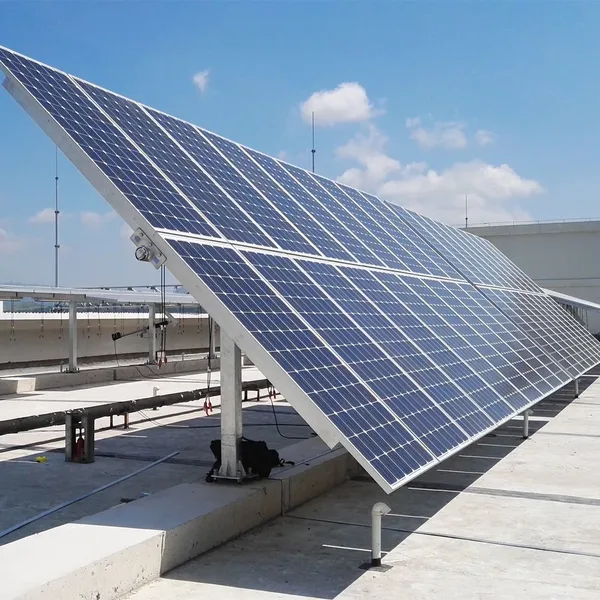

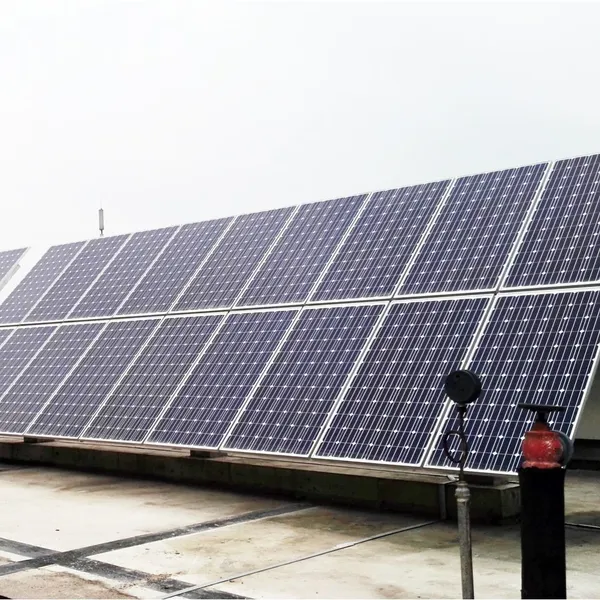

Newsun PV Technology Co., Ltd. (NSPV): Single-Axis Grid-Connected Solar Tracking System Overview
Newsun PV Technology Co., Ltd. (NSPV), headquartered in Dongguan, China, is a globally recognized leader in photovoltaic (PV) system integration, specializing in the design, development, and manufacturing of high-performance solar tracking systems, connectors, and DC components. With a mission to drive the global transition to renewable energy, NSPV combines cutting-edge innovation with rigorous quality control, adhering to international standards such as TÜV, AS/NZS, and IEC. Its products are deployed in over 50 countries, serving utility-scale solar farms, commercial rooftops, and off-grid applications.
2. Single-Axis Grid-Connected Solar Tracking System: Core FeaturesNSPV’s single-axis solar tracking system is engineered to maximize energy yield by dynamically adjusting the orientation of solar panels to follow the sun’s path. Key technical specifications include:
2.1 Tracking Mechanism & PrecisionTracking Range: ±60° azimuth rotation, enabling optimal sunlight capture from dawn to dusk.
Tracking Accuracy: ±1° (standard) or ±2° (depending on model), ensuring minimal energy loss due to misalignment.
Control Modes:
Astronomical Algorithm: Pre-programmed sun trajectory calculations for passive tracking.
Active Tracking: Real-time adjustments via light sensors to compensate for cloud cover or shading.
Anti-Shadow Tracking: Mitigates inter-row shading in dense array layouts.
Driver Unit: Brushless DC motor with closed-loop feedback control, achieving ≤0.5° positional accuracy.
Materials: Hot-dip galvanized steel (Q235B/Q355B) or ZAM (Zinc-Aluminum-Magnesium) coated steel for corrosion resistance.
Wind Resistance: Designed to withstand wind speeds up to 40 m/s (144 km/h), with customizable gale protection for typhoon-prone regions (e.g., 180 km/h for Category 17 typhoons via reinforced BIPV-compatible brackets).
Foundation Options: Concrete piles, PHC (Prestressed High-Strength Concrete) piles, or static pressure piles, with 205 piles per MW (based on 600W modules).
Ground Clearance: Minimum 0.5m to prevent debris accumulation and facilitate maintenance.
Module Types: Supports 182mm and 210mm bifacial/monofacial panels.
Layout Configurations: 1P (single-row) or 2P (dual-row) arrangements, accommodating up to 120 panels per tracker.
Land Use Efficiency: Ground Coverage Ratio (GCR) ≥30%, optimizing space utilization in large-scale projects.
Self-Powered System: Operates under 1500V DC, with lithium battery backup (≥6Ah) for uninterrupted tracking during low-light conditions.
Communication Protocols: RS485/WiFi/4G for remote monitoring and fault diagnostics.
MCU Controller: Embedded microcontroller with -40°C to +60°C operational range, ensuring reliability in extreme climates.
Energy Yield Gain: 15–25% higher output compared to fixed-tilt systems, depending on latitude and climate.
Robustness: IP65-rated components resist dust and water ingress, while EPDM-sealed connectors enhance durability.
Ease of Maintenance: Modular design allows quick replacement of drivers, bearings, or torque tubes.
Cost Efficiency: Reduces Levelized Cost of Energy (LCOE) by minimizing land and O&M expenses.
NSPV’s single-axis trackers are ideal for:
Utility-Scale Solar Farms: Maximizing ROI in arid regions with high DNI (Direct Normal Irradiance).
Agrivoltaics: Co-locating solar panels with crops to optimize land use.
Hybrid Systems: Pairing with energy storage for grid stability.
Disaster-Resilient Installations: Custom wind-resistant designs for coastal or cyclone zones.
Safety Standards: TÜV Rheinland, CE, and UL certifications for electrical components.
Environmental: RoHS-compliant materials, with recyclable steel structures.
Regional Adaptations: AS/NZS 5033:2012 compliance for Australian markets, and customization for Middle Eastern/African dust conditions.
NSPV provides end-to-end solutions, including:
Site Assessment: Solar resource analysis and tracker layout optimization.
Installation Training: On-site guidance for foundation construction and system calibration.
After-Sales Service: 5-year warranty on structural components, with 24/7 technical support.
Component Integration: Compatibility with NSPV’s PV4.0 connectors, 1500V DC cables, and junction boxes for seamless system interoperability.
In a 2023 project in Taiwan’s Hualien County (typhoon-prone area), NSPV replaced a conventional tracker system with its BIPV-compatible single-axis trackers. The upgraded design withstood Category 16 typhoons (185 km/h winds), maintaining 99.7% uptime over 12 months. The client reported a 22% increase in annual energy production versus fixed-tilt systems.
8. Future InnovationsNSPV is developing AI-driven tracking algorithms to predict cloud movements and adjust panel angles proactively. Additionally, its “Zero-Pile” tracker concept eliminates concrete foundations, reducing carbon footprint by 30%.
