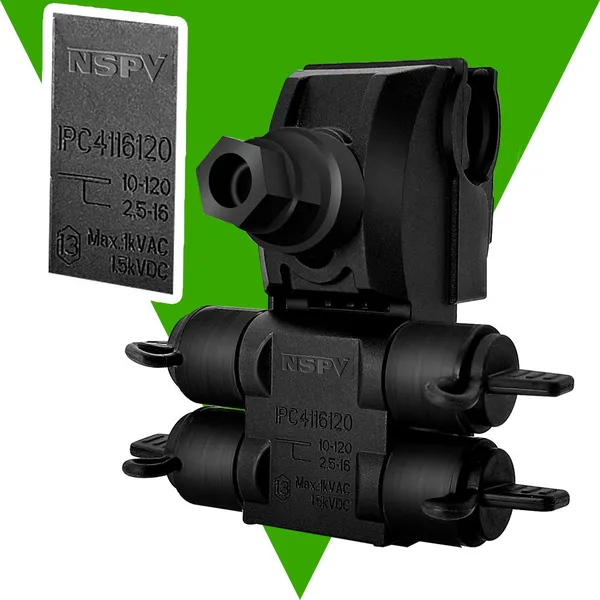

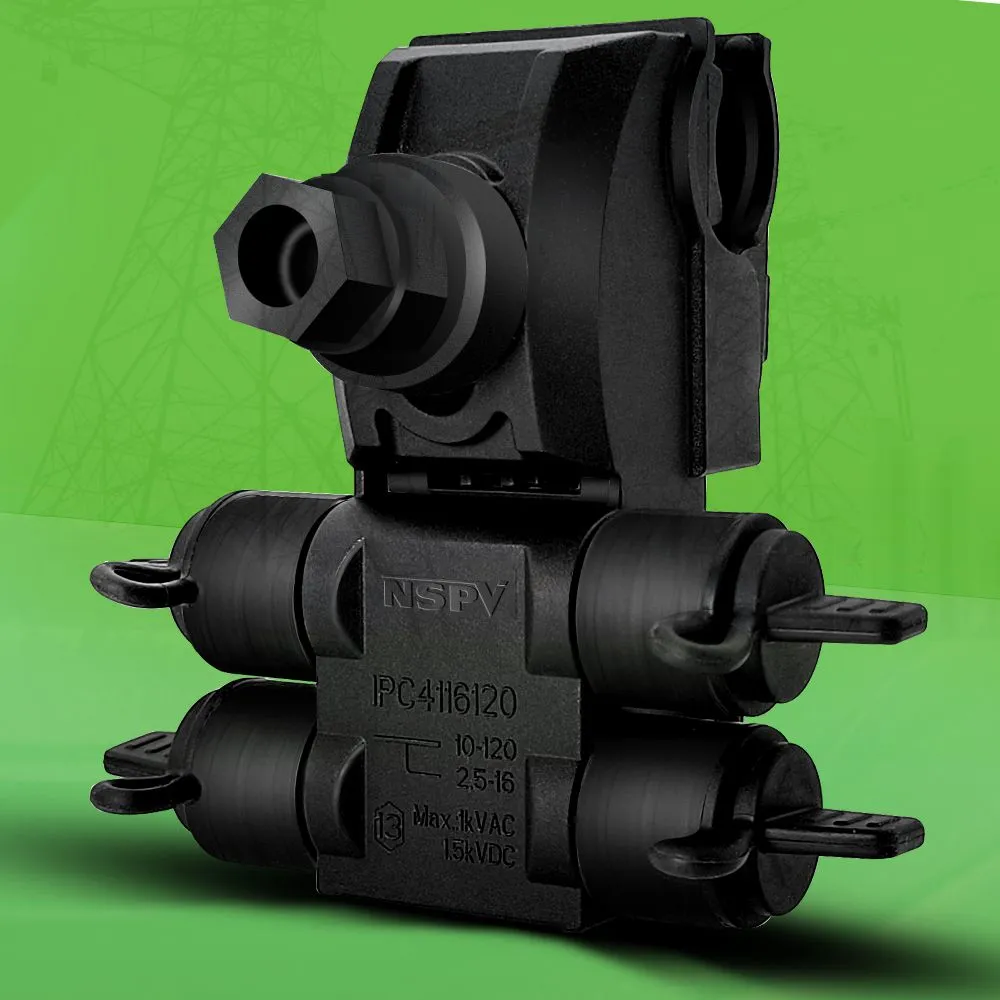

NSPV Insulation Piercing Connector IPC4116120 – Reliable & Efficient Electrical Tap Connector

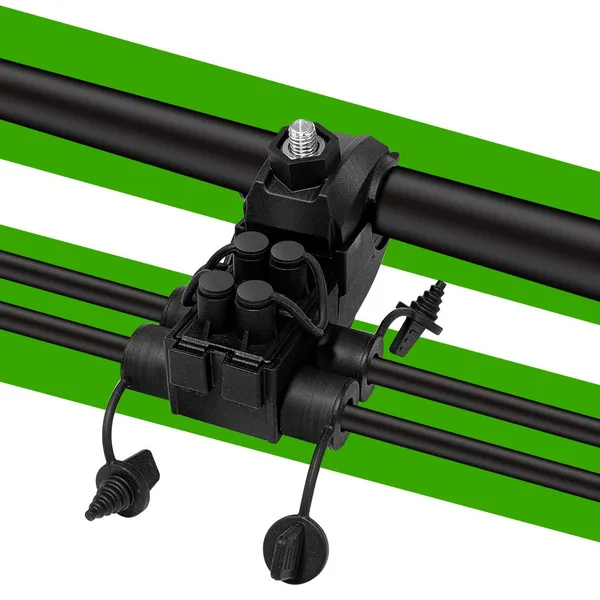

The NSPV IPC4116120 Insulation Piercing Connector (IPC) is a specialized connector designed for secure and reliable electrical branching in low-voltage power distribution and photovoltaic systems. This connector ensures efficient current tapping without the need to strip insulation from the main conductor, simplifying installation and reducing labor time. It is widely used in solar PV arrays, street lighting systems, overhead line connections, and secondary distribution networks.

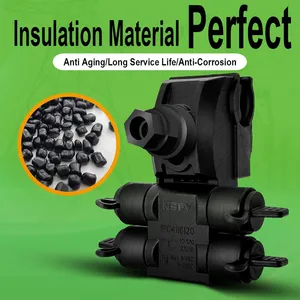

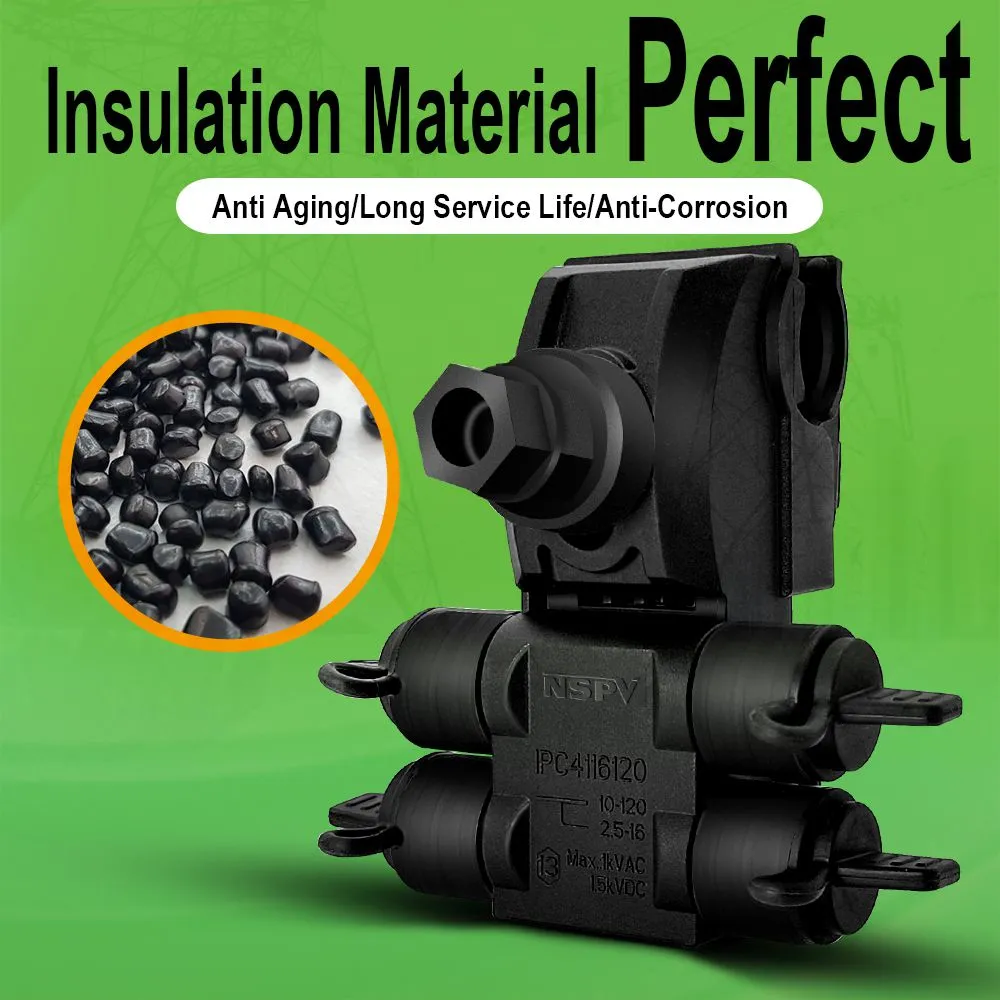

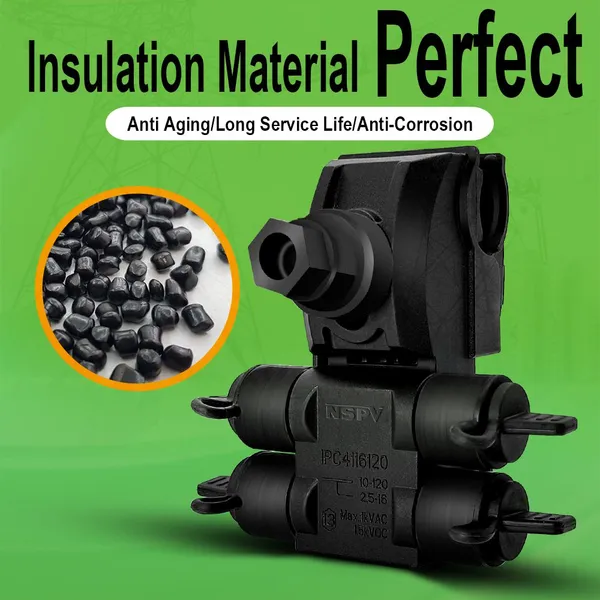

Manufactured by NSPV with high-performance engineering plastic and anti-corrosion components, the IPC4116120 provides excellent electrical conductivity, mechanical strength, and weather resistance. The connector features a shear-head torque bolt that guarantees optimal contact pressure without over-tightening, ensuring consistent and safe performance over time.

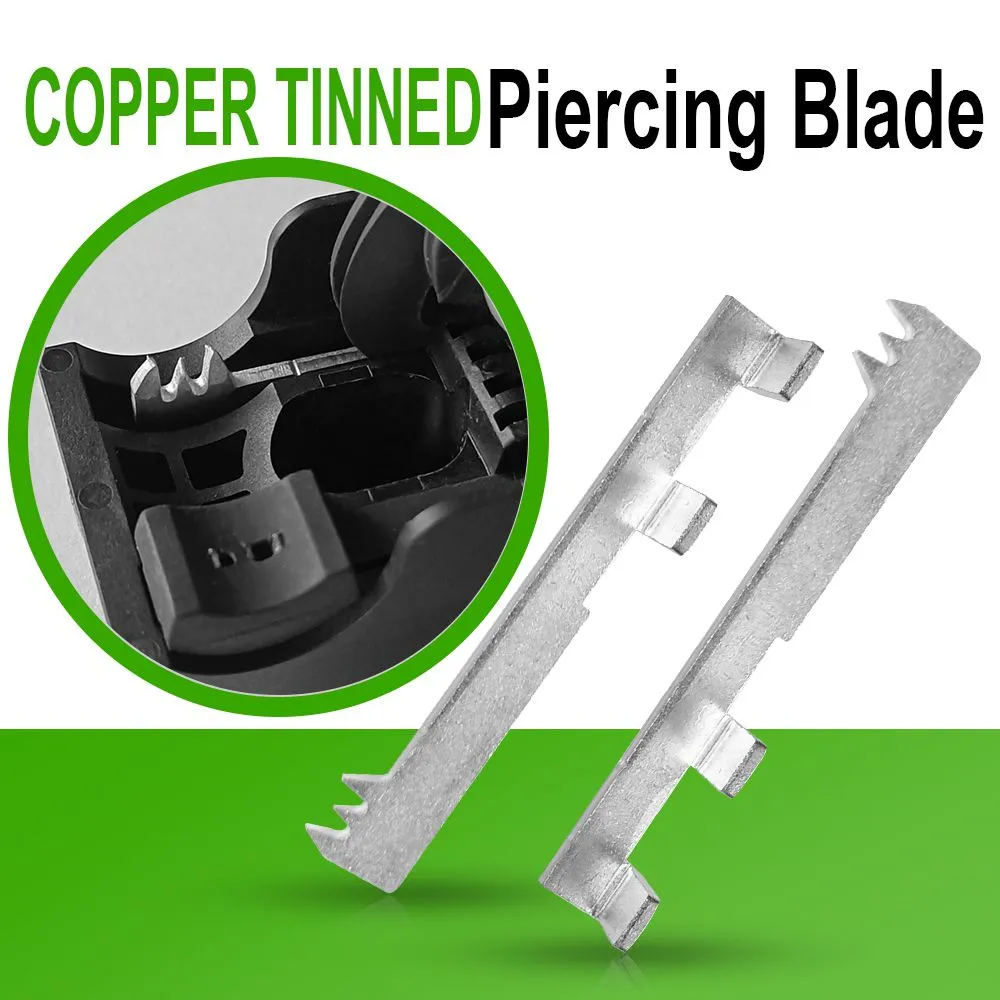

Insulation Piercing Connector's teeth are made of tinned copper or aluminum alloy, enabling strong contact through the conductor's insulation. The IPC4116120 supports a wide range of conductor sizes, making it versatile for different cable configurations, including copper and aluminum cores.
Designed to meet international electrical and safety standards, this insulation piercing connector is water-resistant (IPX7/IPX8 rated when sealed properly), UV-resistant, and compatible with cable types used in solar and utility applications. It requires no special tools, making it ideal for field installations and maintenance.
Technical Specification Table
| Item | Parameter |
|---|---|
| Model | IPC4116120 |
| Brand | NSPV |
| Type | Insulation Piercing Connector (IPC) |
| Main Conductor Range | 16–120 mm² (Copper/Aluminum) |
| Branch Conductor Range | 4–50 mm² (Copper/Aluminum) |
| Bolt Type | Single torque-control shear-head bolt |
| Rated Voltage | ≤ 1kV (AC), 1.5kV (DC) |
| Rated Current | Up to 200A (depending on cable size) |
| Piercing Element | Hardened tinned copper/aluminum alloy teeth |
| Housing Material | UV-resistant glass-fiber reinforced thermoplastic |
| Seal Type | Rubber sealing for waterproof protection |
| Protection Class | IPX7/IPX8 (with sealed caps) |
| Flame Retardant | Yes |
| Operating Temperature | -40°C to +90°C |
| Standards Compliance | EN 50483-4, IEC 61238-1 |
| Installation Tool | Standard wrench (no stripping required) |
| Application | Solar PV, Overhead lines, Utility distribution |
Key Features:
Quick and tool-free piercing connection
Compatible with insulated aluminum and copper cables
Secure waterproof and corrosion-resistant performance
UV-resistant material ideal for outdoor and solar applications
Automatic torque-limiting shear bolt prevents overtightening
