I. Overview
Woodward 8237-1369 belongs to the ProTech-GII series. It is an overspeed detection device specially designed for various types of turbines, and can be widely applied to hydropower turbines, steam turbines, gas turbines and other equipment of different scales. Its core function is to monitor the operating status of the turbine in real time. Once overspeed or over-acceleration of the turbine is detected, it can shut down the system quickly and safely, thereby effectively avoiding equipment damage and safety accidents that may be caused by speed runaway, and providing a solid guarantee for the stable and reliable operation of the turbine.
II. Functional Features
(I) Overspeed Detection and Safe Shutdown
The device continuously tracks the turbine speed through a high-precision monitoring mechanism. Using a 4-20mA current loop input, it can sensitively capture any abnormal speed changes. Once the speed exceeds the preset safety threshold, the device will immediately trigger the safe shutdown process to ensure that the equipment stops operating in a timely manner when a dangerous situation occurs, thus protecting the safety of the turbine and related systems.
(II) Multiple Detection MethodsAcceleration Detection
It can not only monitor the speed, but also conduct real-time monitoring of the turbine's acceleration. When the turbine accelerates rapidly, it can respond quickly, effectively deal with sudden acceleration that may lead to overspeed, and predict and prevent risks in advance.
MPU Detection
It verifies the integrity of the speed sensor connection and the function of the Microprocessor Unit (MPU). In this way, the reliability of the entire monitoring system is ensured, monitoring errors caused by sensor failures or MPU abnormalities are avoided, and the accuracy and stability of overspeed detection are improved.
(III) Testing and Diagnostic FunctionsAutomatic Self-Test Program
It is equipped with an automatic self-test function and can execute preset test routines regularly, including simulating overspeed conditions, to verify the overall operating status of the system. Through periodic self-detection, potential problems are found in a timely manner, ensuring that the device can function normally in actual operation.
Provision of Fault Diagnostic Information
During operation, it can collect and analyze the equipment's operating data in real time. Once an abnormality is detected, it can provide detailed diagnostic information to help maintenance personnel quickly locate the problem, shorten the fault troubleshooting time, and improve equipment maintenance efficiency.
(IV) Flexible Configuration OptionsDual Redundancy or Independent Output
To meet the needs of different application scenarios, two configuration methods are provided. In critical applications, the configuration with dual redundant trip relays (voting architecture) can be selected to greatly improve the system reliability; for some relatively simple setups, the configuration with three independent trip relays can also be used, which is equipped with additional alarm and communication functions. Users can choose flexibly according to actual needs.
Configurable Trip Settings
It allows users to flexibly set specific speed thresholds and time delays for triggering trips according to the specific operating parameters and safety requirements of the turbine. Through this personalized configuration, the device can better adapt to the operating characteristics of different types of turbines and provide precise protection.
(V) Communication and Alarm FunctionsModbus Communication
It supports the Modbus communication protocol and can be easily integrated with various control systems. Through this communication interface, data such as the equipment's operating status and alarm information can be transmitted to the remote monitoring center in real time, realizing remote monitoring and management of the turbine's operating status and facilitating operators to grasp the equipment situation in a timely manner.
Alarm Output
It is equipped with a dedicated alarm output port. When overspeed or other abnormal conditions are detected, it can quickly issue an alarm to operators, reminding them to take measures in a timely manner to ensure the safety of equipment and production.
(VI) Environmental AdaptabilityAnti-Corrosion Design
It adopts a special conformal coating material, which enables the device to have excellent sulfur pollution resistance and work normally in harsh environments containing corrosive gases such as H₂S and SO₂. This design is particularly suitable for the common operating environments of turbines, effectively extending the service life of the equipment and reducing the failure rate caused by corrosion.
Wide Temperature Operation
It has a wide operating temperature range and can operate stably in an ambient temperature of -20°C to +60°C (-4°F to +140°F). At the same time, the storage temperature range is -20°C to +65°C (-4°F to +158°F), which allows the equipment to maintain a good standby state at any time under different environmental conditions and adapt to various complex industrial environments.
High Humidity Adaptability
It can work normally in an environment with a relative humidity of up to 95% (without condensation), and has strong applicability in some industrial sites with high humidity, such as hydropower stations, ensuring the reliable operation of the equipment in humid environments.
III. Technical Parameters

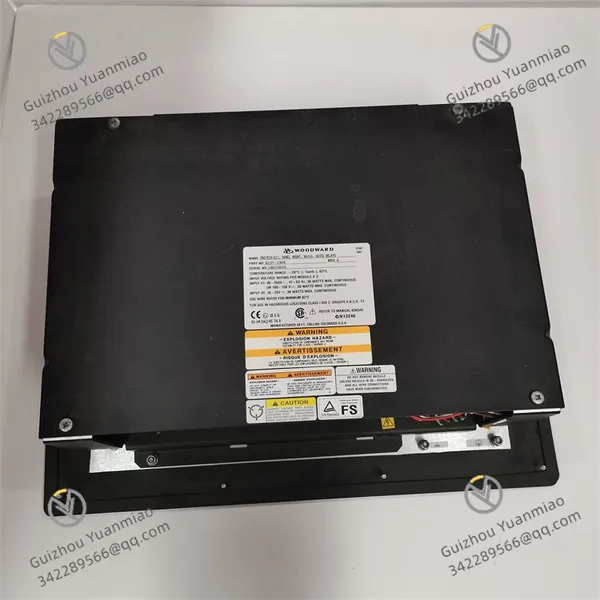

(I) Electrical CharacteristicsHigh Input Voltage
The nominal value supports 115VAC/240VAC/125VDC, which can adapt to different power supply systems and meet the needs of diverse application scenarios.
Low Input Voltage
The nominal value is 24VDC, which provides a more flexible power access method and facilitates connection with different power supply equipment.
DC Reverse Polarity Protection
It is equipped with a DC reverse polarity protection function, which can effectively prevent damage to the equipment caused by reverse connection of the power supply polarity, and improve the safety and reliability of the equipment in terms of power connection.

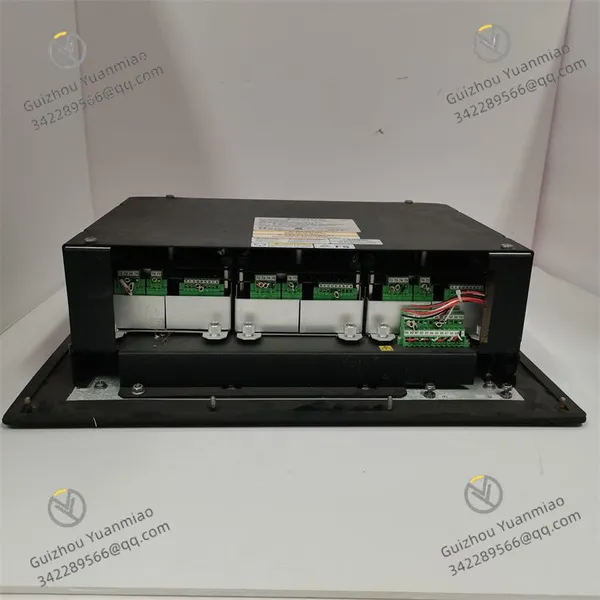

(II) Dimensions and ProtectionDimensions
The external dimensions of the product are 330 x 445 x 159mm. Its compact structural design can effectively save space in the control panel and facilitate installation and integration into various equipment systems.
Protection Level
When installed correctly, the protection level reaches IP56. This means that the equipment has good dustproof and waterproof performance, can effectively resist dust intrusion and water jets from all directions, and is suitable for relatively harsh industrial on-site environments.
(III) Electromagnetic CompatibilityEmission Standard
It complies with the EN 61000-6-4 standard. The electromagnetic radiation generated by the equipment during operation is within the range allowed by the standard, reducing interference to other surrounding electronic equipment.
Immunity Standard
It meets the EN 61000-6-2 standard, has strong anti-electromagnetic interference capability, can operate stably in complex electromagnetic environments without being affected by external electromagnetic interference, and ensures the accuracy of detection and control functions.
(IV) User Interface

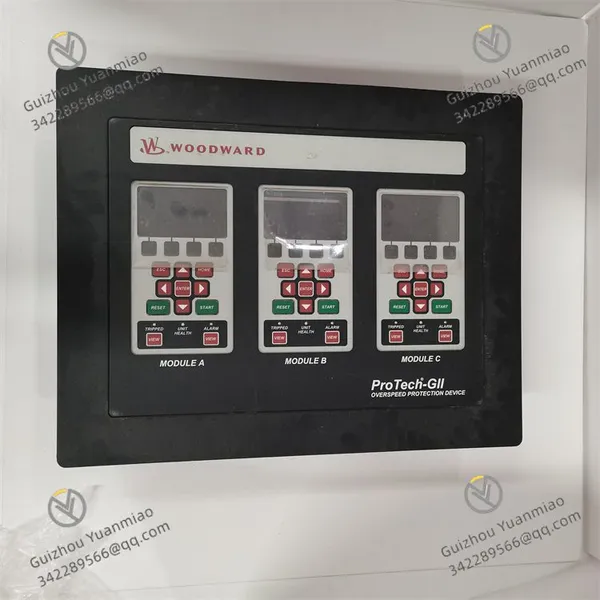

Each module is equipped with a keyboard with 15 keys and a display screen, which facilitates users to perform operations such as parameter setting, checking the equipment's operating status and receiving alarm information. It provides a convenient human-machine interaction method, reduces the difficulty of operation, and improves the usability of the equipment.
IV. Product Advantages
(I) High Reliability
Through dual redundancy design, multiple detection methods and automatic testing functions, the reliability of the equipment in various working conditions is greatly improved. Whether in long-term continuous operation or complex working environments, it can ensure accurate monitoring and timely response to the overspeed of the turbine, effectively reducing the risk of equipment failure and ensuring the continuity and stability of the production process.
(II) Strong Adaptability
It can be adapted to various types and scales of turbines, and can work normally under different electrical conditions, ambient temperatures, humidity levels and electromagnetic environments. This wide adaptability makes it an ideal choice for turbine overspeed protection in the industrial field, and can meet the diverse needs of different industries and users.
(III) Convenient Maintenance
It supports online maintenance function, allowing module replacement without shutting down the turbine, which significantly reduces equipment downtime and maintenance costs. At the same time, the detailed fault diagnostic information and automatic testing function also provide convenience for equipment maintenance and overhaul, helping to solve problems quickly and improve equipment availability.
V. Application Fields
(I) Power Industry
In hydropower stations, thermal power stations and nuclear power stations, it is used for overspeed protection of steam turbines, hydropower turbines and other equipment. It ensures that the turbine is always within a safe operating speed range during power generation, avoids equipment damage and power accidents caused by overspeed, and guarantees the stability and safety of power production.
(II) Petrochemical Industry
It is applied to compressors, pumps and other equipment driven by gas turbines to prevent mechanical failures and production interruptions caused by equipment overspeed. The stable operation of equipment is crucial in the petrochemical production process, and the 8237-1369 can provide reliable overspeed protection for key equipment, ensuring the smooth progress of the production process.
(III) Industrial Manufacturing Field
For some industrial production equipment that uses turbines as power sources, such as large fans and mixers, this device can effectively prevent overspeed during the operation of the equipment, protect the mechanical structure and transmission components of the equipment, extend the service life of the equipment, and improve production efficiency.
