Home > Electrical & Electronics > Electric Motor > AC Motor > WOODWARD 8440-2085 Speed Control Module

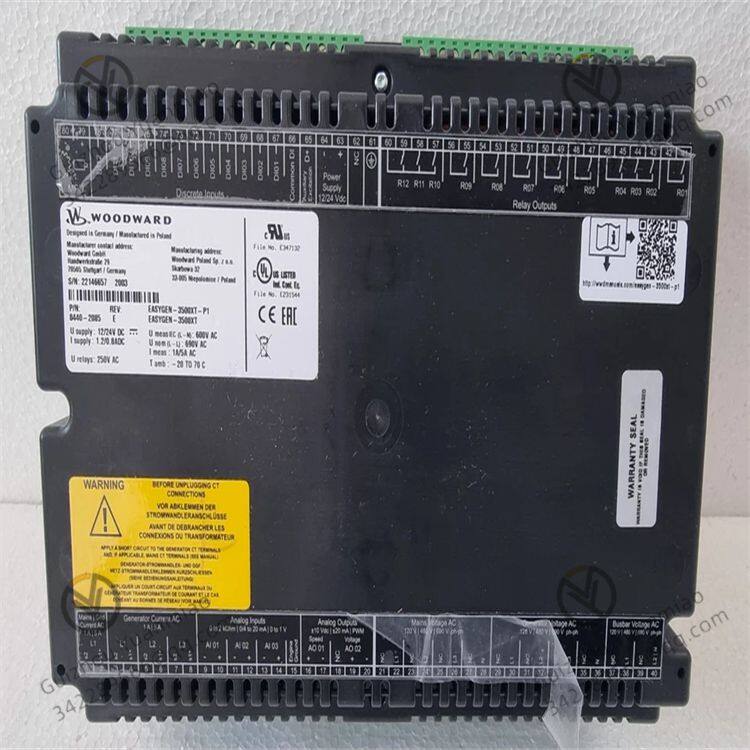

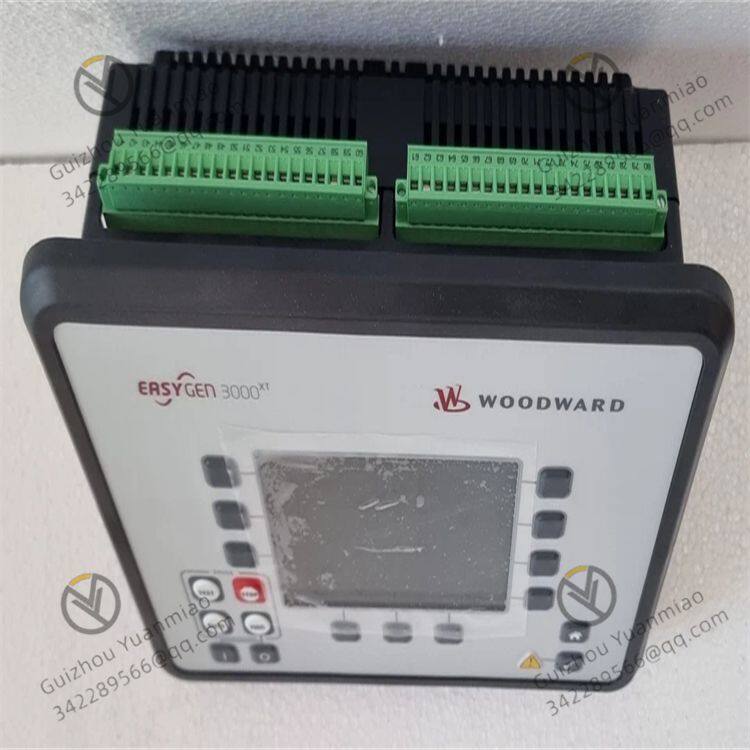

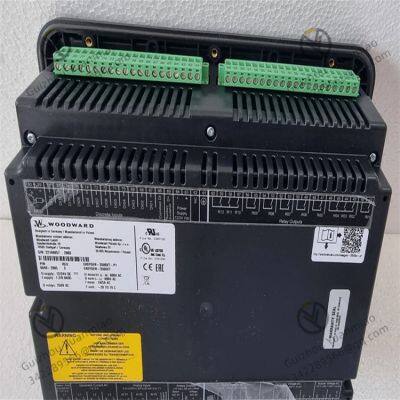

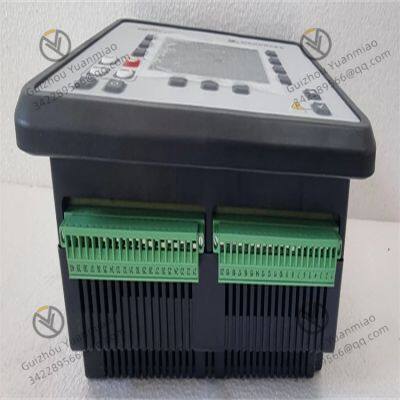

WOODWARD 8440-2085 Speed Control Module

WOODWARD 8440-2085 Speed Control Module thumbnail-3

WOODWARD 8440-2085 Speed Control Module thumbnail-4

WOODWARD 8440-2085 Speed Control Module photo-1

WOODWARD 8440-2085 Speed Control Module photo-2

WOODWARD 8440-2085 Speed Control Module photo-3

WOODWARD 8440-2085 Speed Control Module photo-4

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Certification:

Other

Function:

Other

Application:

Other

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Certification Other

Function Other

Application Other

Brand Other

Number of Stator Other

Number of Poles Other

Casing Protection Other

Starting Mode Other

Speed Other

WOODWARD 8440-2085 Speed Control Module

Basic Information:

Series: EasyGen-3000 Series.
Model Category: 3500 XT.
Display Function: Equipped with display function.

Performance Parameters:

Inputs and Outputs: There is one pair of configurable analog inputs and configurable analog outputs, as well as a set of 8 discrete switch inputs (3 of which are configurable) and 4 configurable discrete relay driver outputs.
Speed Range: It can be used for engine and generator speed synchronization, with a speed range of 90 to 3600 revolutions per minute. At rated speed, the frequency provided by the magnetic pickup needs to be in the range of 100 to 20,000 hertz.
Communication Ports: Includes RS-232 and RS-422 communication ports, using a 9-pin connector, with a baud rate of 1200 to 38,400, supporting full-duplex communication.

Functional Features:

Control Algorithm: A unique algorithm is installed, which can enhance the transient response capability of speed control by using load pulse and load suppression logic applications.
Configurability: As a digital control module, it can be configured on-site to control specific applications, and the configuration can be changed according to needs in the future, with high flexibility.

Application Fields

Power Industry: It can be used in generator sets to precisely control the generator speed, ensure stable output frequency, and provide stable power supply for the power grid. It is often used in emergency backup power supplies for data centers, hospitals, commercial and industrial facilities, as well as independent power systems in remote areas such as oil and gas exploration sites and islands.

Industrial Transmission Field: It can be used to control the speed of pumps to meet flow requirements under different working conditions, such as water supply pumps in waterworks and water circulation pumps in central air-conditioning systems; it can also be used to control the speed of compressors and adjust the output pressure, commonly used in equipment such as screw air compressors.

Energy Field: It is mainly used for steam turbine control, and can also be applied to gas turbines, hydraulic turbines, etc., to achieve precise adjustment of turbine speed and ensure energy conversion and utilization efficiency. In addition, in gas and diesel engines, it can automatically increase or decrease the fuel supply of the fuel injection pump according to load changes, so that the engine can run stably.

Transportation Field: It can be applied to vehicles such as ships and locomotives to ensure that the engine runs at a stable speed under different loads and working conditions, providing reliable power for ship navigation and locomotive operation, and at the same time helping to improve fuel economy and engine life.

Product Tags: 8440-2085
