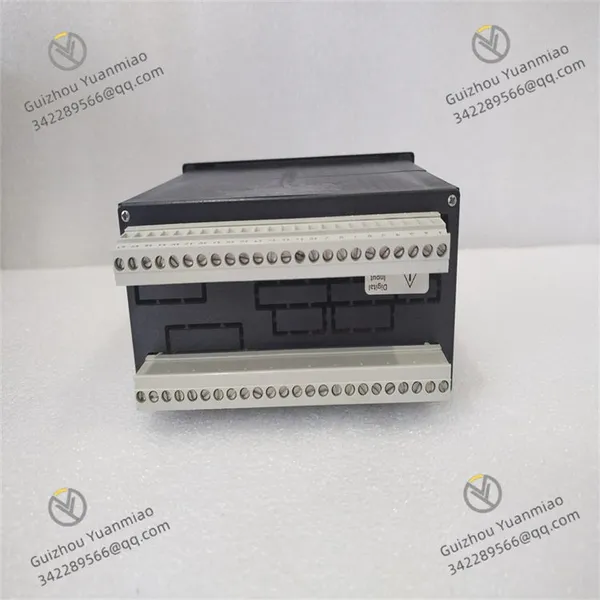

WOODWARD 8440-2087 Relay Module photo-4
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Certification:
Other
Function:
Other
Application:
Other
Contact Supplier Request Quote Chat Now
Guizhou Yuanmiao Automation Equipment Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Certification Other
Function Other
Application Other
Brand Other
Number of Stator Other
Number of Poles Other
Casing Protection Other
Starting Mode Other
Speed Other
WOODWARD  8440-2087  Relay Module
Functional Features:
Powerful control and protection functions: It can realize complete control and protection of the engine-generator, with automatic synchronization function, capable of phase matching, positive and negative slip frequency control, etc., and can also control the closing and opening of circuit breakers.
Load distribution function: It supports proportional load sharing, enabling load distribution for up to 32 generator sets, applicable to both isochronous and droop control modes. It can also realize basic load control, import-export control and asymmetric load control through external basic load input.
Automatic detection and emergency functions: Equipped with AMF (Automatic Mains Failure) detection function, it can perform decoupling and emergency operation when the mains power fails. It can also automatically start or stop the generator according to the load condition, improving the efficiency of the power generation system.

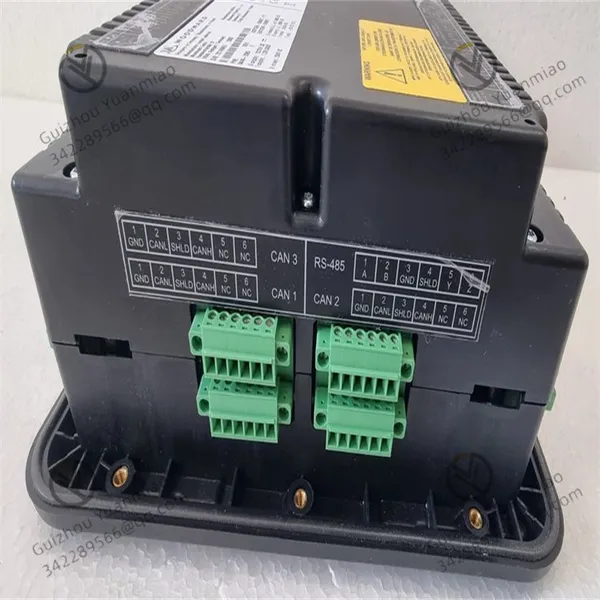

Communication functions: Supports CAN network communication, capable of communicating with the engine ECU (standard SAE-J1939 protocol and various proprietary engine OEM protocols). It also has serial Modbus RTU (slave) communication function for SCADA alarm and external control. Remote alarm, control and configuration can be performed through the RP-3400 XT remote panel, with a communication distance of up to 250m.

8440-1978—03

Technical Parameters:
Dimensions: The front panel size is 282w x 216h x 96d mm.
Measurement frequency: 50/60Hz (40 - 85Hz).
Power supply: 12/24 VDC (8 to 40 VDC).
Setting range: The main setting range is 50 - 650,000 vac.
Output characteristics: The relay output is isolated.
Operating temperature: -40℃ to 70℃.


Working Principle: The working principle of the WOODWARD 8440-2087 relay module is based on electromagnetic induction. When the electromagnetic coil inside the module is energized, it generates an electromagnetic field, causing the iron core to move under magnetic attraction. The movement of the iron core drives the mechanical part to act, thereby changing the contacts (switches) — normally open contacts close and normally closed contacts open. In this way, electrical isolation between the control signal and the controlled circuit is achieved, and it can also control the on-off of high-current or high-voltage circuits.


Application Fields:
Emergency backup power supply: Suitable for places such as data centers, hospitals, commercial and industrial facilities, providing emergency backup power when the mains power is interrupted.
Distributed generation: Can be used in utility dispatchable power systems to respond to peak demand.
Microgrids: Realizes power control and management in microgrid projects such as military, government agencies, net-zero communities, and universities.
Mains grid connection: Used in scenarios such as peak clipping and demand reduction to help optimize the operation of power systems.
Cogeneration: Controls power generation equipment in cogeneration (CHP) systems such as sewage treatment plants and biogas production.
Switchgear upgrade: Can be used for generator control transformation, adding load sharing and parallel functions to switchgear.
