Home > Products > Split Core Current Transformer > Sct-T24 Miniature Split Core Current Transformer (100-300A)

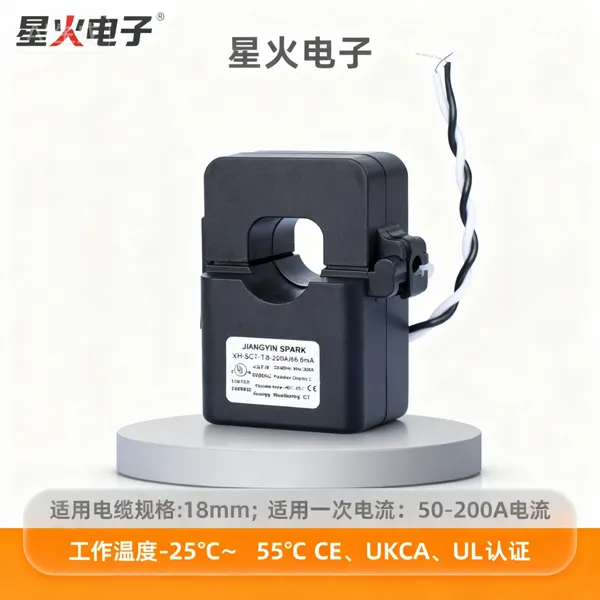

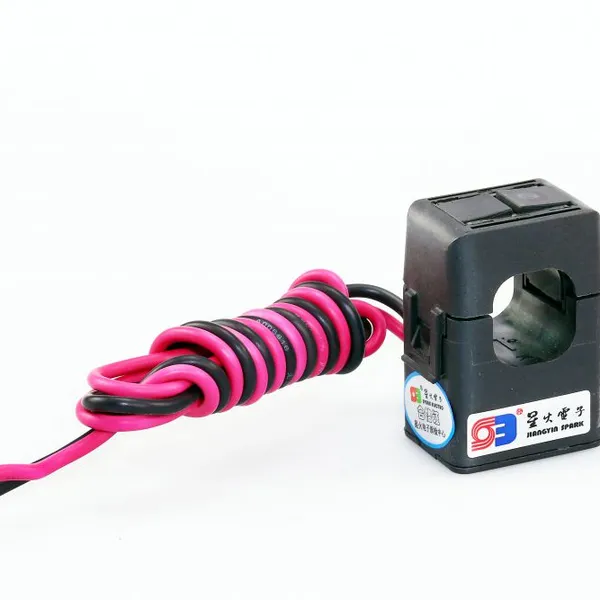

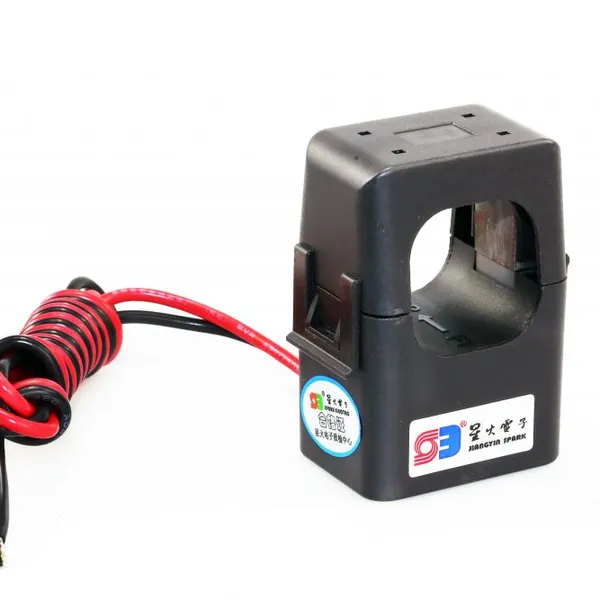

Sct-T24 Miniature Split Core Current Transformer (100-300A)
US$ 8 - 10
/ Piece
1 Piece(Min. Order)
- T/T L/C PayPal D/P Western Union Other
- 3 days
You May Like
-
CE Split Core Current Transformer 150A/5A ID 24mm Low Voltage CT
-
CE Low Voltage Split Core Current Transformer 600A/5A ID 36mm
-
Flexible Current Transformer 2000A/0.333V Rogowski Coil
-
UKCA Split Core Current Transformer Low Voltage 200A/5A ID 24mm
-
UL Split Core Current Transformer 100A 0.333V output open type CT
-
UL Split Core Current Transformer 120A 80mA Cts Clip on Clamp ID 16mm
Product Details
| Certification | ISO9001 | Application | Power, Electronic | |
| Usage | Single-phase Transformer, Power Transformer, Distribution Transformer | Phase | Single | |
| inner diameter | 24mm | current range | 100-300A | |
| output singal | 5A/1A | Transport Package | Cartons | |
| Specification | Piece | Trademark | Elecspark | |
| Origin | China |
Product Description
Xh-Sct-T24
Specifications Of SCT-T24 Miniature Split Core Current Transformer (100-300A)
Maximum continuous primary current 5A to 1000AAC
Current Ratio: 3000: 1
Output: 0.333V, mV ,mA,A
Accuracy: ± 1% from 5% to 120% of rated current
Insulation Voltage: 600VAC
Maximum Primary Voltage: 3kV(Insulated Conductor)
Phase angle: Less than 2 degrees at 50% of rated current
Frequency Range: 50 Hz to 400 Hz
Operating Temperature: -15C to 60C.
Leads: 4Foot(105cm), UL 1015, Twisted Pair, 0.34 mm2(22AWG)
CE recognized, and RoHS compliant
Output and leads can be customized

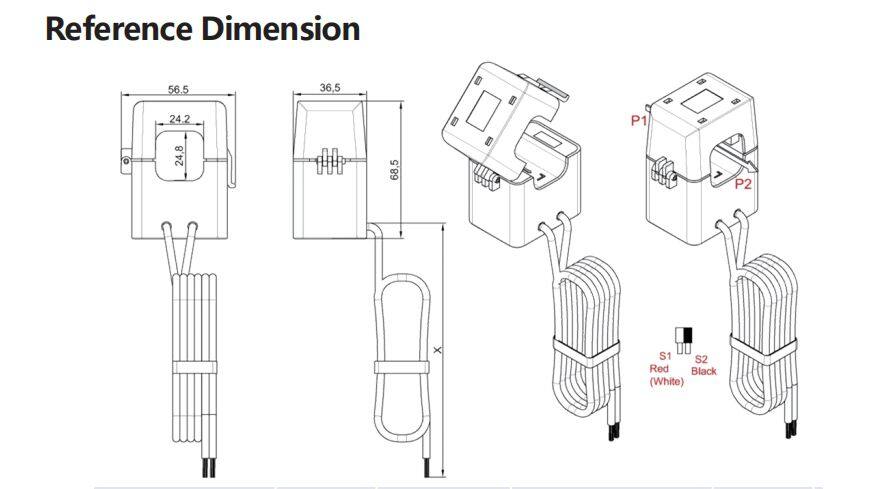

Drawing Size Of SCT-T24 Miniature Split Core Current Transformer (100-300A)
| Model | I.D. | Ratio | Rated Amps | Accuracy |
| XH-SCT-T06 | 6mm | 1000:1 | 1, 5,10, 15, 20, | 0.5 , 1.0 |
| XH-SCT-T10 | 10mm | 3000:1 | 5, 15, 30, 50, 75,80 | 0.5 , 1.0 |
| XH-SCT-T16 | 16mm | 3000:1 | 50, 70, 100, 120 | 0.5 , 1.0 |
| XH-SCT-T24 | 24mm | 3000:1 | 100, 150, 200, 300 | 0.5 , 1.0 |
| XH-SCT-T36 | 36mm | 3000:1 | 300, 400, 500, 600 | 0.5 , 1.0 |
