UL Xh-Sct-T20 20A/20mA Split Core Instrument Current Transformer
US$ 3 - 8
MOQ: 5 Pieces
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
UL2808 Sct-075 Monitoring Sensor Split Core Current Transformer 0.333V Output Square BusbarUS$ 2 - 10MOQ: 10 Pieces -
UL Split Core Current Transformer 5A/2mA Clamp-on ctUS$ 1.9 - 4MOQ: 10 Pieces
-
CE Energy Monitoring Split Core Current Transformer 0.33V Output ID16mmUS$ 2 - 5MOQ: 5 Pieces
-
UKCA Split Core Current Transformer 150A/5A Meter Matching Transformer ClampUS$ 5 - 8MOQ: 5 Pieces
-
UKCA Split Core Current Transformer 0.33V Output 24mm DiameterUS$ 5 - 8MOQ: 5 Pieces
Phase
Single

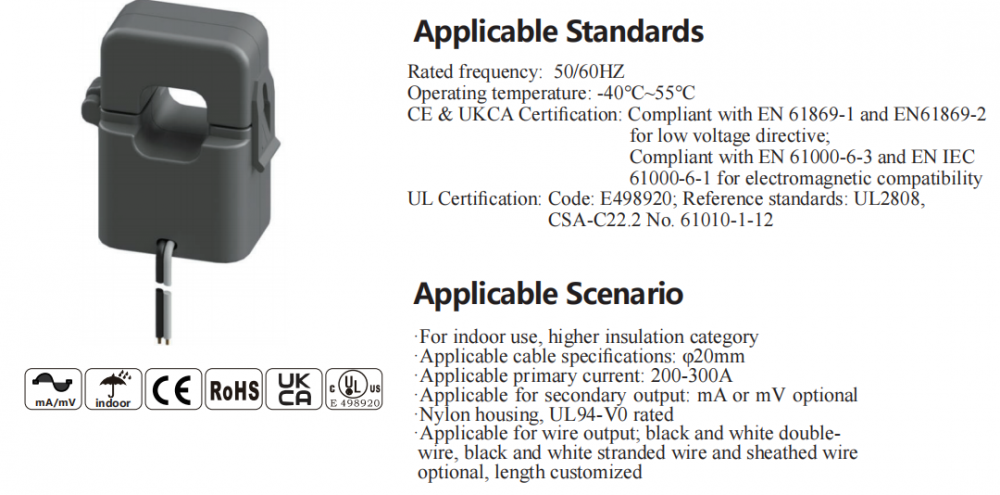

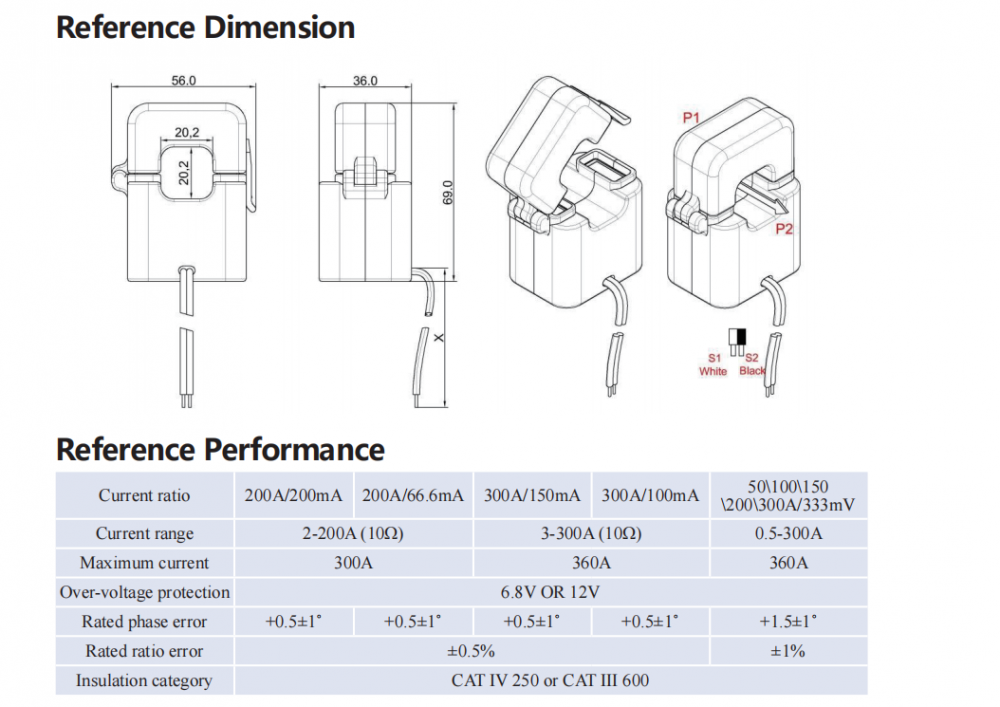

Specifications Of SCT-T20 Split Core Current Transformer
Description:
Jiangyin Spark energy monitoring split core current transformer, AC current from 1 to 300 Amps passing through the center conductor.Split core Current Transformers are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.Built in resistor provides 0.333V output ,this method permits a safer,easy and portable current measurement.
One-handed opening and closing mechanism makes a snap installation
