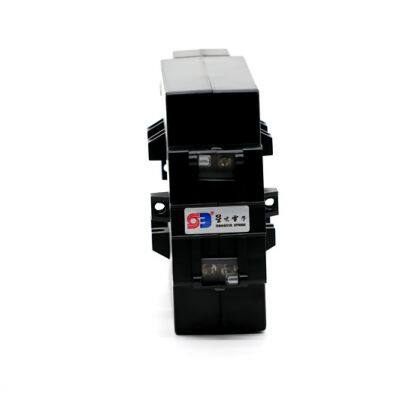

Help CenterKCT-816 Split Core Busbar Current Transformer Window Type 160*80mm
Related Products
-
Split Core Current Transducer DCT24-300AAC/4-20mA DC OutputUS$ 8 - 10MOQ: 1 Piece -
UL2808 Sct-0750/1250/2000/3000 0.333V CT Residential Monitoring System Sensor Split Core Current TransformerUS$ 5 - 20MOQ: 1 Piece
-
Sct-T24 Miniature Split Core Current Transformer (100-300A)US$ 8 - 10MOQ: 1 Piece
-
CE Split Core Current Transformer 150A/5A ID 24mm Low Voltage CTUS$ 5 - 8MOQ: 5 Pieces
-
CE Smart Metering Low Voltage Split Core Current Transformer 600A/5A ID 36mmUS$ 6 - 9MOQ: 5 Pieces
KCT Split Core CT 1A or 5A Output, split core current transformer
Jiangyin Spark The DBP series Split Core Current Transformer has been specially designed to facilitate their installation in new or already existing net works. They may be installed without opening any cable or bus-bar circuit. The connection of conventional CTs usually requires the interruption of the primary side circuit to pass cables or bur-bars through the transformer core or to connect such cables to the primary terminals. The DBP series transformers core may be easily opened and they may be installed and connected without any supply interruption. Thus saving time and the installation costs.
Features:
Rated primary current:1500A AC
Rated secondary current: 5 or 1A AC
Rated load: 1, 2.5, 5.0, 10 and 30VA
Accuracy: 0.5 class
Rated short-time thermal current (Ith): 20In
Rated dynamic current (Idyn): 2.5Ith
Highest voltage for equipment (Um): 720V AC RMS
Rated power-frequency withstand voltage: 3, 000V AC RMS
Frequency range: 50/60Hz
Operating temperature: -15 to 60° C

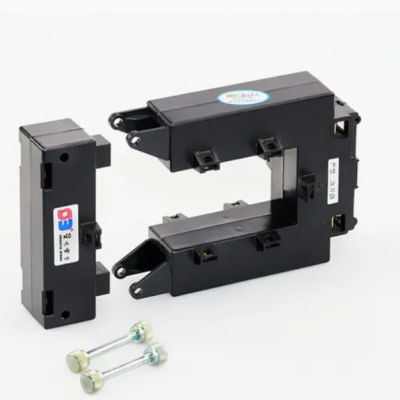

Split core design, safer, easy to install and portable
Accessories: Supplied with feet for base mounting if required
Applications:
Current, power, energy and monitoring devices
Relay protection devices
Power factor correction devices

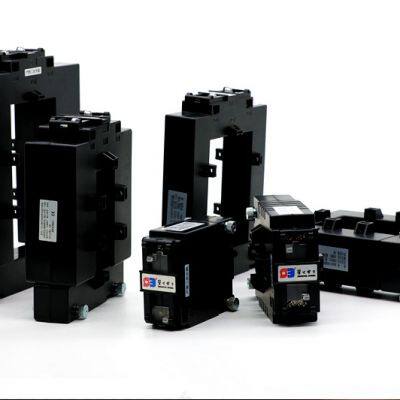

Available in 5 standard sizes
Standard: IEC 60044-1
RoHS Directive-compliant
