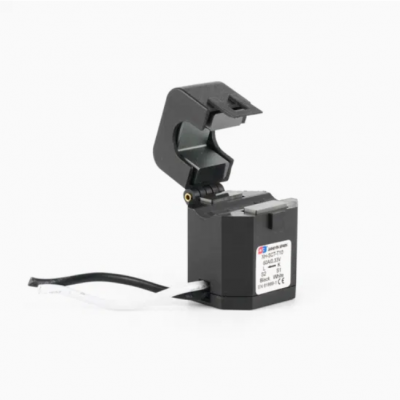

UL Split Core Current Transformer 5A/2mA Clamp-on ct
US$ 1.9 - 4
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
Jiangyin Spark
Place of Origin:
China
Model Number:
Xh-Sct-T10
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CE Energy Monitoring Split Core Current Transformer 0.33V Output ID16mmUS$ 2 - 5MOQ: 5 Pieces -
UKCA Split Core Current Transformer 150A/5A Meter Matching Transformer ClampUS$ 5 - 8MOQ: 5 Pieces
-
UKCA Split Core Current Transformer 0.33V Output 24mm DiameterUS$ 5 - 8MOQ: 5 Pieces
-
KCT-816 2500:5A Busbar Type Split Core Current TransformersUS$ 12.9 - 58MOQ: 1 Piece
-
5A Output Busbar Split Core Current Transformer for Monitoring DevicesUS$ 12.9 - 58MOQ: 1 Piece
Brand Name
Jiangyin Spark
Place of Origin
China
Model Number
Xh-Sct-T10
Usage
Instrument
Phase
Single
Coil Number
Other
Coil Structure
Other
Product Description

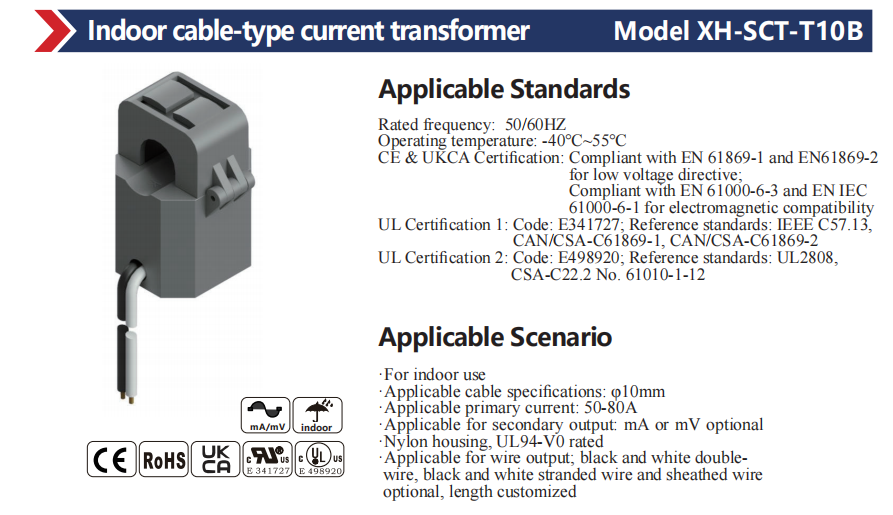

Split-Core AC Current Transformer current Sensor XH- SCT-T10(B)
φ10mm Opening With 5 To 80 Amp Rating
Description:
Jiangyin Spark XH-SCT-T10 Series split-core current senses AC current from 5 to 80 Amps passing through the center conductor.Split core CTs are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement.
|
SPECIFICATIONS : 1,Rated Voltage:0.66KV 2,Insulation Voltage:3500V 3,Rated Frequency:50HZ/60HZ 4,Operating Temperature:-20ºCto 70ºC 5,Weight:70g 6,Certificates:UL ,CE ,ROHS |
FEATURES: 1,Small cost 2,Split core design ,Easier installation 3 Build diode ,no high voltage danager 4,Good linearity at very low current |

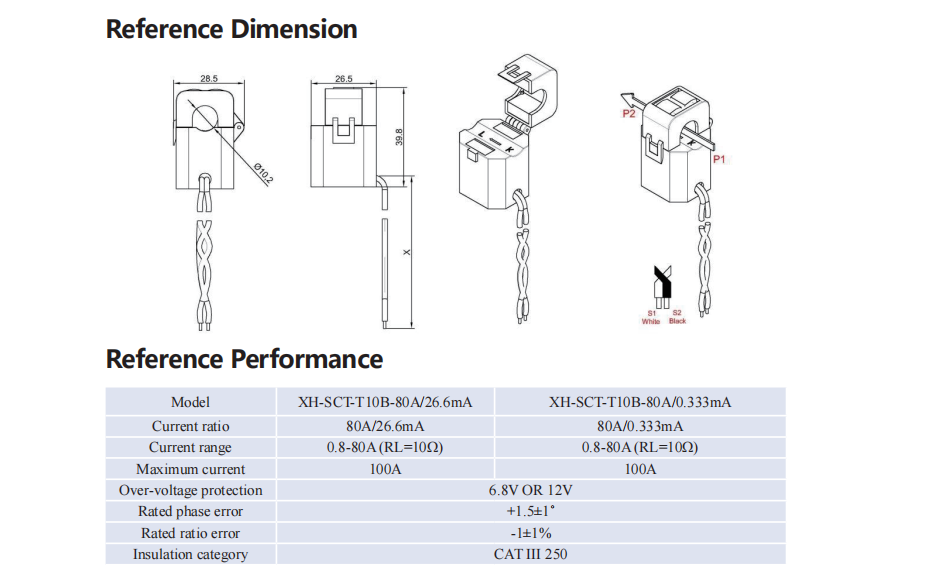

| Model | Input(A) | Max currnet(A) | Output |
| XH-SCT-T10A | 0.2-80AAC | 100AAC |
mA/0.333VAC /0-3VAC |
| XH-SCT-T10B |
