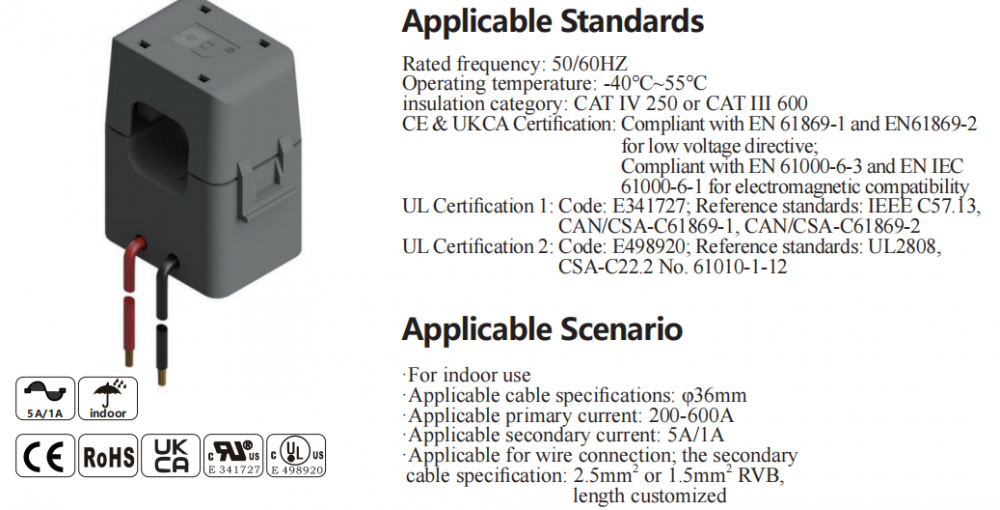

CE Smart Metering Low Voltage Split Core Current Transformer 600A/5A ID 36mm
US$ 6 - 9
MOQ: 5 Pieces
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
3 days
Related Products
-
UKCA Split Core Current Transformer Low Voltage 200A/5A ID 24mmUS$ 5 - 8MOQ: 5 Pieces -
UL Split Core Current Transformer 100A 0.333V Output Open Type CTUS$ 2 - 5MOQ: 5 Pieces
-
UL Xh-Sct-T20 20A/20mA Split Core Instrument Current TransformerUS$ 3 - 8MOQ: 5 Pieces
-
UL2808 Sct-075 Monitoring Sensor Split Core Current Transformer 0.333V Output Square BusbarUS$ 2 - 10MOQ: 10 Pieces
-
UL Split Core Current Transformer 5A/2mA Clamp-on ctUS$ 1.9 - 4MOQ: 10 Pieces
Phase
Single
Jiangyin Spark XH-SCT-T36 Split Core Current Transformer 600A 5A CT
Maximum continuous primary current 5A to 600AAC
Output: 0.333V, mV ,mA,1A ,5A
Accuracy: ± 1% from 5% to 120% of rated current
Insulation Voltage: 600VAC
Maximum Primary Voltage: 3kV(Insulated Conductor)
Phase angle: Less than 2 degrees at 50% of rated current
Frequency Range: 50 Hz to 400 Hz
Operating Temperature: -15C to 60C.
CE UL recognized, and RoHS compliant
Output and leads can be customized
| Model |
Input(A) | Output(A) | Overload current(A) | Accuracy(5%-120%)F(I)% | Accuracy(5%-120%)δ(I)° |
| XH-SCT-T36B-100A/5A | 100 | 5 | 170 | ≤1% | ≤1° |
| XH-SCT-T36B-250A/5A | 250 | 5 | 420 | ≤0.5% | ≤0.7° |
| XH-SCT-T36B-300A/5A | 300 | 5 | 540 | ≤0.5% | ≤0.2° |
| XH-SCT-T36B-450A/5A | 400 | 5 | 720 | ≤0.5% | ≤0.2° |
| XH-SCT-T36B-600A/5A | 600 | 5 | 960 | ≤0.5% | ≤0.1° |

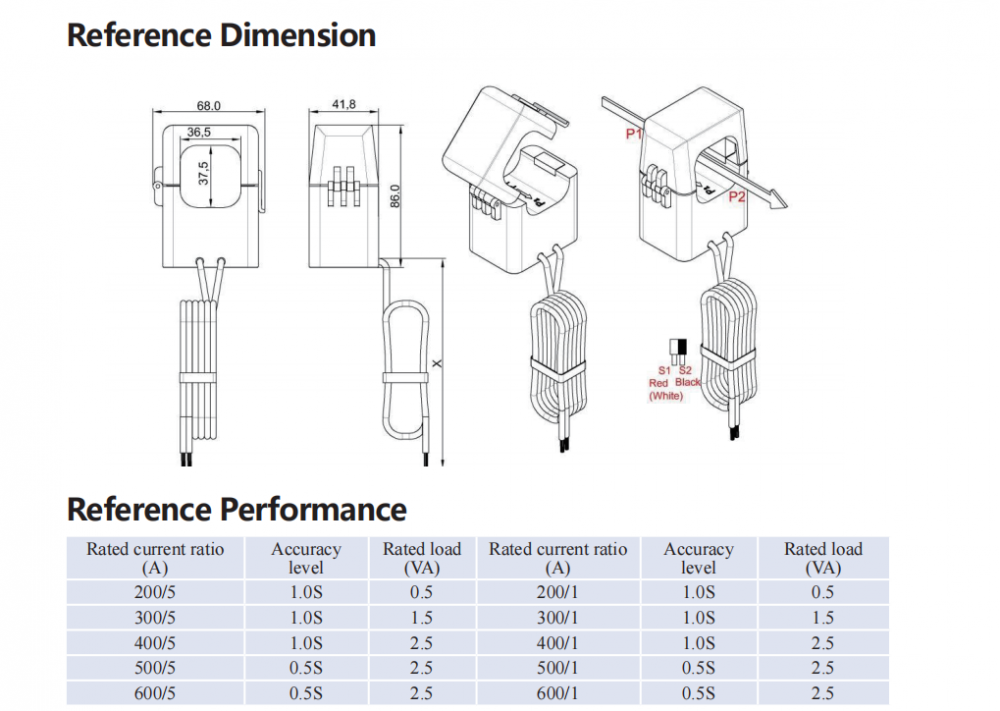

Drawing Size Of SCT-T36 Split Core Current Transformer
