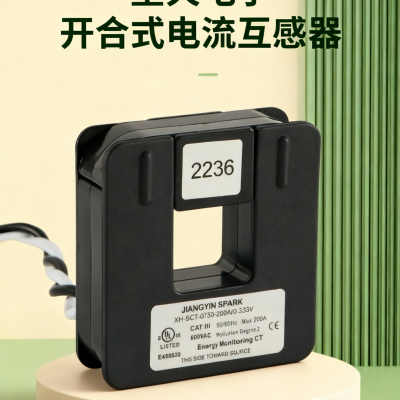

UL2808 Sct-075 Monitoring Sensor Split Core Current Transformer 0.333V Output Square Busbar

Split core Current Transformer SCT XOBA 333mV Secondary

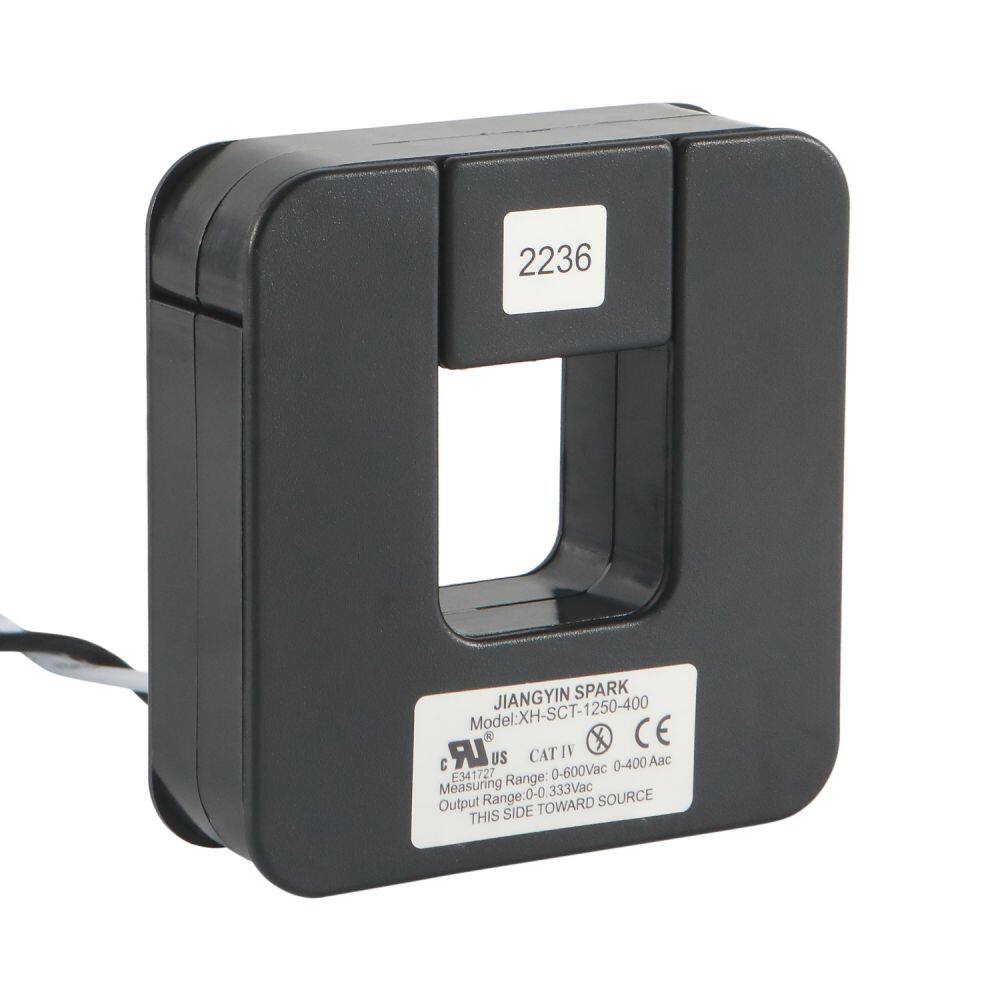

The JIANGYIN SPARK series of split core current transformer are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement. An internal precision burden resistor across the secondary winding of the CT provides a safe low voltage output and permits safe opening of the secondary

Features
Low cost.
Split core design;safer,easier installation,portable.
Specifications
Rated Current 5A to 3000A loads.
Rated output: 0.333Vac
Accuracy:±1% from 5% to 120% of rated current
Phase Angle: less than 2 degrees at 50% of rated current
Insulation Voltage:600Vac
Maximum Primary Voltage:5400Vac ,Service Entrance CAT IV 250V
Operating Temperature:-40ºCto 80ºC.
Frequency Range:50-400Hz
Leads:4Foot(105cm),UL 1015,Twisted Pair,0.34 mm2(22AWG)
UL2808 &CE recognized. RoHS Compliant
Output and leads can be customized

Application
Measures AC current flow to electric motors, lighting, air conditioning equipment, etc.Compatible with HVAC temperature control, power management,Residential Systems
