UKCA Split Core Current Transformer 0.33V Output 24mm diameter
USD $5 - $8
/ Piece
5 Pieces(Min.Order)
- 10000 Piece / Pieces per Month
- T/T L/C Credit Card
You May Like
-
5A Waterproof Outdoor Voltage insulation Split Core Current Transformer Anti-UV
-
Waterproof Outdoor Single Phase Split Core Current Transformer 36mm diameter
-
UL2808 Bct-1250 Solid Core Current Transformer Closed Loop 600A
-
Bct-0750 Toroidal Solid Core Current Transformer 333mV Output
-
UL 800A/333mV Three Phase Flexible Rogowski Coil Senor Current Measuring
-
UL High Quality Rogowski Mter Three Phase 1000A Input with Energy Manufacturer
Product Details
| Brand Name | Jiangyin spark | Place of Origin | China | |
| Model Number | XH-SCT-T24 | Usage | Electronic | |
| Phase | Single | Coil Number | Other | |
| Coil Structure | Other |
Product Description
Xh-Sct-T24

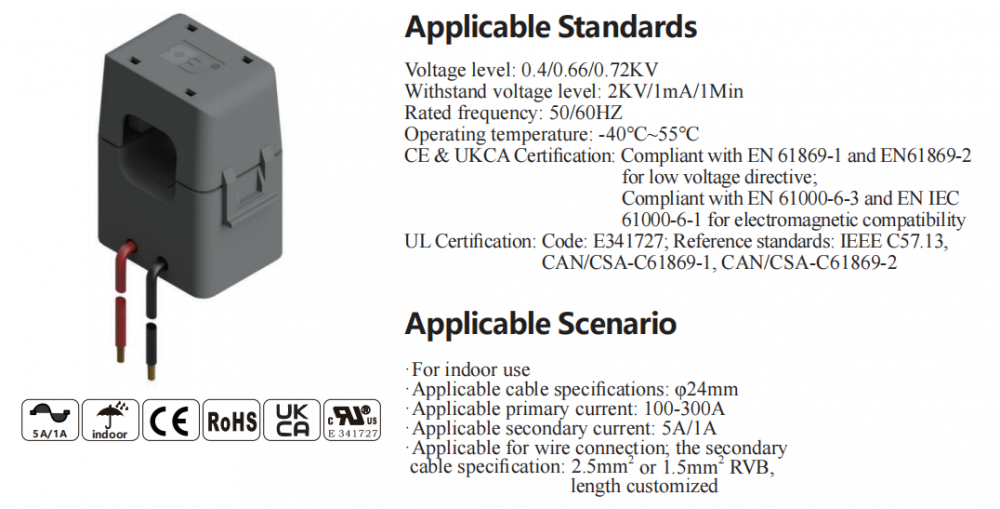

Specifications Of SCT-T24 Split Core Current Transformer
Maximum continuous primary current 5A to 300Aac
Output: 5A
Accuracy: ± 1% from 5% to 120% of rated current
Insulation Voltage: 600VAC
Maximum Primary Voltage: 3kV(Insulated Conductor)
Phase angle: Less than 2 degrees at 50% of rated current
Frequency Range: 50 Hz to 400 Hz
Operating Temperature: -15C to 60C.
CE recognized, and RoHS compliant
Output and leads can be customized
| Model | Input(A) | Output(A) | Overload current(A) | Accuracy(5%-120%)F(I)% | Accuracy(5%-120%)δ(I)° |
| XH-SCT-T24B-100A/5A | 100 | 5 | 160 | ≤1.5% | ≤1.5° |
| XH-SCT-T24B-150A/5A | 150 | 5 | 240 | ≤1% | ≤1° |
| XH-SCT-T24B-200A/5A | 200 | 5 | 320 | ≤1% | ≤0.5° |
| XH-SCT-T24B-250A/5A | 250 | 5 | 420 | ≤1% | ≤0.5° |
| XH-SCT-T24B-300A/5A | 300 | 5 | 420 | ≤1% | ≤0.5° |

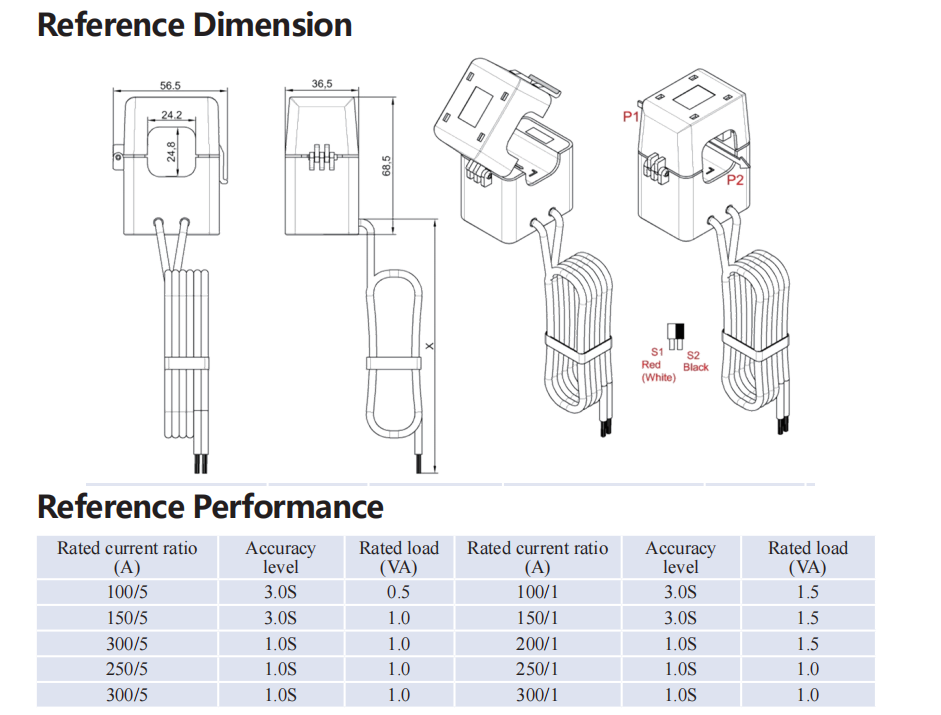

Drawing Size Of SCT-T24 Split Core Current Transformer
