Schneider XBTGT5330 Magelis Graphic Terminal Touchscreen

Schneider XBTGT5330 Magelis Graphic Terminal Touchscreen thumbnail-3

Schneider XBTGT5330 Magelis Graphic Terminal Touchscreen thumbnail-4

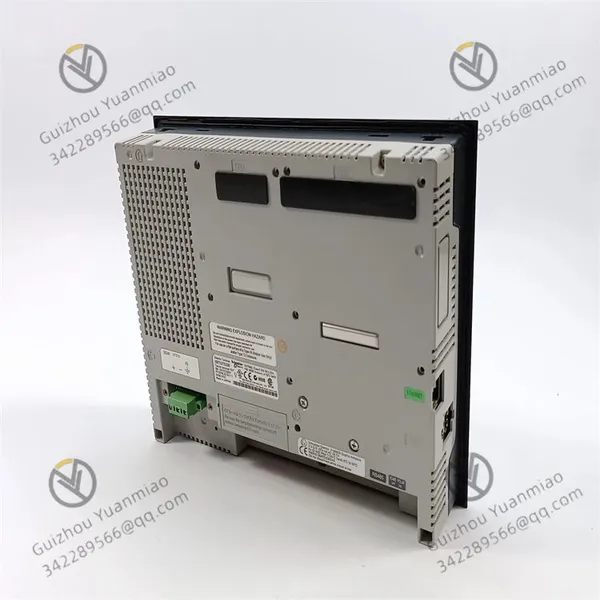

Schneider XBTGT5330 Magelis Graphic Terminal Touchscreen photo-1

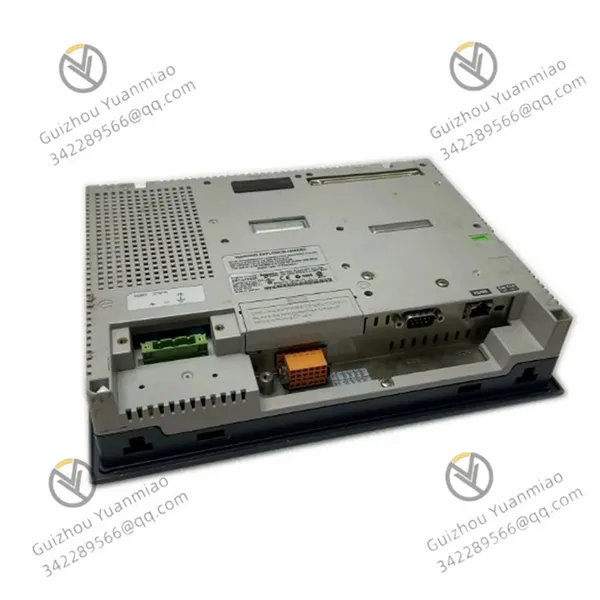

Schneider XBTGT5330 Magelis Graphic Terminal Touchscreen photo-2

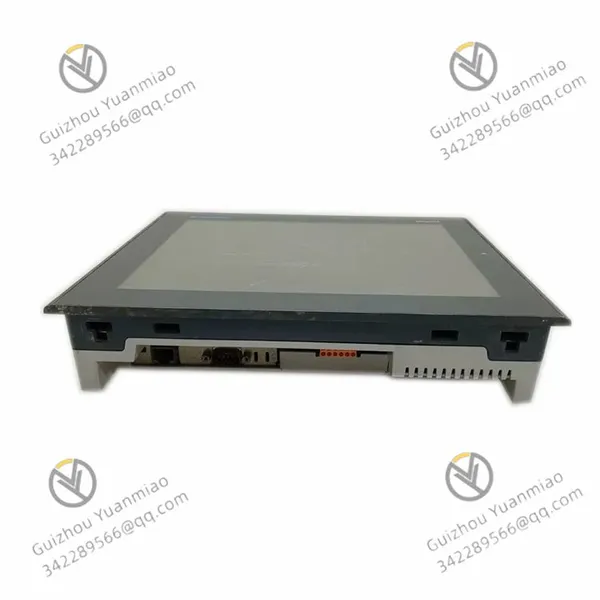

Schneider XBTGT5330 Magelis Graphic Terminal Touchscreen photo-3

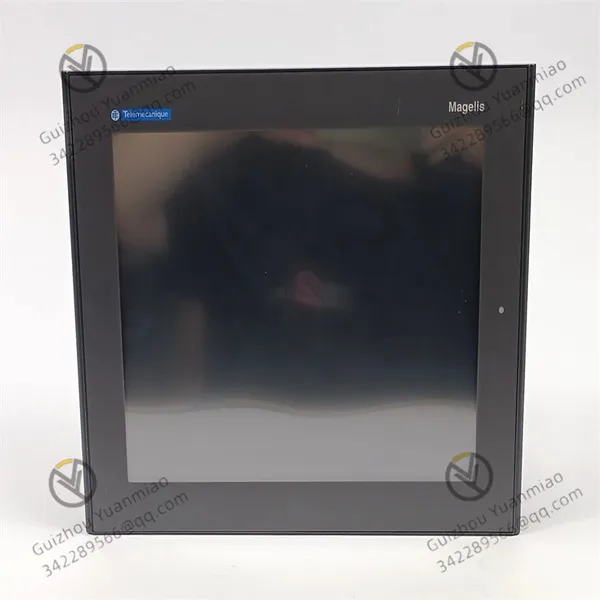

Schneider XBTGT5330 Magelis Graphic Terminal Touchscreen photo-4

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other

Certification:

Other

Function:

Other

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other

Certification Other

Function Other

Condition Other

Task Other

Mathematical Model Other

Signal Other

Customized Other

Structure Other

Schneider XBTGT5330 Magelis Graphic Terminal Touchscreen

Schneider XBTGT5330 Magelis Graphic Terminal Touchscreen is a high-performance human-machine interface device specially designed for industrial automation applications. The following is a detailed introduction:

Main Performance Parameters
Display: Adopts a 10.4-inch TFT color LCD screen with a resolution of 640×480 pixels, capable of displaying 65536 colors, presenting clear and delicate images.
Touchscreen: A high-precision analog resistive touchscreen with a touch area of 1024×1024, ensuring sensitive and accurate operation.
Processor: Equipped with a 266MHz RISC processor to ensure smooth system operation and quick response to operation commands.
Memory: Usually has a storage capacity of 32MB; some data shows it is equipped with 128MB flash EPROM. It also supports SD card expansion up to 4GB, facilitating the storage of application data and programs.
Power Supply: Operates on 24V DC with low power consumption and stable performance.

Communication Capability: Supports multiple communication protocols, including Modbus, Modbus TCP/IP, Uni-te, RS-232C, RS-485, etc., enabling convenient connection with Schneider and other brands' PLCs and other devices to realize data interaction and equipment control.

Functional Features
Excellent Display Effect: Uses a TFT LCD screen that can display 65536 colors, with rich and delicate . The 10.4-inch screen with a resolution of 640×480 pixels can clearly display various operation interfaces, data information, and graphics. It supports LCD contrast and brightness adjustment, with 8 different levels of brightness and contrast configurable via the touchscreen, adapting to different ambient light conditions and ensuring good visibility even in strong light.
Accurate Touch Operation: Adopts a high-precision analog resistive touchscreen with a touch-sensitive area of 1024×1024, which can accurately recognize touch operations with fast response, facilitating users' various operations.
Multi-language and Multi-window Support: Supports up to 40 fonts, including Latin, Japanese, Simplified Chinese, Russian, etc., meeting the needs of users in different regions. It supports multi-pop-up window function, allowing users to view and operate multiple tasks or interfaces simultaneously, improving operation efficiency.

Powerful Communication Capability: Equipped with rich communication interfaces, supporting Modbus, Modbus TCP/IP, Uni-te, RS-232C, RS-485 and other communication protocols. It can connect and interact with various industrial equipment, and be easily integrated into different industrial automation systems.

Good Data Storage and Processing Capability: Built-in 128MB flash EPROM, and storage can be expanded via SD card up to 4GB, which can store a large number of applications, data records, and historical logs, facilitating users to record and analyze equipment operation data. Equipped with a 266MHz RISC processor, it has certain data processing capability, which can quickly respond to user operations and process various data, ensuring smooth operation of the touchscreen.
Convenient Function Expansion: Has a CompactFlash card slot, into which a 128MB to 1GB CompactFlash card can be inserted for storage expansion or installation of fieldbus communication cards such as Device Net and Profibus DP to meet different application needs. It is equipped with 2 USB Type A host ports, which can connect external devices such as mice, keyboards, and USB flash drives, facilitating data transmission and equipment expansion.

Easy Remote Monitoring: No programming is required, and the touchscreen terminal can be remotely monitored through the IE browser on a PC, allowing operators to the equipment operation status and perform remote operations and management even when away from the equipment site.

Stable and Reliable Operation: Powered by 24VDC with a power supply voltage range of 19.2V to 28.8V, it has good power adaptability. A built-in lithium battery can back up 512KB of SRAM data to ensure no data loss in case of power failure and other situations. The front panel is equipped with a green or orange LED indicator to display normal operation or backlight failure status, facilitating users to timely know the equipment operation status.

Main Application Fields are as follows:
Textile Industry: Can be used in equipment such as high-speed clip mercerizing machines for parameter setting, display, and system monitoring. In conjunction with PLCs and other devices, it realizes the control of independent transmission of the left and right sets of clip chains of the mercerizing machine and the timing control of numerous alkali pumps, ensuring the precise operation of the textile production process.

Packaging Industry: Suitable for packaging equipment such as small labeling machines and small bagging machines. It helps operators easily set packaging parameters and monitor the equipment operation status in real-time, such as packaging speed and material conveying situation, improving packaging efficiency and quality.

Rubber and Plastic Industry: In rubber and plastic production equipment, it can be used to monitor the operation of extruders, injection molding machines, and other equipment. Operators can set parameters such as temperature, pressure, and rotation speed through the touchscreen, check the equipment's working status and fault information, and make timely adjustments and maintenance to ensure the production accuracy and quality of rubber and plastic products.

Food and Beverage Industry: Can be applied to food and beverage processing equipment such as filling machines and sealing machines. On the one hand, it facilitates operators to operate the equipment and set parameters, ensuring the smooth progress of the production process; on the other hand, it helps monitor the equipment operation status and product quality-related parameters in real-time, meeting the high requirements of the food and beverage industry for hygiene and production stability.

Metal Processing Industry: For example, in engraving machines, it can work with Schneider's logic controllers and other devices. Through the touchscreen operation, it realizes the control of three-axis CNC and spindle frequency conversion speed regulation, meeting the operation and monitoring needs of high-speed and high-precision engraving machines in hardware, advertising products, and other industries.

Building Automation Field: Can be used in building automation systems of large commercial buildings, office buildings, and other places to monitor and manage air conditioning systems, elevators, lighting systems, etc. Through the touchscreen, managers can easily check the operation status of various equipment, set operating parameters, and realize energy-saving control and efficient operation of equipment.

Material Handling Field: In material handling equipment such as conveyors and cranes, it can be used to control the start/stop and speed regulation of the equipment, and display the equipment's operation status and fault information in real-time, improving the efficiency and safety of material handling.

Product Tags: XBTGT5330
