Home > Electrical & Electronics > Electrical Control System > Schneider ATV630D55N4 Inverter Module

Schneider ATV630D55N4 Inverter Module

Schneider ATV630D55N4 Inverter Module thumbnail-3

Schneider ATV630D55N4 Inverter Module photo-1

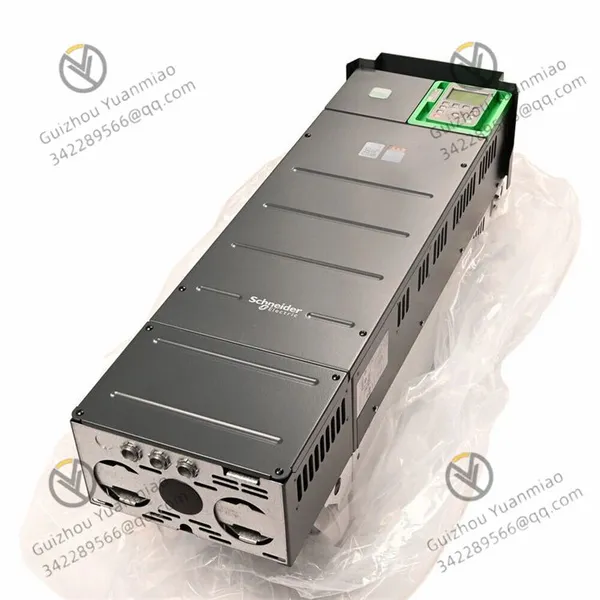

Schneider ATV630D55N4 Inverter Module photo-2

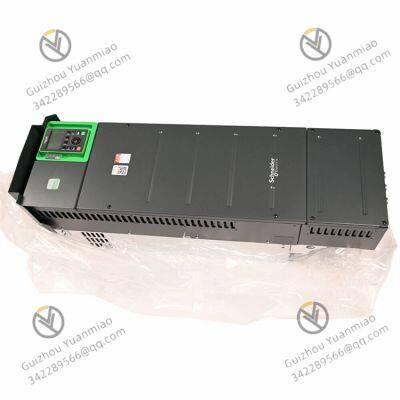

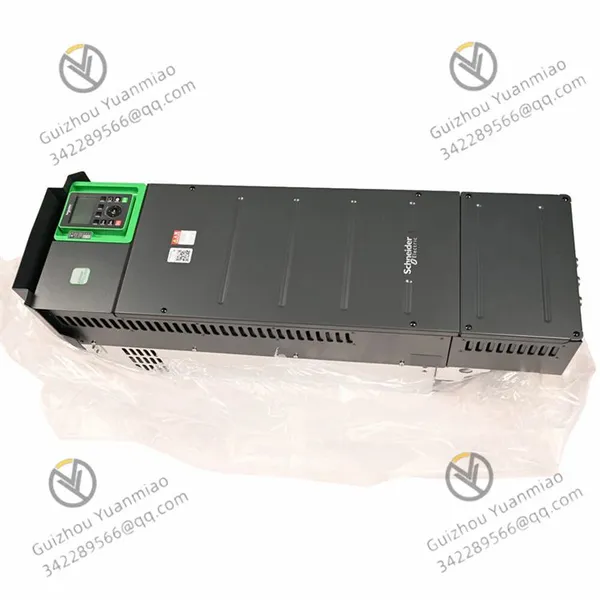

Schneider ATV630D55N4 Inverter Module photo-3

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other

Certification:

Other

Function:

Other

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other

Certification Other

Function Other

Condition Other

Task Other

Mathematical Model Other

Signal Other

Customized Other

Structure Other

Schneider ATV630D55N4 inverter module

Schneider ATV630D55N4 is a frequency converter module belonging to the ATV600 series, specially designed for process and utility applications. The following is a detailed introduction:

Basic Parameters

Power Supply Voltage: The rated supply voltage range is 380V to 480V, with an allowable fluctuation range of -15% to +10%.
Power Supply Frequency: Supports a power frequency of 50Hz to 60Hz, with an allowable deviation of ±5%.
Motor Power: 55kW (75hp) under normal load and 45kW (60hp) under heavy load.
Output Current: The maximum transient current under normal load is 116.6A for 60 seconds, and under heavy load is 132A for 60 seconds.

Functional Features

Precise Speed Control: The nominal switching frequency is 2.5kHz, and the output frequency range is 0.0001Hz to 0.5kHz, which can precisely control the motor speed, making it suitable for occasions requiring fine adjustment and stable performance.
Good Electromagnetic Compatibility: Integrates an EMC filter compliant with EN/IEC 61800-3 Category C3 standards, which can minimize electromagnetic interference, meet global regulatory requirements, and the applicable distance of the filter can reach 150 meters.
High Safety Performance: Equipped with Safe Torque Off (STO) function, certified by SIL 3 standard, which can prevent accidental start-up of the motor and protect the safety of personnel and equipment. At the same time, it can withstand an expected line short-circuit current of up to 50kA, enhancing the resistance to electrical faults.
Multiple Control Modes: Supports constant torque standard mode, optimized torque mode and variable torque standard mode for asynchronous motors, as well as permanent magnet motor and synchronous reluctance motor control modes for synchronous motors, which can meet the needs of different motors and application scenarios.
Rich Communication Interfaces: Equipped with Ethernet, Modbus serial and Modbus TCP communication port protocols, and can expand various communication modules such as Profibus DP V1 and Profinet through slots, facilitating integration with other equipment or control systems.
Preset Speed Function: Has 16 preset speed discrete input logics, which can select different operating speeds through simple input signals, facilitating speed control under various working conditions.

Structural Design

Protection Rating: The protection rating is IP21, compliant with IEC 61800-5-1 and IEC 60529 standards, providing a certain degree of protection against dust and foreign object intrusion.
Cooling Method: Adopts forced convection cooling, which can maintain the optimal operating temperature under heavy load, ensuring stable operation of the equipment.
Overall Dimensions: Approximately 922mm × 290mm × 323mm (height × width × depth), with a compact structure, convenient for wall-mounted installation and easy integration into existing systems.

Application Fields

Industrial Automation: Can be used in various production lines, such as automobile manufacturing and electronic manufacturing, to precisely control motor speed, realize automation and refinement of production processes, and improve production efficiency and product quality.
Process Control Industry: In industries such as chemical, pharmaceutical, food and beverage, it can be used to control equipment such as pumps, fans and mixers, precisely adjust motor speed according to process requirements, and achieve energy saving and stable production.
Utility Field: Suitable for water treatment plants, sewage treatment plants, power plants and other places, to control the speed of motors such as water pumps and blowers, ensuring the reliable operation of public facilities and energy saving.

Product Tags: ATV630D55N4
