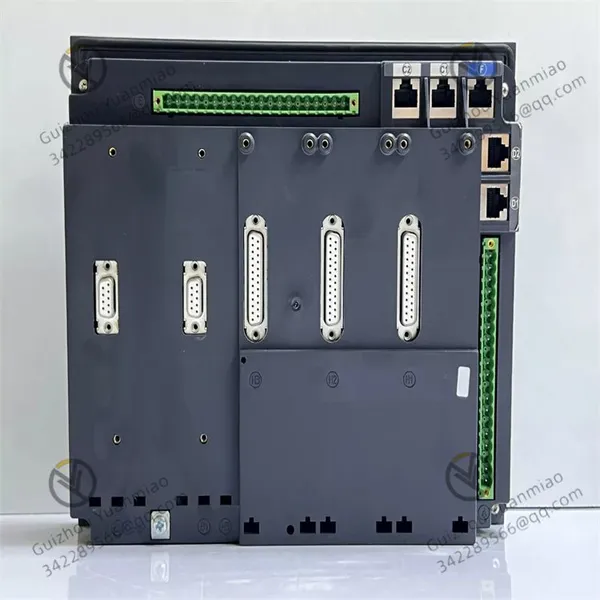

Schneider SEP888 59705 Basic Unit Module photo-1

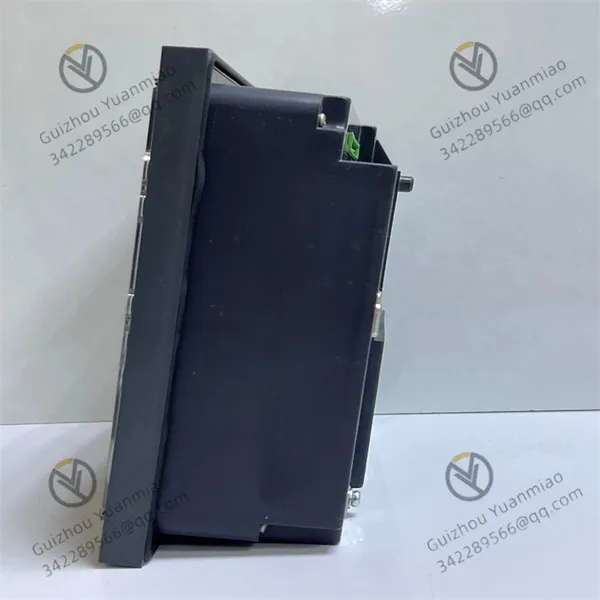

Schneider SEP888 59705 Basic Unit Module photo-2

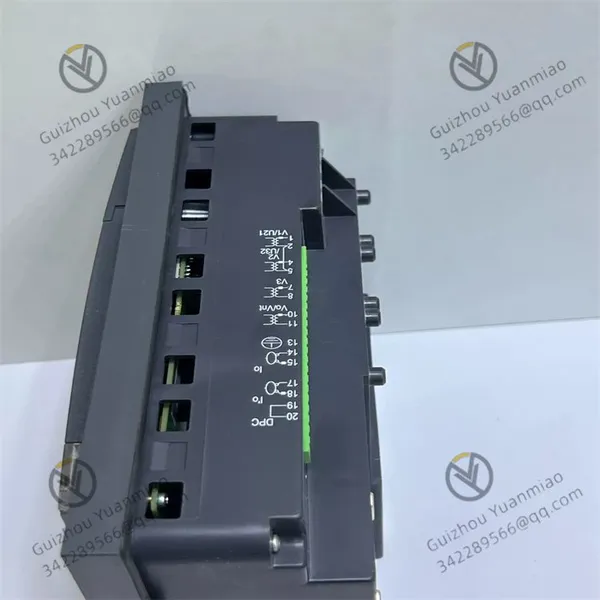

Schneider SEP888 59705 Basic Unit Module photo-3

Schneider SEP888 59705 Basic Unit Module photo-4

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other

Certification:

Other

Function:

Other

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other

Certification Other

Function Other

Condition Other

Task Other

Mathematical Model Other

Signal Other

Customized Other

Structure Other

Schneider SEP888 59705 Basic Unit Module

Schneider SEP888 59705 basic unit module belongs to the Sepam series. Its working principle mainly involves collecting relevant signals in the power system, and realizing functions such as protection, measurement, monitoring and control after internal processing. Details are as follows:

Data Acquisition: The module obtains analog signals such as voltage and current in the power system through voltage/current acquisition input terminals, and receives status switch signals of external equipment through logical input ports, such as the opening and closing status of circuit breakers. These signals are the basis for the subsequent processing of the module.

Signal Processing and Function Execution: The protection and measurement unit itself is the central processing part of the module, which processes the collected digital and analog signals. According to the preset protection algorithms and logic, it analyzes the collected current and voltage signals to determine whether there are abnormal situations such as overcurrent, overvoltage, and ground faults. If a fault signal is detected, according to the set protection strategy, such as instantaneous tripping or delayed tripping, the corresponding output relay is activated to control the action of circuit breakers and other equipment, cut off the fault circuit, and protect the power equipment. At the same time, the module also calculates the collected data to obtain other electrical parameters such as power and frequency, so as to realize the measurement and monitoring of the power grid operation status.

Human-Computer Interaction and Communication: The module is equipped with a human-computer interface, which can display the processed measured values, protection parameter settings, alarm and operation information in digital or graphic form, facilitating operators to view. In addition, it supports multiple communication protocols such as Modbus and Modbus TCP/IP, and can interact with other intelligent electronic devices or systems through RS485 interface or Ethernet interface, upload measurement data and equipment status information to the monitoring center, and also receive remote control commands to realize remote monitoring and management.

Function Expansion: The module itself has a certain number of input and output ports, and the number of input and output can be expanded by adding modules such as MES120. The control matrix can be customized by changing the distribution of output relays, LEDs and display messages to meet different control and monitoring needs. It can also be connected to temperature sensor modules to realize functions such as temperature measurement and protection.

Technical Parameters

Rated Power: Up to 5000A.
Operating Voltage Range: 60Hz/120V AC.
Protection Functions: Equipped with overcurrent, short circuit and ground fault protection functions, etc.
Communication Protocols: Supports Modbus RTU and Ethernet/IP protocols.
Operating Temperature: -25℃ to +55℃.
Shell Material: High-grade aluminum alloy.
Number of Phases: Supports single-phase and three-phase operation.

Application Scenarios

Substation Protection: It can protect and monitor the incoming lines, outgoing lines and busbars in the substation, and can realize multiple protection functions such as phase overcurrent protection and ground protection, ensuring the safe operation of substation power equipment and the stable power supply of the power system.

Feeder Protection: Suitable for power feeder protection, it can provide effective protection for low-capacitance feeders in impedance grounding or neutral point direct grounding systems, and can timely detect and handle faults in feeders, reducing the scope and duration of power outages.

Transformer Protection: It can be used for the protection of incoming transformers and distribution transformers. In addition to providing electrical quantity protection, it can also monitor non-electrical parameters such as temperature and gas. It can be used as differential main protection, backup protection and non-electrical protection for main transformers of 110kV and below, ensuring the reliable operation of transformers.

Motor Protection: It can protect the motor. By monitoring parameters such as current and voltage of the motor, it realizes functions such as overcurrent protection, overload protection and ground fault protection, preventing the motor from being damaged due to faults and prolonging the service life of the motor.

Generator Protection: Applied in generator protection scenarios, it can monitor the operation status of the generator in real time, with functions such as phase overcurrent protection, ground protection and voltage protection, ensuring that the generator can operate safely and stably under various working conditions and providing a reliable power source for the power system.

Capacitor Protection: Used for the protection of capacitors and capacitor banks, it can realize multiple protection functions such as phase overcurrent protection, ground protection and voltage protection, and can also perform switching control, ensuring the safe and stable operation of capacitor banks and improving the power factor of the power system.
