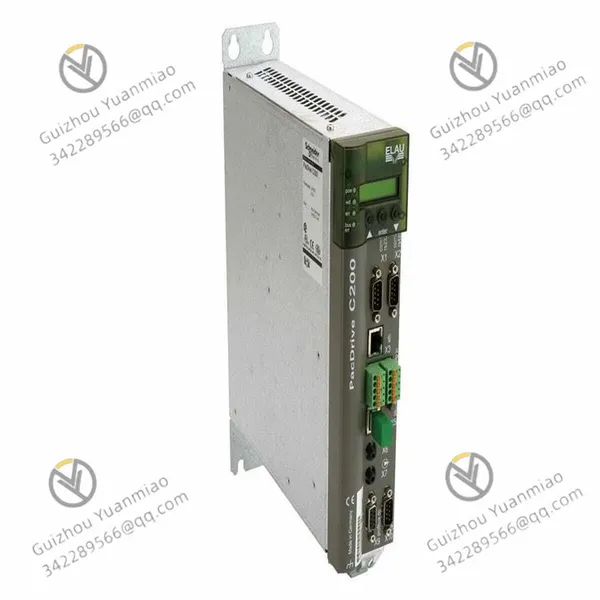

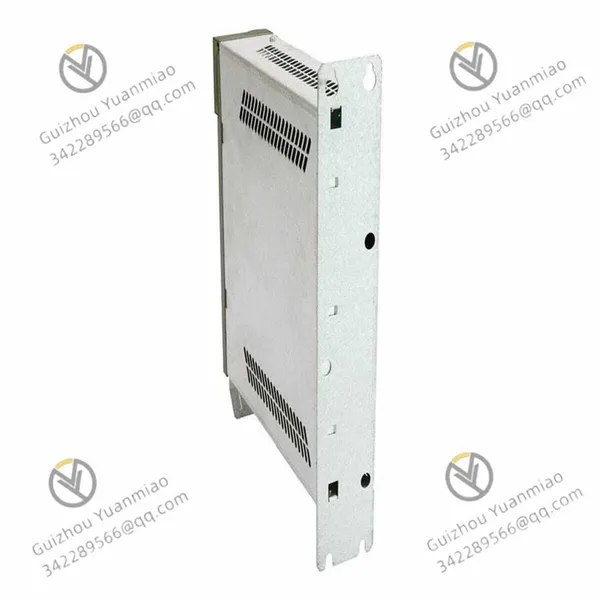

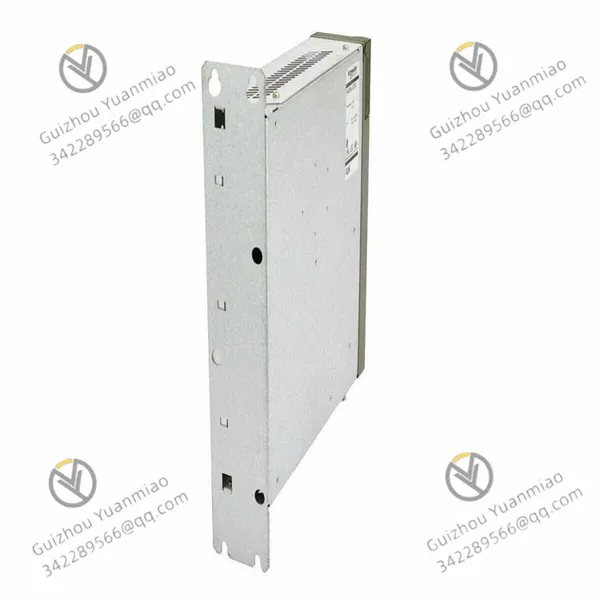

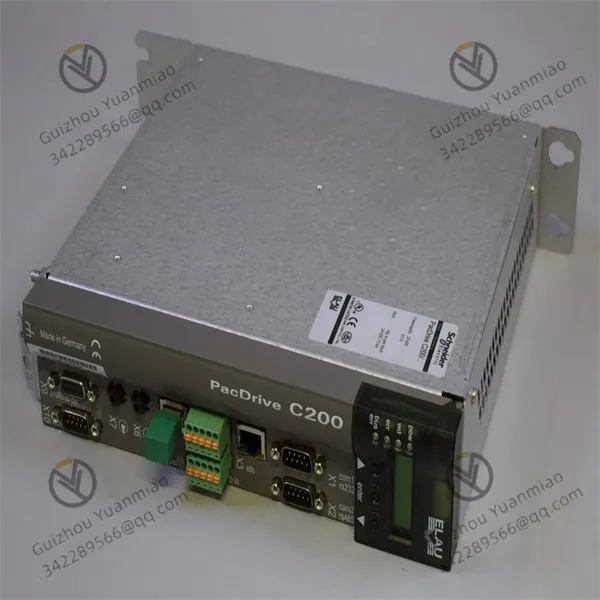

SCHNEIDER C200/10/1/1/1/00 High-performance Motion Control Module

Multi-axis control capability: Supports independent control of up to 8 axes, which can meet the requirements of complex motion control tasks. For example, in automated production lines, it can control the movement of multiple robotic arms or conveyor axes simultaneously to achieve collaborative work.

High-performance processor: Equipped with a high-speed processor, it can ensure real-time control and rapid response, accurately process and execute motion commands, reduce delays and errors, and guarantee the stability and accuracy of equipment operation.

Integrated design: Integrates control, drive and communication functions into one, simplifying the system architecture, reducing connecting cables and interfaces between devices, lowering system complexity and failure risks, and saving installation space at the same time.

Rich communication protocols: Supports various communication protocols such as EtherCAT and CANopen, facilitating integration with other devices and systems. It can be easily connected to factory automation networks to realize data interaction and collaborative work with upper computers, PLCs, sensors and other devices.

Intuitive programming environment: Provides an intuitive programming environment compliant with the IEC 61131-3 standard, which is convenient for users to carry out application development, reduces programming difficulty, shortens the development cycle, and even non-professional programmers can get started quickly.

Operating voltage: 24V DC.

Current capacity: 10A.

Communication protocols: EtherCAT, etc.

Maximum input frequency: 10kHz.

Output channels: 4 analog outputs, 4 digital outputs.

Operating temperature range: -20°C to +70°C.

Power consumption: Less than 1.5W.

Dimensions: 125mm×74mm×136mm.

Packaging machinery: Used to control various equipment on packaging lines, such as conveyors, sealing machines, labeling machines, etc., to ensure efficient and accurate packaging processes, and improve packaging quality and production efficiency.

Printing industry: Provides precise motion control in printing equipment, such as printing machines and cutting machines, to meet the requirements of high-speed and high-precision printing production, and ensure the accuracy and clarity of printed patterns.

Food and beverage production: Can be applied to the control of automated production lines, such as filling, sealing, labeling and other processes, to realize the automation and precise control of food and beverage production processes, and ensure product quality and production efficiency.

Pharmaceutical industry: Provides precise motion control in pharmaceutical equipment, such as drug packaging machines and capsule filling machines, to ensure the accuracy and consistency of the production process, and meet the strict quality standards of pharmaceutical production.

Electronic manufacturing: Used for the control of automated assembly lines, such as component mounting, welding, testing and other processes, to realize high-precision assembly and production of electronic components, and improve the quality and production efficiency of electronic products.

Precise control: It can achieve high-precision position, speed and torque control, ensure the accuracy and repeatability of equipment movement, and meet the requirements of various high-precision production processes.

High reliability: Adopting high-quality materials and advanced manufacturing processes, it has good anti-interference ability and stability, can operate stably for a long time in harsh industrial environments, and reduce equipment failures and downtime.

Easy integration: Supports multiple communication protocols and standard interfaces, can be easily integrated with other devices and systems, and realizes seamless connection and collaborative work of automated production lines.

Convenient maintenance: It has comprehensive diagnostic functions, which can monitor the operation status of equipment in real time, quickly locate and solve faults, and reduce maintenance costs and difficulties.
