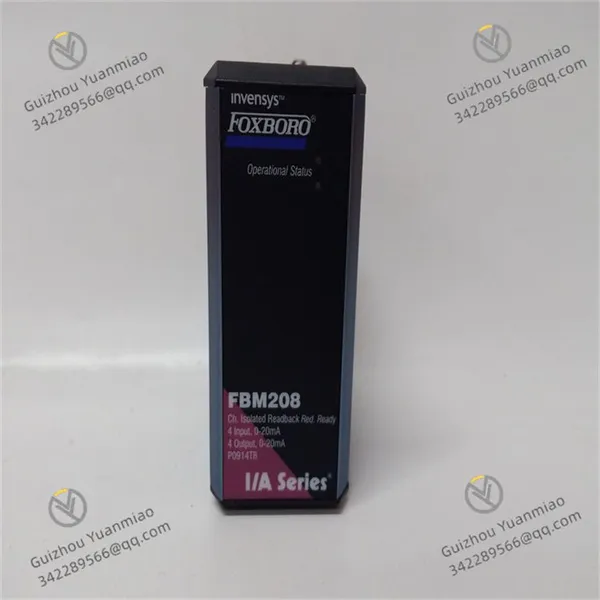

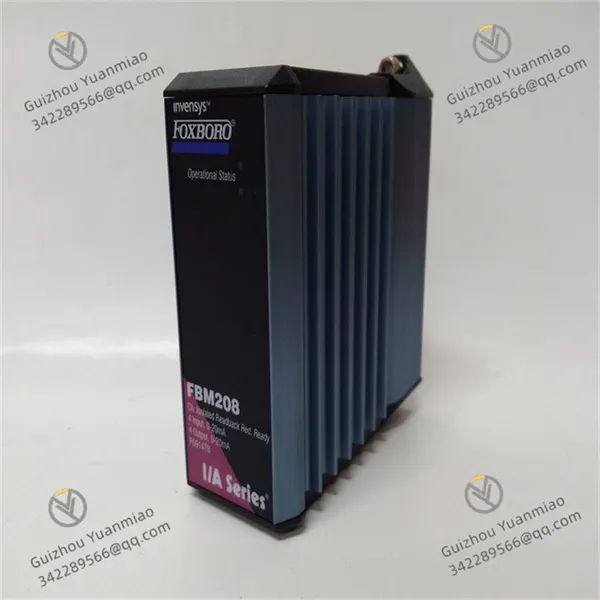

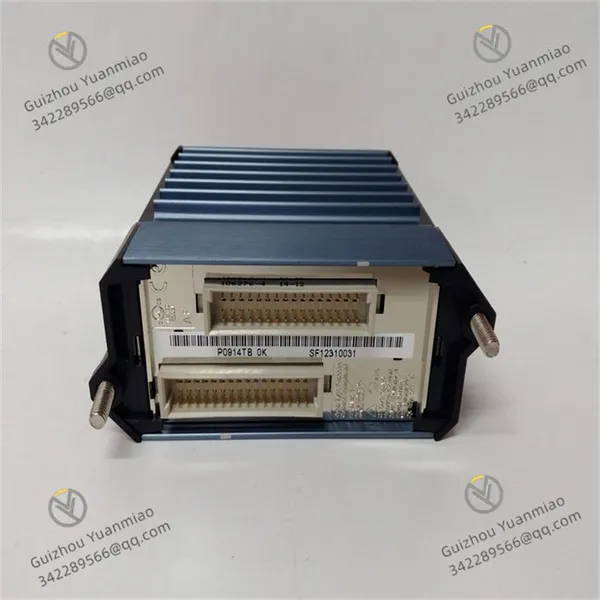

Foxboro FBM208 P0914TB Discrete Output Interface Module

Foxboro FBM208 P0914TB Discrete Output Interface Module thumbnail-1
Foxboro FBM208 P0914TB Discrete Output Interface Module thumbnail-2
Foxboro FBM208 P0914TB Discrete Output Interface Module thumbnail-3
Foxboro FBM208 P0914TB Discrete Output Interface Module photo-1
Foxboro FBM208 P0914TB Discrete Output Interface Module photo-2
Foxboro FBM208 P0914TB Discrete Output Interface Module photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Contact Supplier Request Quote Chat Now
Guizhou Yuanmiao Automation Equipment Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Dimensions 263mm (H) × 58mm (W) × 28mm (D)
Weight 1.5kg
Power Voltage 24VDC ±10%
Foxboro FBM208 P0914TBFunctional Features

  • Output Channels: 16 discrete output channels supporting on-off control for various industrial devices.

  • Output Types:

    • 15-60V DC (for driving low-power relays, solenoid valves, etc.)

    • 120V AC/125V DC (suitable for medium-high voltage load control)

    • 240V AC (supports high-voltage device driving)

  • Isolation Characteristics: Each output channel uses optoelectronic isolation technology, with group isolation achieved via external excitation to effectively prevent interference.

  • Redundancy Configuration: Supports single-module or redundant module configuration to enhance system reliability and reduce downtime risks.

  • Design Features: Compact metal housing compliant with G3-level harsh environment standards, suitable for DIN rail mounting in industrial cabinets.

  • Functional Expansion: Executes discrete output control and ladder logic programs, supports fault diagnosis and output status feedback.

  • Wiring Method: Matched with terminal components (e.g., FBM208-TERM series), supporting local/remote wiring. Some terminals have signal conditioning and overload protection functions.

FBM208 P0914TB (3)

Technical Parameters
  1. Physical Parameters
    Parameter Details
    Origin USA
    Dimensions 263mm (H) × 58mm (W) × 28mm (D)
    Weight 1.5kg (including terminal components)
    Enclosure Material Corrosion-resistant metal housing
    Mounting Method DIN rail mounting, compatible with standard cabinets
  2. Electrical Parameters
    Parameter Details
    Power Voltage 24VDC ±10%
    Power Consumption Maximum 20W (at full load output)
    Number of Output Channels 16 discrete output channels
    Output Types - 15-60V DC (max 500mA)
    - 120V AC/125V DC (max 1A)
    - 240V AC (max 0.5A)
    Output Impedance Low impedance (suitable for inductive/resistive loads)
    Isolation Voltage 2500Vrms between channels, group isolation via external excitation
    Response Time Typical 1-5ms (depending on load type)
    Protection Functions Output short-circuit protection, overload protection, reverse polarity protection
  3. Performance Parameters
    Parameter Details
    Operating Temperature Range -40°C to +85°C
    Storage Temperature Range -40°C to +95°C
    Humidity Range 0-95% relative humidity (non-condensing)
    Vibration Resistance Complies with IEC 60068-2-6 (10-2000Hz)
    Shock Resistance Complies with IEC 60068-2-27 (50g, 11ms)
    EMC Compatibility Complies with EN 61000 industrial EMC standards
  4. Communication Parameters
    Parameter Details
    Communication Protocol FOUNDATION Fieldbus H1 (31.25kbps)
    Network Topology Bus/tree
    Maximum Nodes 32 nodes per segment
    Redundancy Support Supports dual redundant communication configuration
  5. Configuration & Software
    Parameter Details
    Configuration Tool Foxboro I/A Series configuration software
    Diagnostic Functions Channel status monitoring, fault alarm, event log
    Self-Diagnosis Built-in watchdog, power monitoring, output loop detection
FBM208 P0914TB (1)Typical Application Scenarios

  • Industrial Automation Control: Drives valves, motor start/stop, indicator lights, etc., to realize automated logic control of production lines.

  • Power System: Switchgear control, circuit breaker status feedback, power switching logic execution.

  • Process Control: ESD (Emergency Shutdown) systems, safety interlock loops, process equipment start/stop control.

  • Building Automation: On-off control for air conditioning units, lighting systems, and security equipment.

Supporting Terminal Components
Model Features
FBM208-TERM1 Standard terminal block, suitable for 15-60V DC output
FBM208-TERM2 High-voltage terminal block, supports 120/240V AC output
FBM208-TERM3 Redundant terminal block, dual power input backup
FBM208-TERM4 Explosion-proof terminal block, suitable for hazardous areas
Application Fields

  • Manufacturing: Machine tool control, robot units, automated production line equipment driving.

  • Energy Industry: Power plant auxiliary equipment control, substation switch operation, new energy equipment start/stop management.

  • Petrochemical: Reactor stirring control, pipeline valve switching, safety interlock system execution.

  • Water Treatment: Water pump start/stop control, solenoid valve adjustment, filtration equipment logic control.

FBM208 P0914TB (2)

Common Faults and Solutions
  • No Output Response:

    • Check if load devices are normal (e.g., relay coil resistance, solenoid valve resistance).

    • Confirm if terminal component wiring is loose and measure whether output voltage meets load requirements.

    • Check output channel parameter settings (e.g., signal type, output mode) in the configuration software.

    • Test with a spare module to troubleshoot hardware faults.

  • Abnormal Output Action:

    • Detect if electromagnetic interference exists (e.g., power cables not isolated from signal lines).

    • Check if the output loop is short-circuited or grounded, and if terminal component fuses are blown.

    • Confirm if output logic in the software program is correct and if there are mis-triggering conditions.

  • Communication Failure:

    • Check if Fieldbus cable connections are secure and if terminating resistors are installed.

    • Verify that the module address matches the configuration software settings.

    • Restart the module or system to troubleshoot communication protocol compatibility issues.

Comparison with FBM207
Module Model FBM207 (Discrete Input) FBM208 (Discrete Output)
Core Function Collects on-off input signals Outputs on-off control signals
Channel Type 16 inputs, supports multiple voltage monitoring 16 outputs, supports multiple load driving
Isolation Method Input current isolation Output optoelectronic isolation
Typical Applications Sensor signal collection, status monitoring Equipment driving, logic control
Product Tags: FBM208 , P0914TB
