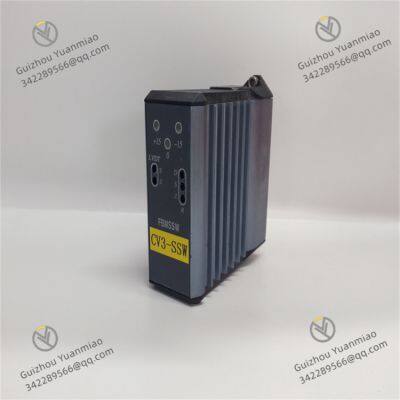

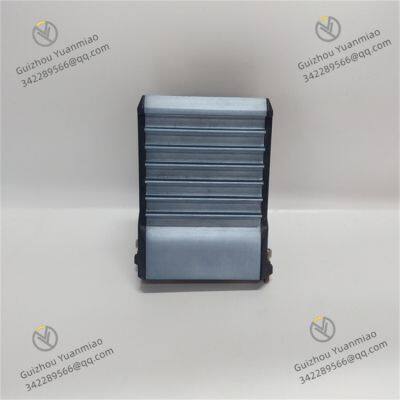

Foxboro FBMSSW Field Bus Module

Supports parameter settings for Foxboro FBM series modules (e.g., FBM223, FBM224), including channel types, communication protocols, input/output ranges, filtering parameters, etc.

Provides a graphical interface for intuitive configuration of module addresses, communication interfaces (e.g., RS-485, Profibus), and data mapping relationships.

Compatible with industrial communication protocols such as Modbus, Profibus DP, and HART, enabling communication links with various field devices (e.g., sensors, actuators, PLCs).

Supports redundant communication configurations (e.g., dual-bus redundancy) to enhance system reliability.

Integrates data collected by field modules into the Foxboro control system database for real-time data monitoring and historical data recording.

Supports custom alarm thresholds, with system alarms or indicator lights prompting anomalies (e.g., module failures, communication interruptions).

Provides self-diagnosis of module status, real-time monitoring of channel failures, power anomalies, communication interruptions, etc., and generates diagnostic reports.

Supports software configuration updates for online hot-swappable modules, enabling maintenance without shutdown.

Compatible with Windows and Solaris operating systems, adapting to different industrial control environments.

Seamlessly integrates with other Foxboro software (e.g., Control Builder, Display Builder) to form a complete automation solution.

Connects field instruments (e.g., pressure transmitters, flowmeters) with DCS systems in petroleum, chemical, power, and other industries for data acquisition and control command issuance.

Collaborates with FBM hardware modules to complete logical control (e.g., motor start/stop, valve switching) and status monitoring of production line equipment.

Configures module communication parameters via FBMSSW to real-time collect process parameters like temperature and pressure, uploading them to SCADA systems for trend analysis and process optimization.

Supports communication with third-party devices (e.g., frequency converters, PLCs) to enable cross-system data interaction and collaborative control.

Utilizes the software's self-diagnosis function to quickly locate module hardware failures (e.g., channel damage, power anomalies) or communication issues (e.g., baud rate mismatch, address conflicts), reducing downtime.

Phenomenon: The software fails to recognize the module or the module does not respond after parameter configuration.

Causes: Uninstalled drivers, hardware address conflicts, configuration parameters exceeding module limits (e.g., baud rate mismatch).

Solutions: Reinstall drivers, check module hardware address settings, and confirm configuration parameters (e.g., communication protocol, I/O type) match module specifications.

Phenomenon: The software displays a broken communication link, and module status lights are abnormal (e.g., flashing or off).

Causes: Poor communication cable connection, missing bus terminal resistors, incorrect communication parameters in the software (e.g., parity, stop bits).

Solutions: Check cable connections, confirm proper installation of bus terminal resistors, and reconfigure communication parameters (e.g., baud rate, data bits) in the software.

Phenomenon: Collected data does not match field values, or historical data records are missing.

Causes: Improper module channel filtering parameters (e.g., too short debounce time), software data mapping errors, communication interference causing data transmission errors.

Solutions: Adjust module filtering parameters (e.g., increase debounce time), check data point mapping in the software, and enhance communication cable shielding (e.g., use twisted shielded cables).
