Foxboro FBM207 P0914TD Discrete Input Interface Module

Guizhou Yuanmiao Automation Equipment Co., Ltd.
1Yr
Foxboro FBM207 P0914TD Discrete Input Interface Module thumbnail-1
Foxboro FBM207 P0914TD Discrete Input Interface Module thumbnail-2
Foxboro FBM207 P0914TD Discrete Input Interface Module thumbnail-3
Foxboro FBM207 P0914TD Discrete Input Interface Module photo-1
Foxboro FBM207 P0914TD Discrete Input Interface Module photo-2

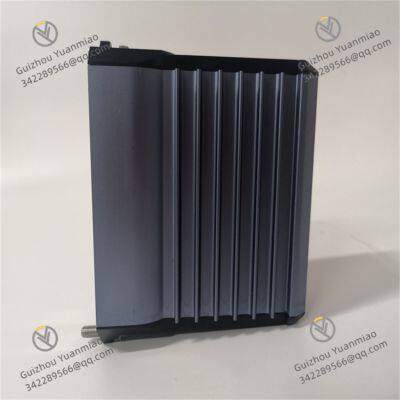

Foxboro FBM207 P0914TD Discrete Input Interface Module photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Dimensions 263mm×58mm×28mm
Weight 4.3kg
Origin United States
Foxboro FBM207 P0914TDFunctional Features

  • Input Channels: 16 discrete input channels.

  • Input Voltage Range: Supports multiple voltage inputs, including:

    • 15-60V DC (for contact detection)

    • 120V AC/125V DC (for voltage monitoring or switch input)

    • 240V AC (for voltage monitoring or switch input)

  • Input Signal Type: Compatible with digital on-off signals from various digital sensors and switches.

  • Isolation Characteristics: Each input uses current isolation technology, with group isolation achieved via external excitation.

  • Module Configuration: Optional single-module or redundant module configuration to enhance system reliability.

  • Design Features: Compact and rugged design, suitable for cabinet installation in G3-level (harsh) environments.

  • Diversified Functions: Executes programs such as discrete input, ladder logic, pulse counting, and sequence of events, with configurable input filtering time options.

  • Wiring Method: Equipped with terminal components for local or remote field wiring connection to FBM207, and provides wiring for internal and/or external loop-powered devices of each channel. Some terminal components have additional signal conditioning hardware for voltage attenuation and optical isolation.

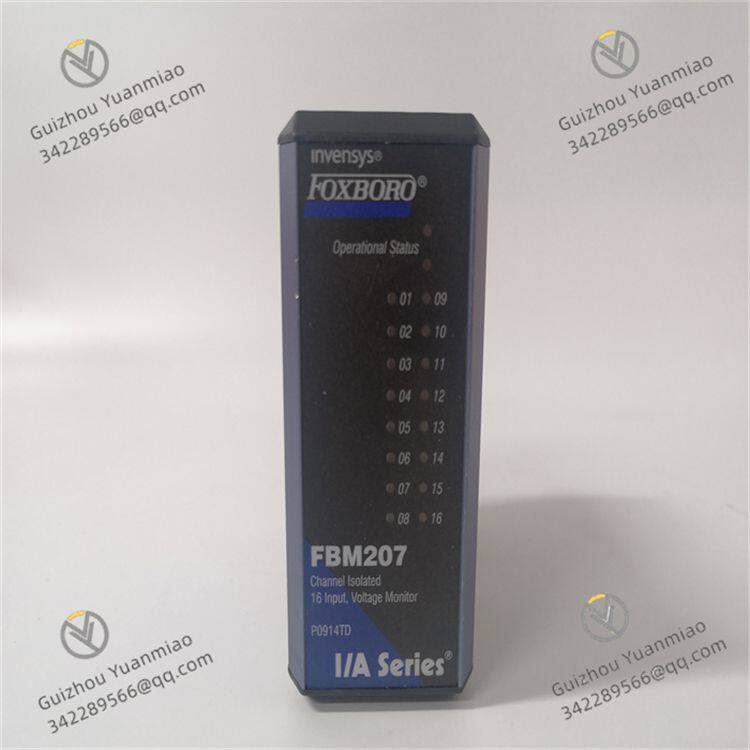

FBM207 P0914TD (3)

Technical Parameters
  1. Physical Parameters
    ParameterDetails
    OriginUSA
    Dimensions263mm (H) × 58mm (W) × 28mm (D)
    Weight4.3kg (including terminal components)
    Enclosure MaterialMetal housing, compliant with industrial anti-corrosion standards
    Mounting MethodDIN rail mounting, suitable for standard cabinets
  2. Electrical Parameters
    ParameterDetails
    Power Voltage24VDC ±10%
    Power ConsumptionMaximum 15W
    Number of Input Channels16 discrete input channels
    Input Types- 15-60V DC (contact detection)
    - 120V AC/125V DC (voltage monitoring)
    - 240V AC (voltage monitoring)
    Input Impedance- DC input: >10kΩ
    - AC input: >50kΩ
    Isolation VoltageChannel-to-channel isolation: 2500Vrms
    Group isolation: Achieved via external excitation
    Response TimeConfigurable, typical value 1-10ms (depending on filter settings)
    Filtering TimeSoftware-configurable, 0.1-100ms
  3. Performance Parameters
    ParameterDetails
    Accuracy±0.5% of full scale
    Operating Temperature Range-40°C to +85°C
    Storage Temperature Range-40°C to +95°C
    Humidity Range0-95% relative humidity (non-condensing)
    Vibration ResistanceComplies with IEC 60068-2-6 standard (10-2000Hz)
    Shock ResistanceComplies with IEC 60068-2-27 standard (50g, 11ms)
    EMC CompatibilityComplies with industrial environment standards (EN 61000)
  4. Communication Parameters
    ParameterDetails
    Communication ProtocolFOUNDATION Fieldbus H1 (31.25kbps)
    Network TopologyBus or tree
    Maximum NodesUp to 32 nodes per segment
    Terminating Resistor100Ω (required at both ends of the bus)
    Redundancy SupportSupports dual redundancy configuration
  5. Configuration & Software
    ParameterDetails
    Configuration ToolFoxboro I/A Series configuration software
    Input FilteringIndependently configurable for each channel
    Diagnostic FunctionsChannel status monitoring, fault alarm, event log
    Self-DiagnosisBuilt-in watchdog timer, power supply monitoring
  6. Typical Application Scenarios

    • Power System Monitoring: Voltage monitoring, switch status detection.

    • Industrial Automation: Equipment operation status monitoring, solenoid valve control.

    • Process Control: Emergency shutdown (ESD) systems, safety interlocks.

    • Flow/Level Monitoring: Cumulative counting combined with pulse converters.

  7. Supporting Terminal Components
    ModelFeatures
    FBM207-TERM1Standard terminal block, suitable for 15-60V DC input
    FBM207-TERM2High-voltage terminal block, suitable for 120/240V AC input
    FBM207-TERM3Redundant terminal block, supports dual power input
    FBM207-TERM4Explosion-proof terminal block, suitable for hazardous areas

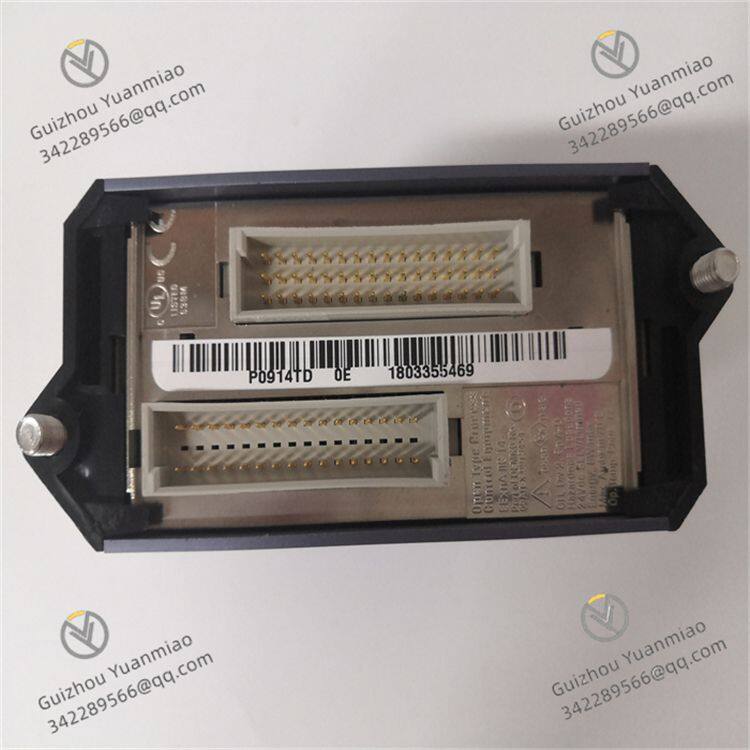

FBM207 P0914TD (1)

Application Fields

  • Power System Monitoring: Commonly used to monitor voltage levels at key points in power systems, ensuring stable power network operation.

  • Industrial Automation: Monitors power voltages of factory equipment in industrial control systems to ensure normal operation. It also monitors and controls various digital signals (e.g., equipment operation status signals, switch signals) to achieve automated control and management of production processes.

  • Generator & Transformer Monitoring: Real-time monitoring of generator output voltage in generator systems to ensure stable operation; monitors transformer input and output voltages to ensure normal transformer operation.

  • Power Quality Analysis: Used for power quality analysis, detecting and recording issues such as voltage fluctuations and harmonics to maintain power system stability and reliability.

Common Faults and Solutions
  • Abnormal Input Signal:

    • Check if connected digital sensors or switches work normally and measure their output signals.

    • Inspect input wiring for firmness, open circuits, short circuits, or poor contacts.

    • Confirm input channel parameter settings (e.g., signal type, filtering time) in the configuration software.

    • If hardware failure is suspected, test with a spare module.

  • Communication Failure:

    • Check fieldbus cable connections for firmness and damage.

    • Verify that the module address setting in the configuration software is correct and consistent with the control system configuration.

    • Check communication protocol settings for compatibility with the control system.

    • For control system faults, restart the module or control system and inspect the control system's communication module and settings if necessary.

  • Power Issues:

    • Check power wiring to ensure correct connection of 24VDC power supply poles.

    • Use a multimeter to measure power voltage within the normal range.

    • If the power circuit has a fuse, check and replace it if blown.

    • If all checks are normal but the module still fails, the power module may be faulty; consider replacing it or inspecting the control cabinet power supply system.
