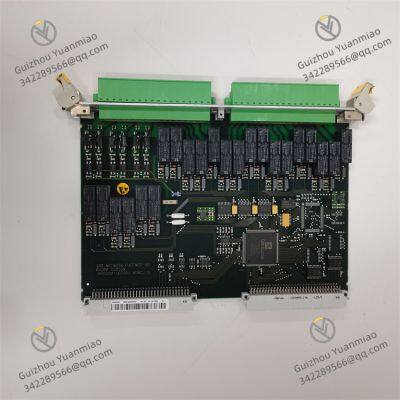

ABB 500BOM01 1MRB150023R0002 Communication Mother Board

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 5 Piece / Pieces per Month
Payment TermsT/T PayPal Western Union

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Other, Global universal model	Condition	Other, Global universal model
Task	Other, Global universal model	Mathematical Model	Other, Global universal model
Signal	Other, Global universal model	Customized	Non-Customized
Structure	Other, Global universal model	Power Supply	24VDC (±20%)
Humidity	5%~95% (non-condensing)	Operating Temperature	-25°C~+60°C

Product Description

ABB 500BOM01 1MRB150023R0002I. Positioning and Applications

Series Affiliation: Digital output module of ABB AC 500 series PLC, specialized in driving control of switching signals in industrial automation systems. It is suitable for scenarios such as logic control, equipment action execution, and signal indication.
Core Functions: Supports high-speed output driving of multi-channel digital signals, enabling real-time communication with AC 500 CPU modules via the backplane bus. It is applicable to scenarios such as motor start/stop control, solenoid valve driving, and indicator light signal output.

II. Technical Parameters and Characteristics1. Signal Output Specifications

Channel Configuration: 16-channel digital output (DO), grouped and isolated (e.g., 4 groups × 4 channels).
Output Types:

Optional transistor output (NPN/PNP) or relay output, with different versions adapting to various load requirements.
Transistor output: Suitable for high-frequency actions (response time ≤1ms), supporting DC loads (24VDC);
Relay output: Suitable for AC/DC loads (AC 250V/DC 30V), with strong impact resistance.

Driving Capability:

Maximum output current per channel: 0.5A, maximum current per group: 4A;
Supports inductive loads (requires external flyback diode), maximum power for resistive loads: 12W (24VDC).

2. Electrical Characteristics

Power Supply: 24VDC (±20%), power consumption ≤5W;
Isolation: Electrical isolation between output channels and between channels and power supply (500V AC/1min), with strong anti-interference capability;
Protection Functions: Output short-circuit and overload protection, with some versions supporting hardware interlock (to prevent misoperation).

3. Mechanical and Environmental Parameters

Mounting Method: 35mm DIN rail mounting, supports vertical/horizontal installation;
Operating Temperature: -25°C~+60°C, humidity 5%~95% (non-condensing).

III. Application Scenarios

Industrial Equipment Driving: Motor forward/reverse control, solenoid valve switching, cylinder action execution;
Signal Indication and Alarm: Status output for indicator lights, buzzers, etc.;
Power and Energy: Circuit breaker closing/opening signal output, power distribution cabinet status indication;
Manufacturing: Action control for automated production line workstations, robot IO signal interaction.

IV. Interfaces and Wiring1. Terminal Block Design

Adopts detachable terminal blocks (e.g., 1SFA610001R1001), supporting screw or spring terminal connections, with channel grouping labels (DO1-16).
Typical Wiring (Transistor Output):

One end of the load is connected to 24VDC positive, and the other end is connected to the output terminal;
The common terminal (COM) is connected to the power negative (NPN type) or positive (PNP type).

Relay Output Wiring: The load is connected in series with the power supply to the output terminal, and the common terminal (COM) is connected to the corresponding power supply according to the load type (AC/DC).

2. Communication Interface

Communicates with CPU modules via the AC 500 backplane bus, with a data refresh cycle ≤5ms, supporting real-time status feedback.

V. Configuration and Debugging1. Software Tools

Uses ABB Control Builder AC 500 for configuration, enabling settings for:

Initial status of output channels (default ON/OFF on power-up);
Output hardware interlock function (to prevent overload caused by simultaneous actions of multiple channels);
Fault diagnosis thresholds (such as short-circuit detection sensitivity).

2. Fault Diagnosis

Status Indicators:

Power (green): Lights up when power is normal;
Error (red): Flashes in case of channel faults (overload, short circuit);
Sync (yellow): Flashes when communication with CPU is normal;
Channel indicators (LED): Real-time display of output status (lights up when ON).

VI. Comparison with Similar Modules (vs. 500BIO01, 500BIM01)

Comparison Dimension	500BOM01	500BIO01	500BIM01
Number of Channels	16DO (pure output)	16DI+16DO (input+output)	16DI+16DO (input+output)
Output Type	Transistor/relay optional	Transistor/relay optional	Transistor/relay optional
Input Function	None	Supports 16-channel DI	Supports 16-channel DI
Typical Scenarios	Pure driving control (e.g., motors, solenoid valves)	Integrated logic control and driving	Integrated logic control and driving

Conclusion

As a pure digital output module of the AC 500 series, ABB 500BOM01 focuses on driving control scenarios, featuring high reliability, flexible output type selection, and strong anti-interference capability. It is suitable for industrial automation systems requiring independent equipment action execution and can form a complete IO control solution by matching with input modules.
