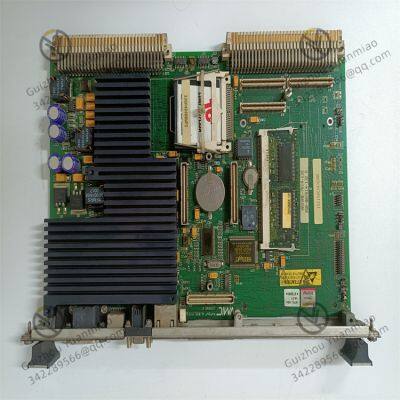

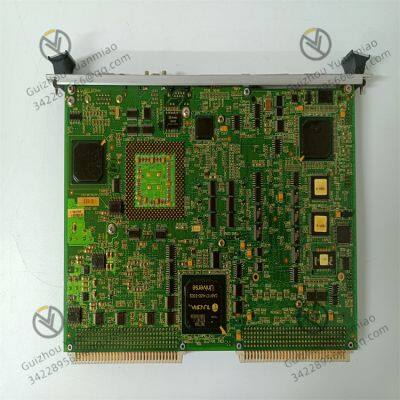

Help CenterGE IS215WECAH1A Turbine Control System Components
Related Products
-
GE IS215VPROH2B Emergency Turbine Protection PlateNegotiableMOQ: 1 Piece -
GE IS215VAMBH1A Mark VI Series Acoustic Monitoring BoardNegotiableMOQ: 1 Piece
-
GE IS415UCVHH1A VME Control BoardNegotiableMOQ: 1 Piece
-
GE IS215ISBBH2A Communication SwitchNegotiableMOQ: 1 Piece
-
GE IS420UCSCH1A High-performance ControllerNegotiableMOQ: 1 Piece
System to which it belongs: This module may belong to the GE General Electric Mark VI Speedtronic turbine control system, which is the current control system of GE turbines. It has protection and monitoring functions and is suitable for scenarios such as generator and mechanical drive applications of gas turbines and steam turbines.
Power supply and working environment: Powered by 18-36V DC, 12-watt power supply. Its design is robust, with a rated operating temperature range of 0 to 65°C (32 to 149°F), which can match the operating temperature of I/O modules and does not require a cooling fan, thus being adaptable to certain industrial environments.
Communication capability: It may be equipped with three 100Mb Ethernet drivers for IONet. Each controller can communicate with up to three network switches, supporting 100BaseTx and 100BaseFx (optical fiber), enabling longer transmission distances, and featuring noise suppression, lightning resistance, and ground interference resistance. Non-redundant, dual-redundant or triple-redundant configurations can be adopted.
Working principle
Power conversion and Management: The IS215WECAH1A may be responsible for converting and stabilizing the input 18-36V DC power supply, providing a stable working voltage for itself and other connected modules or components, ensuring the stability of the entire system's power supply, and guaranteeing that each electronic component in the wind turbine control system can operate normally at an appropriate voltage.
Signal processing and transmission: As a part of the wind turbine control system, it may receive various signals from sensors, such as wind speed, wind direction, turbine speed, temperature, pressure, etc. After preprocessing these signals such as filtering and amplifying them, they are converted into a format suitable for transmission and then transmitted to the main controller or other related modules through the internal circuit or bus. At the same time, it may also receive control instructions issued by the main controller, convert them into signals that the actuators can recognize, and transmit them to actuators such as pitch motors and yaw motors to achieve control of the wind turbine.
Network communication: This module may be equipped with an Ethernet driver, supporting 100BaseTx and 100BaseFx (fiber optic) communication. By communicating with other controllers and switches through the IONet network, it can transmit the signals or status information processed by itself to other devices, and also receive instructions or data from other devices, achieving information interaction and collaborative work of the entire control system. For example, it can communicate data with cabin control cabinets, remote monitoring centers, etc. So that the operators can remotely monitor and control the wind turbines.
Status monitoring and self-protection: The module may integrate a series of monitoring circuits inside to monitor its own working status in real time, such as power supply voltage, temperature, and chip working status, etc. When abnormal conditions are detected, fault signals can be sent to the main controller through indicator lights or network communication, so that the system can take timely measures, such as automatic shutdown protection. At the same time, it may have functions such as insulation protection, and surface and internal voltage protection can be achieved through designs such as factory drilling, enhancing the reliability and stability of the module in industrial environments.
Application scenarios
Wind power plant: It can be used in the control system of GE Mark VIe series wind turbines, responsible for power conversion and management, providing stable power for other modules and equipment in the control system. At the same time, it may participate in signal transmission and network communication to ensure the normal operation and monitoring of wind turbines, and achieve precise control and data interaction of the wind power generation process.
Gas turbine power generation system The GE Mark VI Speedtronic turbine control system is applicable to the generator application of gas turbines. The IS215WECAH1A, as one of its modules, can process the relevant power supply during the power generation process of the gas turbine to ensure the stable power supply of the control system. It can also process and transmit the relevant signals of the operation of the gas turbine. So as to monitor and control parameters such as the rotational speed and temperature of the gas turbine, ensuring the power generation efficiency and equipment safety.
Steam turbine power generation system This module can also be applied in the generator control system of steam turbines. In the steam turbine power generation scenario, it undertakes the tasks of power conversion and management, supplies power to each component of the steam turbine control system, and transmits the operating status information of the steam turbine to the main control system through signal processing and communication functions, while receiving control instructions. Realize the protection and monitoring functions of the steam turbine to ensure the stable operation of the power generation process.
