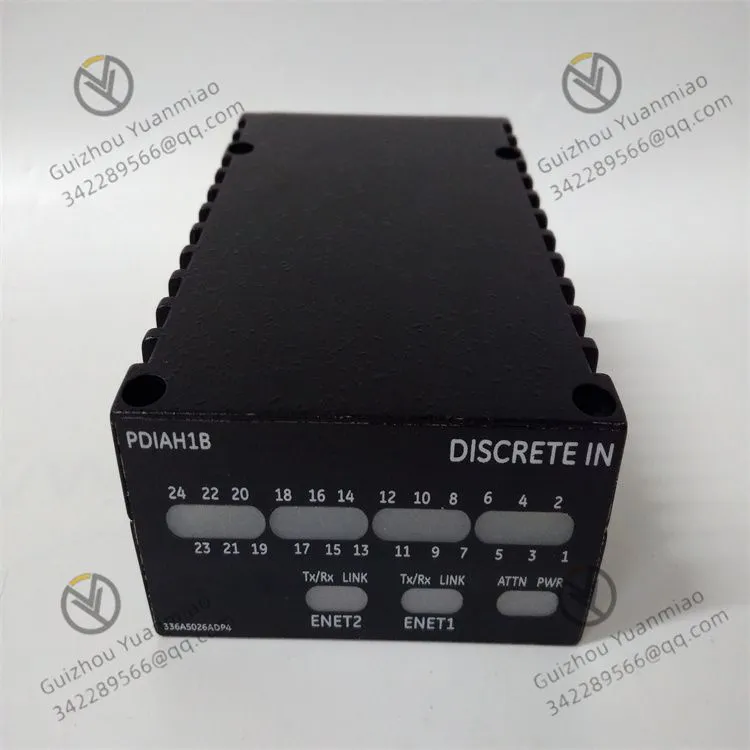

Help CenterGE IS220PDIAH1B Digital Input Module
Related Products
-
GE IS220PDOAH1B Mark VIe Digital Output ModuleNegotiableMOQ: 1 Piece -

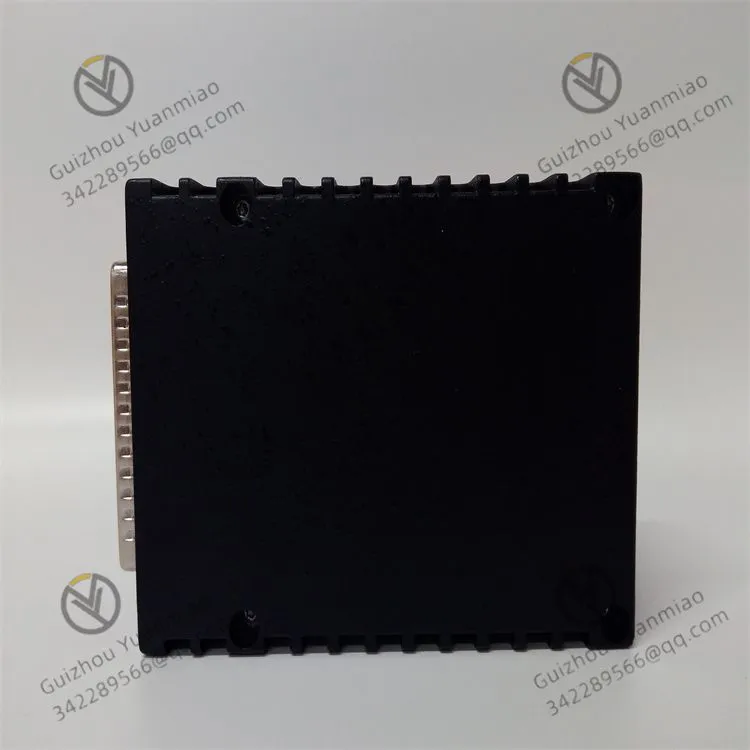

GE IS220PTURH1B Turbine Speed Monitoring ModuleNegotiableMOQ: 1 Piece
-
GE DS200TCPDG1B Gas Turbine Control System ComponentNegotiableMOQ: 1 Piece
-
GE DS200IIBDG1A Digital Input Interface BoardNegotiableMOQ: 1 Piece
-
GE DS200TCEAG1BTF Mark VIe Control System ComponentNegotiableMOQ: 1 Piece
I. Function Overview
Core function: Convert the switch status (on/off) of on-site equipment into a digital signal (1/0) and transmit it to the control system.
Application scenarios: It is applicable to scenarios such as start-stop control, safety interlocking, and condition monitoring of equipment like gas turbines, steam turbines, and compressors.
Safety: Supports triple module redundancy (TMR) configuration, meeting the SIL3 safety level requirements to ensure the reliability of critical control loops.
Ii. Technical Parameters
Input channels - Each module has 16 digital input channels (DI), which can be configured as SIL3 redundant mode (TMR) or single-channel mode.
Signal type - Dry Contact: Normally open/normally closed contact signal
- Wet Contact: 24VDC/125VDC active signal
The isolation method is photoelectric isolation (Opto-isolation), with an isolation voltage of ≥1500V and strong anti-interference ability.
The typical response time value is ≤1ms, and it supports high-speed signal acquisition (such as pulse counting and rapid triggering).
The power supply requirement is 24VDC±10%, power consumption ≤5W, and redundant power input is supported.
Communication interface - Communicates with the Mark VIe controller via Fast Ethernet (IONet), with a transmission rate of 100Mbps.
Operating temperature: -40°C to + 70°C, suitable for harsh industrial environments.
Protection grade - Front panel IP20, back panel IP00. It is recommended to install it in the control cabinet.
Iii. Hardware Design
Modular structure: It adopts a compact rail installation design.
Indicator light design: Each channel is equipped with an LED status indicator light to show the on-off status of the input signal. The front panel is equipped with power, communication and fault indicator lights for quick diagnosis.
Terminal block: It adopts a detachable terminal block that supports hot plugging, eliminating the need to cut off power during maintenance.
TMR redundancy support: In a triple redundancy system, three identical modules work in parallel. The output consistency is ensured through a 2/3 voting mechanism, and the failure of any module does not affect the system operation.
Iv. Working Principle
Signal acquisition
The on-off status of on-site devices (such as limit switches and solenoid valves) is connected to the module through terminal blocks. Dry contact signals require an external power supply circuit, while wet contact signals are directly connected to a 24VDC/125VDC signal source.
Photoelectric isolation
The input signal is converted into a digital signal through a photoelectric coupler to isolate on-site interference and protect the internal circuit.
Signal conditioning
The internal circuit filters and de-jitter the signal to eliminate false triggering caused by mechanical contact jitter or electromagnetic interference.
Data transmission
The processed digital signal (0/1) is transmitted to the Mark VIe controller through the IONet network. The controller executes control instructions (such as starting the motor and triggering the alarm) according to the preset logic.
Fault Diagnosis:
The module monitors its own power supply and communication status in real time. When a fault is detected, it will alarm through the LED indicator light and network, and supports online replacement of faulty modules.
V. Application Cases
Gas turbine control
Collect signals from flame detectors, temperature switches, pressure switches, etc., for combustion control and safety protection.
Under the TMR configuration, ensure the reliability of critical shutdown signals (such as overspeed protection).
Compressor anti-surge control
Monitor the status of the pressure and flow switches at the inlet and outlet of the compressor to trigger the anti-surge valve to act.
Avoid accidental shutdowns through redundant design to ensure continuous production.
Industrial safety interlock
Connect emergency stop buttons, safety door switches and other devices to achieve hard-wired protection of the safety circuit.
Meet the requirements of safety standards such as OSHA and IEC 61508.
Vi. Configuration and Maintenance
Software configuration:
Configure parameters such as the input channel type (dry contact/wet contact), signal threshold, and filtering time through the GE Proficy ControlST software.
Hot plugging support:
Supports module replacement while powered on. After replacement, communication and configuration will be automatically restored without the need to restart the system.
Spare parts Management
It is recommended to stock up on vulnerable parts (such as terminal blocks and fuses) to shorten the time for fault repair.
Vii. Summary of Advantages
High reliability: Photoelectric isolation, redundant design, wide temperature operation, suitable for harsh industrial environments.
Fast response: Millisecond-level signal acquisition, meeting high-speed control requirements.
Safety and compliance: The TMR configuration meets the SIL3 safety level and complies with the requirements of high-risk industries such as nuclear power and chemical engineering.
Convenient integration: Seamless integration with the Mark VIe system to reduce wiring complexity.
Maintenance-friendly: Modular design, hot-swappable support, and intuitive indicator lights reduce operation and maintenance costs.
Viii. Precautions
When installing, make sure the power polarity is correct to avoid reverse connection and damage to the module.
For dry contact input, an external power circuit needs to be provided. For wet contact input, attention should be paid to signal voltage matching.
Regularly clean the dust on the surface of the module and check the tightness of the terminal block.
