Help CenterThe Working Principle of the GE IS220PAICH1B Mark VIe Analog I/O Module
Related Products
-
GE IS220PDIAH1B Digital Input ModuleNegotiableMOQ: 1 Piece -
GE IS220PDOAH1B Mark VIe Digital Output ModuleNegotiableMOQ: 1 Piece
-

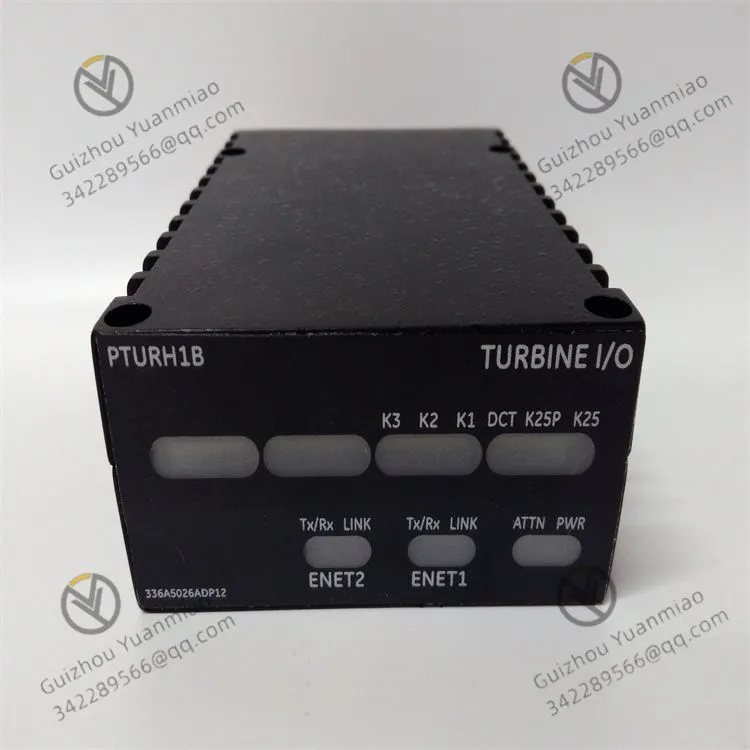

GE IS220PTURH1B Turbine Speed Monitoring ModuleNegotiableMOQ: 1 Piece
-
GE DS200TCPDG1B Gas Turbine Control System ComponentNegotiableMOQ: 1 Piece
-
GE DS200IIBDG1A Digital Input Interface BoardNegotiableMOQ: 1 Piece
I. Hardware Architecture and Signal Link Principle
1. Analog input (AI) processing flow
Signal access and conditioning
The first 8 channels support 5V/10V voltage or 0-20mA current input (configured through the terminal board), and the last 2 channels are fixed at 1mA/0-20mA current input. For example, the 4-20mA current signal is converted into a voltage signal through a resistor (such as a 250Ω resistor corresponding to a 1-5V voltage), and the voltage signal is directly connected to the front-end conditioning circuit.
The signal conditioning circuit includes a filtering network (anti-electromagnetic interference) and an amplification circuit (adapted to the ADC input range) to ensure the stability of the input signal.
Analog-to-digital Conversion (ADC)
A 16-bit ADC (analog-to-digital converter) is adopted to convert the conditioned analog signal into a digital quantity (with a resolution of approximately 1/65536). For instance, the 10V input corresponds to a digital value ranging from 0 to 65535, with an accuracy of ±0.05% FS (full scale).
The conversion cycle is 5ms (with a scanning frequency of 200Hz), ensuring real-time performance and suitable for dynamic signal monitoring (such as motor vibration and pressure fluctuations).
2. Analog output (AO) processing flow
Digital to Analog (DAC) :
The module receives digital instructions sent by the controller (such as Mark VIe CPU) (such as 0-65535 corresponding to 0-20mA output), and converts them into voltage signals (such as 0-5V) through a 16-bit DAC.
Current drive and Protection
The voltage signal is converted into a 0-20mA current loop output by the power amplification circuit (channels supporting a 200mA large current output require an additional drive circuit), and the drive capacity meets the requirements of industrial field instruments (such as control valves and servo valves).
Each output channel is equipped with a mechanical relay (normally open contact), and the relay can be controlled to be on and off through software to disable the output (such as cutting off the output in case of a fault). In the TMR system, faulty channels can be isolated.
3. Power supply and communication interface
Power supply link
The 24/28VDC power supply is input through a three-pin interface and supplies power to the processor board via a soft-start circuit (to avoid surge impacts), while providing stable voltages (such as 5V, 3.3V) for chips like ADC/DAC.
Data communication
The dual RJ45 Ethernet interfaces are connected to Mark VIe's I/O Ethernet network, supporting real-time communication with the CPU module and other I/O modules. Data transmission adopts GE-specific protocols (such as Fast Ethernet) to ensure low-latency interaction between instructions and feedback (typical latency
Ii. Software Logic and Control Principles
Processor and firmware functions
Program Loading and Self-checking
After the module is powered on, the processor (such as an ARM core) executes a self-check program to detect the status of hardware such as ADC/DAC, relays, and communication interfaces. Once the self-check is passed, the application program (firmware) is loaded from the flash memory.
Automatic configuration mechanism
When connected to the Mark VIe system, the module receives system configuration parameters (such as channel type and measurement range) through the network without manual setting and is adaptable to different working conditions (such as automatic switching of voltage/current input modes).
2. Signal processing and closed-loop control logic
Input signal processing
The module performs linearization correction (to compensate for the nonlinearity of the sensor) and filtering (such as mean filtering to eliminate noise) on the digital quantity converted by the ADC, and sends it to the CPU module through the network. For example, after the nonlinear output of the temperature sensor is corrected, the digital value has a linear correspondence with the actual temperature.
Output signal generation
The DAC receives control instructions from the CPU module (such as "Output 10mA current"), generates corresponding analog quantities based on the instructions, and simultaneously feeds back the output status to the system through the relay, forming a closed loop of "instruction - execution - feedback".
3. Redundancy and Fault Handling
TMR (Three Modular Redundancy) support:
In the TMR system, the three modules work in parallel, and the output consistency is ensured through the voting mechanism (the 2/3 majority principle). If the output of a certain module is abnormal, the relay will cut off that channel to prevent incorrect signals from affecting the system (such as preventing valve misoperation in pressure control).
Self-check and alarm:
The firmware continuously monitors the accuracy of ADC/DAC, power supply voltage, relay status, etc. When a fault is detected, it sends an alarm signal through the network (such as "Channel 5 input over-range") and records the fault code to the log.
Iii. The Collaborative Working Principle with the Mark VIe System
1. System architecture integration
Mark VIe adopts a distributed architecture of "CPU module + I/O module", with IS220PAICH1B serving as the analog interface unit and communicating with the CPU module (such as IS200TBCVH1B) via I/O Ethernet:
Upstream data: The on-site signals collected by the AI channel (such as pressure and temperature) are converted into digital quantities by the ADC and transmitted to the CPU through the network for logical operations (such as PID control).
Downlink instructions: The CPU generates digital instructions (such as AO output values) based on the control algorithm and sends them to the module via the network to drive field devices (such as control valves).
2. Examples of real-time control process
Take the temperature control of gas turbines as an example:
Signal acquisition: The thermocouple outputs a 0-10V voltage signal and connects it to the AI channel. The ADC converts it into a digital value (for example, 6553 corresponds to 10V).
Data processing: The module sends digital values to the CPU. The CPU compares the set temperature (for example, 500℃ corresponds to 8V), calculates the deviation, and then generates a PID control output (for example, the digital value 32768 corresponds to 5V).
Instruction execution: The CPU sends digital values to the AO channel. The DAC converts them into 5V voltage, which is then amplified by power to output 10mA current. This current drives the servo valve to regulate the fuel flow rate, achieving closed-loop temperature control.
Iv. Principles of Anti-interference and Industrial Environment Adaptability
Electrical isolation: The AI/AO channel is optically isolated from the internal circuit to prevent on-site interference (such as surges generated by motor start-stop) from entering the module.
EMC design: PCB layout optimization, metal casing shielding, meeting industrial electromagnetic compatibility (EMC) standards (such as EN 61000-6-2), suitable for scenarios with strong electromagnetic interference (such as steel mills, substations).
Wide temperature design: The hardware supports an operating temperature range of -40 ℃ to 70℃, suitable for high and low temperature environments in industrial sites (such as kiln monitoring and cold storage control).
Summary
The working principle of IS220PAICH1B is essentially the bidirectional conversion of "digitization of physical signals" and "physicalization of digital instructions". Through the collaboration of hardware circuits (ADC/DAC, relays) and software logic (firmware, communication protocols), it achieves high-precision acquisition, processing and control of analog quantities in industrial sites. Meanwhile, ensuring reliability under complex working conditions through redundant design and anti-interference measures is one of the core components for the Mark VIe system to achieve closed-loop automatic control.
