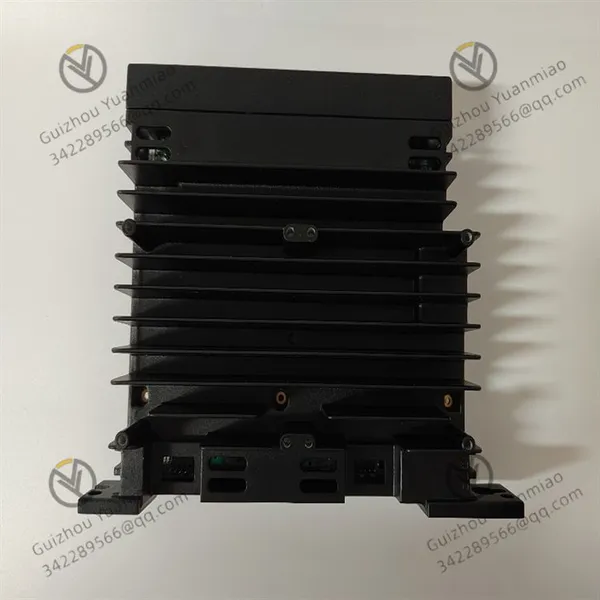

Help CenterGE IS420UCSCH1A High-performance Controller
Related Products
-
The Working Principle of the GE IS220PAICH1B Mark VIe Analog I/O ModuleNegotiableMOQ: 1 Piece -
GE IS220PDIAH1B Digital Input ModuleNegotiableMOQ: 1 Piece
-
GE IS220PDOAH1B Mark VIe Digital Output ModuleNegotiableMOQ: 1 Piece
-

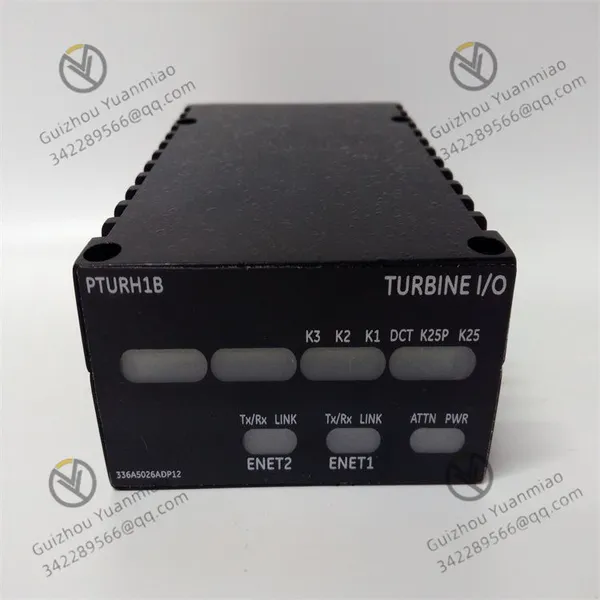

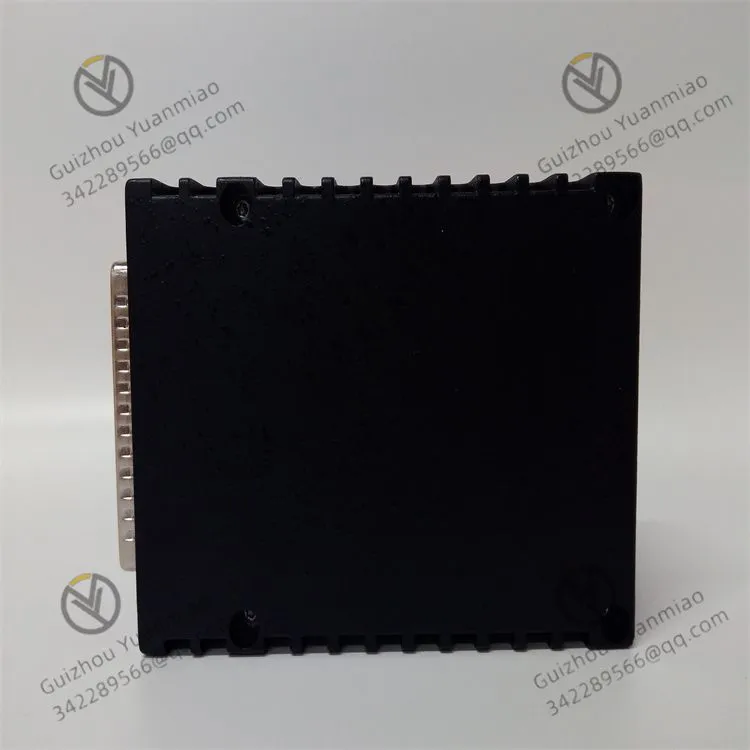

GE IS220PTURH1B Turbine Speed Monitoring ModuleNegotiableMOQ: 1 Piece
-
GE DS200TCPDG1B Gas Turbine Control System ComponentNegotiableMOQ: 1 Piece
Performance parameters:
Processor: It adopts a 1.2GHz quad-core AMD G series processor.
Operating system: Supports QNX Neutrino 6.5 or 7.1 version operating system.
Memory and Storage: The memory is 4GB, equipped with 40GB SSD PSLC flash storage, among which 16GB is the used space.
Communication interface: It has 6 Ethernet ports, supports Profinet communication, and also has 2 USB 2.0 ports.
Reliability: At 30℃, the mean Time between Failures (MTBF) is 414,248 hours.
Others: The humidity requirement is 95% non-condensing. The extended operating altitude is 1000-3000 meters. Convective cooling is adopted. The storage temperature ranges from -40 ℉ to 185℉. The maximum power consumption is 31W and the weight is 46.8 ounces. The dimensions are 6.61 inches ×5.90 inches ×2.17 inches (height × depth × width).
Functional features:
High reliability: Supports triple Module redundancy (TMR), simplex and dual redundancy modes, and can operate stably in environments with high reliability requirements.
Powerful computing capabilities: A quad-core processor paired with the QNX operating system can run a highly reliable and high-speed operating system, capable of quickly handling complex control tasks and algorithms.
Rich communication capabilities: It can communicate via Profinet, EtherCAT, high-speed serial link (HSSL) or on-board I/O network, facilitating integration with other devices and systems to achieve data interaction and collaborative control.
Good scalability: Equipped with 7 I/O ports, it can be used to connect various input and output devices, facilitating system expansion and meeting the needs of different application scenarios.
Installation requirements: The UCSC device should be directly installed on the mounting base, with at least about 4 inches of air gap left above and below it. Also, ensure that the operating temperature range is approximately 1 inch away from any point on the UCSC controller to guarantee good heat dissipation and normal operation.
Application case
Turbine control in power plants: In thermal power plants, the IS420UCSCH1A can be used in steam turbine control systems. By monitoring parameters such as steam pressure and temperature in real time, it precisely controls the speed and power output of the turbine, ensuring the safe, stable and efficient operation of the equipment. Meanwhile, its supported dual-redundancy architecture can ensure continuous operation even when some components fail, avoiding losses caused by downtime.
Petrochemical production process control: In the petrochemical industry, this controller can be used in production links such as crude oil distillation and chemical raw material synthesis. It can process various analog and digital signals in real time, precisely control key parameters such as temperature, flow rate and pressure, ensure that the production process proceeds in accordance with the set process requirements, improve product quality and production efficiency. At the same time, it has passed the SIL3 safety certification, which can effectively guarantee production safety and prevent accidents.
Steel manufacturing production line control: In steel plants, the IS420UCSCH1A can be applied to production lines such as steelmaking and steel rolling. For instance, during the steel rolling process, it can precisely control parameters such as the speed and pressure of the rolling mill according to the specifications of the steel and production requirements, achieving precise control over the thickness, width and other dimensions of the steel, and improving the accuracy and quality of the steel. In addition, it can communicate with other devices through multiple Ethernet ports to achieve automated monitoring and management of the production line, and promptly detect and handle abnormal situations during production.
Compressor operation monitoring and protection: In industrial gas compression systems, the IS420UCSCH1A can monitor the operation of compressors and provide fault protection. It collects real-time data such as the rotational speed, vibration and temperature of the compressor. Through its powerful data analysis capabilities, it determines the operating status of the compressor. When an abnormality is detected, it promptly issues an alarm signal and automatically adjusts the operating parameters or stops the machine according to the preset protection strategy to prevent damage to the compressor and extend the service life of the equipment.
Water treatment process control: In water treatment plants, the IS420UCSCH1A can be used to control all aspects of water treatment, such as water quality monitoring, dosing and metering, and pump operation. By precisely controlling the dosage of chemicals and the start, stop and rotational speed of the water pump, the efficient operation of the water treatment process is ensured, and the treated water quality meets relevant standards. Meanwhile, it can communicate with the SCADA system to achieve remote monitoring and management of the entire water treatment system, thereby enhancing the automation level and management efficiency of water treatment.
