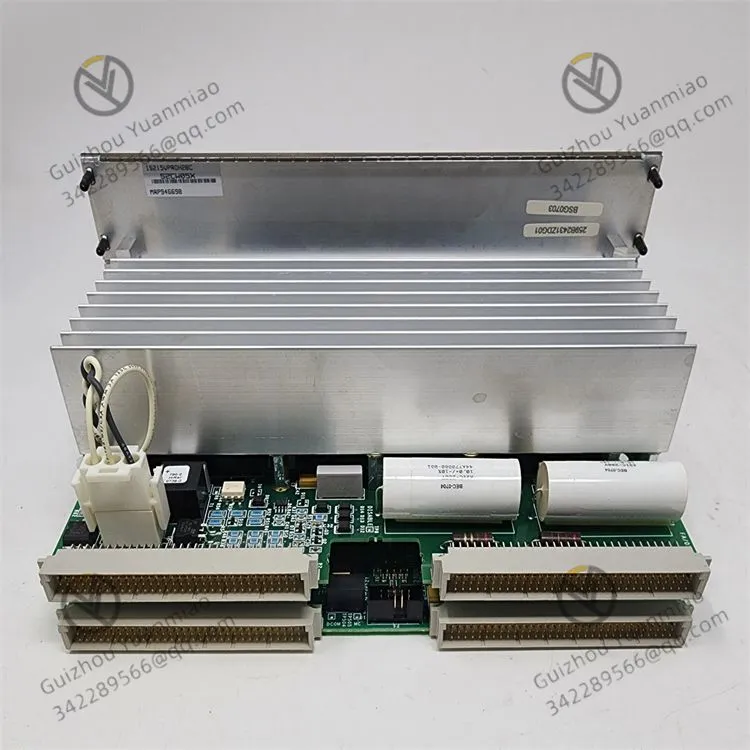

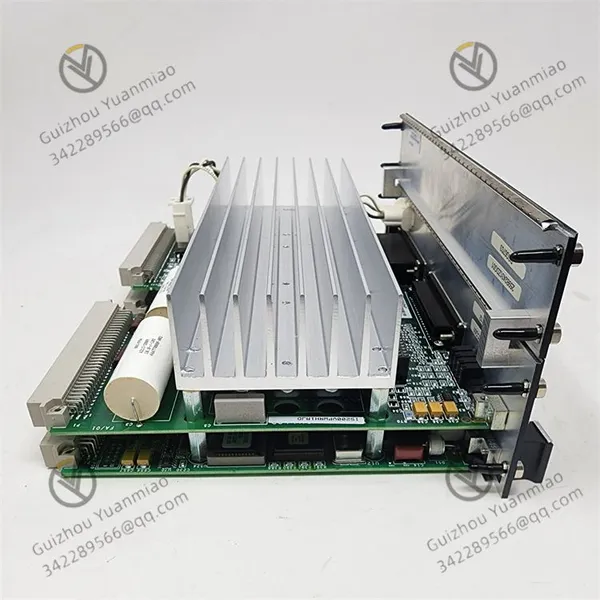

Help CenterGE IS215VPROH2B Emergency Turbine Protection Plate
Related Products
-
GE IS215VAMBH1A Mark VI Series Acoustic Monitoring BoardNegotiableMOQ: 1 Piece -
GE IS415UCVHH1A VME Control BoardNegotiableMOQ: 1 Piece
-
GE IS215ISBBH2A Communication SwitchNegotiableMOQ: 1 Piece
-
GE IS420UCSCH1A High-performance ControllerNegotiableMOQ: 1 Piece
-
The Working Principle of the GE IS220PAICH1B Mark VIe Analog I/O ModuleNegotiableMOQ: 1 Piece
First. Multiple independent protection mechanisms ensure high security
Emergency overspeed protection and triple redundancy design
It provides an independent emergency overspeed protection system. By managing 12 relays (9 relays are divided into three groups, with three in each group), the tripping solenoid valve is operated through a "three choose two" voting mechanism. This redundant design can prevent misoperation caused by the failure of a single sensor or relay, ensuring reliable emergency shutdown when the turbine is overspeeding and reducing the risk of equipment damage.
Backup synchronization check and exhaust over-temperature protection
It integrates backup and synchronous inspection functions, and is equipped with three analog current inputs and nine thermocouple inputs simultaneously. It can be used for over-temperature protection of gas turbine exhaust. Through multi-parameter monitoring (such as current and temperature), all-round protection of the turbine's operating status is achieved, enhancing the safety of the system under abnormal working conditions.
Second, the hardware design is robust and adaptable to industrial environments
Wide voltage input and stable power supply
It uses 125V DC voltage from the cabinet PDM, which is internally converted into 5V and 28V DC voltages to power itself and circuits. It supports wide voltage input while ensuring power supply stability, adapting to voltage fluctuations that may occur in industrial scenarios.
Anti-interference and durable design
The on-board transistors, integrated circuits and other components have been industrial-grade selected. Combined with transformers, heat sinks and other components, they can operate stably in complex environments such as high temperatures and vibrations. The protective design of the bottom backplane connector and the front panel (such as the D-type housing cable connector) enhances the anti-electromagnetic interference capability and the reliability of the physical connection.
Third, the communication and monitoring capabilities are highly efficient and convenient for system integration
High-speed Ethernet communication
It supports IONet communication through Ethernet connection, enabling real-time data interaction with the control module (such as receiving control instructions and uploading protection status), achieving coordinated operation with the entire turbine control system, and facilitating remote monitoring and fault diagnosis.
Real-time status visualization
The LED indicator light on the front panel can visually display the status of power supply, operation, faults, etc. Combined with the design of test points, it is convenient for maintenance personnel to quickly locate problems and reduce the downtime for maintenance.
Fourth, flexible application scenarios, compatible with various turbine systems
Compatible protection for multiple types of turbines
It is not only applicable to the exhaust over-temperature protection of gas turbines, but also can be connected to adapt to the over-speed protection requirements of steam turbines, wind turbines and other equipment through speed sensors, with strong versatility.
Deeply integrated with the Mark VI system
As the core module of the Mark VI system, it can seamlessly collaborate with other control boards in this system (such as IS215WECAH1A) to form a complete protection and monitoring system, meeting the high reliability requirements of scenarios such as large-scale power stations and industrial power systems.
Five. Convenient maintenance and reduced operating costs
Modular design and hot-swapping support
The hardware structure adopts a modular design, and some components support hot plugging (such as connectors). Maintenance or replacement can be carried out without interrupting the system operation, reducing downtime losses.
Standardized interfaces and compatibility
The backplane connectors and communication interfaces comply with industry standards, facilitating integration or replacement with other devices and lowering the technical threshold for system upgrades and maintenance.
Summary
The core advantage of IS215VPROH2B lies in its design of "redundant protection + industrial-grade hardware + efficient communication", which achieves precise protection and convenient management of turbine equipment. It is particularly suitable for industrial scenarios with extremely high requirements for safety and reliability, such as power generation and energy power.
