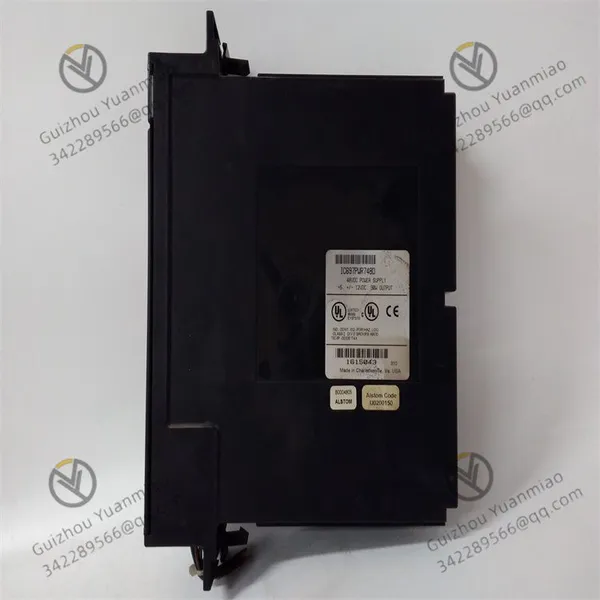

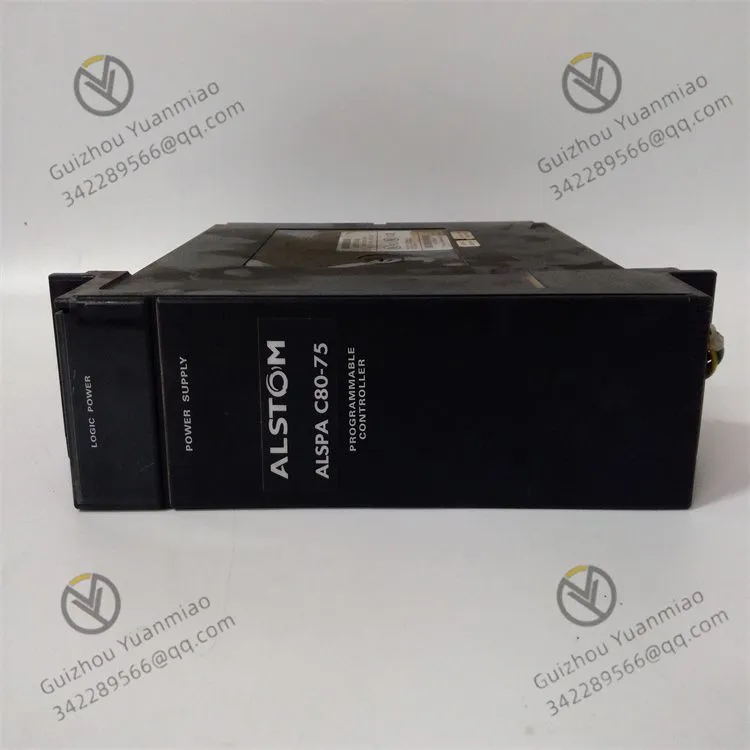

GE IC697PWR748D high-performance power module
I. Core Technical Parameters
Input and output capabilities: AC input covers 100-240VAC (±10%), 50/60Hz, and 110-240VDC DC input is also available as an option. The output is 24VDC, with a continuous output of 10A and a peak of 12A (≤10 seconds). It has a rated power of 240W and an efficiency of over 90%, meeting the power supply requirements for PLC systems and peripherals. It is energy-saving and compatible with various power grids.
Voltage stability: When the load varies from 0 to 100%, the output voltage regulation accuracy is ±1%, and the ripple is ≤50mV (peak-to-peak value), ensuring the stable operation of PLC control logic, sensors, etc., and avoiding voltage fluctuation interference.
Backup and battery life: Supports external battery modules, maintaining RAM data for ≥72 hours (at 25℃) after power failure, preventing the loss of programs, running parameters, etc., and is suitable for unexpected power failure scenarios.
Physical and environmental compatibility: Dimensions 171mm×101mm×71mm, weighing approximately 1.3kg, facilitating the installation of control cabinets; Operating temperature: -20 ℃ to +60℃ (without derating), storage temperature: -40 ℃ to +85℃, humidity: 5% to 95% (without condensation), suitable for complex industrial environments.
Safety and compliance: Passed certifications such as CE and UL 508, complies with the industrial anti-interference (IEC 61000-6-2) standard, ensures reliable operation in multi-interference industrial scenarios, and meets the project compliance requirements.
Ii. Working Principle and Functional Design
1. Power conversion architecture
AC/DC conversion: Through high-frequency switching power supply technology, the input AC power is converted into stable 24VDC. Compared with linear power supplies, it is more efficient (reduces heat generation) and can adapt to wide voltage fluctuations (such as still operating normally when the grid voltage drops by 10%).
Voltage stabilization control: Built-in PWM (Pulse Width Modulation) controller, which monitors the output voltage in real time and adjusts the duty cycle of the switch tube to ensure voltage stability when the load changes.
Protection mechanism:
Overcurrent protection: Automatically limit the current when the output current exceeds 12A to prevent damage to the module or load.
Overvoltage protection: Triggered to turn off when the output voltage exceeds 28VDC to prevent the burning out of the back-end circuit.
Short-circuit protection: The output is immediately cut off when the load short-circuits, and it automatically resumes after the fault is eliminated.
2. Redundancy and hot Standby design
Parallel redundancy mode: It can be connected in parallel with another IC697PWR748D module and achieve "primary and backup" switching through a redundant backplane (such as IC697CHS790).
When the main power supply fails, the backup power supply seamlessly takes over the power supply, with a switching time of ≤10ms, ensuring that the PLC system does not lose power.
The redundancy status is displayed in real time through LED indicator lights (such as "ACTIVE" and "FAULT"), facilitating maintenance.
3. Battery backup and data retention
Battery interface: Supports external nickel-cadmium battery modules (such as IC693BAT320), providing power for the PLC's RAM data (such as programs, intermediate variables) in case of power failure, to prevent data loss due to power outages.
Power monitoring: Equipped with an internal voltage sensor, it monitors the input voltage and battery status in real time. When the voltage is low, it issues an alarm signal through the PLC (such as outsending a fault signal through the I/O module).
Iii. Typical Application Scenarios
Petrochemicals and continuous production processes
Scene requirements: 24-hour continuous operation equipment such as refining and chemical units and ethylene cracking furnaces, with zero power interruption required.
Adaptation advantages:
Under redundant configuration, the MTBF (Mean Time Between Failures) is ≥10⁵ hours, meeting the SIL2 safety integrity level requirements.
Anti-vibration design (conforming to IEC 60068-2-6 standard, 10-500Hz, 2G acceleration), suitable for vibration source environments such as compressors and pump sets;
The wide temperature range feature supports outdoor cabinet installation (such as wellhead devices in oil fields).
2. Power and energy infrastructure
Substation automation: Supply power to PLCS, protection devices, and Rtus to ensure that control logic is not interrupted in case of grid failures.
Photovoltaic/wind power control
Adapt to voltage fluctuations in new energy stations (such as current surges when photovoltaic inverters start up);
Supports DC input models (110-240VDC), which can be directly connected to the DC bus of photovoltaic arrays or energy storage systems.
3. Automotive and high-end manufacturing production lines
Vehicle body welding line: Supplies power to the robot controller and servo driver to ensure stable power supply during high-speed welding (for example, the quality of the weld point is directly related to the power supply ripple).
Semiconductor equipment
Low ripple characteristics (≤50mV) meet the requirements of semiconductor manufacturing equipment for power supply purity (avoiding interference with sensors or precision actuators);
The fanless design reduces dust pollution and meets the ISO level 5 cleanroom standard.
4. Rail Transit and municipal engineering
Subway signal system
Comply with the EN 50155 railway standard, withstand wide temperatures, resist vibration, and support the power supply requirements of on-board PLCS;
Redundant configuration ensures that signal control is not interrupted during train operation (such as door control and traction system linkage).
Sewage treatment plant
The wide voltage input ADAPTS to the fluctuations of the municipal power grid, and the moisture-proof design (no condensation at 95% humidity) prevents module corrosion.
It can be combined with the PLC redundant system to ensure the continuous operation of processes such as aeration and dosing.
Iv. Key Features and Installation Points
Convenience of condition monitoring and maintenance
LED indicator light
POWER: Illuminated when the input power supply is normal;
OUTPUT: 24VDC. Light up when the output is normal.
FAULT: It lights up when there is overcurrent, overvoltage or module failure, facilitating quick problem location.
Hot-swapping support: Supports replacement while powered on (requires system power-off or redundant backplane configuration), reducing downtime.
2. Installation and heat dissipation design
Installation method: Standard Rail installation (DIN Rail), which can be directly fixed in the control cabinet and supports vertical or horizontal installation.
Heat dissipation management: Natural cooling (fanless), suitable for closed cabinets or noise-sensitive environments (such as pharmaceutical workshops).
3. Compatibility with other modules
Compatible PLC series: Only applicable to GE 90-70 series PLCS, it can be interconnected with CPU modules (such as IC697CPX928-FE) and I/O modules (such as IC697MDL653) via the backplane bus.
Redundant system configuration: It is necessary to be equipped with a redundant backplane (such as IC697CHS790) and a redundant power management module to achieve dual power hot standby.
V. Selection and Maintenance Suggestions
Power calculation: Select the model based on the total power consumption of all modules in the PLC system (it is recommended to leave a 20% margin). For example, for 10 I/O modules (15W per module) +1 CPU module (30W), the total power consumption is approximately 180W. The IC697PWR748D (with a rated power of 240W) can be selected.
Redundant scenarios: Critical processes (such as petrochemicals and nuclear power) must be equipped with dual power supply redundancy, while non-critical scenarios can operate with a single power supply.
Maintenance cycle: Check the battery module's power every two years (if equipped), and replace the electrolytic capacitor every five years (to prevent unstable output due to aging).
This power module, through its highly reliable design and flexible redundancy configuration, has become the core power supply unit for medium and large-scale industrial automation systems, and is particularly suitable for critical infrastructure scenarios with extremely high requirements for continuity and safety.
