Flexible High Pressure Large Diameter TPU Layflat Water Hose
Flexible High Pressure Large Diameter TPU Layflat Water Hose
The mining polyurethane high-pressure drainage hose adopts a one-time co extrusion process, consisting of an inner adhesive layer, a fiber-reinforced layer, and an outer adhesive layer. Both the inner and outer adhesive layers are made of high-performance thermoplastic polyurethane elastomer raw materials.
Product application and characteristics

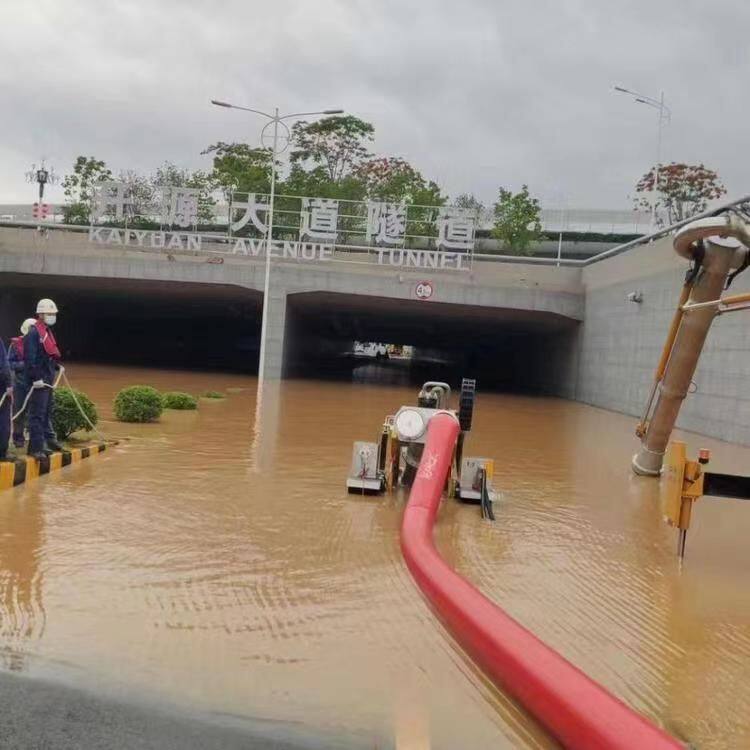

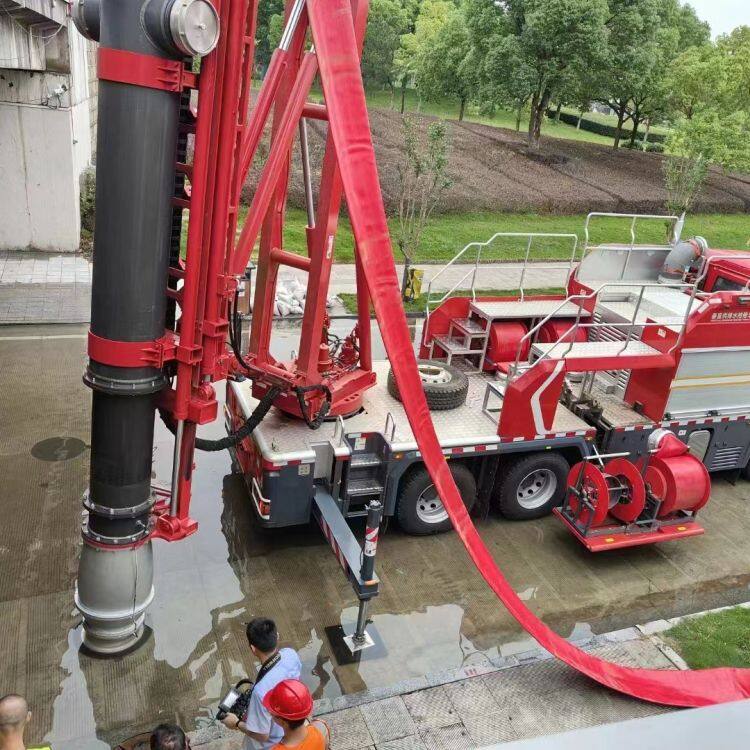

Mining polyurethane high-pressure drainage soft material has high pressure resistance, light weight, and aging resistance; The product is anti-static and has strong environmental adaptability. It can shuttle and distribute in narrow spaces and complex mines without being easily damaged, greatly improving rescue efficiency and reducing rescue costs.
| ID | Tolerance | Wall Thickness | Service Pressure |
Minimum Burst Pressure |
Weight | |||
| inch | mm | mm | inch | mm | psi | psi | lbs/ft | kg/m |
| 2″ | 51 | 51.0-53.0 | 0.071 | 1.80 | 250 | 750 | 0.28 | 0.42 |
| 2″ | 51 | 51.0-53.0 | 0.138 | 3.50 | 410 | 1230 | 0.47 | 0.70 |
| 3″ | 76 | 76.0-78.0 | 0.118 | 3.00 | 250 | 750 | 0.60 | 0.90 |
| 3″ | 76 | 76.0-78.0 | 0.126 | 3.20 | 410 | 1230 | 0.70 | 1.05 |
| 4″ | 102 | 102-104.5 | 0.110 | 2.80 | 200 | 600 | 0.72 | 1.08 |
| 4″ | 102 | 102-104.5 | 0.138 | 3.50 | 250 | 750 | 0.87 | 1.30 |
| 4″ | 102 | 102-104.5 | 0.142 | 3.60 | 300 | 900 | 0.94 | 1.40 |
| 4″ | 102 | 102-104.5 | 0.189 | 4.80 | 610 | 1830 | 1.27 | 1.90 |
| 5″ | 125 | 125-127.5 | 0.142 | 3.60 | 150 | 450 | 1.21 | 1.80 |
| 6″ | 152 | 154-157 | 0.126 | 3.20 | 150 | 450 | 1.27 | 1.90 |
| 6″ | 152 | 154-157 | 0.149 | 3.80 | 250 | 750 | 1.41 | 2.10 |
| 6″ | 152 | 154-157 | 0.165 | 4.20 | 300 | 900 | 1.68 | 2.50 |
| 6″ | 152 | 154-157 | 0.228 | 5.80 | 410 | 1230 | 2.28 | 3.40 |
| 6″ | 152 | 154-157 | 0.216 | 5.50 | 610 | 1830 | 2.14 | 3.20 |
| 8″ | 204 | 204-207 | 0.149 | 3.80 | 200 | 600 | 1.94 | 2.90 |
| 8″ | 204 | 204-207 | 0.157 | 4.00 | 250 | 750 | 2.28 | 3.40 |
| 8″ | 204 | 204-207 | 0.165 | 4.20 | 300 | 900 | 2.35 | 3.50 |
| 8″ | 204 | 204-207 | 0.165 | 4.20 | 410 | 1230 | 2.68 | 4.00 |
| 10″ | 254 | 256-259 | 0.165 | 4.20 | 200 | 600 | 2.68 | 4.00 |
| 10″ | 254 | 256-259 | 0.177 | 4.50 | 250 | 750 | 3.02 | 4.50 |
| 10″ | 254 | 256-259 | 0.197 | 5.00 | 300 | 900 | 3.69 | 5.50 |
| 12″ | 306 | 306-311 | 0.165 | 4.20 | 150 | 450 | 2.81 | 4.20 |
| 12″ | 306 | 306-311 | 0.197 | 5.00 | 200 | 600 | 3.48 | 5.20 |
| 14″ | 356 | 356-360 | 0.189 | 4.80 | 150 | 450 | 4.36 | 6.50 |
| 16″ | 406 | 406-410 | 0.197 | 5.00 | 100 | 300 | 4.56 | 6.80 |
| 16″ | 406 | 406-410 | 0.212 | 5.40 | 150 | 450 | 5.23 | 7.80 |
