TPU Lay Flat Hose with Copper Wire for Fuel Transfer
- 500 Bag / Bags per Month
- Tianjin Shanghai
- T/T
- 5 days
You May Like
-
Through-The-Weave PU with Copper Wire Fuels Transfer TPU Hose
-
12 inch Polyurethane Hose Suitable for Shale Gas and Oil Development in Oil Fieldsater Hose
-
Through-The-Weave PU Hose for Oilfield Water Transfer
-
Oilfield PU Frac Hose for Shale Gas & Oil Develop
-
TPU Pumping of Sludge TPU Lay Flat Hose
-
Pumping of Sludge TPU Lay Flat Hose
Product Details
Brand Name | Biaohui | Place of Origin | China | |
Model Number | Frac hose | Material | Other, TPU | |
Length | 50/100/200m | Thickness | 6mm | |
Specification | 1 1/2“ - 16“ | Standard | international standard | |
Weaving Type | Twill & Plain Weave | Working Pressure | 8-28bar | |
Hose Coupling Structure | Coupling | Service Pressure | 8-28 Bar | |
Color | Customize | Burst Pressure | 20-126 Bar | |
Origin | China |
Product Description
Polyurethane flat hose
Flat polyurethane oil hose
TPU High Pressure Hose
Size: 1"-14"
Working pressure: 10-25 bar
Working Temperature:-50 C deg to +80 C deg (-58 F deg to +176 F deg)

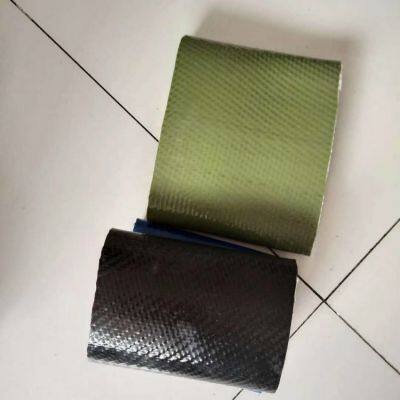

Inner tube and cover: Smooth PU cover and tube
Reinforcement: polyester jacket
Standard Length: 10-200M

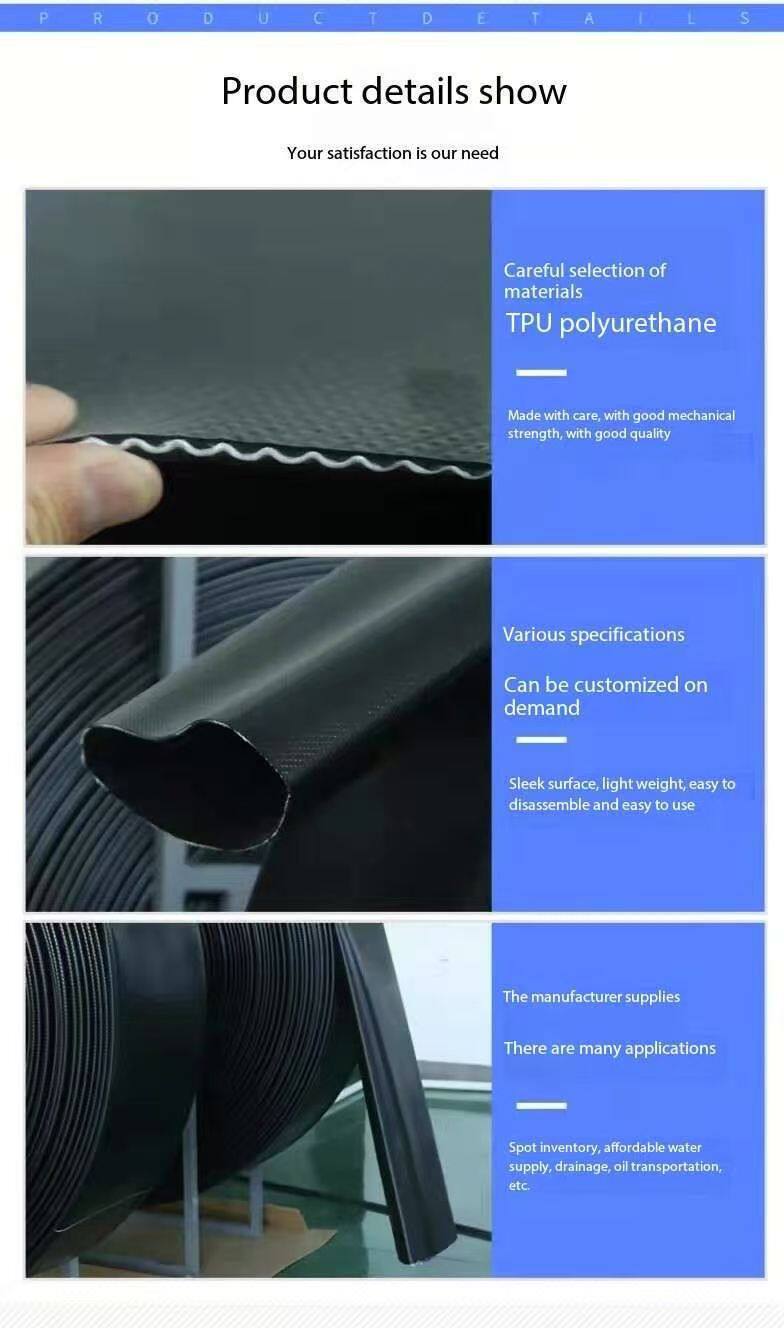

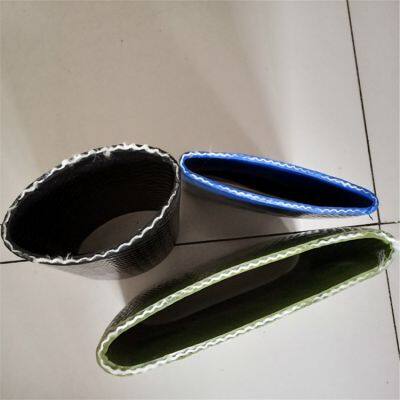

Flat polyurethane oil hose is a high-pressure water and oil hose that can be transported by positive pressure and can be flattened and coiled. It adopts a one-time co extrusion process and consists of a TPU inner adhesive layer, a fiber-reinforced layer, and a TPU outer adhesive layer. Conductive metal wires are added to the fiber layer to solve the static electricity problem generated by the hose during the oil transportation process. The safe and efficient transportation of oil can transport various media such as gas, water, oil, etc.
Features: Light weight, high pressure resistance, soft texture, can be coiled, easy to operate, fast laying and dismantling speed, flexible and adaptable to the environment, and durable in use.

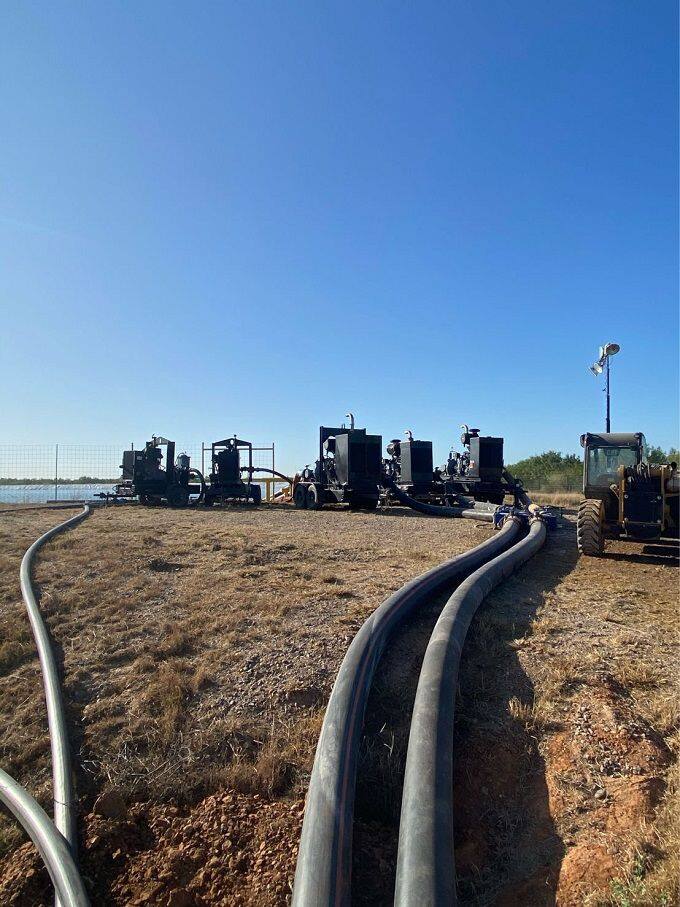

Application scope: It can be widely used for laying temporary transportation lines for oil supply, transporting mortar and cement in the field of petroleum exploration, etc
ID | Tolerance | Wall Thickness | Service Pressure | Minimum Burst Pressure | Weight | Elongation At WP% | Expansion At WP% | Temperature Range | |||||
inch | mm | mm | inch | mm | psi | psi | lbs/ft | tolerance lbs/ft | kg/m | tolerance kg/m | max | max | |
2" | 51 | 51.0-53.0 | 0.071±0.008 | 1.80±0.20 | 250 | 750 | 0.28 | ±0.067 | 0.42 | ±0.10 | ≤1 | ≤8 | -50ºC to 80ºC -58ºF to 176ºF |
2" | 51 | 51.0-53.0 | 0.138±0.008 | 3.50±0.20 | 410 | 1230 | 0.47 | ±0.067 | 0.70 | ±0.10 | ≤2 | ≤8 | |
3" | 76 | 76.0-78.0 | 0.118±0.012 | 3.00±0.30 | 250 | 750 | 0.60 | ±0.067 | 0.90 | ±0.10 | ≤1 | ≤8 | |
3" | 76 | 76.0-78.0 | 0.126±0.012 | 3.20±0.30 | 410 | 1230 | 0.70 | ±0.067 | 1.05 | ±0.10 | ≤1 | ≤8 | |
4" | 102 | 102-104.5 | 0.110±0.012 | 2.80±0.30 | 200 | 600 | 0.72 | ±0.067 | 1.08 | ±0.10 | ≤1 | ≤8 | |
4" | 102 | 102-104.5 | 0.138±0.012 | 3.50±0.30 | 250 | 750 | 0.87 | ±0.067 | 1.30 | ±0.10 | ≤1 | ≤8 | |
4" | 102 | 102-104.5 | 0.142±0.012 | 3.60±0.30 | 300 | 900 | 0.94 | ±0.067 | 1.40 | ±0.10 | ≤1 | ≤8 | |
4" | 102 | 102-104.5 | 0.189±0.016 | 4.80±0.40 | 610 | 1830 | 1.27 | ±0.067 | 1.90 | ±0.10 | ≤1 | ≤8 | |
5" | 125 | 125-127.5 | 0.142±0.012 | 3.60±0.30 | 150 | 450 | 1.21 | ±0.134 | 1.80 | ±0.20 | ≤1 | ≤8 | |
6" | 152 | 154-157 | 0.126±0.012 | 3.20±0.30 | 150 | 450 | 1.27 | ±0.067 | 1.90 | ±0.10 | ≤1 | ≤8 | |
6" | 152 | 154-157 | 0.149±0.012 | 3.80±0.30 | 250 | 750 | 1.41 | ±0.067 | 2.10 | ±0.10 | ≤1 | ≤8 | |
6" | 152 | 154-157 | 0.165±0.012 | 4.20±0.30 | 300 | 900 | 1.68 | ±0.134 | 2.50 | ±0.20 | ≤2 | ≤8 | |
6" | 152 | 154-157 | 0.228±0.016 | 5.80±0.40 | 410 | 1230 | 2.28 | ±0.201 | 3.40 | ±0.30 | ≤2 | ≤8 | |
6" | 152 | 154-157 | 0.216±0.016 | 5.50±0.40 | 610 | 1830 | 2.14 | ±0.201 | 3.20 | ±0.30 | ≤2 | ≤8 | |
8" | 204 | 204-207 | 0.149±0.012 | 3.80±0.30 | 200 | 600 | 1.94 | ±0.134 | 2.90 | ±0.20 | ≤1 | ≤10 | |
8" | 204 | 204-207 | 0.157±0.016 | 4.00±0.40 | 250 | 750 | 2.28 | ±0.201 | 3.40 | ±0.30 | ≤1 | ≤10 | |
8" | 204 | 204-207 | 0.165±0.016 | 4.20±0.40 | 300 | 900 | 2.35 | ±0.201 | 3.50 | ±0.30 | ≤1 | ≤10 | |
8" | 204 | 204-207 | 0.165±0.016 | 4.20±0.40 | 410 | 1230 | 2.68 | ±0.201 | 4.00 | ±0.30 | ≤1 | ≤10 | |
10" | 254 | 256-259 | 0.165±0.016 | 4.20±0.40 | 200 | 600 | 2.68 | ±0.201 | 4.00 | ±0.30 | ≤1 | ≤10 | |
10" | 254 | 256-259 | 0.177±0.016 | 4.50±0.40 | 250 | 750 | 3.02 | ±0.201 | 4.50 | ±0.30 | ≤1 | ≤10 | |
10" | 254 | 256-259 | 0.197±0.016 | 5.00±0.40 | 300 | 900 | 3.69 | ±0.201 | 5.50 | ±0.30 | ≤2 | ≤8 | |
12" | 306 | 306-311 | 0.165±0.016 | 4.20±0.40 | 150 | 450 | 2.81 | ±0.201 | 4.20 | ±0.30 | ≤1 | ≤8 | |
12" | 306 | 306-311 | 0.197±0.016 | 5.00±0.40 | 200 | 600 | 3.48 | ±0.201 | 5.20 | ±0.30 | ≤2 | ≤8 | |
14" | 356 | 356-360 | 0.189±0.016 | 4.80±0.40 | 150 | 450 | 4.36 | ±0.268 | 6.50 | ±0.40 | ≤1 | ≤8 | |
16" | 406 | 406-410 | 0.197±0.020 | 5.00±0.50 | 100 | 300 | 4.56 | ±0.268 | 6.80 | ±0.40 | ≤1 | ≤10 | |
16" | 406 | 406-410 | 0.212±0.020 | 5.40±0.50 | 150 | 450 | 5.23 | ±0.268 | 7.80 | ±0.40 | ≤1 | ≤10 |
Hebei Biaohui Rubber and Plastic Products Co., Ltd. main products include TPU flat hose series, fire hose series, industrial hose series, material conveying hose series, silicone hose series, metal hose series, PTFE hose series and matching joints, various rubber and plastic products and hose products.
contact information:
Company Name: Hebei Biaohui Rubber Products Co., Ltd
Address: Zhanggehou Rubber and Plastic Base, Jing County, Hebei Province
Telehone: +86 15075803959
E-mail: info@biaohuihose.com
WhatsApp:+86 15075803959
WeChat : +8615075803959
