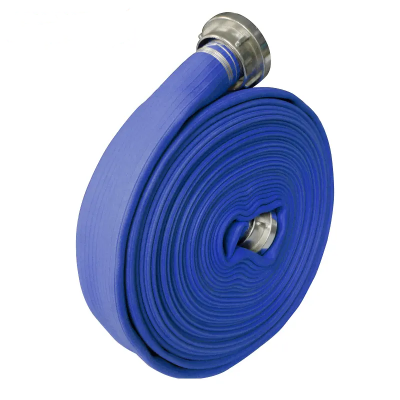

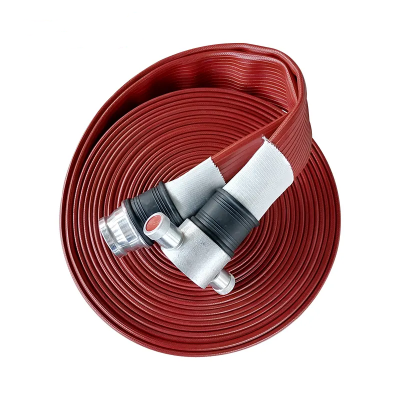

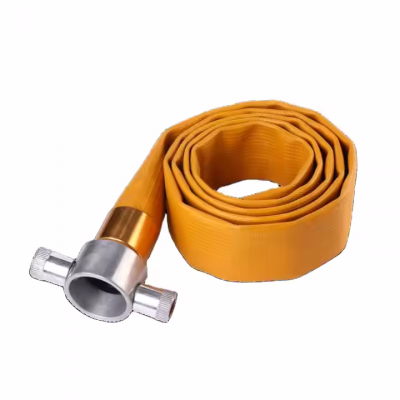

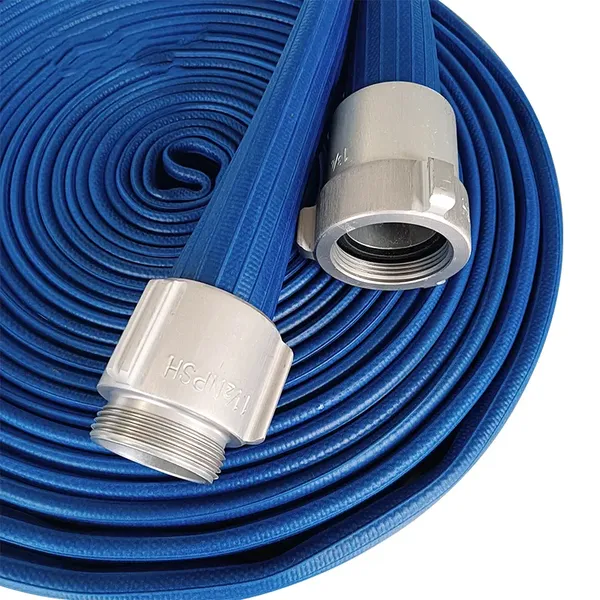

Double Jacket Fire Hose High Pressure Resistance and Wear Resistance
Hose jacket: Circular woven firm polyester fibre, double twisted warp, resistant to wear and tear, and abrasion.
Internal lining: Thin walled synthetic rubber lining applied very lightly by means of a special vulcanising technique ensures long life, elasticity and fexibility.
Characteristics: Synthetic fire hose with very thin walled, light internal lining resulting in a light-weight hose with small coil diameter. This hose is ideally suitable for fire brigades and, because of its limited space requirement, recommended for use in wall hydrant cabinets.
Colour: Nature-white
Hose is available also in other lengths and with other couplings.
ID | Service Pressure | Minimum Burst Pressure | |
inch | mm | psi/bar | psi/bar |
1 1/4" | 32 | 150/10, 200/14, 220/15, 250/17, 300/21 | 450/30, 600/42, 660/45, 750/51, 900/63 |
1 1/2" | 38 | 150/10, 200/14, 220/15, 250/17, 300/21 | 450/30, 600/42, 660/45, 750/51, 900/63 |
1 3/4" | 45 | 150/10, 200/14, 220/15, 250/17, 300/21 | 450/30, 600/42, 660/45, 750/51, 900/63 |
2" | 50 | 150/10, 200/14, 220/15, 250/17, 300/21 | 450/30, 600/42, 660/45, 750/51, 900/63 |
2 1/2" | 65 | 150/10, 200/14, 220/15, 250/17, 300/21 | 450/30, 600/42, 660/45, 750/51, 900/63 |
2 3/4" | 70 | 150/10, 200/14, 220/15, 250/17 | 450/30, 600/42, 660/45, 750/51 |
3" | 75 | 150/10, 200/14, 220/15, 250/17 | 450/30, 600/42, 660/45, 750/51 |
4" | 102 | 150/10, 200/14, 220/15, 250/17 | 450/30, 600/42, 660/45, 750/51 |
6" | 152 | 150/10, 200/14, 220/15, 250/17 | 450/30, 600/42, 660/45, 750/51 |
Hebei Biaohui Rubber and Plastic Products Co., Ltd. main products include TPU flat hose series, fire hose series, industrial hose series, material conveying hose series, silicone hose series, metal hose series, PTFE hose series and matching joints, various rubber and plastic products and hose products.
