Through-The-Weave TPU Oilfield Layflat Hose

FOB Price

Negotiable / Bag

1 Bag(Min.Order)

Supply Ability 500 Bag / Bags per Month
Port Tianjin Shanghai
Payment TermsT/T
Delivery Detail5 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Biaohui	Place of Origin	China
Model Number	complete	Material	Other, TPU
Length	50/100200m	Thickness	6mm
Specification	50-200mm	Standard	international standard

Product Description

TPU Layflat Hose

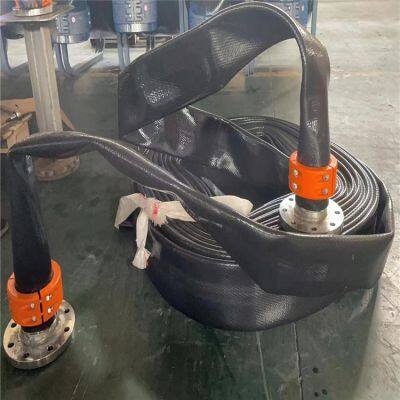

Through-The-Weave TPU Oilfield Layflat Hose

Through-the-weave TPU frac water hose
Cover and Lining: TPU, Ribbed cover or smooth cover.
Reinforcement Jacket: High tenacity synthetic jacket.
Application: Water transfer Fracturing
Available length: 30m (100ft), 61m (200ft), 90m (300ft), 100m (330ft), 200m (660ft), 300m (990ft), 400m (1320ft)
Hose can be with glow line on special requests!
The reinforcement is made from circular woven filament polyester yarn. The "extrusion through-the-weave" production method gives a very strong bonding between cover and lining as well as firmly encapsulating the woven polyester.
The hose has high resistance against commonly used chemicals and has excellent resistance to UV radiation, hydrolysis and fungus degradation. The abrasion resistance of the TPU is one of the highest available, making the hose ideal for use in the extremely abrasive environment in open pit mines.
The outer cover has been designed with extra thickness in order to add wear & tear material. This extends the useful lifespan of the hose.
Extra abrasion resistance for rugged terrain and extreme conditions. Resistant to oil and chemicals. UV Stabilized.
Abrasion: 4000 DIN cycles
Temperature range: -50ºC to 80ºC (-58ºF to +176ºF)

ID		Tolerance	Wall Thickness		Service Pressure	Minimum Burst Pressure	Weight				Elongation At WP%	Expansion At WP%	Temperature Range
inch	mm	mm	inch	mm	psi	psi	lbs/ft	tolerance lbs/ft	kg/m	tolerance kg/m	max	max
2"	51	51.0-53.0	0.071±0.008	1.80±0.20	250	750	0.28	±0.067	0.42	±0.10	≤1	≤8	-50ºC to 80ºC -58ºF to 176ºF
2"	51	51.0-53.0	0.138±0.008	3.50±0.20	410	1230	0.47	±0.067	0.70	±0.10	≤2	≤8
3"	76	76.0-78.0	0.118±0.012	3.00±0.30	250	750	0.60	±0.067	0.90	±0.10	≤1	≤8
3"	76	76.0-78.0	0.126±0.012	3.20±0.30	410	1230	0.70	±0.067	1.05	±0.10	≤1	≤8
4"	102	102-104.5	0.110±0.012	2.80±0.30	200	600	0.72	±0.067	1.08	±0.10	≤1	≤8
4"	102	102-104.5	0.138±0.012	3.50±0.30	250	750	0.87	±0.067	1.30	±0.10	≤1	≤8
4"	102	102-104.5	0.142±0.012	3.60±0.30	300	900	0.94	±0.067	1.40	±0.10	≤1	≤8
4"	102	102-104.5	0.189±0.016	4.80±0.40	610	1830	1.27	±0.067	1.90	±0.10	≤1	≤8
5"	125	125-127.5	0.142±0.012	3.60±0.30	150	450	1.21	±0.134	1.80	±0.20	≤1	≤8
6"	152	154-157	0.126±0.012	3.20±0.30	150	450	1.27	±0.067	1.90	±0.10	≤1	≤8
6"	152	154-157	0.149±0.012	3.80±0.30	250	750	1.41	±0.067	2.10	±0.10	≤1	≤8
6"	152	154-157	0.165±0.012	4.20±0.30	300	900	1.68	±0.134	2.50	±0.20	≤2	≤8
6"	152	154-157	0.228±0.016	5.80±0.40	410	1230	2.28	±0.201	3.40	±0.30	≤2	≤8
6"	152	154-157	0.216±0.016	5.50±0.40	610	1830	2.14	±0.201	3.20	±0.30	≤2	≤8
8"	204	204-207	0.149±0.012	3.80±0.30	200	600	1.94	±0.134	2.90	±0.20	≤1	≤10
8"	204	204-207	0.157±0.016	4.00±0.40	250	750	2.28	±0.201	3.40	±0.30	≤1	≤10
8"	204	204-207	0.165±0.016	4.20±0.40	300	900	2.35	±0.201	3.50	±0.30	≤1	≤10
8"	204	204-207	0.165±0.016	4.20±0.40	410	1230	2.68	±0.201	4.00	±0.30	≤1	≤10
10"	254	256-259	0.165±0.016	4.20±0.40	200	600	2.68	±0.201	4.00	±0.30	≤1	≤10
10"	254	256-259	0.177±0.016	4.50±0.40	250	750	3.02	±0.201	4.50	±0.30	≤1	≤10
10"	254	256-259	0.197±0.016	5.00±0.40	300	900	3.69	±0.201	5.50	±0.30	≤2	≤8
12"	306	306-311	0.165±0.016	4.20±0.40	150	450	2.81	±0.201	4.20	±0.30	≤1	≤8
12"	306	306-311	0.197±0.016	5.00±0.40	200	600	3.48	±0.201	5.20	±0.30	≤2	≤8
14"	356	356-360	0.189±0.016	4.80±0.40	150	450	4.36	±0.268	6.50	±0.40	≤1	≤8
16"	406	406-410	0.197±0.020	5.00±0.50	100	300	4.56	±0.268	6.80	±0.40	≤1	≤10
16"	406	406-410	0.212±0.020	5.40±0.50	150	450	5.23	±0.268	7.80	±0.40	≤1	≤10
