Pumping of Sludge TPU Lay Flat Hose
Negotiable
MOQ: 1 Bag (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Biaohui
Place of Origin:
China
Model Number:
Discharge hose
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Shanghai
Delivery Detail:
5 days
Related Products
-
TPU EPDM Lining Layflat Lay Flat Fire Hose for Fire FightingNegotiableMOQ: 1 Bag -
Fire Hose/NBR Lining Fire HoseNegotiableMOQ: 1 Bag
-
Double Jacket Fire Hose High Pressure Resistance and Wear ResistanceNegotiableMOQ: 1 Bag
-
High Abrasion Resistant Red, Blue, and Yellow Fire HoseNegotiableMOQ: 1 Bag
-
TPU Lining Forestry Fire HoseNegotiableMOQ: 1 Bag
Brand Name
Biaohui
Place of Origin
China
Model Number
Discharge hose
Material
Other, TPU
Length
10-600m
Thickness
6mm
Specification
1 1/2“ - 16“
Standard
international standard
Working Pressure
8-28bar
Burst Pressure
20-126 Bar
Weaving Type
Twill & Plain Weave
Hose Coupling Structure
Coupling
Lining
With Lining
Transport Package
Carton/Wooden Box/Container/Pallet
Pumping of Sludge TPU Lay Flat Hose
Reinforcement Jacket: High tenacity synthetic jacket.

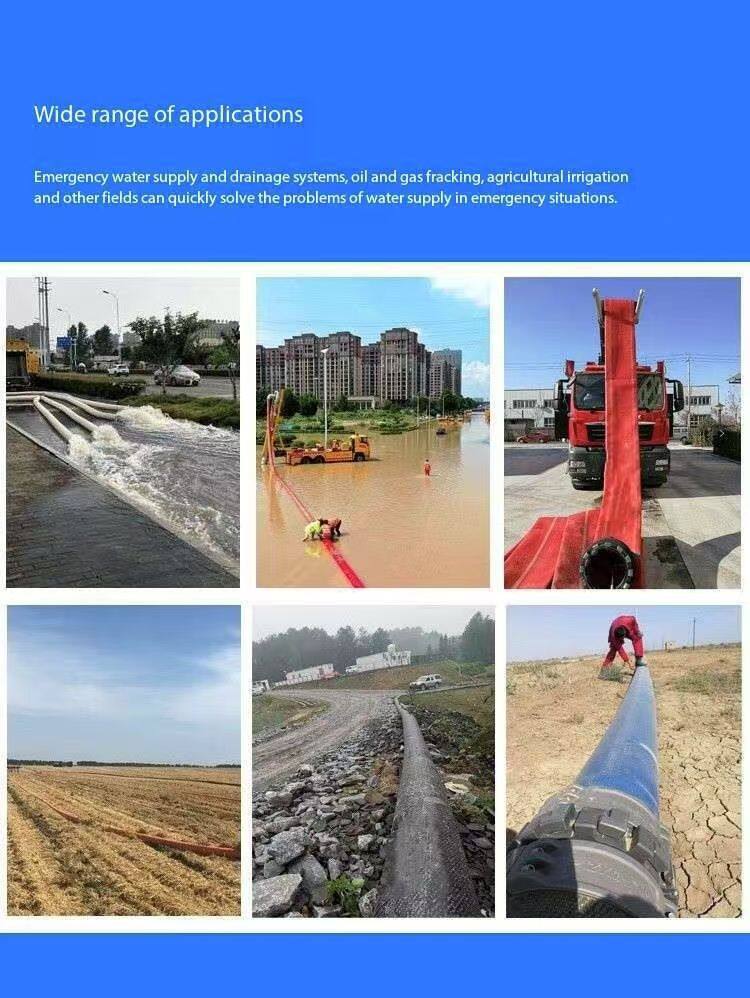

Application: Irrigation, Pumping of sludge, liquid fertilizers, supply or drag hose.
Hose with glow strip can be seen easily in the dark and avoid damaging at night.
The hose has high resistance against commonly used chemicals and has excellent resistance to UV radiation, hydrolysis and fungus degradation.
Temperature range:-50ºC to 80ºC (-58ºF to +176ºF)
Application: Irrigation, Pumping of sludge, liquid fertilizers, supply or drag hose.
Hose with glow strip can be seen easily in the dark and avoid damaging at night.
The hose has high resistance against commonly used chemicals and has excellent resistance to UV radiation, hydrolysis and fungus degradation.
Temperature range:-50ºC to 80ºC (-58ºF to +176ºF)
| I.D. | Tolerance | Wall | Thickness | Service Pressure | Minimum Burst Pressure | Weight | Elongation At WP | Expansion At WP | Temperature Range | ||||
| inch | mm | mm | inch | mm | psi | psi | Lbs/ft | Tolerance lbs/ft | Kg/m | Tolerance kg/m | max | max | |
| 2" | 51 | 51-53 | 0.071±0.008 | 1.8±0.2 | 250 | 750 | 0.28 | ±0.067 | 0.42 | ±0.1 | ≤1 | ≤8 | -50 to +80 (-58 to +176) |
| 2" | 51 | 51-53 | 0.138±0.008 | 3.5±0.2 | 410 | 1230 | 0.47 | ±0.067 | 0.7 | ±0.1 | ≤2 | ≤8 | |
| 3" | 76 | 76-78 | 0.126±0.012 | 3.2±0.3 | 250 | 750 | 0.64 | ±0.067 | 0.95 | ±0.1 | ≤1 | ≤8 | |
| 4" | 102 | 102-104.5 | 0.11±0.012 | 2.8±0.3 | 200 | 600 | 0.72 | ±0.067 | 1.08 | ±0.1 | ≤1 | ≤8 | |
| 4" | 102 | 125-127.5 | 0.138±0.012 | 3.5±0.3 | 300 | 900 | 0.87 | ±0.067 | 1.3 | ±0.1 | ≤1 | ≤8 | |
| 5" | 125 | 154-157 | 0.165±0.012 | 4.2±0.3 | 150 | 300 | 1.2 | ±0.134 | 1.8 | ±0.2 | ≤1 | ≤8 | |
| 6" | 152 | 154-157 | 0.118±0.012 | 3±0.3 | 150 | 450 | 1.07 | ±0.067 | 1.6 | ±0.1 | ≤1 | ≤8 | |
| 6" | 152 | 154-157 | 0.15±0.012 | 3.8±0.3 | 250 | 750 | 1.41 | ±0.134 | 2.1 | ±0.1 | ≤1 | ≤8 | |
| 6" | 152 | 154-157 | 0.165±0.012 | 4.2±0.3 | 300 | 900 | 1.74 | ±0.201 | 2.6 | ±0.2 | ≤2 | ≤8 | |
| 6" | 152 | 154-157 | 0.228±0.016 | 5.8±0.4 | 410 | 1230 | 2.11 | ±0.201 | 3.15 | ±0.3 | ≤2 | ≤8 | |
| 6" | 152 | 154-157 | 0.228±0.016 | 5.8±0.4 | 610 | 1830 | 2.14 | ±0.134 | 3.2 | ±0.3 | ≤2 | ≤8 | |
| 8" | 204 | 204-207 | 0.15±0.012 | 3.8±0.3 | 200 | 600 | 1.94 | ±0.134 | 2.9 | ±0.2 | ≤1 | ≤10 | |
| 8" | 204 | 204-207 | 0.177±0.016 | 4.5±0.4 | 300 | 900 | 2.28 | ±0.134 | 3.4 | ±0.2 | ≤1 | ≤10 | |
| 10" | 254 | 256-259 | 0.165±0.016 | 4.2±0.4 | 200 | 600 | 2.75 | ±0.201 | 4.25 | ±0.2 | ≤1 | ≤10 | |
| 10" | 254 | 256-259 | 0.197±0.016 | 5.0±0.4 | 300 | 900 | 3.75 | ±0.201 | 5.6 | ±0.3 | ≤2 | ≤8 | |
| 12" | 306 | 306-311 | 0.165±0.016 | 4.2±0.4 | 150 | 450 | 3.33 | ±0.201 | 5 | ±0.3 | ≤1 | ≤8 | |
| 12" | 306 | 306-311 | 0.228±0.0197 | 5.8±0.5 | 200 | 600 | 4.3 | ±0.201 | 6.4 | ±0.3 | ≤2 | ≤8 | |
| 14" | 356 | 356-360 | 0.205±0.0197 | 5.2±0.5 | 150 | 450 | 4.96 | ±0.201 | 7.4 | ±0.3 | ≤1 | ≤8 | |
| 16" | 406 | 406-410 | 0.205±0.0197 | 5.2±0.5 | 100 | 300 | 5.09 | ±0.201 | 7.6 | ±0.3 | ≤1 | ≤10 | |
| 16" | 406 | 406-410 | 0.212±0.0197 | 5.4±0.5 | 150 | 450 | 5.23 | ±0.201 | 7.8 | ±0.3 | ≤1 | ≤10 | |
Hebei Biaohui Rubber and Plastic Products Co., Ltd. main products include TPU flat hose series, fire hose series, industrial hose series, material conveying hose series, silicone hose series, metal hose series, PTFE hose series and matching joints, various rubber and plastic products and hose products.
