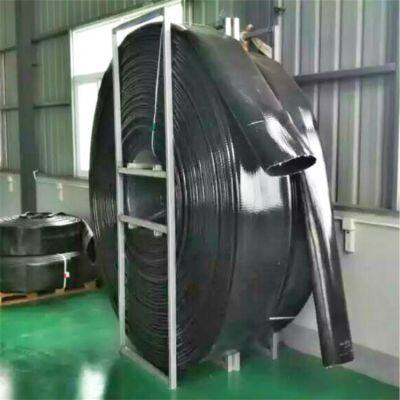

Large Diameter High-Pressure Polyurethanes TPU Layflat Frac Hose

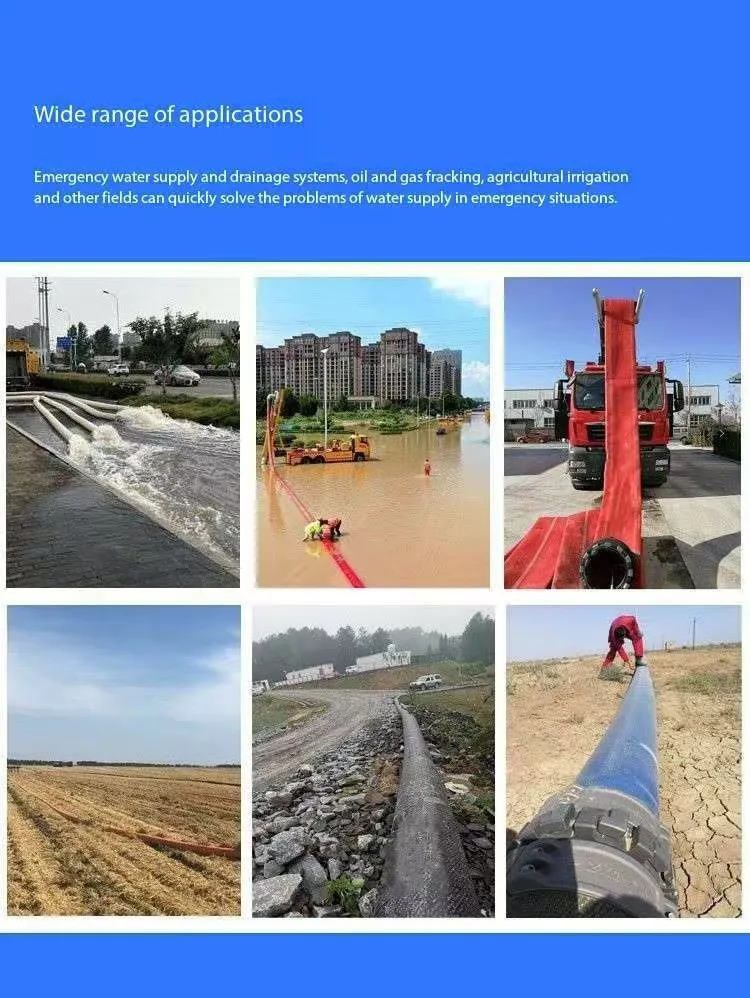

ainly used for long-distance, high flow, and high-pressure transportation of fracturing fluids during shale oil and gas extraction using hydraulic fracturing method, as well as for the return of contaminated fluids pumped back from underground to sewage treatment plants.
Shale oil and gas development fracturing hose, shale oil and gas pressure fracturing water supply hose, shale oil and gas pressure fracturing hose, flat polyurethane shale oil and gas development hose, shale gas pressure fracturing hose, shale oil and gas development fracturing water supply large-diameter polyurethane hose
Features: High strength, long length, large diameter, wear-resistant and puncture resistant, low elongation, low expansion, etc. The conveying flow is large, the connection is convenient, the weather resistance and chemical resistance are good, and it can adapt to different terrains and landforms. When not in use, it is flat, easy to roll, and has a small storage and transportation volume. The operating temperature ranges from -50 ℃ to 70 ℃.

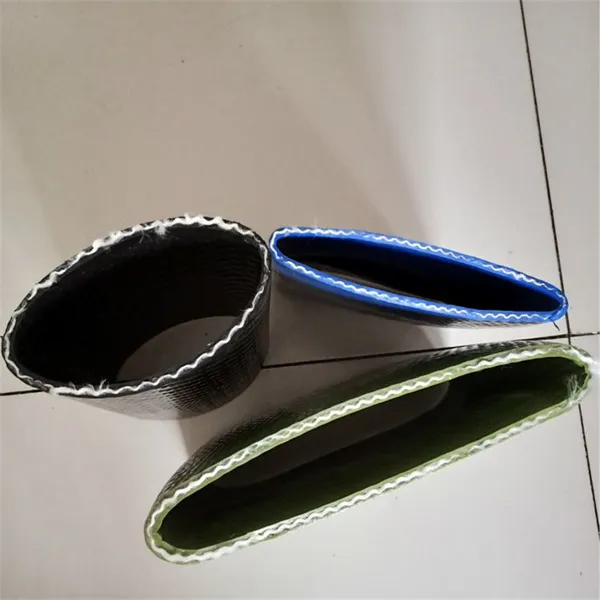

Cover and Lining: TPU (Extrusion through-the-weave)
Reinforcement Jacket: 100% high tenacity Polyester Filament.
Temperature range:-50ºC to 80ºC (-58ºF to +178ºF)
Available length: 100m (330ft), 200m (660ft), 300m (990ft), 400m (1320ft)

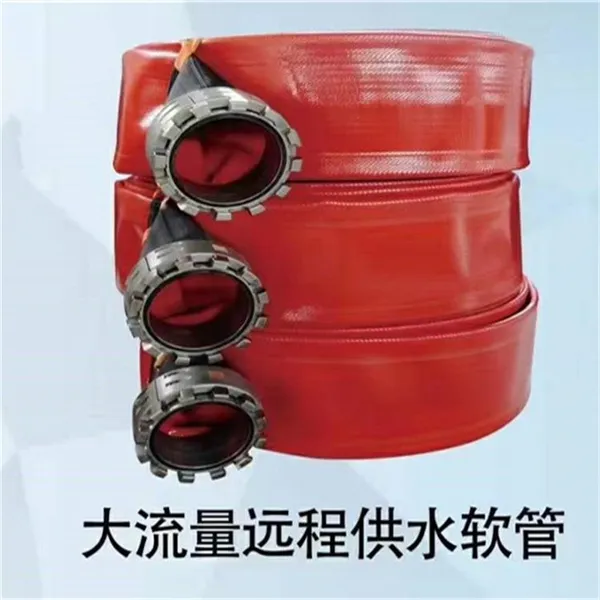

Nipple and Clamp:
Nipple--->316 Stainless Steel
Clamp---->Ductile Iron
Gasket--->Viton Rubber
Hose Technical Specification:
| I.D. | Wall Thickness | Service Pressure | Minimum Burst Pressure | Weight |
| inch | Approx. inch | psi | psi | Approx. Lbs/ft |
| 4" | 0.138 | ≥250 | ≥750 | 0.94 |
| 6" | 0.150 | ≥250 | ≥750 | 1.41 |
| 8" | 0.177 | ≥300 | ≥900 | 2.28 |
| 10" | 0.197 | ≥300 | ≥900 | 3.75 |
| 12" | 0.228 | ≥200 | ≥600 | 4.3 |
| 14" | 0.205 | ≥150 | ≥450 | 4.96 |
| 16" | 0.205 | ≥150 | ≥450 | 5.1 |
Hebei Biaohui Rubber and Plastic Products Co., Ltd. main products include TPU flat hose series, fire hose series, industrial hose series, material conveying hose series, silicone hose series, metal hose series, PTFE hose series and matching joints, various rubber and plastic products and hose products.
contact information:
Company Name: Hebei Biaohui Rubber Products Co., Ltd
Address: Zhanggehou Rubber and Plastic Base, Jing County, Hebei Province
Telehone: +86 15075803959
E-mail: info@biaohuihose.com
WhatsApp：+86 15075803959
WeChat ： +8615075803959
