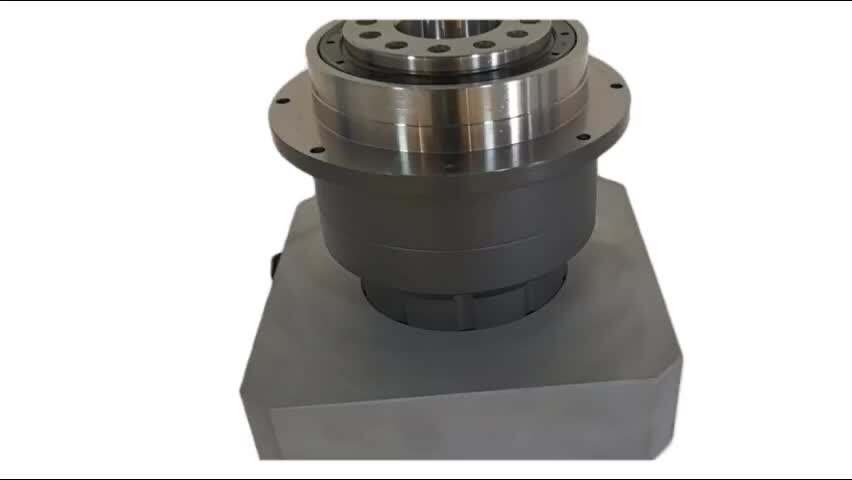

MKF Series Planetary Reducer Gearbox

Technical Specifications:

Torque Performance:
▸ Maximum Torque (T₂a): 2800-3500Nm
▸ Rated Output Torque (T₂n): 1600-2500Nm
▸ Extreme Braking Capacity: 8750Nm Emergency Torque
▸ Maximum Roll Torque: 5900Nm

Speed & Power Transmission:
▸ Input Speed Range: 2000-3500 rpm
▸ High Efficiency: 90% (η)
▸ Moment of Inertia: 21.2-27.5 kg·cm²

Load Capacity:
▸ Massive Axial Force: 33,000N
▸ Radial Force: Data not specified

Robust Construction:
✓ Heavy-Duty Weight: 65.5 kg
✓ IP65 Protection Standard
✓ Lifetime Lubrication System
✓ Wide Operating Temperature: -15°C to +45°C
✓ Moderate Noise Level: ≤77 dB(A)
✓ Industrial Gray Finish

Engineering Advantages:
• Designed for extreme torque applications
• Heavy-load capacity for industrial use
• Maintenance-free operation
• Reliable performance in demanding conditions

Industrial Applications:

• Heavy machinery drives

• Mining equipment

• Steel rolling mills

• Large-scale material handling

• Marine propulsion systems
