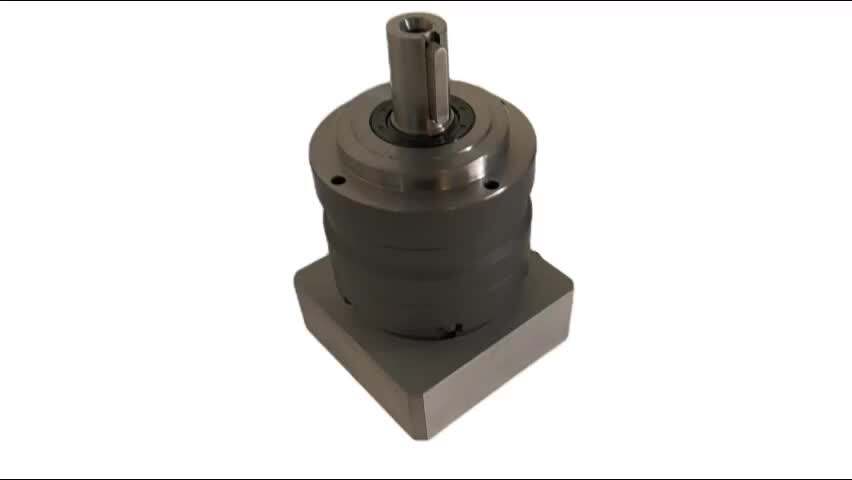

MKE Series Planetary Reducer Gearbox

The MVE 40 from HBN's MVE Series is a high-performance, compact mechanical component designed for precision applications requiring high speed and efficiency. Below are its detailed specifications:

Performance Parameters

• Maximum Torque (Tₐ): 28-80 Nm

• Rated Output Torque (Tₙ): 14-20 Nm

• Efficiency: 90% (η)

• Emergency Braking Torque: 85 Nm

• Maximum Input Speed: 8000 min⁻¹

• Rated Input Speed: 4000 min⁻¹

• Maximum Tilting Moment: Nm (data to be specified)

• Maximum Axial Force: 610 N

• Maximum Radial Force: 700 N

• Moment of Inertia: 2.2-3 kg·cm²

• Weight: 1.5 kg (lightweight design)

• Lubrication: Lifetime Lubrication

• Operating Temperature Range: -15°C to 45°C

• Protection Rating: IP65 (dust-tight and protected against water jets)

• Operating Noise: ≤63 dB(A)

• Paint Color: Gray

Key Features

• High-Speed Capability: Supports speeds up to 8000 min⁻¹ for dynamic applications.

• Efficient Power Transmission: 90% efficiency ensures minimal energy loss.

• Compact & Lightweight: Weighing just 1.5 kg, ideal for space-constrained installations.

• Robust Load Handling: Withstands axial forces up to 610 N and radial forces up to 700 N.

• Maintenance-Free: Lifetime lubrication reduces downtime.

• Durable Construction: IP65 rating ensures reliability in harsh environments.

• Low Noise: Quiet operation (≤63 dB) for improved workplace comfort.
