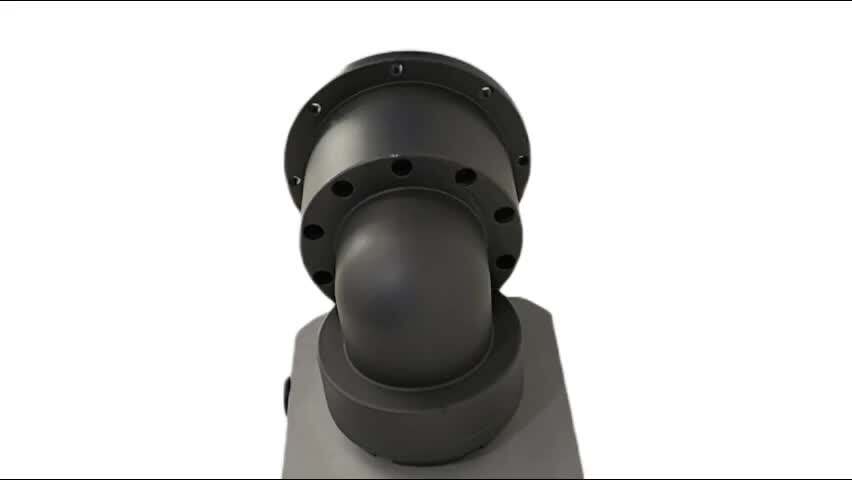

MKFR Serise Planetary Reducer Gearbox

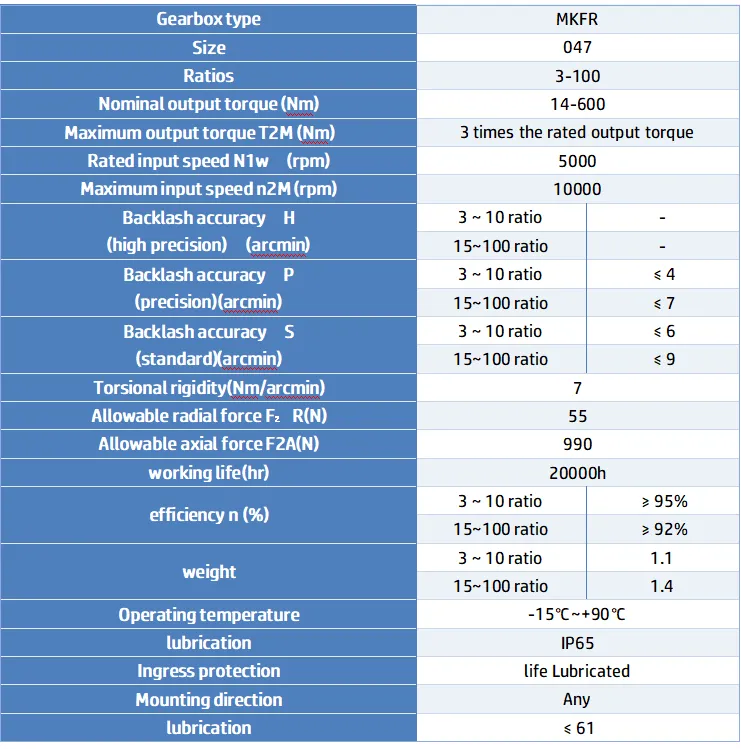

Technical Specifications:

Torque Performance:
▸ Maximum Torque (T₁₀): 28-40Nm
▸ Rated Output Torque (T₂₁): 14-20Nm
▸ Emergency Braking Torque: 75Nm
▸ Maximum Roll Torque: 800Nm

Speed & Dynamics:
▸ High-Speed Operation: 3500-7000 rpm
▸ Low Inertia: 2.2-3 kg·cm²
▸ Lightweight Design: 2 kg

Load Capacity:
▸ Axial Force: 500N
▸ Radial Force: Data not specified

Advanced Features:
✓ 90% Energy Efficiency (η)
✓ IP65 Protection Rating
✓ Maintenance-Free Lifetime Lubrication
✓ Wide Temperature Range: -15°C to +45°C
✓ Low Noise Operation: ≤63 dB(A)
✓ Industrial Gray Finish

Engineering Benefits:
• Optimized for high-speed precision applications
• Compact and lightweight construction
• Robust roll torque capacity
• Reliable performance in harsh environments

Typical Applications:

• High-speed automation systems

• Precision robotics

• CNC machinery

• Medical equipment

• Packaging automation
