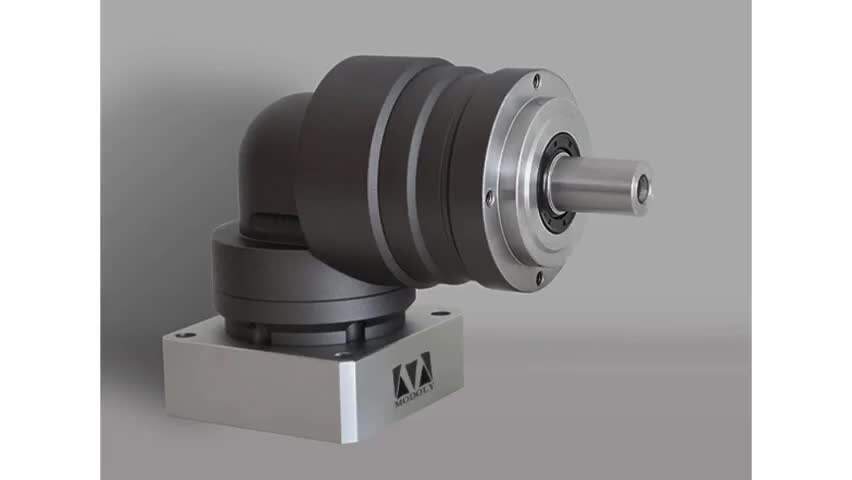

MKER Planetary Gear Reducer

The MVER 40 from HBN is a high-efficiency mechanical component engineered for precision and durability in demanding industrial applications. Below are its key specifications:

Performance Parameters

• Maximum Torque (Tₐ): 68-80 Nm

• Rated Output Torque (Tₙ): 34-40 Nm

• Efficiency: 90% (or 90 Nm, if typographical)

• Emergency Braking Torque: To be specified

• Maximum Input Speed: 6000 min⁻¹

• Rated Input Speed: 3300 min⁻¹

• Maximum Tilting Moment: Nm (data to be specified)

• Maximum Axial Force: 2700 N

• Maximum Radial Force: 3000 N

• Moment of Inertia: 0.25-0.38 kg·cm²

• Weight: 4.1 kg

• Lubrication: Lifetime Lubrication (operating range: -15°C to 45°C)

• Maximum Operating Temperature: To be specified

• Protection Rating: IP65 (dust-tight and protected against water jets)

• Operating Noise: ≤60 dB(A)

• Paint Color: Gray

Features

• High torque capacity with efficient power transmission (90% efficiency).

• Designed for high-speed operations (up to 6000 min⁻¹).

• Robust construction to withstand significant axial and radial forces.

• Maintenance-free with lifetime lubrication.

• IP65-rated for resistance to dust and water, ensuring reliability in harsh environments.

• Low-noise operation for improved workplace conditions.
