MKD Series Planetary Reducer Gearbox

MKD Series Planetary Reducer Gearbox thumbnail-1
MKD Series Planetary Reducer Gearbox thumbnail-2
MKD Series Planetary Reducer Gearbox photo-1

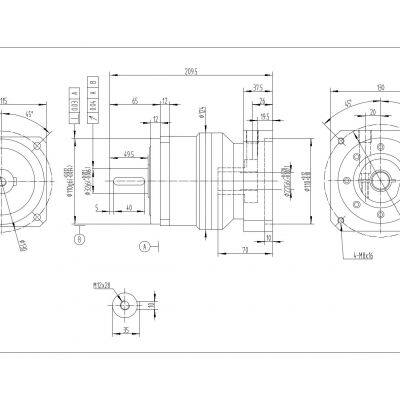

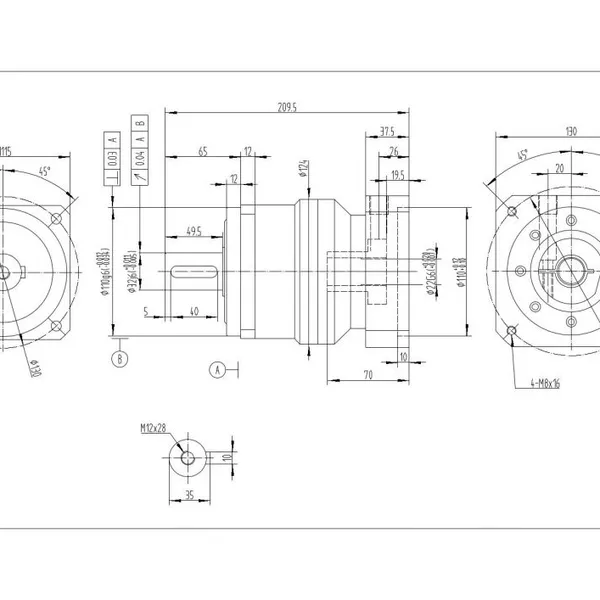

MKD Series Planetary Reducer Gearbox photo-2
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Planetary Gear Reducer
Application:
Motor, Electric Cars, Machinery, Marine, Agricultural Machinery, Car, Other
Installation:
Vertical Type
Contact Supplier Request Quote Chat Now
Su Zhou Hbn Group Co.,ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Planetary Gear Reducer
Application Motor, Electric Cars, Machinery, Marine, Agricultural Machinery, Car, Other
Installation Vertical Type
Layout Coaxial
Step Single-Step
Gear Shape Other, Straight teeth,Helical teeth
Hardness Hardened Tooth Surface
Origin China

Key Performance Features:

  • Torque Capacity: 68-80Nm (Max) / 34-40Nm (Rated)

  • Emergency Braking: 100Nm stopping power

  • High-Speed Operation: 6000 rpm (Max) / 3300 rpm (Rated)

  • Robust Construction: 2700N Axial / 3000N Radial load capacity

Technical Specifications:

  1. Torque Parameters

  • Maximum Torque (Tₐ): 68-80Nm

  • Rated Output Torque (Tₙ): 34-40Nm

  • Emergency Braking Torque: 100Nm

  • System Efficiency: 90%

  • Operational Characteristics

    • Speed Range: 3300-6000 rpm

    • Moment of Inertia: 0.25-0.38 kg·cm²

    • Unit Weight: 4.1 kg

  • Durability Features

    • IP65 Protection (Dustproof/Water Jet Resistant)

    • Lifetime Lubrication System (-15°C to +45°C)

    • Low Noise Operation: ≤60 dB(A)

  • Physical Specifications

    • Standard Color: Industrial Gray

    • Compact, heavy-duty design

    Engineering Advantages:
    ✓ High torque-to-weight ratio
    ✓ Maintenance-free operation
    ✓ Reliable performance in harsh environments
    ✓ Energy efficient (90% efficiency rating)

    Industrial Applications:

    • Automated production lines

    • Heavy machinery drives

    • Robotics and CNC equipment

    • Material transport systems

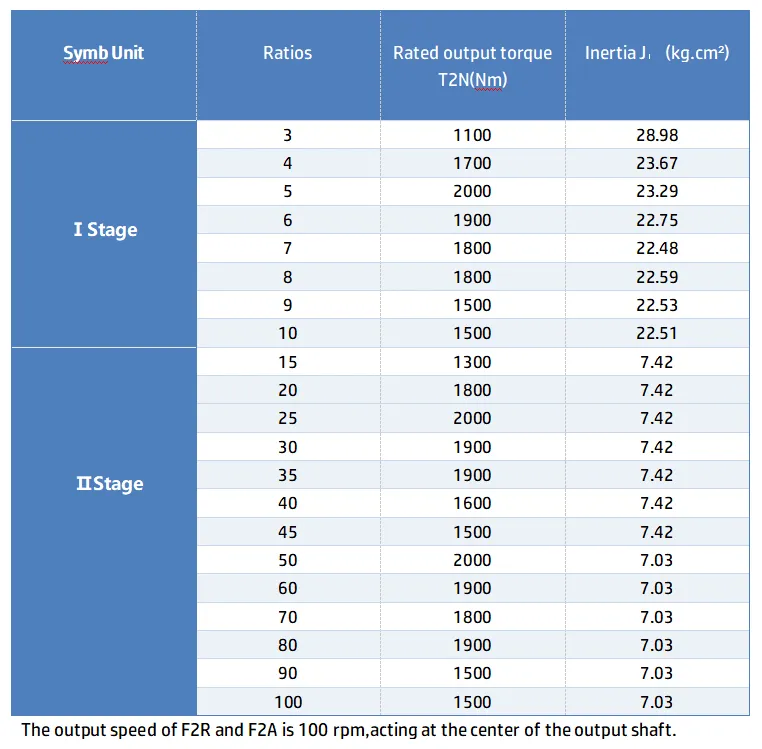

    • 180 02.png


    Product Tags: precision gear reducer , reducer gearbox , planetary gear reducer
