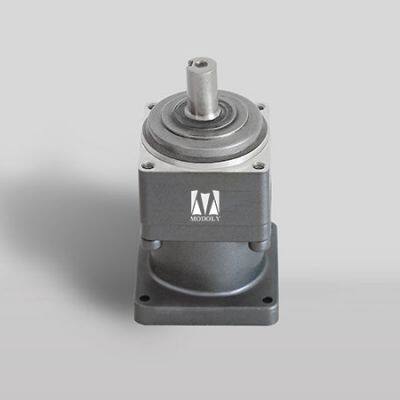

Help CenterMVS Series MVS 60 Planetary Reducer Gearbox
Related Products
The MVS 60 from the HBN MVS Series is a high-performance mechanical component designed for demanding applications. Below are its key specifications:
Performance ParametersMaximum Torque (Tₐ): 68-80 Nm
Rated Output Torque (Tₚ): 34-40 Nm
Maximum Input Speed: 6000 min⁻¹
Rated Input Speed: 3300 min⁻¹
Maximum Tilting Moment: Nm (data to be specified)
Maximum Axial Force: 2700 N
Maximum Radial Force: 3000 N
Moment of Inertia: 0.25-0.38 kg·cm²
Weight: 4.1 kg
Lubrication: Lifetime Lubrication (operating range: -15°C to 45°C)
Maximum Operating Temperature: To be specified
Protection Rating: IP65 (dust-tight and protected against water jets)
Operating Noise: ≤60 dB(A)
Paint Color: Gray
Robust construction for high torque and force handling.
Suitable for high-speed applications with a maximum input speed of 6000 min⁻¹.
Maintenance-free with lifetime lubrication.
Durable and resistant to harsh environments (IP65 rated).
Low-noise operation for quieter performance.
