Features
■ Qualcomm Atheros QCN9024
■ Maxim 23 dBm per chain,up to 4804Mbps
■ Support Tri Band 2.4GHz&5GHz&6GHz 4x4 WiFi 6E (802.11ax)
■ 4 spatial streams (4SS)
■ M.2 E Key Interface
■ PCI Express 3 .0 Interface
Applications
■ Commercial radio coverage
■ Forest fire protection engineering
■ Country coverage
■ Some special scene application
Product Description

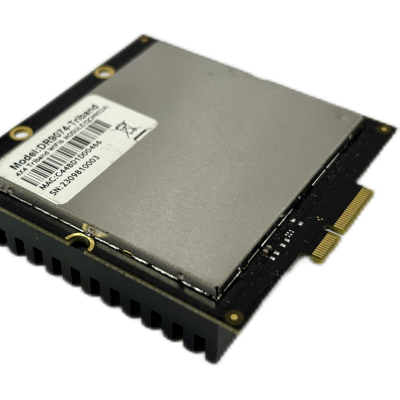

DR9074-Triband based on QCN9024 Chipset is an enterprise wireless module integrated with 4x4 MU-MIMO Dual Band Wireless Module designed specifically to provide users with mobile access to high-bandwidth video streaming, voice, and data transmission for office and challenging RF environment in factories, warehouses establishment.
| Absolute Maximum Rating |
Parameter |
Rating |
Unit |
Operating Temperature Range |
-20 to 70 |
ºC |
Storage Temperature Range |
-40 to 90 |
ºC |
Operating Humidity Range |
5 to +95 (non-condensing) |
% |
Storage Humidity Range |
0 to +90 (non-condensing) |
% |
| Hardware Specifications |
Symbol |
Parameter |
Chipset |
Qualcomm Atheros QCN9024 |
WLAN Host Interface |
PCI Express 3.0 Interface |
System Memory |
2Mbit serial I²C bus EEPROM |
Standard Operating Voltage |
3.3V |
Operating Systems |
QSDK |
Host Interface |
M.2 E Key |
Antenna Cable / Port |
4 x ufl Connectors,4T4R |
Frequency Range |
2.412GHz-2.472GHz & 5.18GHz-5.825GHz & 5.925GHz-7.125GHz |
Data Rates |
Maxim 23dBm per chain, up to 4804Mbps |
Channel Spectrum Widths |
Support 20/40/80/160MHz |
Modulation Techniques |
OFDMA: BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM; |
Temperature Range |
Operating: -20°C to 70°C, Storage: -40°C to 90°C |
Humidity |
Operating: 5% to 95% (non-condensing), Storage: Max. 90% (non-condensing) |
Certification |
TBD |
Reference Design |
PN02 .7 |
| Power Consumption | TBD |
Dimensions (WxHxD) |
57mm x 63mm x 6mm |
| Radio TX RX Specifications(5.180GHz- 7.125GHz) |
Mode |
Data rate |
TX power(dbm) (per chain) |
TX power(dbm) (4 chains) |
RX Sensitivity(dbm) |
Tolerance |
|
5Ghz 802.11a |
6Mbps |
20 |
26 |
-97 |
±2dB |
54Mbps |
19 |
25 |
-82 |
±2dB |
|
|
5Ghz 802.11n/ac VHT20 |
MCS0 |
20 |
26 |
-97 |
±2dB |
MCS7 |
17 |
23 |
-83 |
±2dB |
|
MCS8 |
16 |
22 |
-81 |
±2dB |
|
|
5Ghz 802.11n/ac VHT40 |
MCS0 |
19 |
25 |
-95 |
±2dB |
MCS7 |
17 |
23 |
-80 |
±2dB |
|
MCS8 |
16 |
22 |
-77 |
±2dB |
|
MCS9 |
15 |
21 |
-74 |
±2dB |
|
|
5Ghz 802.11n/ac VHT80 |
MCS0 |
19 |
25 |
-91 |
±2dB |
MCS7 |
17 |
23 |
-75 |
±2dB |
|
MCS8 |
16 |
22 |
-72 |
±2dB |
|
MCS9 |
15 |
21 |
-69 |
±2dB |
|
|
5GHz 802.11ax HE20 |
MCS0 |
19 |
25 |
-96 |
±2dB |
MCS9 |
16 |
22 |
-77 |
±2dB |
|
MCS10 |
15 |
21 |
-74 |
±2dB |
|
MCS11 |
14 |
20 |
-71 |
±2dB |
|
|
5GHz 802.11ax HE40 |
MCS0 |
19 |
25 |
-94 |
±2dB |
MCS9 |
16 |
22 |
-74 |
±2dB |
|
MCS10 |
15 |
21 |
-71 |
±2dB |
|
MCS11 |
14 |
20 |
-68 |
±2dB |
|
|
5GHz 802.11ax HE80 |
MCS0 |
18 |
24 |
-91 |
±2dB |
MCS9 |
15 |
21 |
-71 |
±2dB |
|
MCS10 |
14 |
20 |
-69 |
±2dB |
|
MCS11 |
13 |
19 |
-66 |
±2dB |
|
|
5GHz 802.11ax HE160 |
MCS0 |
18 |
24 |
-86 |
±2dB |
MCS9 |
13 |
19 |
-65 |
±2dB |
|
MCS10 |
12 |
18 |
-62 |
±2dB |
|
MCS11 |
11 |
17 |
-59 |
±2dB |
Radio TX RX Specifications(2.412GHz-2.472GHz) |
Mode |
Data rate |
TX power(dbm) (per chain) |
TX power(dbm) (4 chains) |
RX Sensitivity(dbm) |
Tolerance |
| 2.4Ghz 802.11b | 1Mbps | 20 | 26 | -102 | ±2dB |
| 2Mbps | 20 | 26 | -99 | ±2dB |
|
| 5.5Mbps | 20 | 26 | -97 | ±2dB |
|
| 11Mbps | 19 | 25 | -95 | ±2dB |
|
| 2.4Ghz 802.11g | 6Mbps | 20 | 26 | -97 | ±2dB |
| 54Mbps | 19 | 25 | -83 | ±2dB |
|
|
2.4Ghz 802.11n/ac VHT20 |
MCS0 | 20 | 26 | -95 | ±2dB |
| MCS7 | 17 | 23 | -78 | ±2dB |
|
|
2.4Ghz 802.11n/ac VHT40 |
MCS0 | 19 | 25 | -93 | ±2dB |
| MCS7 | 17 | 23 | -73 | ±2dB |
|
|
2.4Ghz 802.11ax HE20 |
MCS0 | 19 | 25 | -95 | ±2dB |
| MCS8 | 17 | 23 | -77 | ±2dB |
|
| MCS9 | 16 | 22 | -75 | ±2dB |
|
| MCS10 | 15 | 21 | -72 | ±2dB |
|
| MCS11 | 14 | 20 | -69 | ±2dB |
|
|
2.4Ghz 802.11ax HE40 |
MCS0 | 19 | 25 | -92 | ±2dB |
| MCS8 | 17 | 23 | -75 | ±2dB |
|
| MCS9 | 16 | 22 | -72 | ±2dB |
|
| MCS10 | 15 | 21 | -69 | ±2dB |
|
| MCS11 | 14 | 20 | -66 | ±2dB |
| M.2 Pin Definitions |
| Pin No. | 51Name | Pin No. | Name |
| 1 | GND | 2 | VDD3P3_ PCIE |
| 3 | 4 | VDD3P3_ PCIE | |
| 5 | GND | 6 | PCIE_ LED0 |
| 7 | TP19 | 8 | GPIO46 WCI2 UART TXD PCIE |
| 9 | 10 | GPIO47_ WCI2_ UART_RXD_ PCIE | |
| 11 | 12 | ||
| 13 | 14 | ||
| 15 | VDD_XPA_ PCIE | 16 | PCIE_ LED1 |
| 17 | VDD_XPA_ PCIE | 18 | GND |
| 19 | VDD_XPA_ PCIE | 20 | |
| 21 | VDD_XPA_ PCIE | 22 | |
| 23 | VDD_XPA_ PCIE | ||
| 33 | GND | 32 | |
| 35 | PCIE0 RX0 P | 34 | |
| 37 | PCIE0_ RX0_ N | 36 | |
| 39 | GND | 38 | MOD BT STS 2 |
| 41 | PCIE0_TX0_ P | 40 | MOD_WL_ACT_2 |
| 43 | PCIE0_TX0_ N | 42 | PINE_BT_ ACT_2 |
| 45 | GND | 44 | MOD_ BT_ STS |
| 47 | PCIE0 REFCLK P | 46 | MOD WL ACT |
| 49 | PCIE0_ REFCLK_ N | 48 | PINE_ BT_ACT |
| 51 | GND | 50 | |
| 53 | PCIE0_ CLKREQ _3 P3 _ N | 52 | PCIE0_ PERST_3P3 |
| 55 | PCIE0_WAKE _3 P3_ N | 54 | |
| 57 | GND | 56 | |
| 59 | PCIE0 RX1 P | 58 | |
| 61 | PCIE0_ RX1_ N | 60 | |
| 63 | GND | 62 | |
| 65 | PCIE0_TX1_ P | 64 | |
| 67 | PCIE0_TX1_ N | 66 | |
| 69 | GND | 68 | |
| 71 | 70 | ||
| 73 | 72 | VDD3P3_ PCIE | |
| 75 | GND | 74 | VDD3P3_ PCIE |
