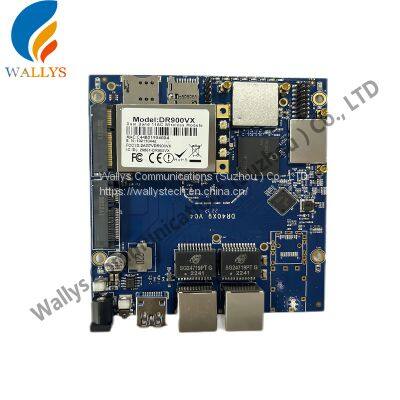

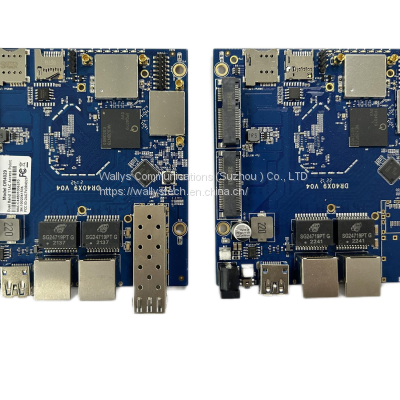

Wallys industrial 5G router/DR40x9 Quaclomm IPQ4019/IPQ4029 802.11AC 2x2 2.4G&5G Support all the modules of Quectel
Wallys has been specializing in product design & manufacturing and delivering superior OEM/ODM services in wireless communications. Dedicated to innovative designs for wireless modules. Customization is also supported, We have 90% of the world market, We're a supplier to Facebook.
Skype/EMAIL:sales@wallystech.com
APPLICATIONS
+ Profi WiFi hotspot coverage
+ Commercial radio coverage
+ Hotel Wireless application
+ Country coverage
+ Internet for passengers (bus, train, plane, …)
+ Security Surveillance
+ Some special scene application
+ Heavy-duty industrial environment use
Featuring with industrial-grade IPQ4019/IPQ4029 chipset
Integrated with 2x 2 5G high power Radio module and 2x2 2.4G high power Radio module
Support 4.940GHz to 5.825GHz Frequency Range
Support 2.400GHz to 2.482GHz
Support 2 x 5G MMCX Connectors and 2x2.4G MMCX
Support 5MHz/10MHz/20MHz/40MHz/80MHz Bandwidth
Support 11ABGN/AC
Support fixed data rate
RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals
Our Firmware supports all the modules of Quectel
| Absolute Maximum Rating |
Parameter |
Rating |
Unit |
Supply Voltage |
24V~48 |
V |
Operating Temperature Range |
-40 to +70 |
ºC |
Storage Temperature Range |
-45 to +105 |
ºC |
Operating Humidity Range |
5 to +95 (non-condensing) |
% |
Storage Humidity Range |
0 to +90 (non-condensing) |
% |
Hardware Specifications |
Symbol |
Parameter |
CPU |
IPQ4029（Quad core ARM Cortex A7 at 716.8 MHz） |
Antenna Connector |
2 x 5G MMCX connectors;2x2.4G MMCX |
10/100/1000Mbps Gigabit Ethernet |
2xRJ45 |
SFP connector |
1xSFP fiber module connector (optional) |
3G/4G connector |
1xminipcie 3G/4G connector support with two sim card |
USB connector |
1xUSB 3.0 connector |
POE |
24V~48V passive POE |
DC Jack |
24V~48V power supply |
ROHS Compliance |
YES |
Dimension |
115mm x 105mm x 16mm |
Max Power |
48.1V x 0.180A= 8.658W |
Nor Flash |
2MB~32MB |
Nand Flash |
128MB |
DDR |
256MB~512MB |
| Radio TX Specifications(5180MHz-5825MHz) |
Operating Mode |
Data Rate |
Power |
Tolerance |
|
1 Chain |
2 Chains |
|||
802.11a |
6 Mbps |
27dBm |
30dbm |
±2dB |
54 Mbps |
23dBm |
26dbm |
±2dB |
|
802.11n HT20 |
MCS0, MCS8 |
26dBm |
29dbm |
±2dB |
MCS7, MCS15 |
22dBm |
25dbm |
±2dB |
|
802.11n HT40 |
MCS0, MCS8 |
25dBm |
28dbm |
±2dB |
MCS7, MCS15 |
21dBm |
24dbm |
±2dB |
|
802.11ac |
MCS0, MCS10,MCS20 |
25dBm |
28dbm |
±2dB |
MCS9,MCS19,MCS29 |
19dBm |
22dbm |
±2dB |
|
Radio RX Specifications(5180MHz-5825MHz) |
Operating Mode |
Data Rate |
Sensitivity |
802.11a |
6 Mbps |
-96dBm |
54 Mbps |
-78dBm |
|
802.11n HT20 |
MCS0, MCS8 |
-93dBm |
MCS7, MCS15 |
-73dBm |
|
802.11n HT40 |
MCS0, MCS8 |
-90dBm |
MCS7, MCS15 |
-70dBm |
|
802.11AC HT40 |
MCS0, MCS10,MCS20 |
-90dBm |
MCS9,MCS19,MCS29 |
-67dBm |
|
802.11AC HT80 |
MCS0, MCS10,MCS20 |
-88dBm |
MCS9,MCS19,MCS29 |
-62dBm |
Radio TX Specifications(2412MHz-2482MHz) |
Operating Mode |
Data Rate |
Power |
Tolerance |
|
1 Chain |
2 Chains |
|||
802.11g |
6 Mbps |
27dbm |
30dbm |
±2dB |
54 Mbps |
25dbm |
28dbm |
±2dB |
|
802.11n HT20 |
MCS0, MCS8 |
26dbm |
29dbm |
±2dB |
MCS7, MCS15 |
25dbm |
28dbm |
±2dB |
|
802.11n HT40 |
MCS0, MCS8 |
26dbm |
29dbm |
±2dB |
MCS7, MCS15 |
24dbm |
27dbm |
±2dB |
|
| Radio RX Specifications(2412MHz-2482MHz) |
Operating Mode |
Data Rate |
Sensitivity |
802.11g |
6 Mbps |
-96dBm |
54 Mbps |
-78dBm |
|
802.11n HT20 |
MCS0, MCS8 |
-93dBm |
MCS7, MCS15 |
-73dBm |
|
802.11n HT40 |
MCS0, MCS8 |
-90dBm |
MCS7, MCS15 |
-70dBm |
| Interface MAP |
| Version |
Item |
Information |
DR40X9-1 |
CPU is IPQ4019 |
DR40X9-2 |
CPU is IPQ4029 |
| LED & GPIO header |
Item |
Information |
Note |
1 |
PWR LED |
|
2 |
Eth1 LED |
|
3 |
Eth2 LED |
|
4 |
2.4G LED |
GPIO32 |
5 |
5G LED |
GPIO50 |
6 |
Strength LED |
GPIO36 |
7 |
Strength LED |
GPIO39 |
8 |
NC |
|
9 |
GND |
|
10 |
Uart1_TX |
GPIO8 |
11 |
Uart1_RX |
GPIO9 |
12 |
NC |
|
13 |
NC |
|
14 |
NC |
|
15 |
GND |
|
16 |
PWR |
3.3v |
| Serial Port |
Item |
Information |
1 |
PWR |
2 |
Uart0 TX |
3 |
Uart0 RX |
4 |
GND |
| GPIO |
Item |
Information |
GPIO11 |
Control for the switch of SIM cards |
