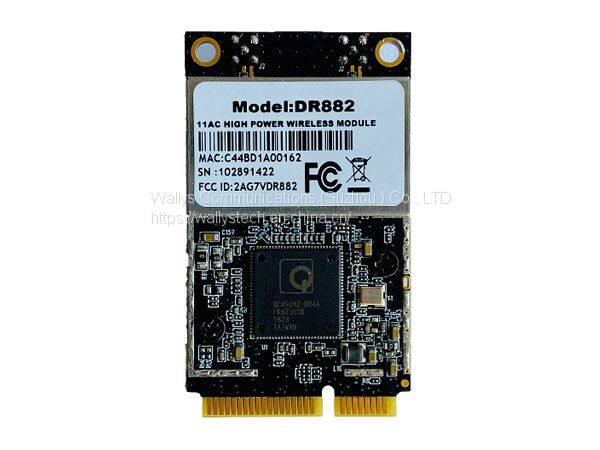

Wallys Quaclomm Wifi QCA9882 802.11AC 802.11AN 2x 2 5G High Power Radio Card

Wallys Quaclomm wifi QCA9882 802.11AC 802.11AN 2x 2 5G High power Radio card

Wallys  has been specializing in product design & manufacturing and delivering superior OEM/ODM services in wireless communications. Dedicated to innovative designs for wireless modules. Customization is also supported, We have 90% of the world market, We're a supplier to Facebook.

SKYPE/EMAIL:sales@wallystech.com

APPLICATIONS

+ Profi WiFi hotspot coverage

+ Commercial radio coverage

+ Hotel Wireless application

+ Country coverage

+ Internet for passengers (bus, train, plane, …)

+ Security Surveillance

+ Some special scene application

+ Heavy-duty industrial environment use

Featuring with industrial-grade Atheros’s QCA9882 chipset

Integrated with 2x 2 5G high power Radio Card

4.940GHz to 5.825GHz Frequency Range

2 x 5G MMCX Connectors

20MHz/40MHz/80MHz Bandwidth

Support 802. 11AC/AN

RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals

Absolute Maximum Rating




Parameter	Rating	Unit
Supply Voltage	3.3V(MINIPCIE)	V
Operating Temperature Range	-40 to +60	ºC
Storage Temperature Range	-65 to +105	ºC
Operating Humidity Range	5 to +95 (non-condensing)	%
Storage Humidity Range	0 to +90 (non-condensing)	%




Hardware Specifications




Symbol	Parameter
CPU	QCA9882
Antenna Connector	2 x 5G MMCX connectors
ROHS Compliance	YES
Dimension	50mm x 30mm x 16mm




Radio TX Specifications




Operating Mode	Data Rate	Power		Tolerance
		1 Chain	2 Chains
802.11a	6 Mbps	25dBm	28dbm	±2dB
	54 Mbps	21dBm	24dbm	±2dB
802.11n HT20	MCS0, MCS8	25dBm	28dbm	±2dB
	MCS7, MCS15	20dBm	23dbm	±2dB
802.11n HT40	MCS0, MCS8	25dBm	28dbm	±2dB
	MCS7, MCS15	20dBm	23dbm	±2dB
802.11ac	MCS0, MCS10,MCS20	25dBm	28dbm	±2dB
	MCS9,MCS19,MCS29	17dBm	20dbm	±2dB




Radio RX Specifications




Operating Mode	Data Rate	Sensitivity
802.11a	6 Mbps	-96dBm
	54 Mbps	-78dBm
802.11n HT20	MCS0, MCS8	-92dBm
	MCS7, MCS15	-73dBm
802.11n HT40	MCS0, MCS8	-90dBm
	MCS7, MCS15	-70dBm
