DR9074-5G(PN02.1) QCN9074 802.11ax 4x4 MU-MIMO 5GHz Wifi6 11ax 4x4 5G M.2

DR9074-5G(PN02.1) QCN9074 802.11ax 4x4 MU-MIMO 5GHz Wifi6 11ax 4x4 5G M.2 thumbnail-1
DR9074-5G(PN02.1) QCN9074 802.11ax 4x4 MU-MIMO 5GHz Wifi6 11ax 4x4 5G M.2 thumbnail-2
DR9074-5G(PN02.1) QCN9074 802.11ax 4x4 MU-MIMO 5GHz Wifi6 11ax 4x4 5G M.2 thumbnail-3
DR9074-5G(PN02.1) QCN9074 802.11ax 4x4 MU-MIMO 5GHz Wifi6 11ax 4x4 5G M.2 photo-1
DR9074-5G(PN02.1) QCN9074 802.11ax 4x4 MU-MIMO 5GHz Wifi6 11ax 4x4 5G M.2 photo-2
DR9074-5G(PN02.1) QCN9074 802.11ax 4x4 MU-MIMO 5GHz Wifi6 11ax 4x4 5G M.2 photo-3
US$ 180 - 200 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
wifi6
Type:
Wireless
Contact Supplier Request Quote Chat Now
Wallys Communications (Suzhou ) Co., LTD
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Model Number wifi6
Type Wireless
Interface Type PCI
Products Status Stock
Application Server
Transmission Rate 10/100/1000Mbps
Kind External

Wallys Communications (Suzhou ) Co., LTD

With over 15 years of experience in wireless industry and penetrating market olfaction, Wallys has designed and manufactured many high quality and cost-effective routerboards and wireless network cards

products:


wifi6 router


WiFi 6 (802.11ax)


802.11ac，wireless


WEB:/

EMAIL:sales@wallystech.com

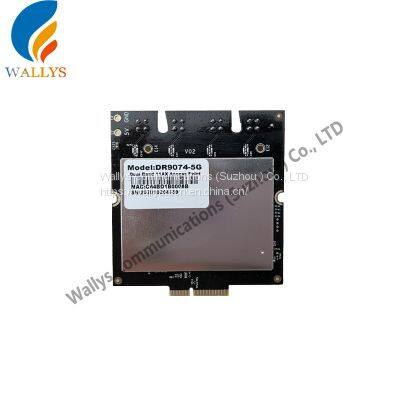

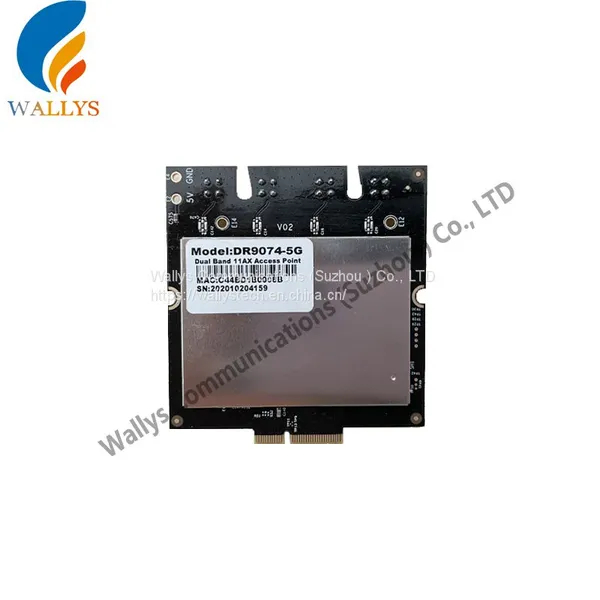

DR9074-5G(PN02.1) QCN9074 802.11ax 4x4 MU-MIMO 5GHz wifi6 11ax 4x4 5G M.2

Features

■ Qualcomm Atheros QCN9074

■ 5GHz, max 23dBm per chain, up to 4949Mbps

■ Single Band 5GHz 4x4 WiFi 6 (802.11ax)

■ 4 spatial streams (4SS)

■ M.2 E Key Interface

■ PCI Express 3.0 Interface

■ Supports Dynamic Frequency Selection (DFS)

    Absolute Maximum Rating


    Parameter

    Rating

    Unit

    Operating Temperature Range

    -20 to 70

    ºC

    Storage Temperature Range

    -40 to 90

    ºC

    Operating Humidity Range

    5 to +95 (non-condensing)

    %

    Storage Humidity Range

    0 to +90 (non-condensing)

    %



    		Hardware Specifications



    Symbol

    Parameter

    Chipset

    Qualcomm Atheros QCN9074

    WLAN Host Interface

    PCI Express 3.0 Interface

    System Memory

    2Mbit serial I²C bus EEPROM

    Standard Operating Voltage

    5V

    Operating Systems

    QSDK

    Host Interface

    M.2 E Key

    Antenna Cable / Port

    4 x MMCX Connectors,4T4R

    Frequency Range

    5.15GHz-5.95GHz

    Data Rates for WALN

    5GHz, max 23dBm per chain, up to 4949Mbps

    Channel Spectrum Widths for WLAN

    Support 20/40/80/160MHz at 5GHz

    Modulation Techniques

    OFDMA: BPSK, QPSK, DBPSK, DQPSK,16-QAM, 64-QAM, 256-QAM,1024-QAM, 4096-QAM

    Temperature Range

    Operating: -20°C to 70°C, Storage: -40°C to 90°C

    Humidity

    Operating: 5% to 95% (non-condensing), Storage: Max. 90% (non-condensing)

    Certification

    TBD

    Power Consumption

    TBD

    Reference Design

    PN02.1

    Dimensions (WxHxD)

    57mm x 63mm x 6mm






    M.2 Pin Definitions




    Pin No. Name Pin No. Name
    1

    GND

    		 2

    VDD3P3_PCIE
    3
    		4

    VDD3P3_PCIE
    5
    		6

    PCIE_LED0
    7

    GND

    		 8

    GPIO46_WCI2_UART_TXD_PCIE
    9

    TP19

    		 10

    GPIO47_WCI2_UART_RXD_PCIE
    11
    		12
    13
    		14
    15

    VDD_XPA_PCIE

    		 16

    PCIE_LED1
    17

    VDD_XPA_PCIE

    		 18

    GND
    19

    VDD_XPA_PCIE

    		 20
    21

    VDD_XPA_PCIE

    		 22
    23

    VDD_XPA_PCIE





    33

    GND

    		 32
    35

    PCIE0_RX0_P

    		 34
    37

    PCIE0_RX0_N

    		 36
    39

    GND

    		 38

    MOD_BT_STS_2
    41

    PCIE0_TX0_P

    		 40

    MOD_WL_ACT_2
    43

    PCIE0_TX0_N

    		 42

    PINE_BT_ACT_2
    45

    GND

    		 44

    MOD_BT_STS
    47

    PCIE0_REFCLK_P

    		 46

    MOD_WL_ACT
    49

    PCIE0_REFCLK_N

    		 48

    PINE_BT_ACT
    51

    GND

    		 50
    53

    PCIE0_CLKREQ_3P3_N

    		 52

    PCIE0_PERST_3P3
    55

    PCIE0_WAKE_3P3_N

    		 54
    57

    GND

    		 56
    59

    PCIE0_RX1_P

    		 58
    61

    PCIE0_RX1_N

    		 60
    63

    GND

    		 62
    65

    PCIE0_TX1_P

    		 64
    67

    PCIE0_TX1_N

    		 66
    69

    GND

    		 68
    71
    		70
    73
    		72

    VDD3P3_PCIE
    75

    GND

    		 74

    VDD3P3_PCIE



Product Tags: QCN9074 , QCN9024 , wifi6
