Wallys DR2G41 Support 4 x Mini PCIe Card or 4 x M.2 Card Adapter Card 802.11ac
Wallys has been specializing in product design & manufacturing and delivering superior OEM/ODM services in wireless communications. Dedicated to innovative designs for wireless modules. Customization is also supported, We have 90% of the world market, We're a supplier to Facebook.
Skype/EMAIL:sales@wallystech.com
APPLICATIONS
+ Profi WiFi hotspot coverage
+ Commercial radio coverage
+ Hotel Wireless application
+ Country coverage
+ Internet for passengers (bus, train, plane, …)
+ Security Surveillance
+ Some special scene application
+ Heavy-duty industrial environment use
Features
Support 4pcs Mini PCIE cards or 4 pcs M.2 cards
RoHS compliance ensure a high level protection of human health and the
environment from risks that can be posed by chemicals
Product Description

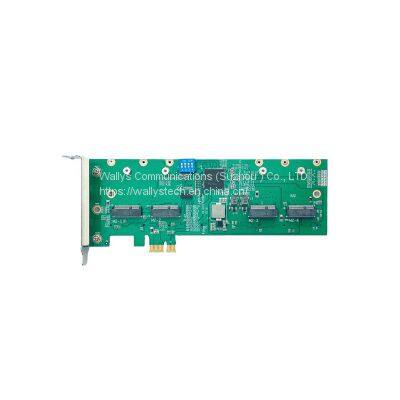

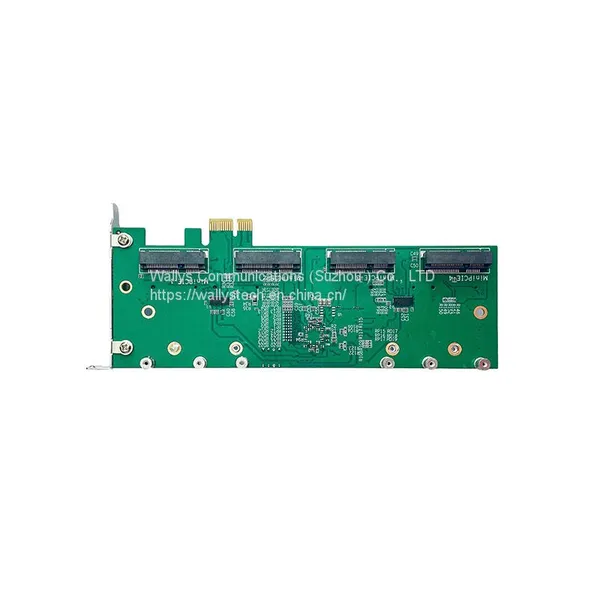

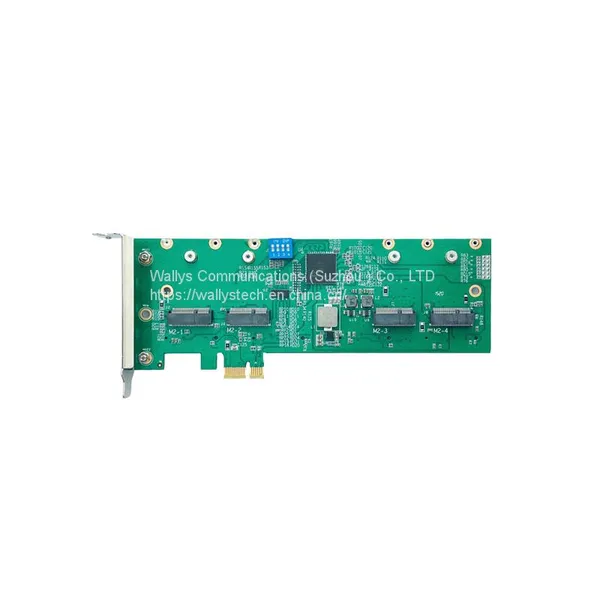

DR2G41 is an adapter card with four MiniPCIe and four M.2 slots. It can be used in a PC with a PCIe slot. Use this new adapter to expand your connectivity and upgrade your device to use the latest miniPCIe and m.2 interface cards. Each comes with both low and regular profile brackets.
Brackets include holes for mounting SMA connectors, or for using as cable exit holes.
| Specifications |
Parameter | Rating | Unit |
Input voltage | 12 | V |
Output Voltage | 3.3 | V |
Operating Temperature | -40 to +70 | ºC |
Operating Humidity Range | 5 to +95 (non-condensing) | % |
Storage Humidity Range | 0 to +90 (non-condensing) | % |
ROHS Compliance | YES |

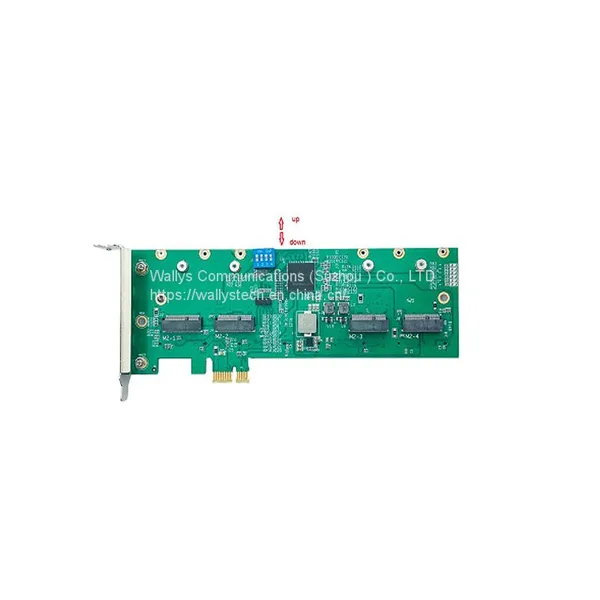

| Switch control instruction |
Switch | up/down | Operation |
Switch 1 | up | M.2-1 |
down | MiniPCIE-1 | |
Switch 2 | up | M.2-2 |
down | MiniPCIE-2 | |
Switch 3 | up | M.2-3 |
down | MiniPCIE-3 | |
Switch 4 | N/A | M.2-4 and MiniPCIE-4 can work simultaneously,not controlled by the switch 4 |
Outline |
Parameter | Rating | Unit |
Length | 180 | Mm |
Width | 66 | Mm |
