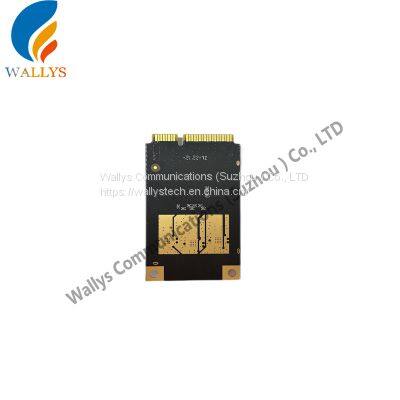

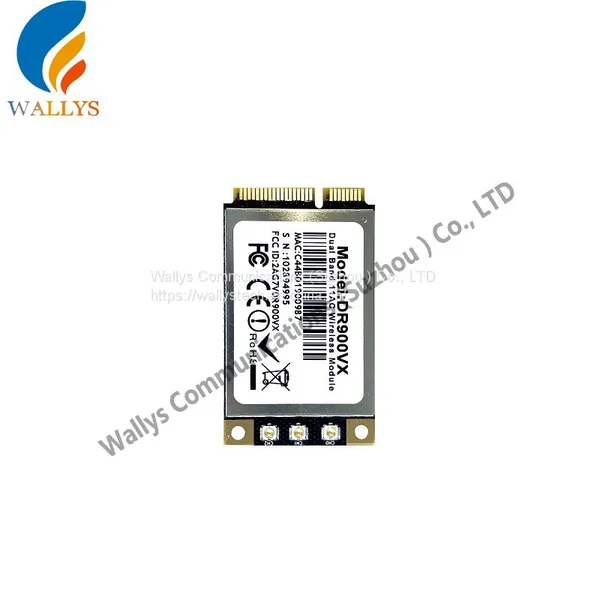

DR900VX 802.11ac Dual band QCA9880 3x3 2.4G/5G FCC/CE/IC WIFI6e
Qualcomm-Atheros QCA9880 chipset
2.4GHz max 26dBm & 5GHz max 25dBm output power
IEEE 802.11ac compliant & backward compatible with 802.11a/b/g/n
3x3 MIMO Technology, up to 1.3Gbps
Mini PCI Express edge connector
RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals
Supports Spatial Multiplexing, Cyclic-Delay Diversity (CDD), Low-Density Parity Check (LDPC) Codes, Maximal Ratio
Combining (MRC), Space Time Block Code (STBC)
Supports IEEE 802.11d, e, h, i, k, r, v time stamp, and w standards
Supports Dynamic Frequency Selection (DFS)
FCC,CE and IC Certification
| Specifications |
Symbol |
Parameter |
Chipset |
QCA9880 |
Host Interface |
Mini PCI Express 1.1 Standard |
Antenna Connector |
3 x UF.L |
Frequency Range |
2.4GHz: 2.412GHz to 2.472GHz |
Operating Voltage |
3.3V DC |
Power Consumption |
5W(Max） |
Modulation Techniques |
OFDM: BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM |
Environmental Temperature |
Operating: -40°C to 70°C, Storage: -40°C to 90°C |
Environmental Humidity, non-condensing |
Operating: 5% to 95%, Storage: Max. 90% |
ROHS Compliance |
YES |
Dimensions (W×H×D) |
30.0mm × 50.9mm × 3.2mm |
| RF Performance Table |
Operating Mode |
Data Rate |
TX Power |
Tolerance |
|
1 Chain |
3 Chains |
|||
|
2.4 GHz 802.11b |
1Mbps |
20dBm |
25dBm |
±2dB |
2Mbps |
20dBm |
25dBm |
±2dB |
|
5.5Mbps |
20dBm |
25dBm |
±2dB |
|
11Mbps |
20dBm |
25dBm |
±2dB |
|
|
2.4 GHz 802.11g |
6Mbps |
21dBm |
26dBm |
±2dB |
9Mbps |
21dBm |
26dBm |
±2dB |
|
12Mbps |
21dBm |
26dBm |
±2dB |
|
18Mbps |
21dBm |
26dBm |
±2dB |
|
24Mbps |
21dBm |
26dBm |
±2dB |
|
36Mbps |
20dBm |
25dBm |
±2dB |
|
48Mbps |
19dBm |
24dBm |
±2dB |
|
54Mbps |
19dBm |
24dBm |
±2dB |
|
|
2.4 GHz 802.11n HT20 |
MCS0 |
21dBm |
26dBm |
±2dB |
MCS1 |
21dBm |
26dBm |
±2dB |
|
MCS2 |
21dBm |
26dBm |
±2dB |
|
MCS3 |
20dBm |
25dBm |
±2dB |
|
MCS4 |
20dBm |
25dBm |
±2dB |
|
MCS5 |
20dBm |
25dBm |
±2dB |
|
MCS6 |
19dBm |
24dBm |
±2dB |
|
MCS7 |
18dBm |
23dBm |
±2dB |
|
|
2.4 GHz 802.11n HT40 |
MCS0 |
21dBm |
26dBm |
±2dB |
MCS1 |
21dBm |
26dBm |
±2dB |
|
MCS2 |
21dBm |
26dBm |
±2dB |
|
MCS3 |
20dBm |
25dBm |
±2dB |
|
MCS4 |
20dBm |
25dBm |
±2dB |
|
MCS5 |
20dBm |
25dBm |
±2dB |
|
MCS6 |
19dBm |
24dBm |
±2dB |
|
MCS7 |
18dBm |
23dBm |
±2dB |
|
Operating Mode |
Data Rate |
RX Sensitivity |
Tolerance |
|
2.4 GHz 802.11b |
1Mbps |
-95dBm |
±2dB |
2Mbps |
-94dBm |
±2dB |
|
5.5Mbps |
-92dBm |
±2dB |
|
11Mbps |
-90dBm |
±2dB |
|
|
2.4 GHz 802.11g |
6Mbps |
-94dBm |
±2dB |
9Mbps |
-93dBm |
±2dB |
|
12Mbps |
-92dBm |
±2dB |
|
18Mbps |
-90dBm |
±2dB |
|
24Mbps |
-88dBm |
±2dB |
|
36Mbps |
-85dBm |
±2dB |
|
48Mbps |
-81dBm |
±2dB |
|
54Mbps |
-80dBm |
±2dB |
|
|
2.4 GHz 802.11n HT20 |
MCS0 |
-93dBm |
±2dB |
MCS1 |
-91dBm |
±2dB |
|
MCS2 |
-89dBm |
±2dB |
|
MCS3 |
-84dBm |
±2dB |
|
MCS4 |
-83dBm |
±2dB |
|
MCS5 |
-78dBm |
±2dB |
|
MCS6 |
-78dBm |
±2dB |
|
MCS7 |
-76dBm |
±2dB |
|
|
2.4 GHz 802.11n HT40 |
MCS0 |
-92dBm |
±2dB |
MCS1 |
-88dBm |
±2dB |
|
MCS2 |
-85dBm |
±2dB |
|
MCS3 |
-82dBm |
±2dB |
|
MCS4 |
-79dBm |
±2dB |
|
MCS5 |
-75dBm |
±2dB |
|
MCS6 |
-75dBm |
±2dB |
|
MCS7 |
-73dBm |
±2dB |
Operating Mode |
Data Rate |
TX Power |
Tolerance |
|
1 Chain |
3 Chains |
|||
5 GHz |
6Mbps |
20dBm |
25dBm |
±2dB |
9Mbps |
20dBm |
25dBm |
±2dB |
|
12Mbps |
20dBm |
25dBm |
±2dB |
|
18Mbps |
20dBm |
25dBm |
±2dB |
|
24Mbps |
20dBm |
25dBm |
±2dB |
|
36Mbps |
18dBm |
23dBm |
±2dB |
|
48Mbps |
16dBm |
21dBm |
±2dB |
|
54Mbps |
15dBm |
20dBm |
±2dB |
|
5 GHz |
MCS0 |
19dBm |
24dBm |
±2dB |
MCS1 |
19dBm |
24dBm |
±2dB |
|
MCS2 |
19dBm |
24dBm |
±2dB |
|
MCS3 |
18dBm |
23dBm |
±2dB |
|
MCS4 |
18dBm |
23dBm |
±2dB |
|
MCS5 |
17dBm |
22dBm |
±2dB |
|
MCS6 |
16dBm |
21dBm |
±2dB |
|
MCS7 |
16dBm |
21dBm |
±2dB |
|
MCS8 |
15dBm |
20dBm |
±2dB |
|
5 GHz |
MCS0 |
18dBm |
23dBm |
±2dB |
MCS1 |
18dBm |
23dBm |
±2dB |
|
MCS2 |
18dBm |
23dBm |
±2dB |
|
MCS3 |
17dBm |
22dBm |
±2dB |
|
MCS4 |
17dBm |
22dBm |
±2dB |
|
MCS5 |
16dBm |
21dBm |
±2dB |
|
MCS6 |
16dBm |
21dBm |
±2dB |
|
MCS7 |
16dBm |
21dBm |
±2dB |
|
MCS8 |
15dBm |
20dBm |
±2dB |
|
MCS9 |
15dBm |
20dBm |
±2dB |
|
5 GHz |
MCS0 |
18dBm |
23dBm |
±2dB |
MCS1 |
18dBm |
23dBm |
±2dB |
|
MCS2 |
18dBm |
23dBm |
±2dB |
|
MCS3 |
17dBm |
22dBm |
±2dB |
|
MCS4 |
17dBm |
22dBm |
±2dB |
|
MCS5 |
16dBm |
21dBm |
±2dB |
|
MCS6 |
16dBm |
21dBm |
±2dB |
|
MCS7 |
15dBm |
20dBm |
±2dB |
|
MCS8 |
15dBm |
20dBm |
±2dB |
|
MCS9 |
15dBm |
20dBm |
±2dB |
|
Operating Mode |
Data Rate |
RX Sensitivity |
Tolerance |
5 GHz |
6Mbps |
-94dBm |
±2dB |
9Mbps |
-94dBm |
±2dB |
|
12Mbps |
-92dBm |
±2dB |
|
18Mbps |
-90dBm |
±2dB |
|
24Mbps |
-86dBm |
±2dB |
|
36Mbps |
-84dBm |
±2dB |
|
48Mbps |
-81dBm |
±2dB |
|
54Mbps |
-80dBm |
±2dB |
|
5 GHz |
MCS0 |
-93dBm |
±2dB |
MCS1 |
-90dBm |
±2dB |
|
MCS2 |
-87dBm |
±2dB |
|
MCS3 |
-83dBm |
±2dB |
|
MCS4 |
-80dBm |
±2dB |
|
MCS5 |
-77dBm |
±2dB |
|
MCS6 |
-74dBm |
±2dB |
|
MCS7 |
-73dBm |
±2dB |
|
MCS8 |
-71dBm |
±2dB |
|
5 GHz |
MCS0 |
-90dBm |
±2dB |
MCS1 |
-88dBm |
±2dB |
|
MCS2 |
-85dBm |
±2dB |
|
MCS3 |
-82dBm |
±2dB |
|
MCS4 |
-79dBm |
±2dB |
|
MCS5 |
-75dBm |
±2dB |
|
MCS6 |
-73dBm |
±2dB |
|
MCS7 |
-73dBm |
±2dB |
|
MCS8 |
-69dBm |
±2dB |
|
MCS9 |
-66dBm |
±2dB |
|
5 GHz |
MCS0 |
-88dBm |
±2dB |
MCS1 |
-86dBm |
±2dB |
|
MCS2 |
-84dBm |
±2dB |
|
MCS3 |
-81dBm |
±2dB |
|
MCS4 |
-77dBm |
±2dB |
|
MCS5 |
-74dBm |
±2dB |
|
MCS6 |
-73dBm |
±2dB |
|
MCS7 |
-70dBm |
±2dB |
|
MCS8 |
-67dBm |
±2dB |
|
MCS9 |
-65dBm |
±2dB |
| GPIO Pin Mapping |
GPIO Pin |
Function |
GPIO0 |
WLAN_DIS |
GPIO1 |
WLAN_LED |
GPIO2 |
MCI_CLK_IN |
GPIO3 |
MCI_CLK_OUT |
GPIO4 |
MCI_DATA_OUT |
GPIO5 |
MCI_DATA_IN |
GPIO12 |
TMS |
13 |
TCK |
14 |
TDI |
15 |
TDO |
16 |
CPU_WARM_RESET / JTEG RESET |
17 |
GPIO17_BT_LED |
19 |
ANT_A |
20 |
ANT_B |
21 |
FEM_BS |
22 |
FEM_MODE |
| MiniPCIe Slot Pin Assignment |
TOP Side |
Bottom Side |
||
1 |
PCIE_WAKE_L |
2 |
VCC_3V3 |
3 |
NC |
4 |
GND |
5 |
NC |
6 |
NC |
7 |
PCIE_CLKREQ_L |
8 |
NC |
9 |
GND |
10 |
NC |
11 |
PCIE_REFCLK_N |
12 |
NC |
13 |
PCIE_REFCLK_P |
14 |
NC |
15 |
GND |
16 |
NC |
Mechanical key | |||
17 |
NC |
18 |
GND |
19 |
NC |
20 |
GPIO0_WLAN_DIS |
21 |
GND |
22 |
PCIE_RST_L |
23 |
PCIE_TX_N |
24 |
VCC_3V3 |
25 |
PCIE_TX_P |
26 |
GND |
27 |
GND |
28 |
NC |
29 |
GND |
30 |
NC |
31 |
PCIE_RX_P |
32 |
NC |
33 |
PCIE_RX_N |
34 |
GND |
35 |
GND |
36 |
NC |
37 |
GND |
38 |
NC |
39 |
VCC_3V3 |
40 |
GND |
41 |
VCC_3V3 |
42 |
NC |
43 |
GND |
44 |
GPIO1_WLAN_LED |
45 |
NC |
46 |
GPIO17_BT_LED |
47 |
NC |
48 |
NC |
49 |
NC |
50 |
GND |
51 |
NC |
52 |
VCC_3V3 |
| Version |
Version |
CPU |
Feature |
DR900VX |
QCA9880 |
|
DR900VX-i |
QCA9890 |
Operation Temp. Up to 85° |
DR900VX-4.9 |
QCA9880 |
Support 4.9G |
