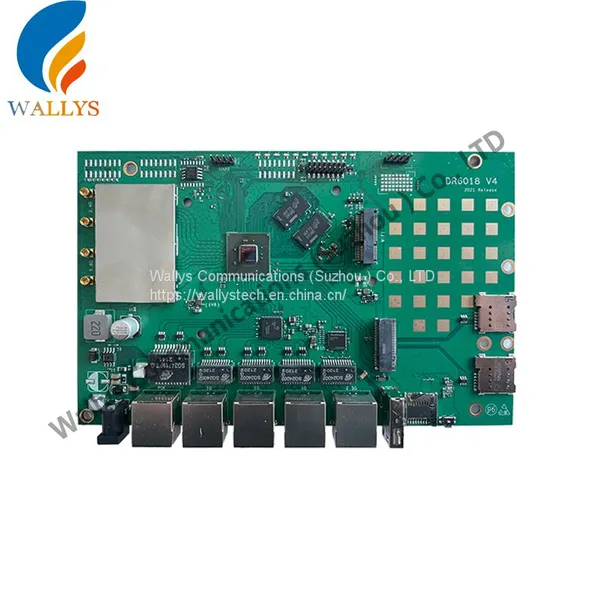

Wallys industrial 5g router/IPQ6010/QCN9074 WiFi Card Support OpenWRT IPQ6010 802.11ax 2x2 2.4G&5G
Wallys has been specializing in product design & manufacturing and delivering superior OEM/ODM services in wireless communications. Dedicated to innovative designs for wireless modules. Customization is also supported, We have 90% of the world market, We're a supplier to Facebook.
EMAIL:sales@wallystech.com
WEB:/
In the complex market, Wallys products stand out and are affirmed by partners. From 802.11 a - ax, Wallys always keeps up with the most cutting-edge wireless technology, aimed to help customers take the preemptive opportunities to occupy the market and lead a win-win cooperation.
Quad-core ARM 64bit A53 1.8GHz Processor
1GB DDRL3L System Memory
8MB NOR Flash, 256MB NAND Flash
Supports Dynamic Frequency Selection (DFS)
2x2 On-board 2.4GHz radio, up to 573Mbps physical Data Rate
2x2 On-board 5GHz radio, up to 1201Mbps physical Data Rate
Absolute Maximum Rating
Parameter
Rating
Unit
Supply Voltage
24V~48V(DC Jack)
V
Operating Temperature Range
-40 to +70
ºC
Storage Temperature Range
-45 to +105
ºC
Operating Humidity Range
5 to +95 (non-condensing)
%
Hardware Specifications
Symbol
Parameter
CPU
Qualcomm-Atheros IPQ6010
CPU Frequency
Quad-core ARM 64 bit A53 1.8 GHz processor
System Memory
1GB (2x 512MB) DDR3L 16-bit interface with 32-bit memory bus design
Ethernet Port
1 x 1Gbps Ethernet Ports & POE 1x 1Gbps Ethernet Ports
NGFF Slot
M.2 (NGFF) “E Key” Socket with MiniPCIe 3.0(For WiFi Module)
SD Card Slot
1x SD Card Slot(Option)
USB /header
1x USB 3.0 Port(Option)
POE
24V~48V passive POE/Active POE(Suport 802.3bt)
DC Jack
24V~48V power supply
LED header
2.0 pitch pin header
Serial Port
1x Serial Port 4 Pin Connector
Wireless
On-board 2x2 2.4GHz MU-MIMO OFDMA 802.11b/g/n/ax, max 23dBm per chain
On-board 2x2 5GHz MU-MIMO OFDMA 802.11a/n/ac/ax, max 20dBm per chain
4 x MMCX Connectors
Nor Flash
8MB
Nand Flash
256MB
DDR
256MB~512MB
Dimension
125mm x 105mm x 20mm
Radio TX Specifications(5180MHz-5825MHz)
Operating Mode
Data Rate
Power
Tolerance
1 Chain
2 Chains
5Ghz 802.11ax HE20
MCS0
20dBm
23dbm
±2dB
MCS1
20dBm
23dBm
±2dB
MCS2
20dBm
23dBm
±2dB
MCS3
20dBm
23dBm
±2dB
MCS4
19dBm
22dBm
±2dB
MCS5
18dBm
21dBm
±2dB
MCS6
17dBm
20dBm
±2dB
MCS7
16dBm
19dBm
±2dB
MCS8
15dBm
18dBm
±2dB
MCS9
14dBm
17dBm
±2dB
MCS10
13dBm
16dBm
±2dB
MCS11
13dBm
16dbm
±2dB
5Ghz 802.11ax HE400
MCS0
20dBm
23dbm
±2dB
MCS1
20dBm
23dBm
±2dB
MCS2
20dBm
23dBm
±2dB
MCS3
20dBm
23dBm
±2dB
MCS4
19dBm
22dBm
±2dB
MCS5
18dBm
21dBm
±2dB
MCS6
17dBm
20dBm
±2dB
MCS7
16dBm
19dBm
±2dB
MCS8
15dBm
18dBm
±2dB
MCS9
14dBm
17dBm
±2dB
MCS10
13dBm
16dBm
±2dB
MCS11
13dBm
16dbm
±2dB
5Ghz 802.11ax HE80
MCS0
20dBm
23dbm
±2dB
MCS1
20dBm
23dBm
±2dB
MCS2
20dBm
23dBm
±2dB
MCS3
20dBm
23dBm
±2dB
MCS4
19dBm
22dBm
±2dB
MCS5
18dBm
21dBm
±2dB
MCS6
17dBm
20dBm
±2dB
MCS7
16dBm
19dBm
±2dB
MCS8
15dBm
18dBm
±2dB
MCS9
14dBm
17dBm
±2dB
MCS10
13dBm
16dBm
±2dB
MCS11
13dBm
16dbm
±2dB
Radio TX Specifications(2412MHz-2482MHz)
Operating Mode
Data Rate
Power
Tolerance
1 Chain
2 Chains
2.4Ghz 802.11ax HE20
MCS0
23dbm
26dbm
±2dB
MCS1
23dBm
26dBm
±2dB
MCS2
23dBm
26dBm
±2dB
MCS3
23dBm
26dBm
±2dB
MCS4
23dBm
26dBm
±2dB
MCS5
23dBm
26dBm
±2dB
MCS6
23dBm
26dBm
±2dB
MCS7
22dBm
25dBm
±2dB
MCS8
21dBm
24dBm
±2dB
MCS9
21dBm
24dBm
±2dB
MCS10
18dBm
21dBm
±2dB
MCS11
17dbm
20dbm
±2dB
2.4Ghz 802.11ax HE40
MCS0
23dbm
26dbm
±2dB
MCS1
23dBm
26dBm
±2dB
MCS2
23dBm
26dBm
±2dB
MCS3
23dBm
26dBm
±2dB
MCS4
23dBm
26dBm
±2dB
MCS5
23dBm
26dBm
±2dB
MCS6
23dBm
26dBm
±2dB
MCS7
22dBm
25dBm
±2dB
MCS8
21dBm
24dBm
±2dB
MCS9
21dBm
24dBm
±2dB
MCS10
21dBm
24dBm
±2dB
MCS11
19dbm
22dbm
±2dB
GPIO Pin Mapping
GPIO Pin Mapping
Pin
Signal
Pin
Signal
GPIO_0
AUDIO_MUTE_BUT
GPIO_1
QPIC_BUSY_N
GPIO_2
MIC_VOL_M
GPIO_3
QPIC_WE_N
GPIO_4
QPIC_RE_N
GPIO_5
QPIC_DAT4
GPIO_6
QPIC_DAT5
GPIO_7
QPIC_DAT6
GPIO_8
QPIC_DAT7
GPIO_9
WPS
GPIO_10
QPIC_CLE_N
GPIO_11
QPIC_NAND_CE_N
GPIO_12
QPIC_DAT1
GPIO_13
QPIC_DAT2
GPIO_14
QPIC_DAT3
GPIO_15
QPIC_DAT0
GPIO_16
MIC_KPD_PWR_N
GPIO_17
QPIC_ALE
GPIO_18
KYPD_HOME_N
GPIO_19
GND
GPIO_20
Boot_Config(PULL_DOWN)
GPIO_21
MUTE_ON
GPIO_22
ADC_RST
GPIO_23
WSA_SWR_CLK
GPIO_24
WSA_SWR_DATA
GPIO_25
PWM_LED_RST
GPIO_26
Boot_Config(PULL_DOWN)
GPIO_27
WSA_EN_R
GPIO_28
WSA_EN_L
GPIO_29
PDM_CLK0
GPIO_30
PDM_DATA0
GPIO_31
PDM_CLK1
GPIO_32
PDM_DATA1
GPIO_33
EXT_MCLK2_ADC
GPIO_34
MIC_VOL_P
GPIO_35
LED_5G
GPIO_36
PCIE0_WAKE
GPIO_37
LED_2GS
GPIO_38
SPI0_CLK
GPIO_39
SPI0_CS_NI
GPIO_40
SPI0_MISO
GPIO_41
SPI0_MOSI
GPIO_42
BLSP2_SCL
GPIO_43
BLSP2_SDA
GPIO_44
BLSP2_UART_RX
GPIO_45
BLSP2_UART_TX
GPIO_46
BLSP5_SCL
GPIO_47
BLSP5_SDA
GPIO_48
NC
GPIO_49
Boot_Config(PULL_DOWN)
GPIO_50
LED_USB0
GPIO_51
BT_PRIORITY_PTA11
GPIO_52
WLA_ACTI_PTA12
GPIO_53
BT_ACT_PTA10
GPIO_54
Boot_Config(PULL_DOWN)
GPIO_55
NC
GPIO_56
NC
GPIO_57
NC
GPIO_58
NC
GPIO_59
PCIE0_CLK_REQ
GPIO_60
PCIE0_RSTn
GPIO_61
NC
GPIO_62
SD_DET
GPIO_63
SD_WP
GPIO_64
MDC
GPIO_65
MDIO
GPIO_66
SD_LDO_EN
GPIO_67
NC
GPIO_68
NC
GPIO_69
SPI_CLK_UART_RTSn
GPIO_70
SPI_CS_UART_CTSn
GPIO_71
SPI_MISO_UART_RX
GPIO_72
SPI_MOSI_UART_TX
GPIO_73
USB_OTG
GPIO_74
NC
GPIO_75
Malibu_RESET
GPIO_76
NAPA_INT0
GPIO_77
NAPA_RESET
GPIO_78
QTZ_INT
GPIO_79
QTZ_RESET
Boot Config Switch
Boot_Config Switch1(S7)
Boot_Config
Boot up InterfaceSelect
S7A
S7B
S7C
0
0
0
SPI NOR. (Default)
0
0
1
eMMC
0
1
0
QPIC, Parallel NAND
0
1
1
USB3.0
1
0
0
SPI-NOR-GPT
S7D
Boot up InterfaceSelect
0Boot from code ram.(Default)
1Boot from ROM
Boot_Config Switch2(S9)
Boot_Config
Boot up InterfaceSelect
0No auth.(Default)
1Auth is required

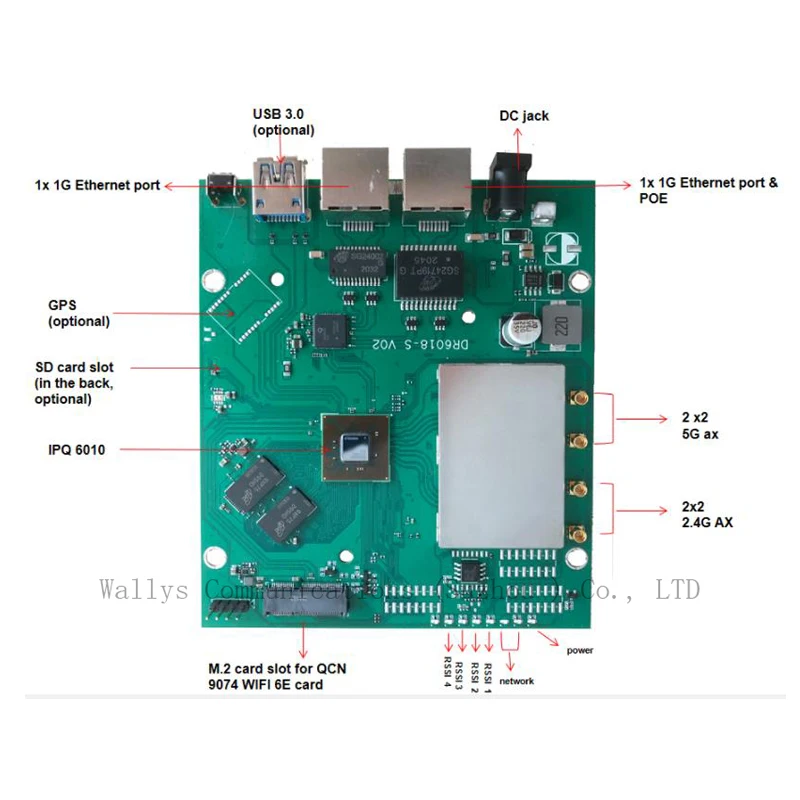

Interface MAP
